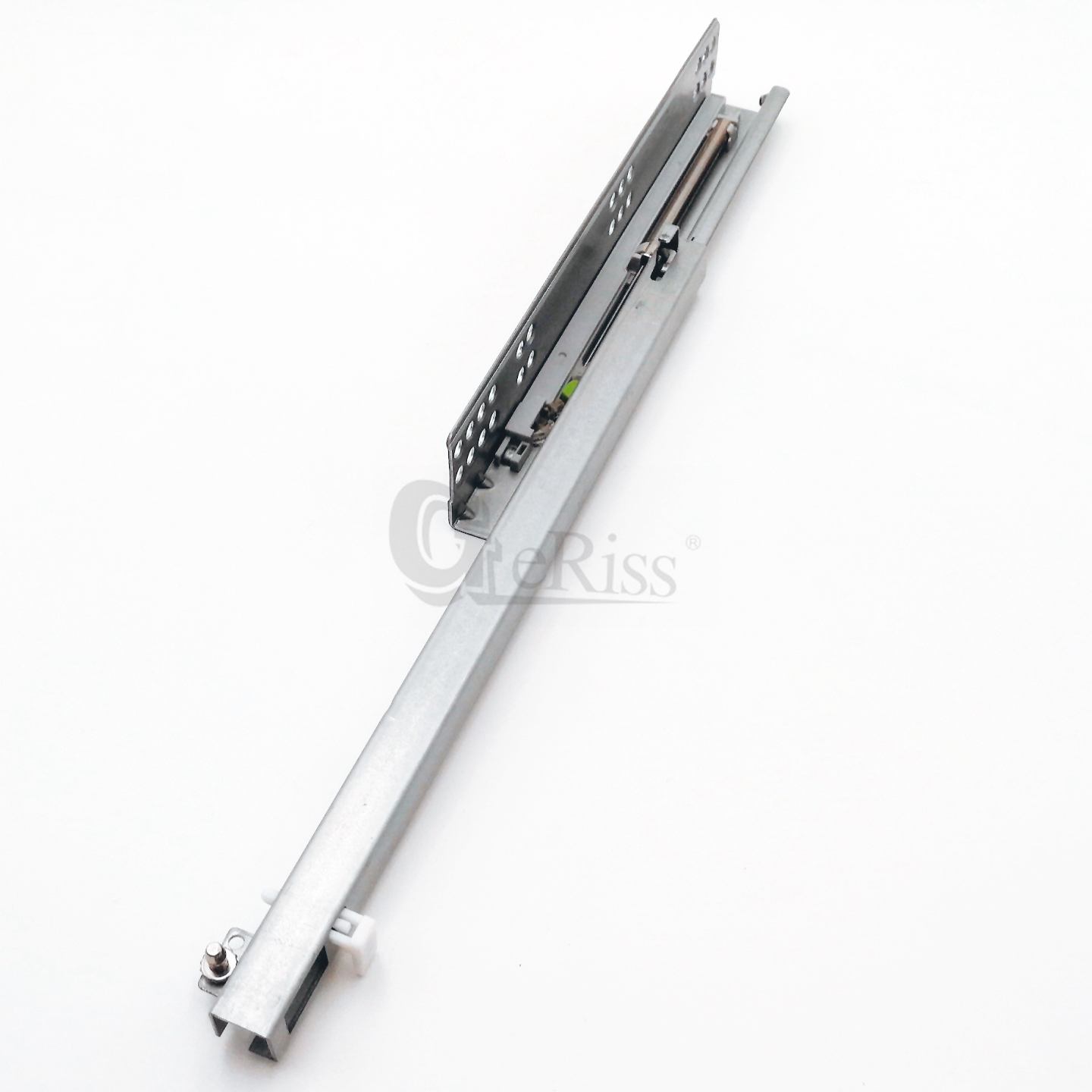

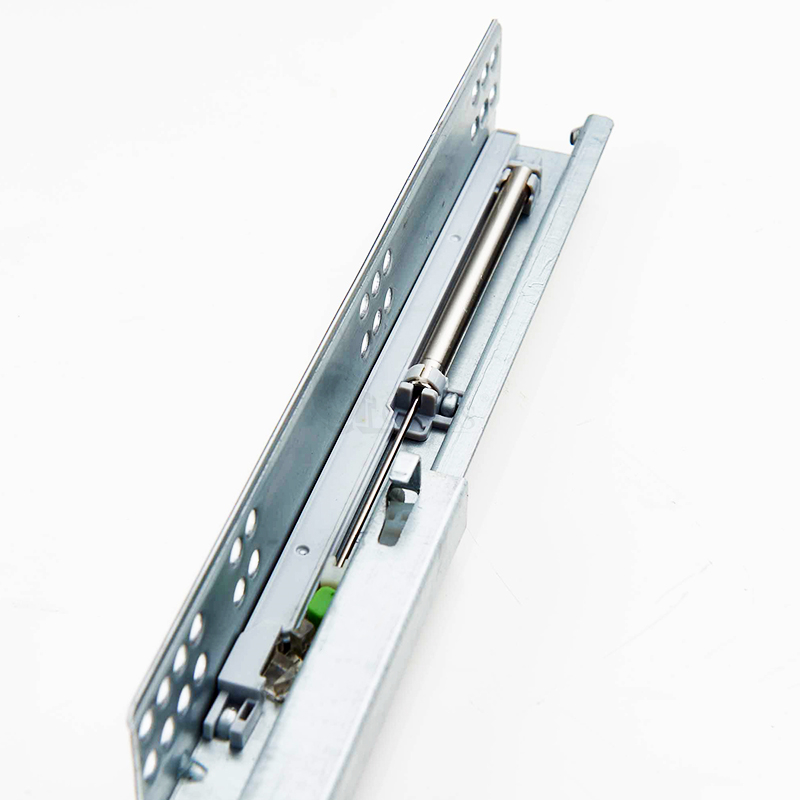

Single Extension Soft Close Undermount Drawer Slide with Adjustable Screws and plugs

Short Description:

Model No.: EUR23A

Single Extension Soft Close Undermount Drawer Slide with Adjustable Screws and plugs usually use for kitchen & bathroom cabinets. This type of undermount drawer slide use adjustable screws and plastic plugs fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.


Download as PDF

Product Detail

Product Tags

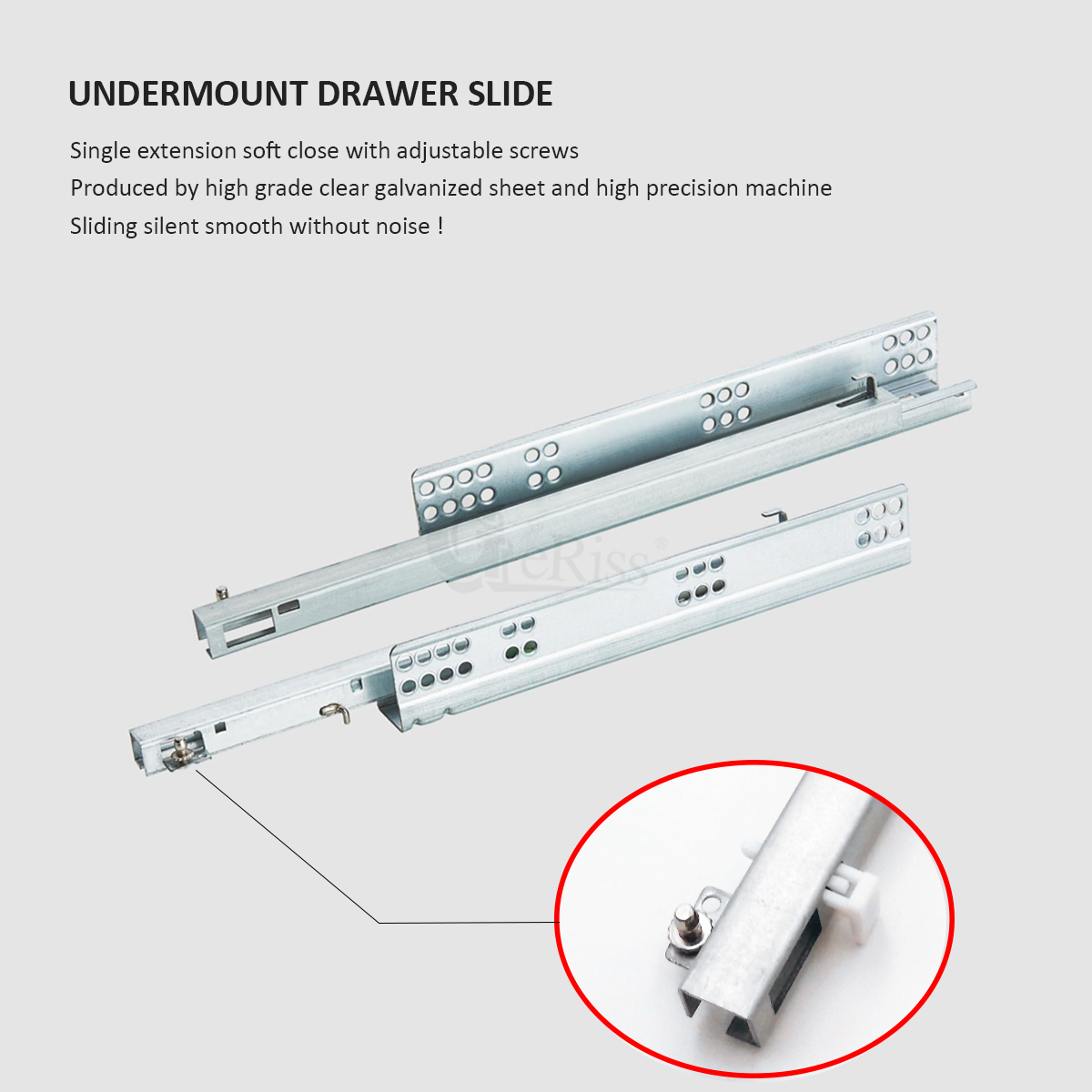

Partial Extension Undermount Slide

Single Extension Soft Close Undermount Drawer Slides

With Adjustable Screws & Plastic Plugs

Product Name：

   Concealed Drawer Slides

Item No.：

   EUR23A

Brand：

   GERISS

Materials：

   Galvanized Sheet

Material Thickness：

   1.5 x 1.5 mm

Surface：

   Zinc Plated

Size Range：

   10 Inch -22 Inch（250mm-550mm）

Load Capacity：

   25.0kg

Opening：

   Single Extension

Installation：

   Bottom Mount of Drawer

Separate Way：

   Adjustable Screws & Plastic Plugs

Application：

   Kitchen & Bathroom Drawers, Furniture Drawers etc.

Cycling Test：

   Over 50,000 times

Features：

   Drawer pull out and close without noise, soft close.

Specification:

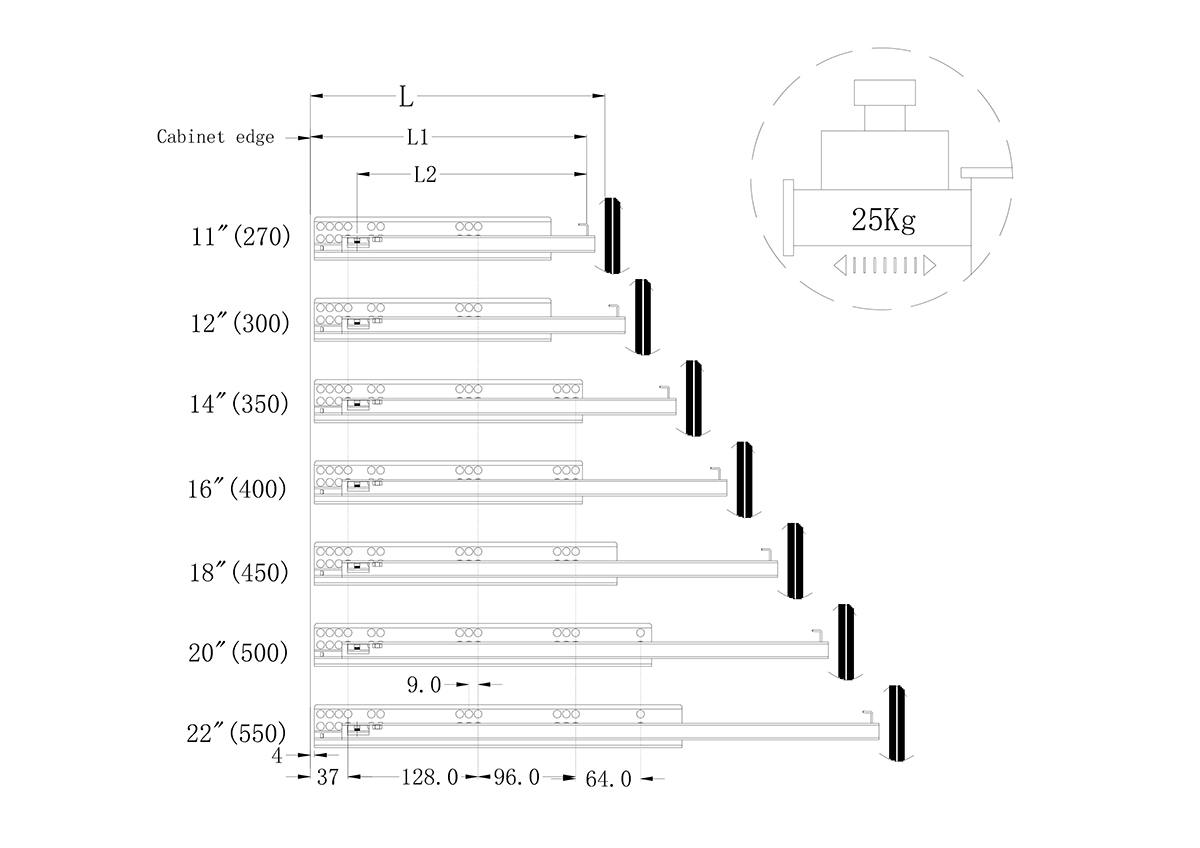

undermount drawer slide size

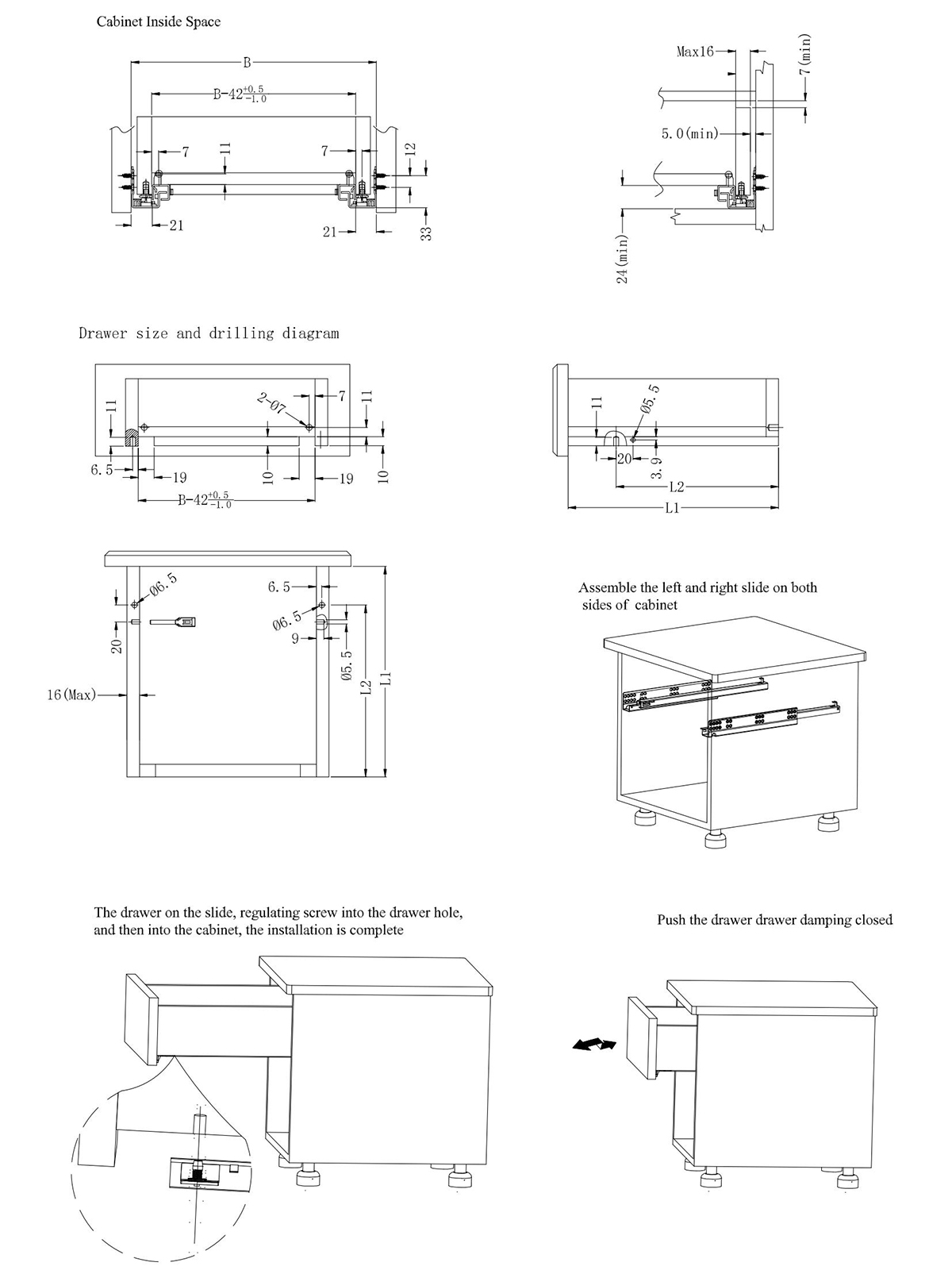

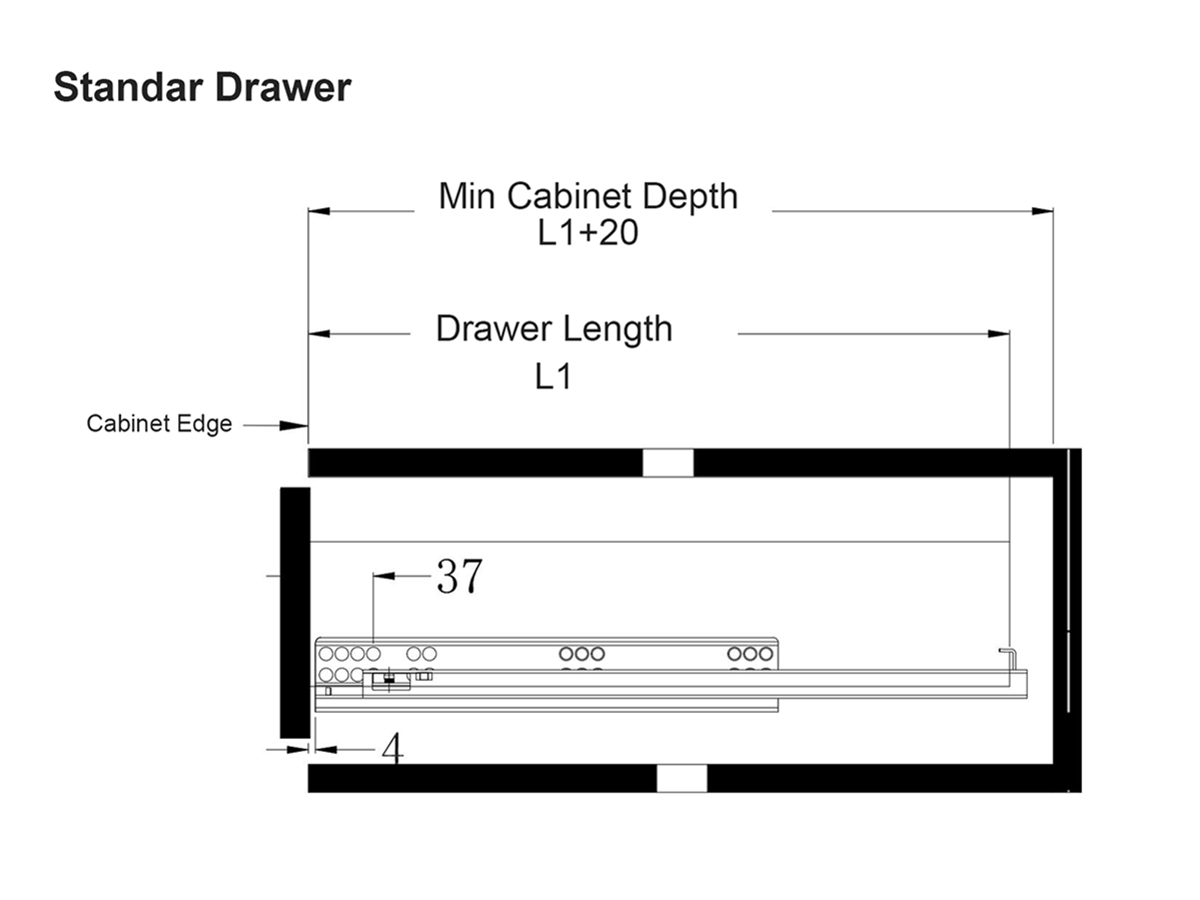

Installation:

Undermount Drawer Slide 001
Undermount Drawer Slide 002

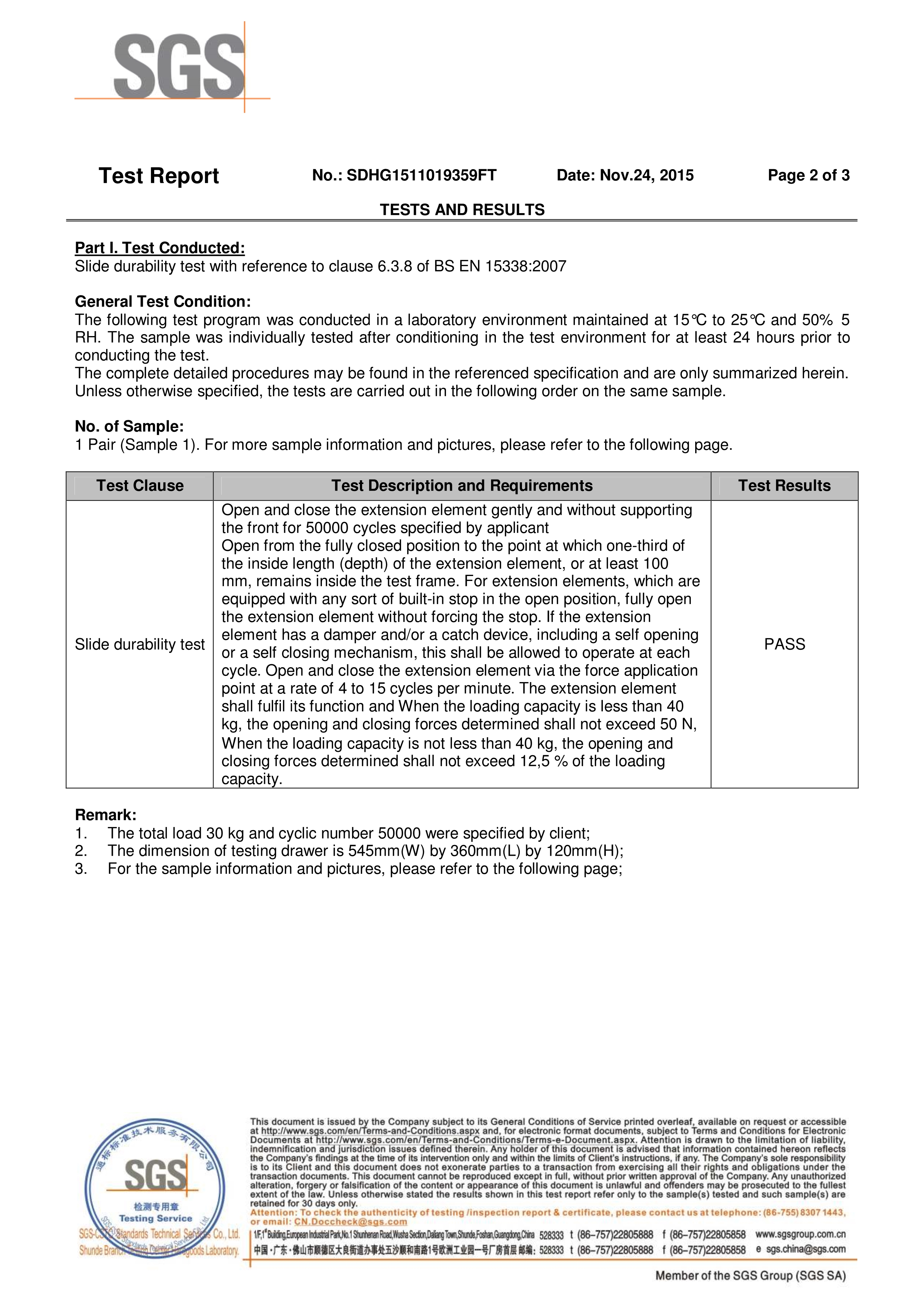

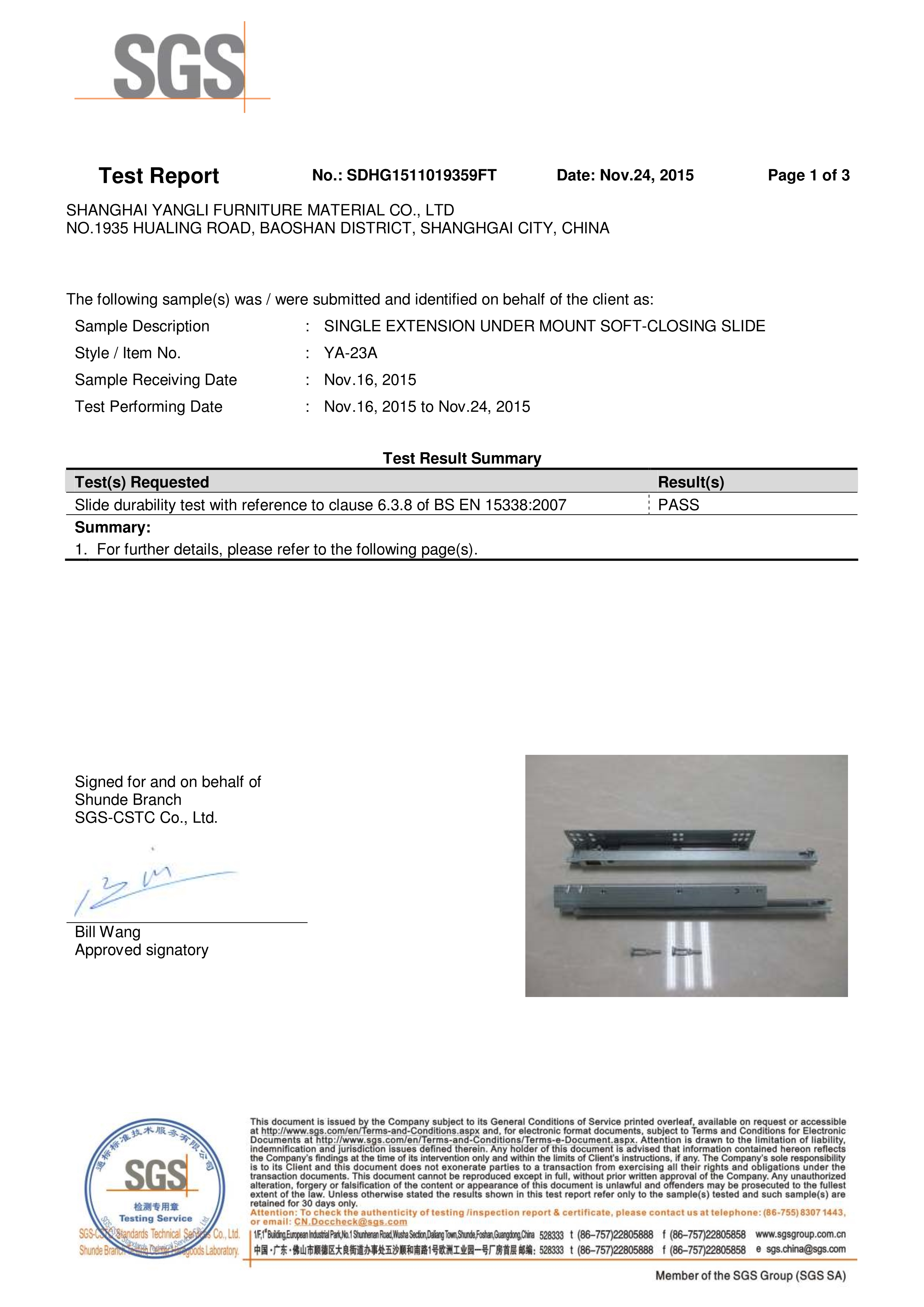

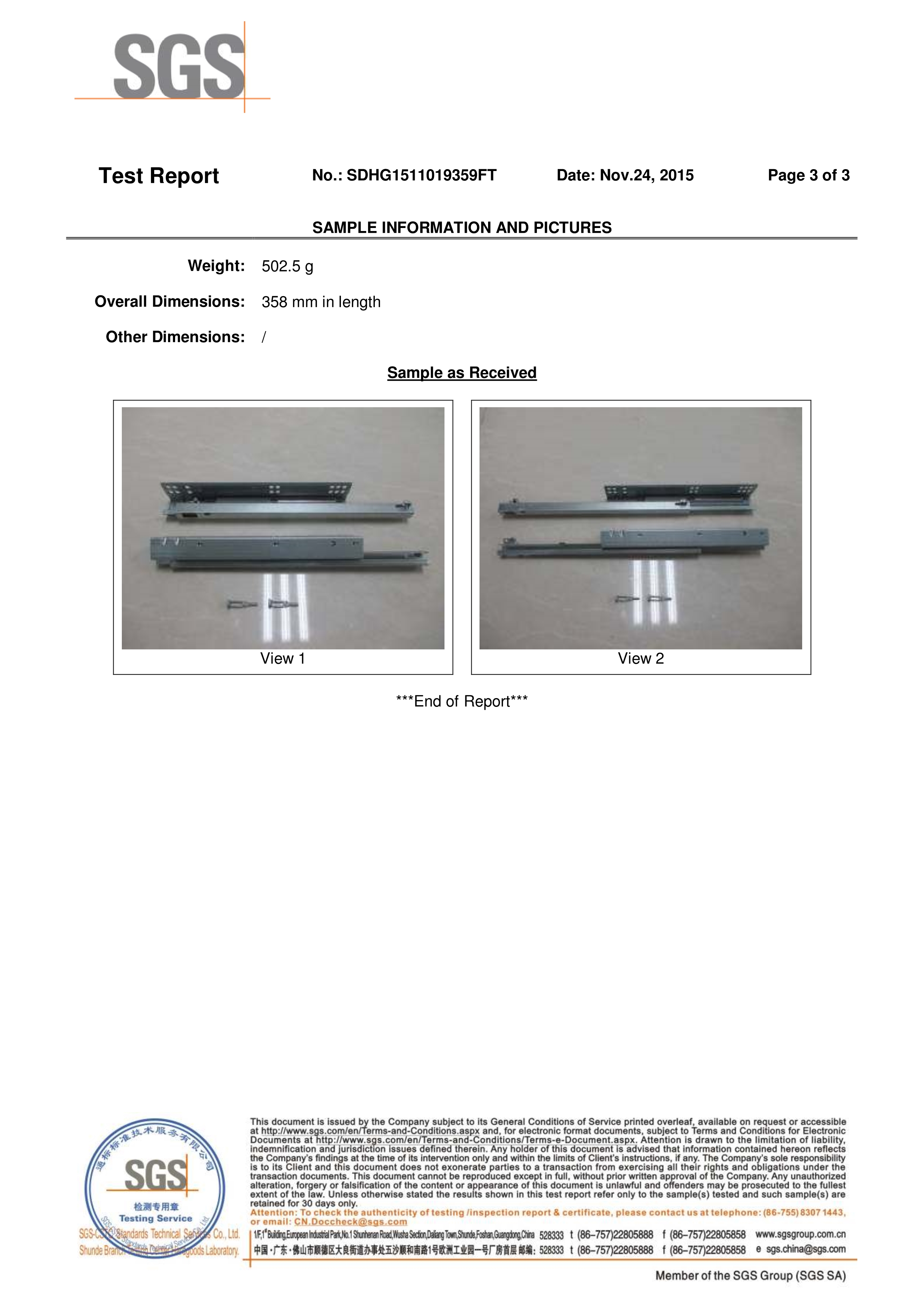

Certification:

Packing Details:

Item No. - 16mm

Item No. - 18mm

Package(SET/CTN)

N.W(KGS)

G.W(KGS)

MEAS(CM)

20' GP

EUR23A16-250

EUR23A18-250

10

5.90

6.10

33x23x9.5

32,000

EUR23A16-300

EUR23A18-300

10

6.55

6.75

38x23x9.5

28,000

EUR23A16-350

EUR23A18-350

10

6.17

9.47

43x23x9.5

20,000

EUR23A16-400

EUR23A18-400

10

10.48

10.78

48x23x9.5

18,000

EUR23A16-450

EUR23A18-450

10

11.79

12.09

53x23x9.5

16,000

EUR23A16-500

EUR23A18-500

10

13.10

13.40

58x23x9.5

14,800

EUR23A16-550

EUR23A18-550

10

14.30

14.60

58x23x9.5

13,000
Package
