H88mm Soft Closing Slim Double Wall Drawer Slide

Short Description:

Model No.: M04-88

Soft closing slim double wall drawer slide usually use for kitchen & bathroom cabinets. This type of soft closing slim double wall drawer slide use undermount drawer slide with gear. The feature is the slides working silent smooth and full extension synchronization without noise. If you are interested in our slim box drawer system, please feel free to contact us.

Send email to us Download as PDF

Product Detail

Product Tags

Description:

Product Name:	H88mm soft close slim box double wall drawer system
Item No.:	M02-88
Material:	Cold Rolled Steel
Load Capacity:	35 KG (450mm as standard)
Drawer Height:	88 mm
Drawer Length:	270mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm and customize is available
Extension:	Fully extension
Function:	Silent smooth soft close
Cycling Test:	Over 50,000 times
Available Accessories:	Extra height rods
Application:	Kitchen & Bathroom Cabinets, Office Furniture, etc...

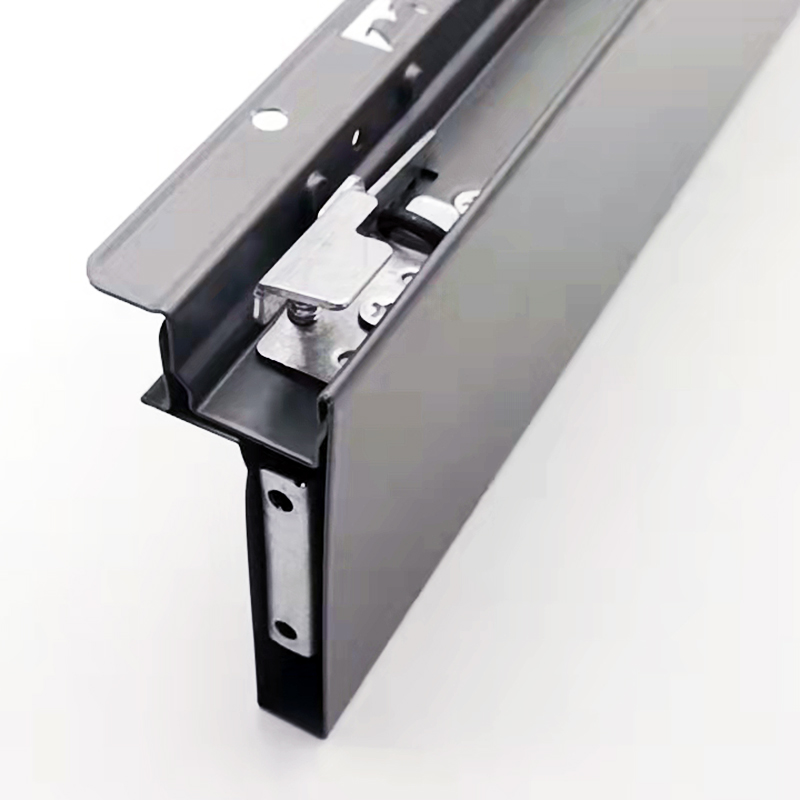

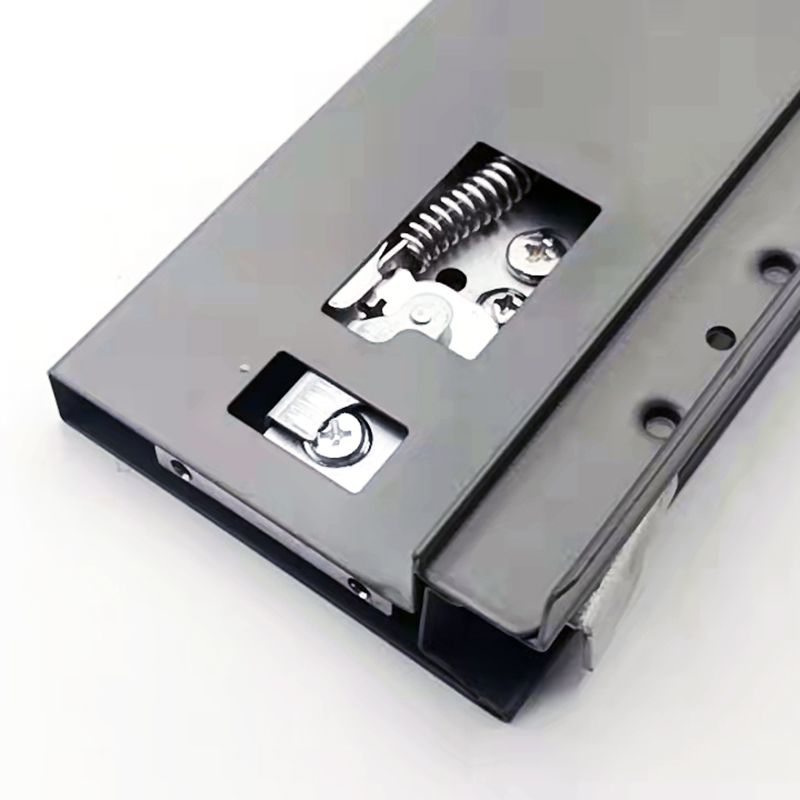

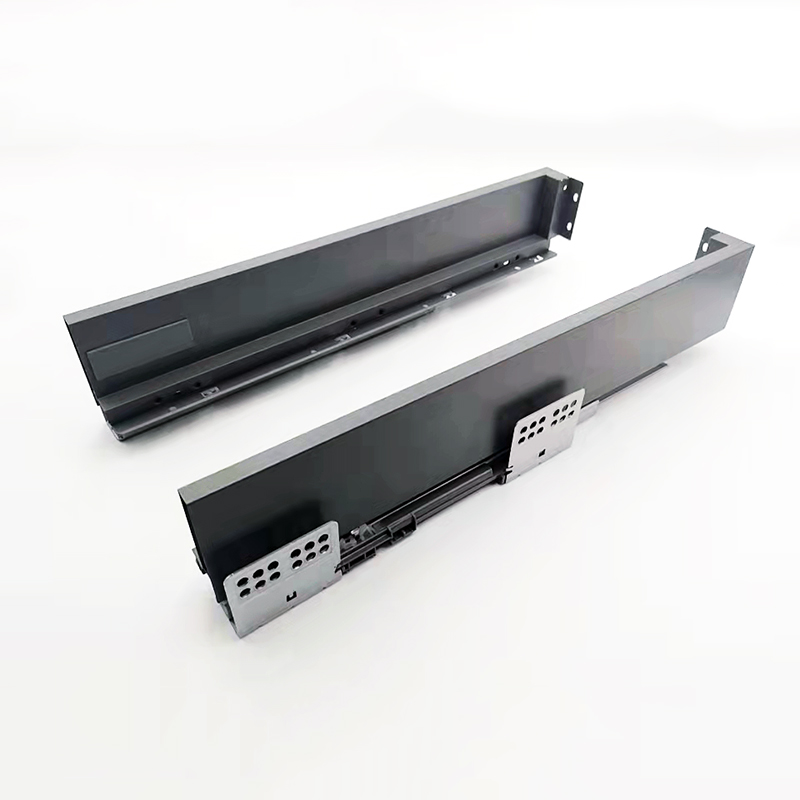

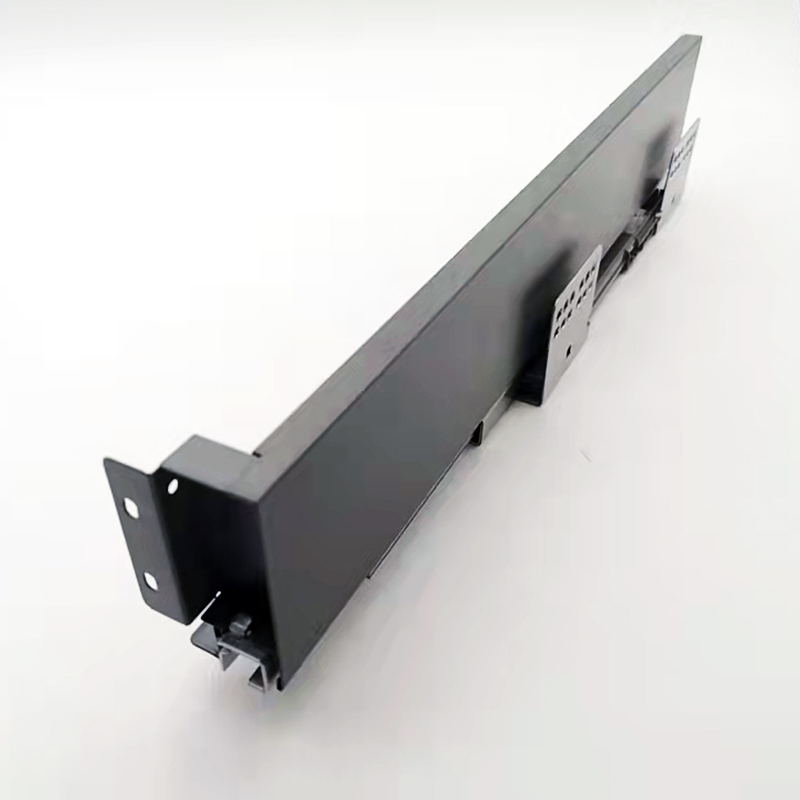

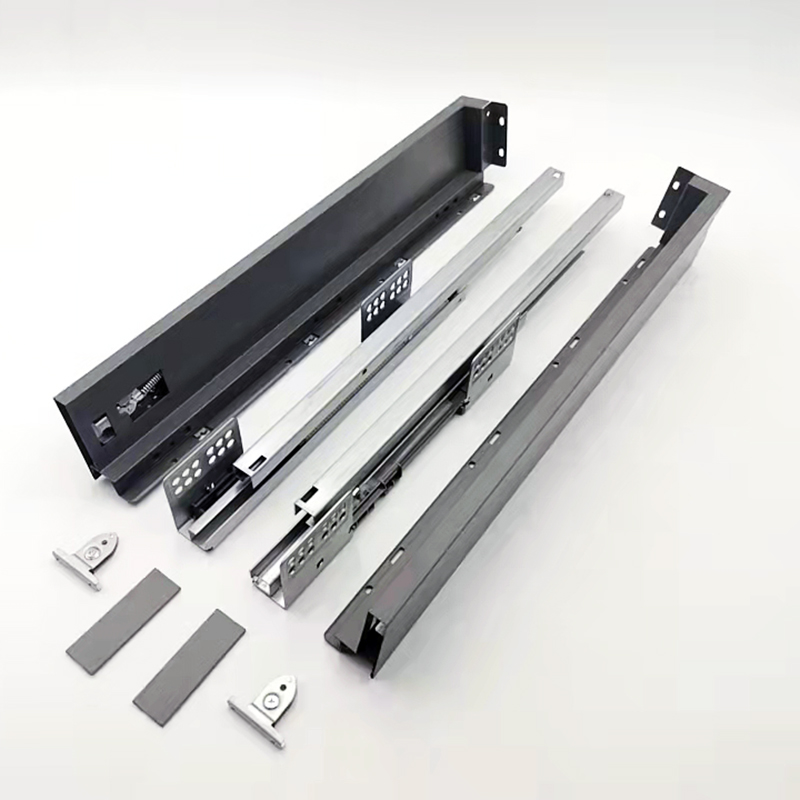

Details Photos:

Installation:

Order Information:

Length	White	Graphite	Drawer Length	Min Cabinet Depth
270mm	M04.88.270W	M04.88.270G	260mm	292mm
300mm	M04.88.300W	M04.88.300G	290mm	322mm
350mm	M04.88.350W	M04.88.350G	340mm	372mm
400mm	M04.88.400W	M04.88.400G	390mm	422mm
450mm	M04.88.450W	M04.88.450G	440mm	472mm
500mm	M04.88.500W	M04.88.500G	490mm	522mm
550mm	M04.88.550W	M04.88.550G	540mm	572mm
