53mm Full extension soft close heavy duty telescopic slide,ball bearing drawer runner

Short Description:

Model No.: YA-5302

53mm Full extension soft close heavy duty telescopic slide,ball bearing drawer runner produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.

Send email to us Download as PDF

Product Detail

Product Tags

Description:

Product Name:	Silent smooth soft close full extension heavy duty ball bearing slide
Material:	Cold Rolled Steel
Material Thickness:	2.02.02.0 mm

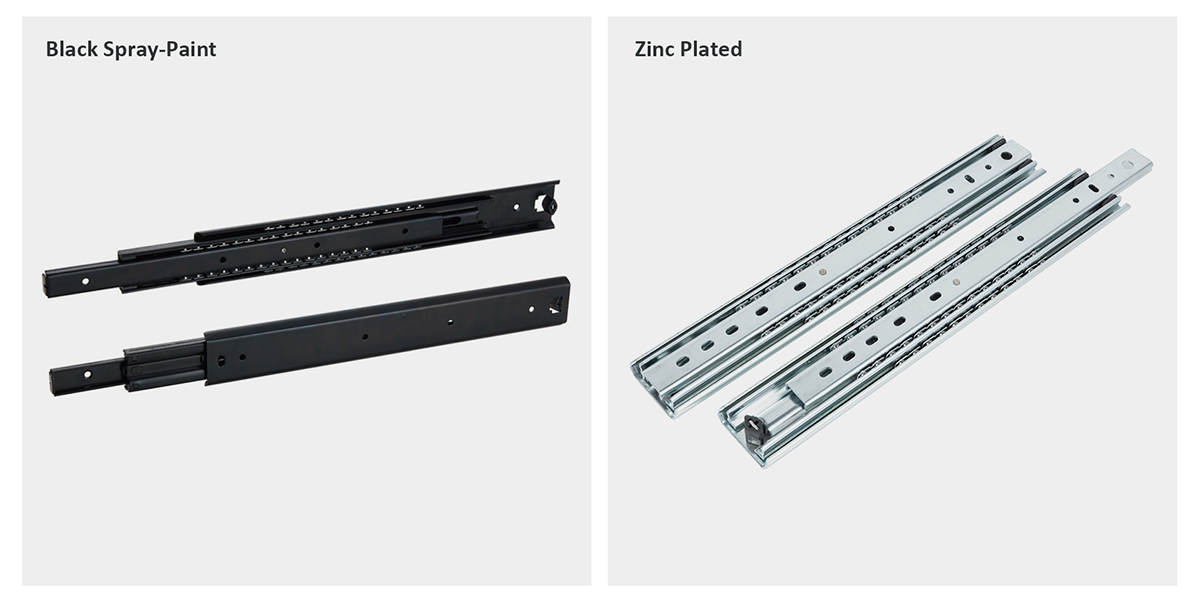

Surface:	Zinc Plated, Electrophoresis Black
Load Capacity:	80-100 KGS (450mm as standard)
Cycling:	Over 50,000 times
Size Range:	10”-24” (250-600mm), customize is available
Installation:	Side mount with screws
Feature:	Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

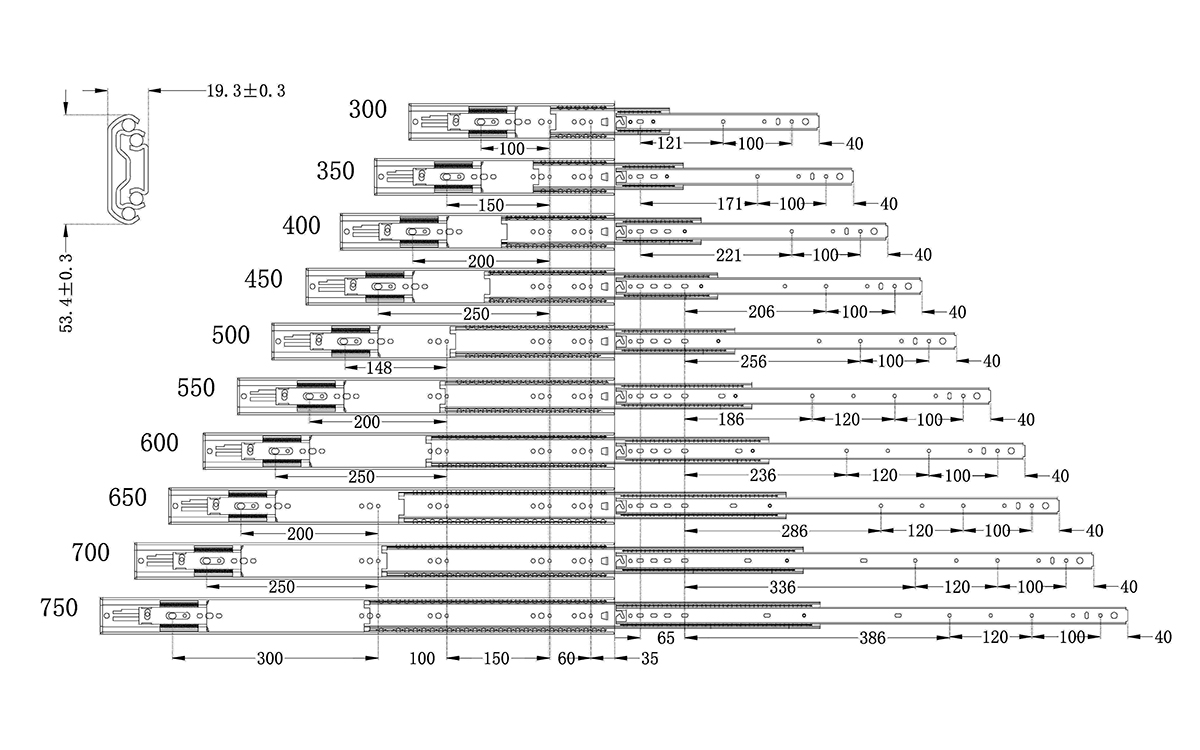

Specification:

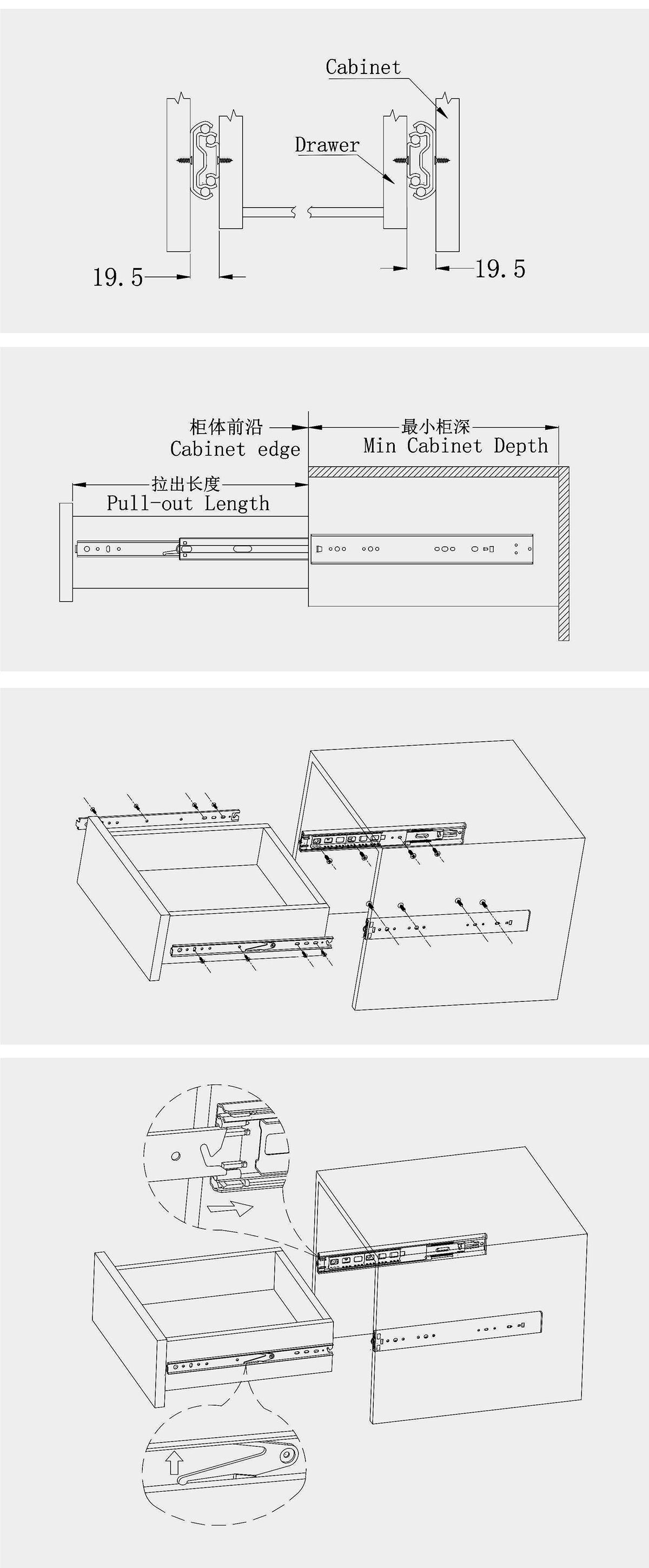

Installation Instruction:

Package Information:

ITEM NO.	SIZE	SET/CTN	N.W(KGS)/CTN	G.W(KGS)/CTN	MEAS(CM)/CTN
YA.5302.250	250mm	5	7.5	7.7	27x28.5x5.5
YA.5302.300	300mm	5	9	9.2	32x28.5x5.5
YA.5302.350	350mm	5	10.5	10.7	37x28.5x5.5
YA.5302.400	400mm	5	12	12.2	42x28.5x5.5
YA.5302.450	450mm	5	13.5	13.7	47x28.5x5.5
YA.5302.500	500mm	5	15	15.2	52x28.5x5.5
YA.5302.550	550mm	5	16.5	16.7	57x28.5x5.5
YA.5302.600	600mm	5	18	18.2	62x28.5x5.5
YA.5302.650	650mm	5	21	21.2	67x28.5x5.5
YA.5302.700	700mm	5	22.4	22.6	72x28.5x5.5
YA.5302.750	750mm	5	24	24.2	77x28.5x5.5
YA.5302.800	800mm	5	25.6	27.8	82x28.5x5.5
