Full extension synchronization soft close undermount drawer slides

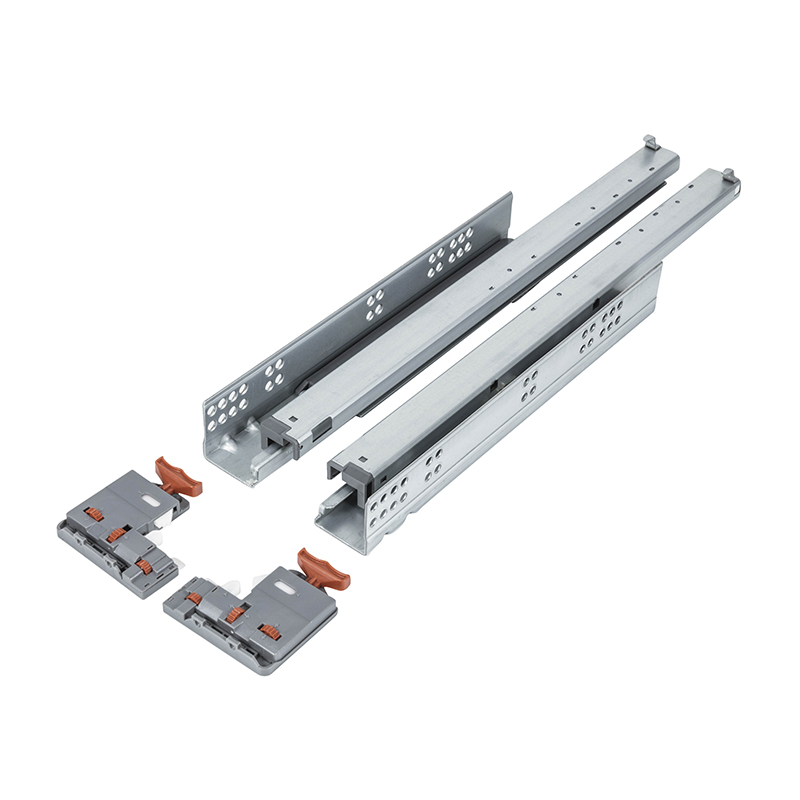

Product pictures

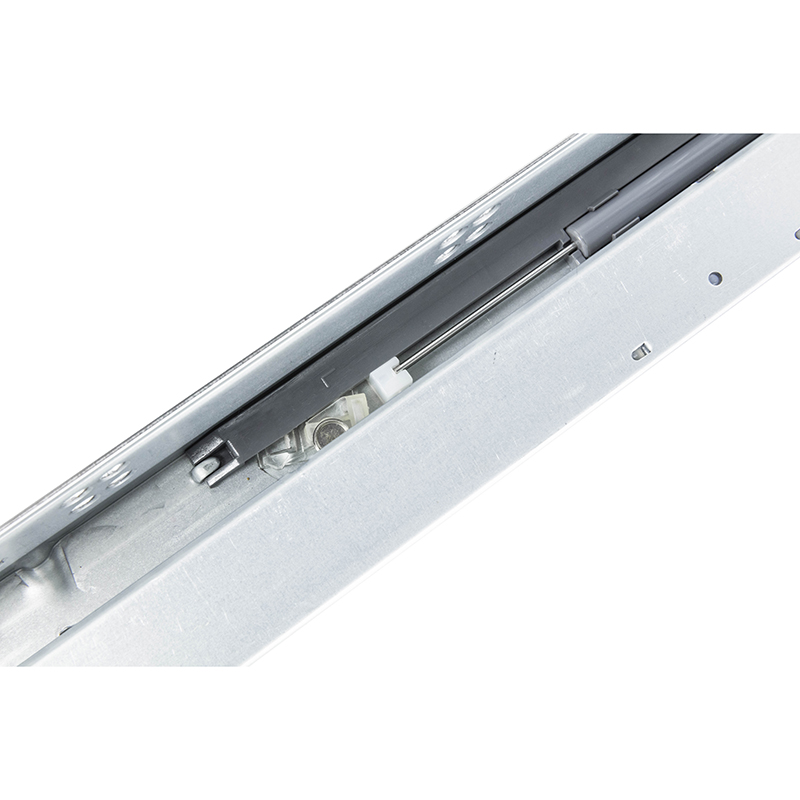

4L1A0534
4L1A0535
4L1A0537

Product parameters

Product Name: Synchronized undermount drawer slides soft closing
Product Material: Galvanized sheet
Material Thickness: 1.8x1.5x1.0 mm
Accessories: 3D front locking devices
Load Capacity: 35.0 KG (450 mm as standard)
Cycling: Over 50,000 times
Size Range: 10”-24” (250-600 mm), customized is available
Installation: Connect with 3D front locking devices
Application: Frame-less cabinet drawers
Future: Slides three section synchronous extension, front bracket adjusting range 2.5mm with left and right, up and down, front and back.

Product Video

Regular size

Item No. (16mm)

Item No. (18mm)

Slide Length

Drawer Length (L1)

Pull Out Length

Standard Drawer Min.Cabinet Depth

Inner Drawer Min. Cabinet Depth

EUR33BS(16)-270

EUR33BS(18)-270

280mm

270mm

252mm

292mm

308mm

EUR33BS(16)-300

EUR33BS(18)-300

310mm

300mm

282mm

322mm

338mm

EUR33BS(16)-350

EUR33BS(18)-350

360mm

350mm

332mm

372mm

388mm

EUR33BS(16)-400

EUR33BS(18)-400

410mm

400mm

382mm

422mm

438mm

EUR33BS(16)-450

EUR33BS(18)-450

460mm

450mm

432mm

472mm

488mm

EUR33BS(16)-500

EUR33BS(18)-500

510mm

500mm

482mm

522mm

538mm

EUR33BS(16)-550

EUR33BS(18)-550

560mm

550mm

532mm

572mm

588mm
Concealed-Drawer-Slide-0032

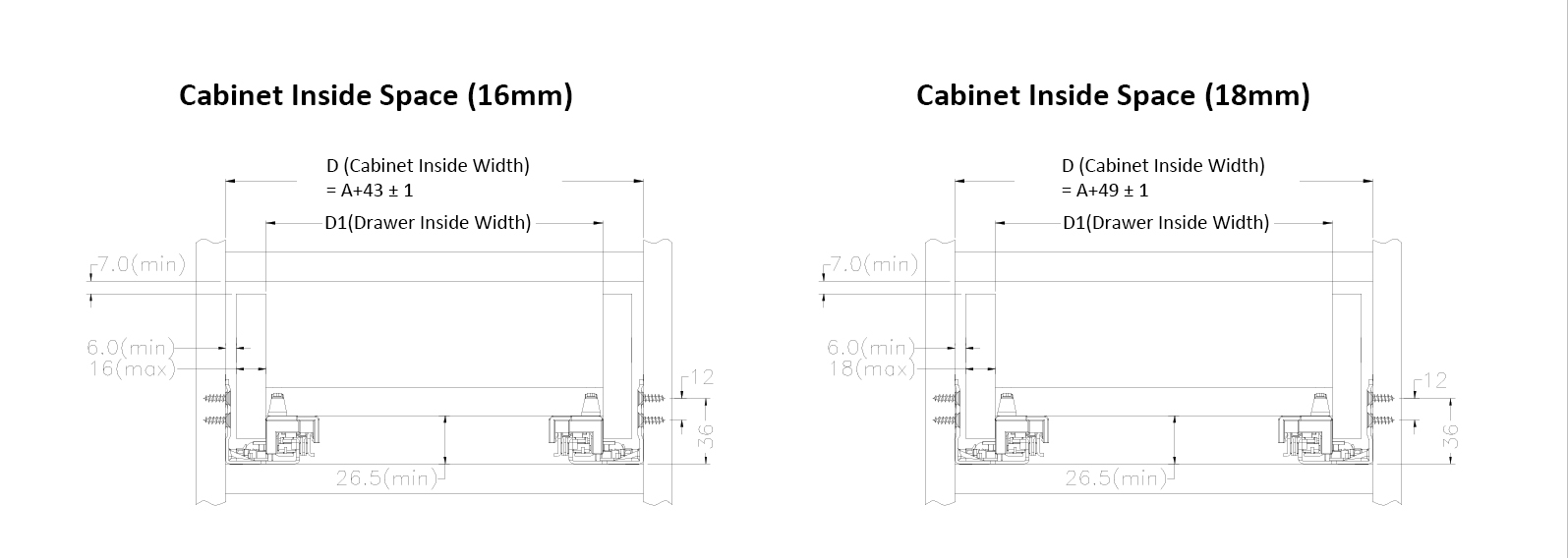

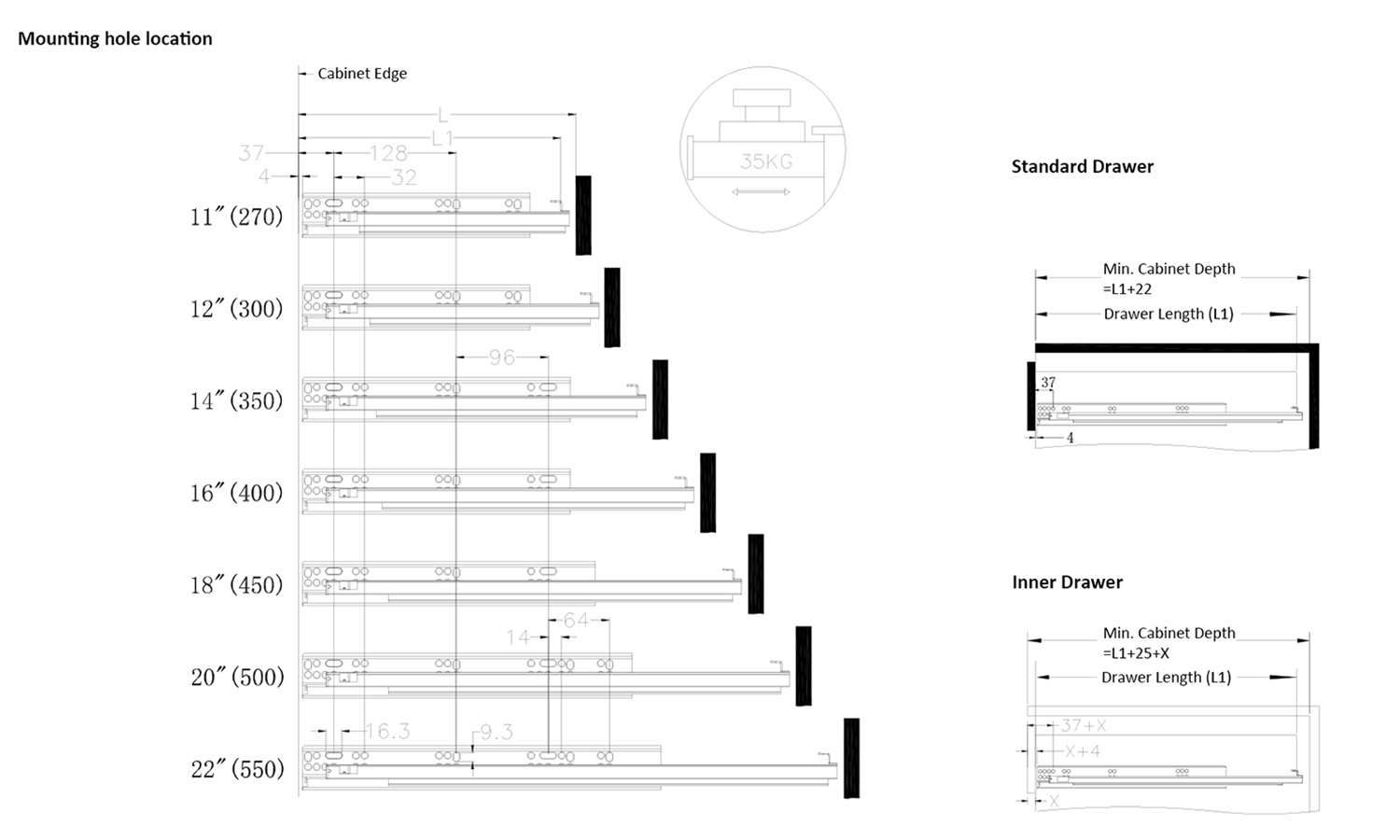

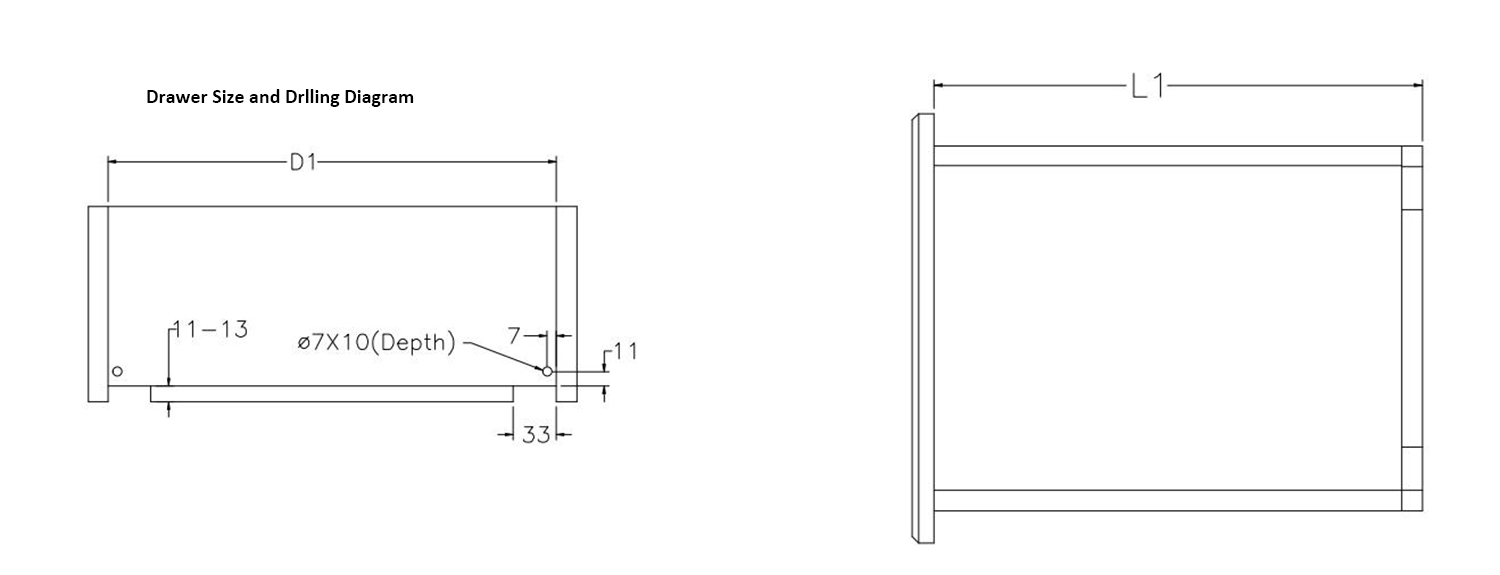

Installation diagram

Packaging data

ITEM NO.

SIZE

CARTON SIZE

N.W(KGS)/CTN

G.W(KGS)/CTN

SET/CTN

EUR33BS

250MM

27.5x28.5x12cm

11.95

12.15

10

300MM

32.5x28.5x12cm

14.34

14.54

10

350MM

37.5x28.5x12cm

15.36

15.56

10

400MM

42.5x28.5x12cm

16.55

16.75

10

450MM

47.5x28.5x12cm

18.85

19.05

10

500MM

52.5x28.5x12cm

21.05

21.25

10

550MM

57.5x28.5x12cm

23.40

23.60

10

How to produce

How to produce the undermount drawer slides?

Step 1.

The undermount drawer slides from GERISS HARDWARE produced by high precision rolling machines.

1

Step 2.

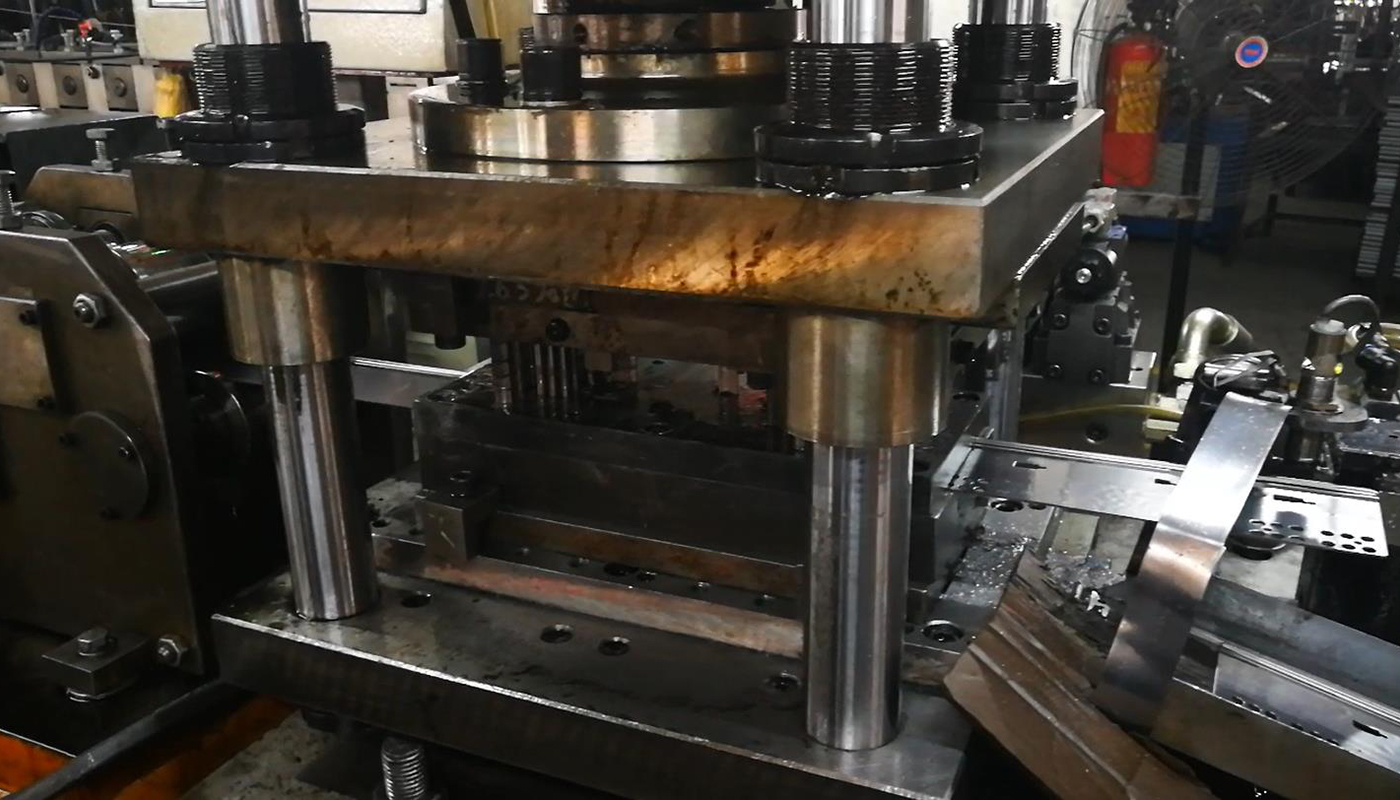

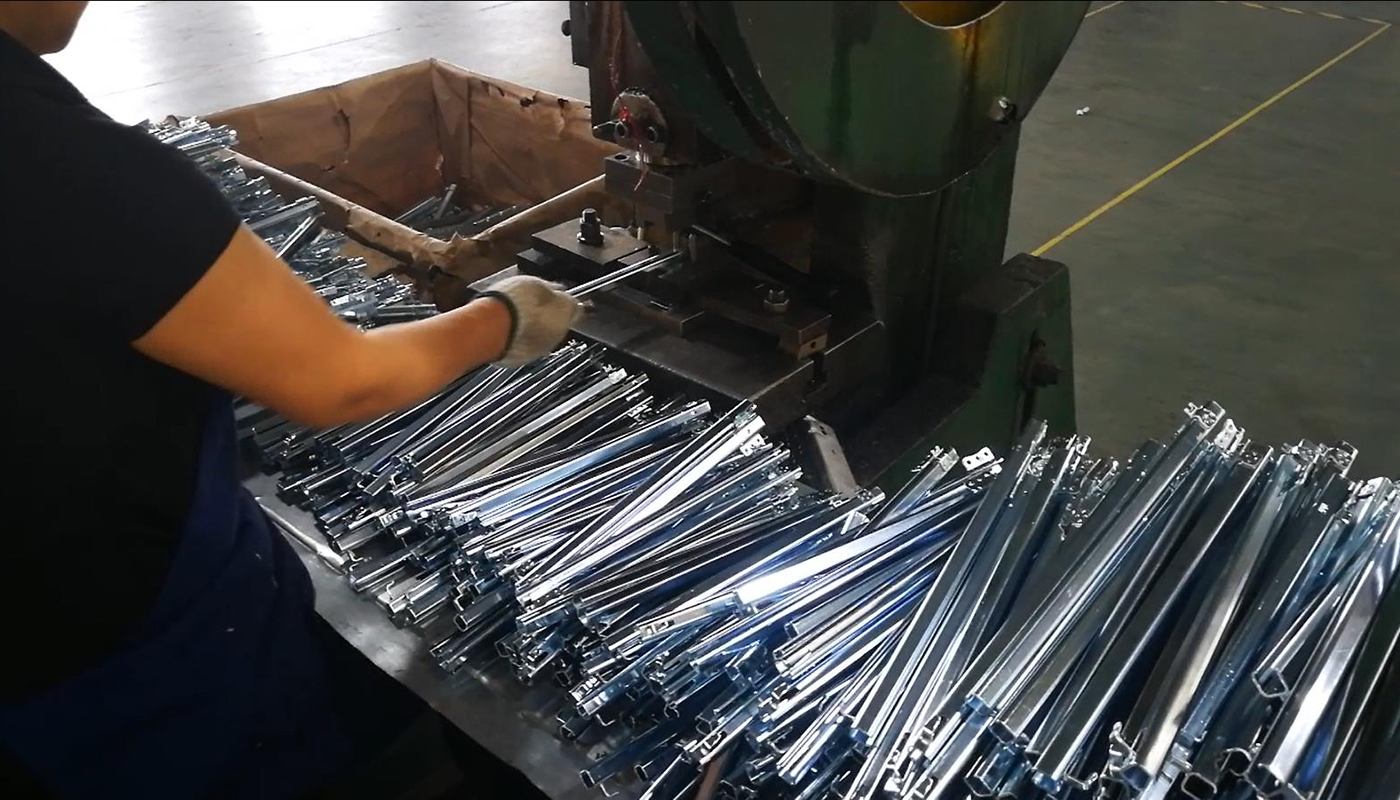

After rolling forming, the undermount drawer slides will be processed on the punch press for further processing. Mainly according to customer requirements for special drilling and bending.

2

Step 3.

After stamping, the drawer slides will be go to the assembly line. When finished the assembly, the concealed drawer slides will package and send to the customers.

sdr

How to control quality

GERISS has supplied drawer slides to many world famous companies. Our excellent quality and good reputation are the basis of our cooperation with our customers. The GERISS production site is equipped with its own test room to conduct salt spray testing and product durability testing according to customer requirements.

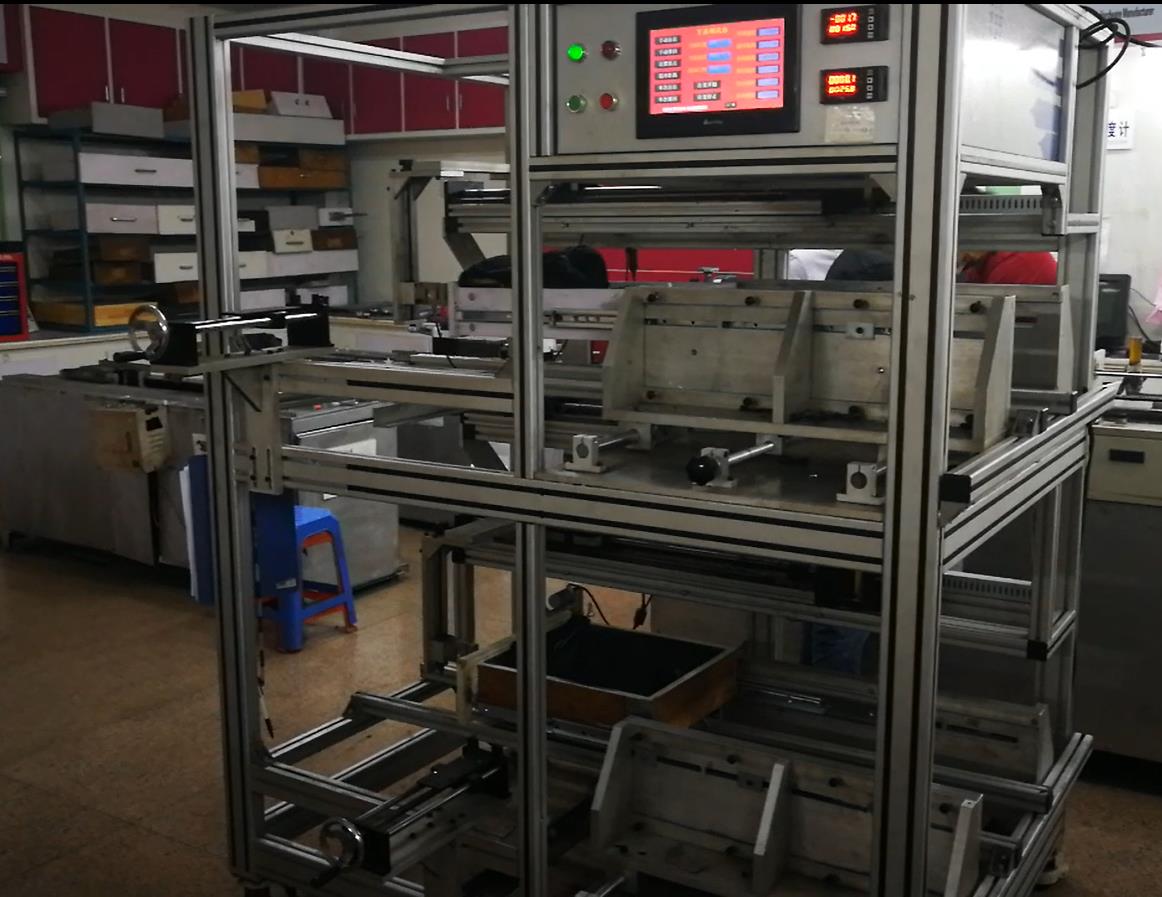

1. durability testing machine

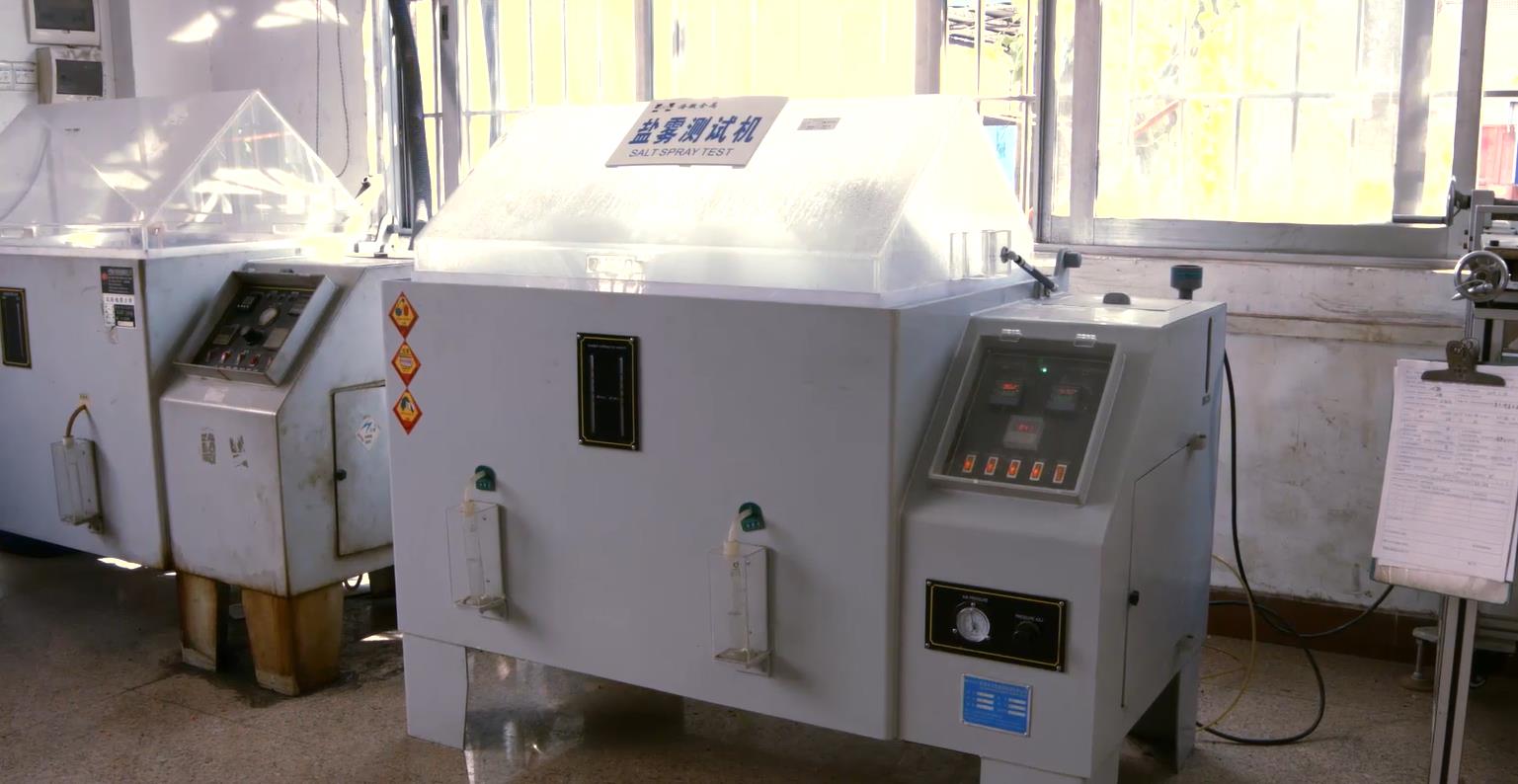

2. Salt Spray Test machine
