Full Extension Undermount Heavy Duty Soft Close Drawer Glides,Kits-Includes 3D Front Clips and Rear Brackets

Short Description:

Model No.: US34B-3D

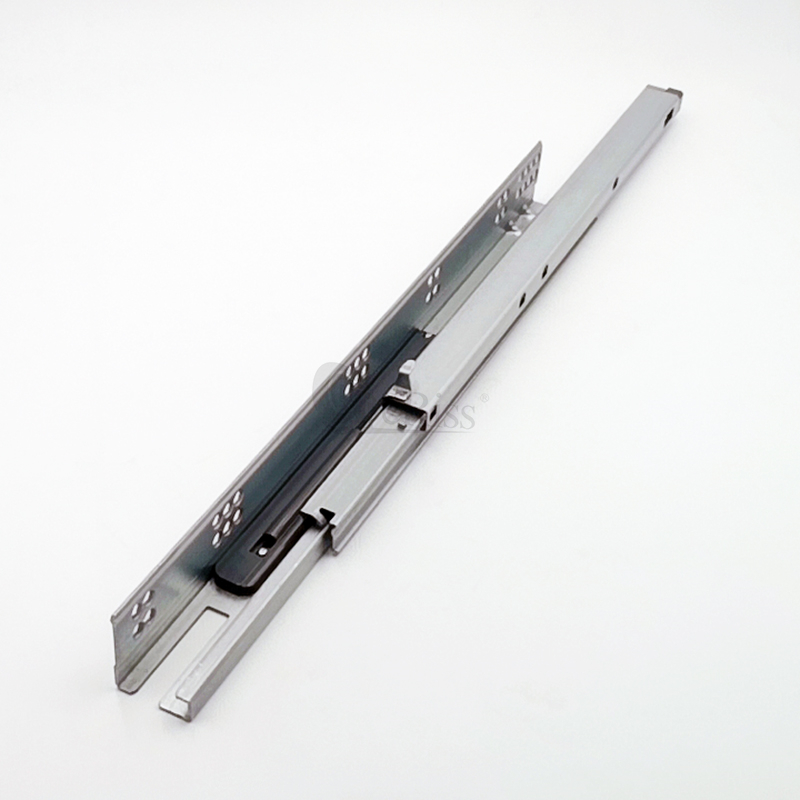

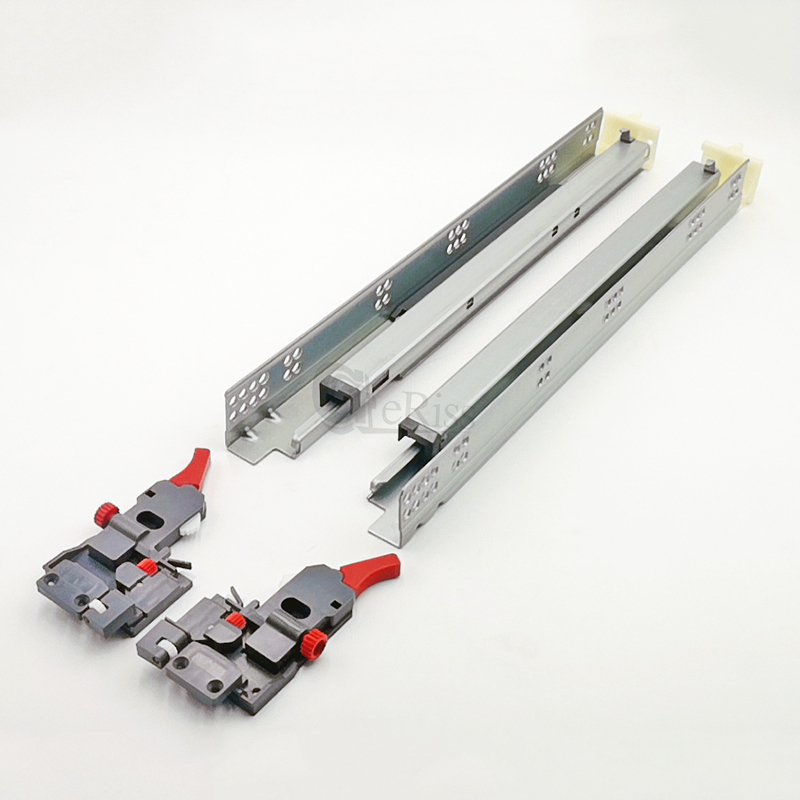

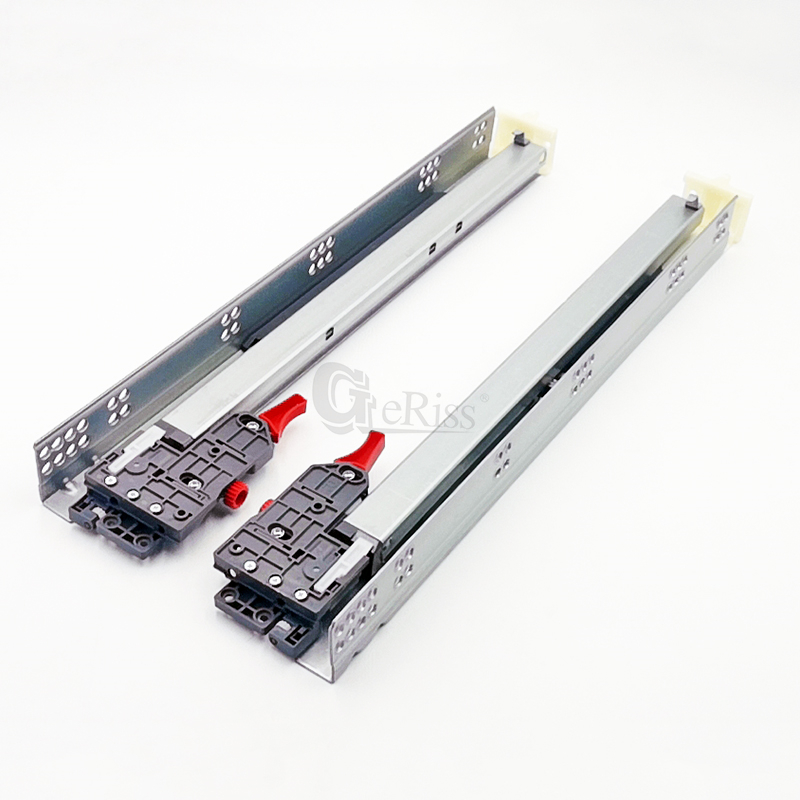

Full extension undermount heavy duty soft close drawer glides,kits-includes 3D front clips and rear brackets usually use for face frame kitchen & bathroom cabinets. This type of undermount drawer slide use 3D locking devices to fix to the wooden drawers. Owning high-precision TAIWAI machine,with superior design concept our excellent technical team carefully manufacture exquisite and prefect GERISS hardware which is the best choice of global furniture companies.

Product Detail

Product Tags

Installation Video:

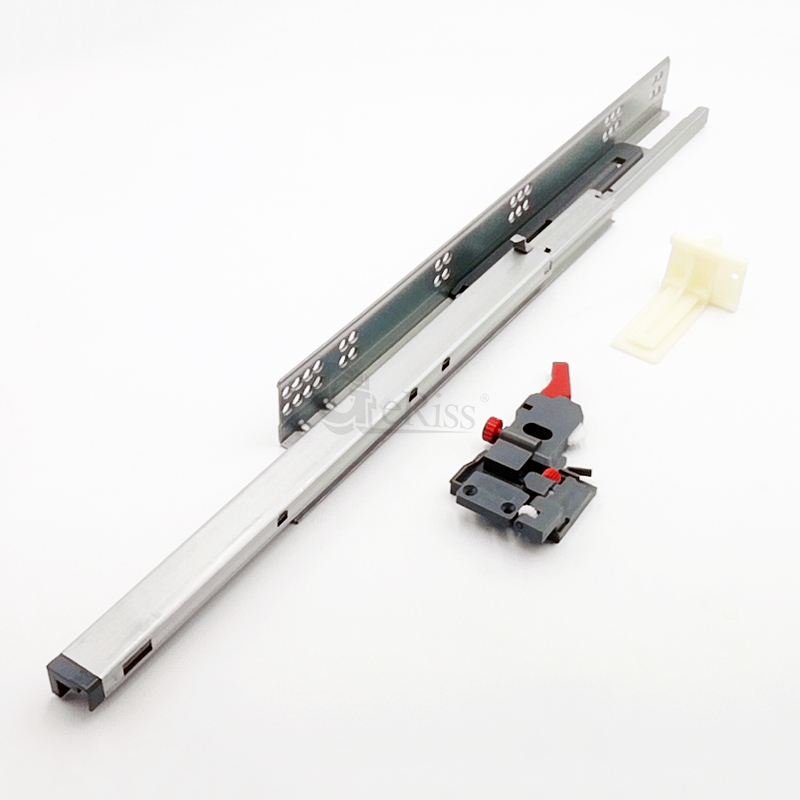

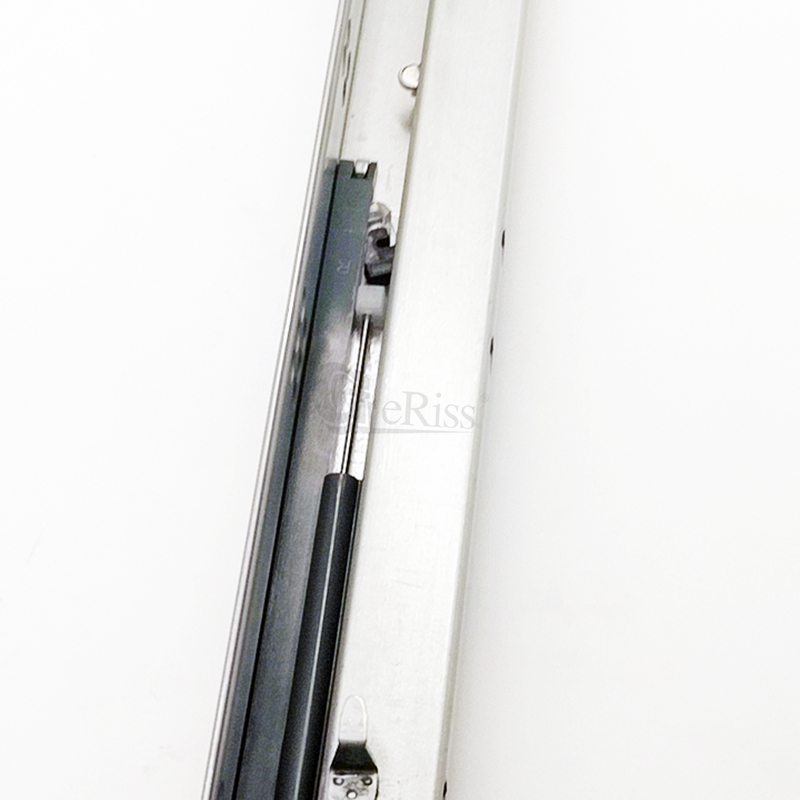

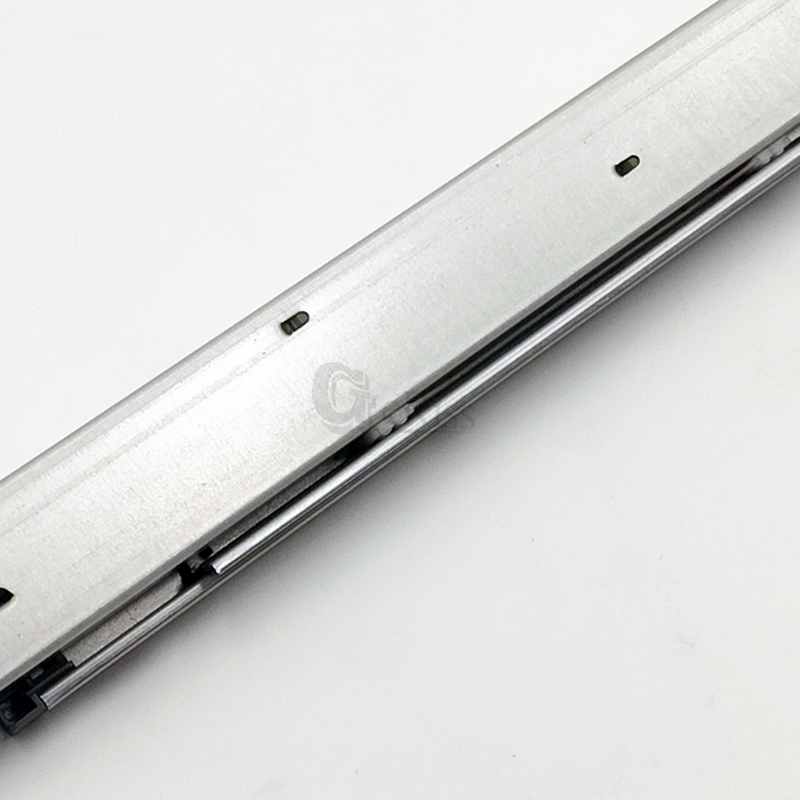

Product Name Undermount Soft Close Drawer Slides Full Extension Concealed Drawer Rails with Mounting Screws,3D Locking Device and Rear Brackets
Material Galvanized Sheet
Material Thickness 1.8*1.5*1.0mm
Load Rating 35 KGS
Cycling Over 50,000 time
Length 12“-21”, customize is available
Feature Silent smooth soft close
Installation Connect with front clips and back connectors
Clips adjustment range 2.5mm ( 3D adjustable )
Service ODM & OEM
Application American type face frame kitchen & bathroom cabinets

Mounting Hole Location:

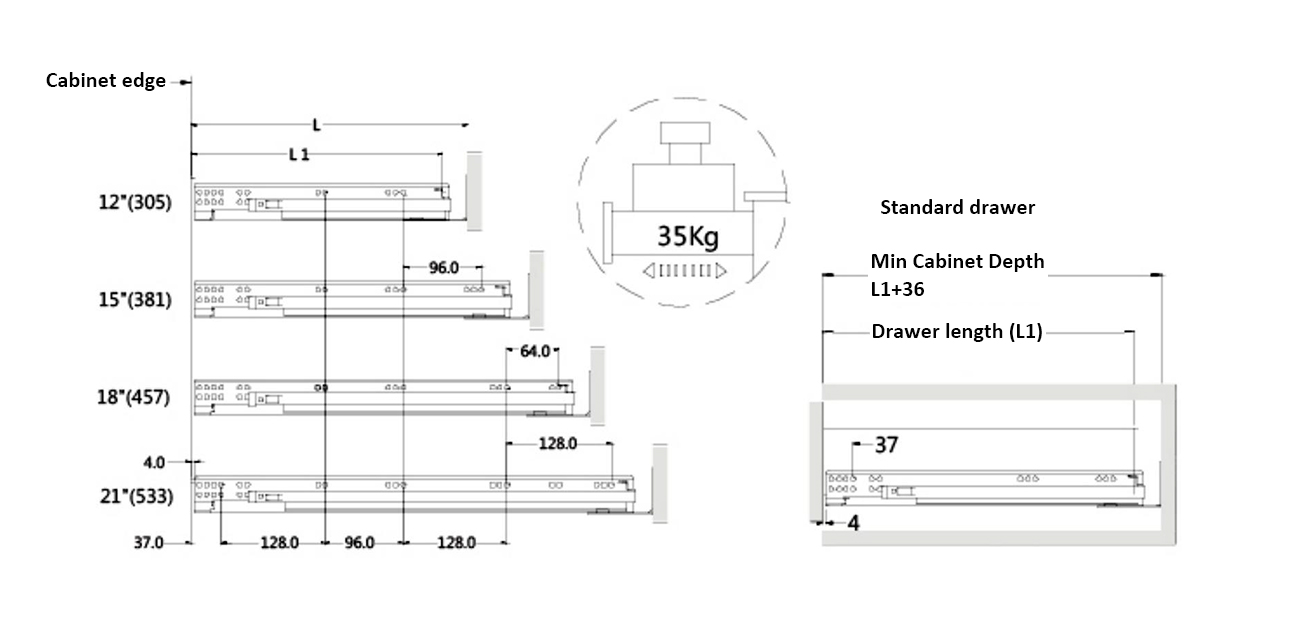

undermount drawer glide size
Item No.(16mm) Item No.(18mm) Slide Length Drawer Length (L1) Pull-out Length Min. Cabinet Depth (L)
US34B-3D-16-12" US33B-3D-18-12" 315mm 305mm 287mm 341±8mm
US34B-3D-16-15" US33B-3D-18-15" 391mm 381mm 363mm 417±8mm
US34B-3D-16-18" US33B-3D-18-18" 467mm 457mm 439mm 493±8mm
US34B-3D-16-21" US33B-3D-18-21" 543mm 533mm 515mm 569±8mm

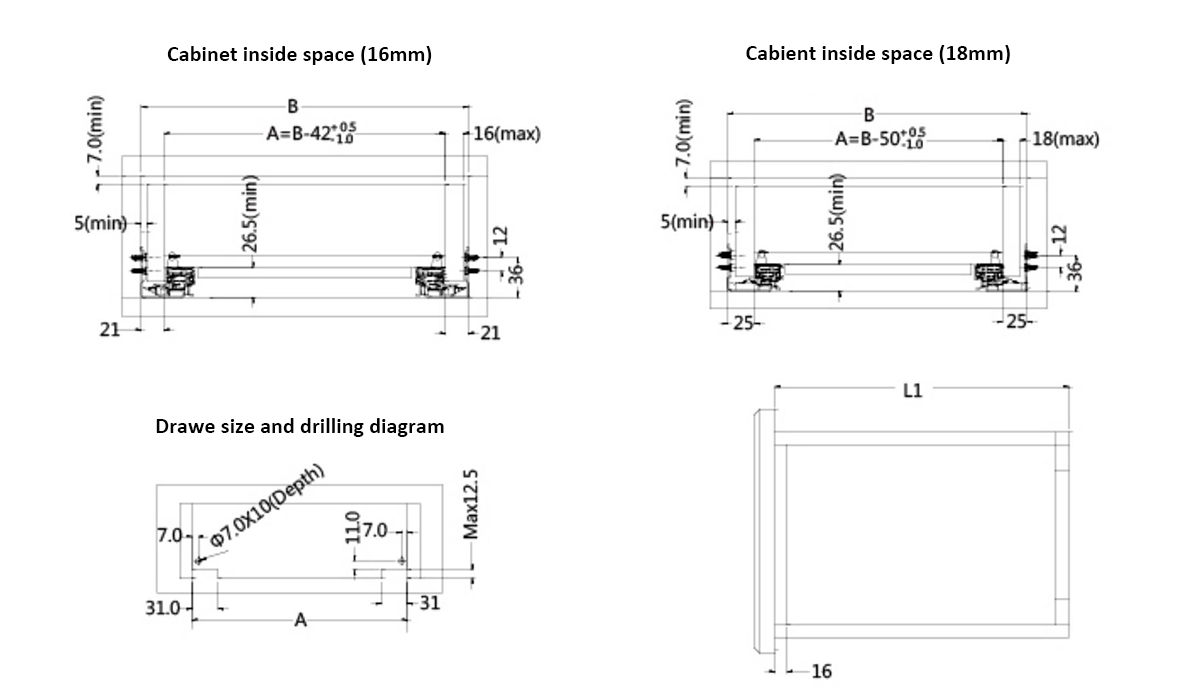

Cabinet inside space

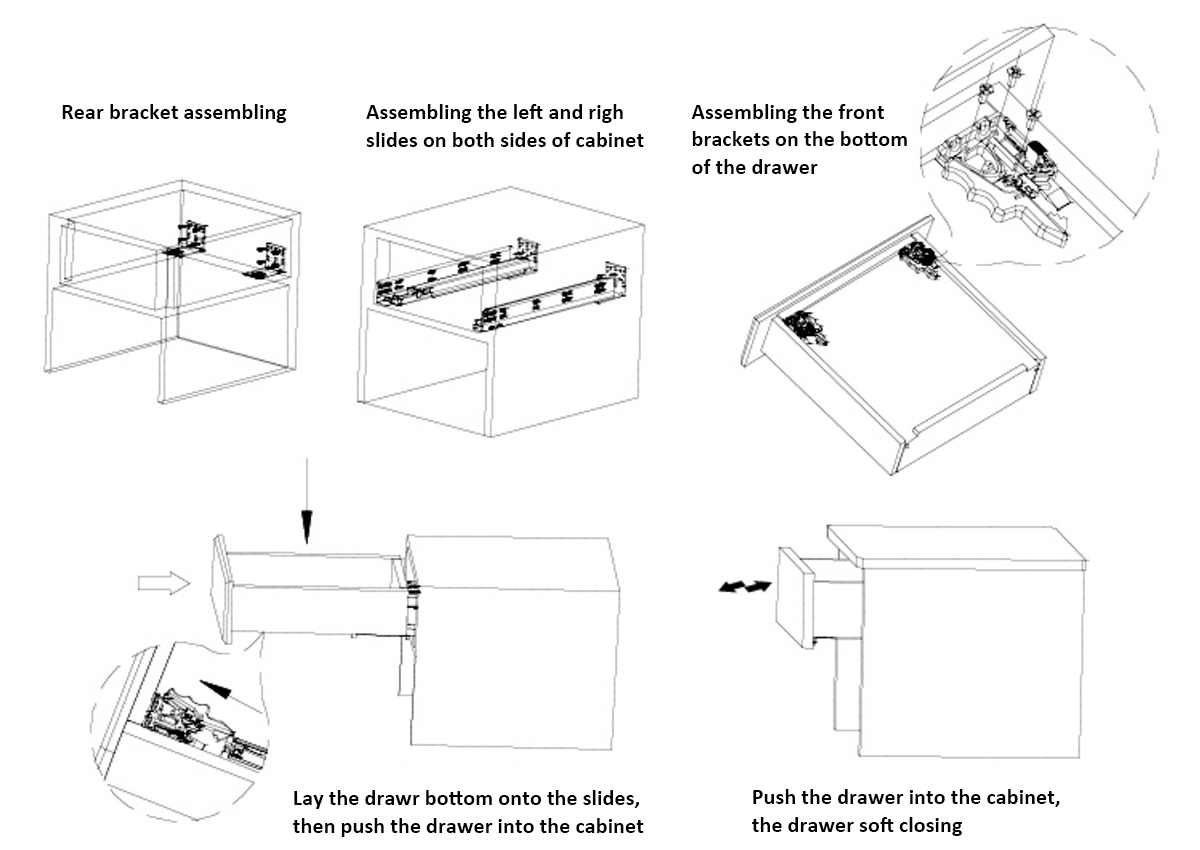

Concealed Drawer Glide Installation


Packing Details:

12"(305mm) 15.69 16.19 43.5*15*14
15"(381mm) 19.62 20.12 51.5*35*14
18"(457mm) 23.54 24.04 58.5*35*14
21"(533mm) 26.50 27.00 66.5*35*14
