Full extension synchronized soft close concealed undermount drawer slide with 3D front clips Featured Image
  • Full extension synchronized soft close concealed undermount drawer slide with 3D front clips
  • Full extension synchronized soft close concealed undermount drawer slide with 3D front clips

Full extension synchronized soft close concealed undermount drawer slide with 3D front clips

Short Description:

Item No.: EUR34BS

Full extension synchronized soft close concealed undermount drawer slide with 3D front clips for frameless cabinet feature everything that you would want in a slide. Soft-close technology, synchronized movement, plus a 100 lb (45 kg) load capacity and industry standard length offering are the bases for this premium line. More information, welcome to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name： Synchronized movment undermount drawer slide
Item No.： EUR34BS
Brand： GERISS
Materials： Galvanized sheet
Material Thickness： 1.8x1.5x1.0 mm
Surface： Zinc plated
Size Range： 10 Inch - 22 Inch (250mm - 550mm)
Load Capacity： 45.0 KG
Opening： Full extension
Installation： Bottom mount of drawer
Separate Way： 3D adjustment clips
Application： Kitchen & Bathroom Drawers, Furniture Drawers etc.
Cycling Test： Over 50,000 times
Features： Drawer pull out and close without noise, soft close.

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- Hybrid drawer slide made for both wood drawers and our M02 slim box drawer system.

- Designed for easy, fast, and flexible installation and release process.

- Elegantly concealed underneath the drawer bottom panel.

- Automatic soft-close mechanism allows a progressive and silent closure of the drawer.

- Easy to open with a low pull-out force requirement.

- Full extension slide allows complete access to drawer content.

- Produced by high precision automatic rolling machines, make the undermount drawer slides working silent smooth without noise.

INSTALLATION VIDEO:

ORDER INFORMATION:

ITEM NO. SLIDE LENGTH (MM) TRAVEL LENGTH MIN. CABINET DEPTH
(STANDARD/INNER)		 DRAWER LENGTH
EUR34BS.250 260 237 270/270+X 250
EUR34BS.300 310 287 320/320+X 300
EUR34BS.350 360 337 370/370+X 350
EUR34BS.400 410 387 420/420+X 400
EUR34BS.450 460 437 470/470+X 450
EUR34BS.500 510 487 520/520+X 500
EUR34BS.550 560 527 560/560+X 550

>>> Click to View Installation Technical Specification

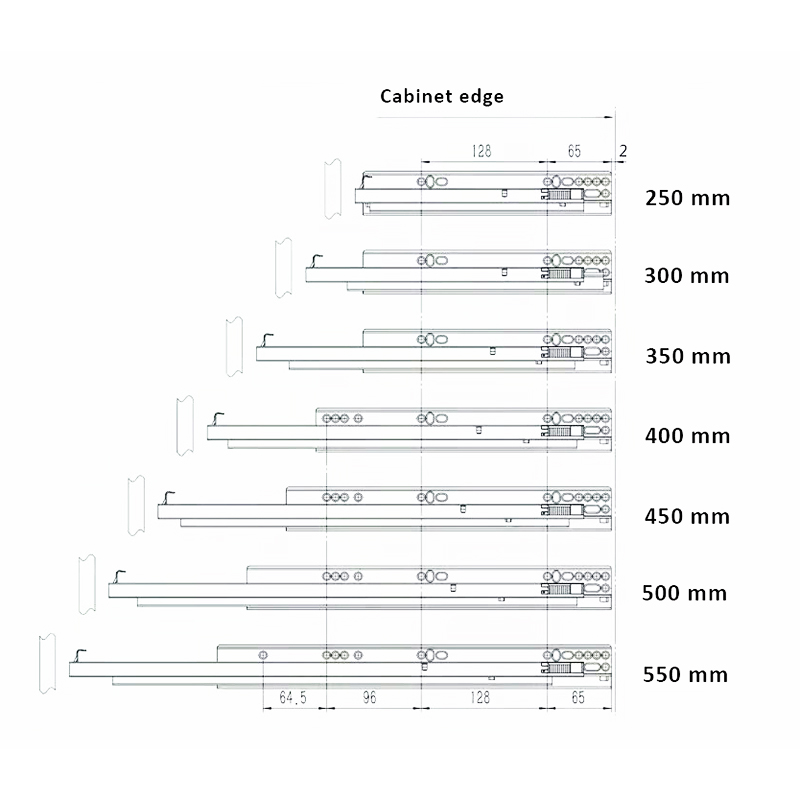

Drawer Slide Size

PACKAGE DETAILS:

ITEM NO. SIZE CARTON SIZE N.W(KGS)/CTN G.W(KGS)/CTN SET/CTN
EUR34BS.250 250MM 27.5x28.5x12cm 11.95 12.15 10
EUR34BS.300 300MM 32.5x28.5x12cm 14.34 14.54 10
EUR34BS.350 350MM 37.5x28.5x12cm 15.36 15.56 10
EUR34BS.400 400MM 42.5x28.5x12cm 16.55 16.75 10
EUR34BS.450 450MM 47.5x28.5x12cm 18.85 19.05 10
EUR34BS.500 500MM 52.5x28.5x12cm 21.05 21.25 10
EUR34BS.550 550MM 57.5x28.5x12cm 23.4 23.6 10
