86mm Height drawer side panel slide metal box drawer

Short Description:

Introduction: 86mm Height drawer side panel slide metal box drawer is the easiest type of drawer system. It made by stamping machine. Can use for all type of furniture drawers.The load capacity around 25 KGS and the cycling over 50,000 times. The feature is the roller slide with balance pads, the smooth sliding with low noise, self-related function, pairs of stop bits to prevent the slide-out structure. The surface use advanced spray technology, non-toxic environmentally friendly, effective anti-corrosion, anti-rust.

Model No.: YA-03A86




Product Detail

Product Tags

Description:
Product Name: 86mm Height drawer side panel slide metal box drawer
Material: Cold rolled steel
Available thickness: 0.8mm, 0.9mm, 1.0mm, 1.2mm
Available color: White, Black, Brown, customized is available.
Load capacity: 25 KGS

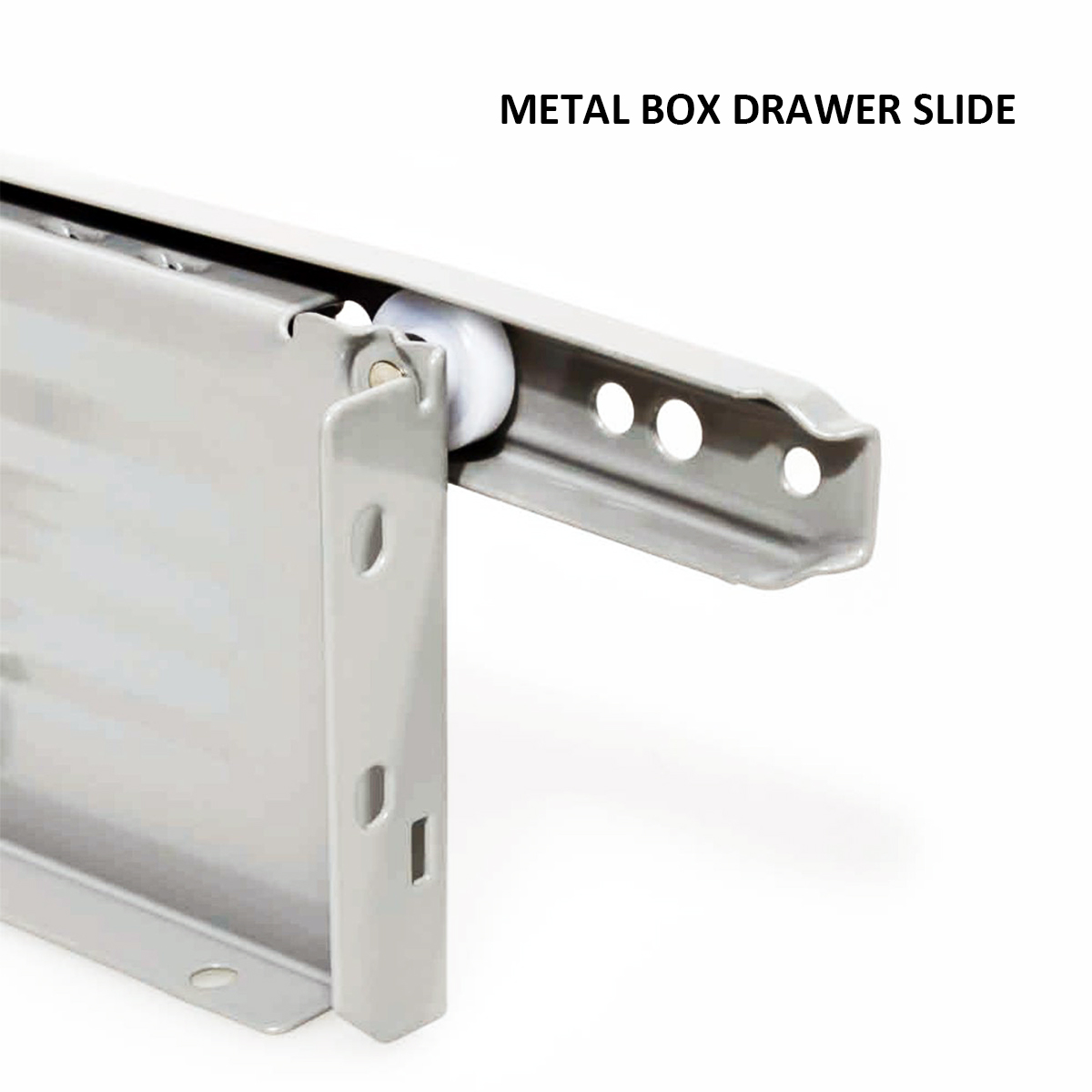

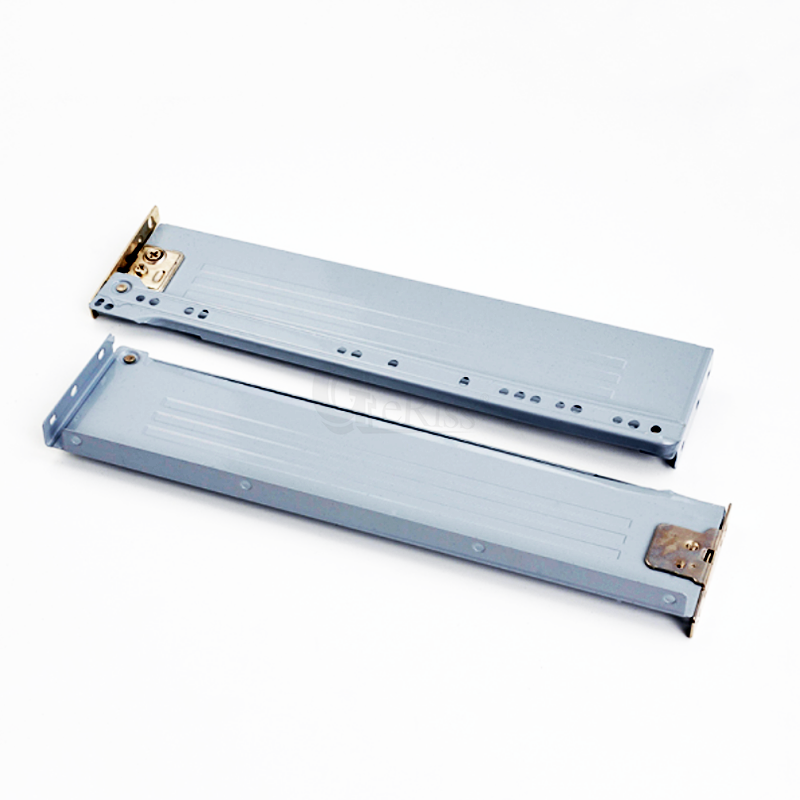

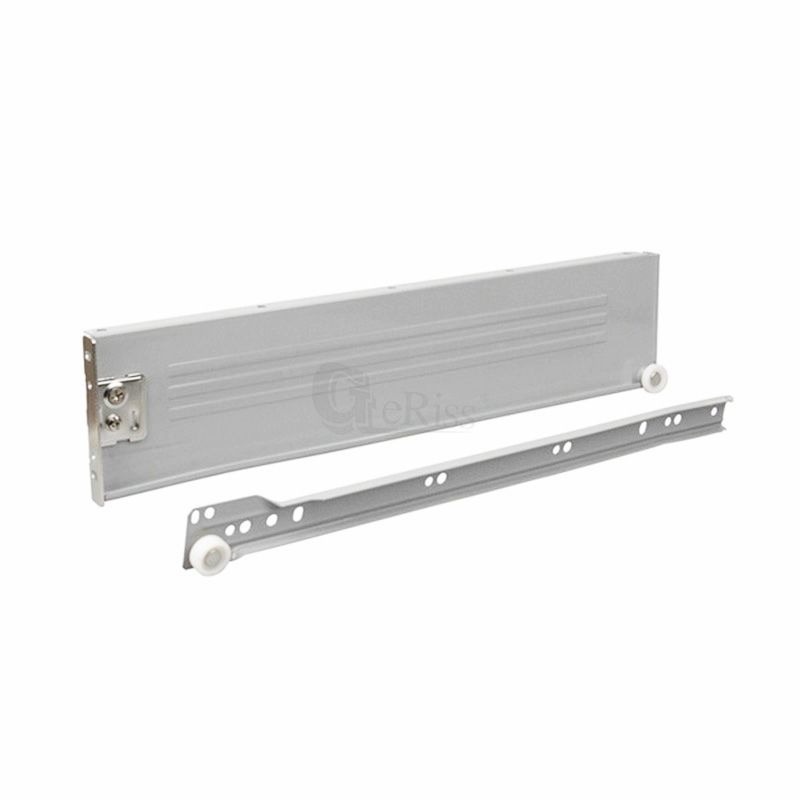

Product Details:

china manufacturer oem metal box drawer slide
double wall metal box
metal box drawer slide curtain rail slide adjustable rail slide rail
powder coating drawer slide metal box

Order Information:

ITEM NO.

SLIDE SIZE

EXTENSION LENGTH

YA-03A86-250

10 inch - 250mm

180 mm

YA-03A86-300

12 inch - 300mm

230 mm

YA-03A86-350

14 inch - 350mm

280 mm

YA-03A86-400

16 inch - 400mm

330 mm

YA-03A86-450

18 inch - 450mm

370 mm

YA-03A86-500

20 inch - 500mm

415 mm

YA-03A86-550

22 inch - 550mm

455 mm

YA-03A86-600

24 inch - 600mm

495 mm

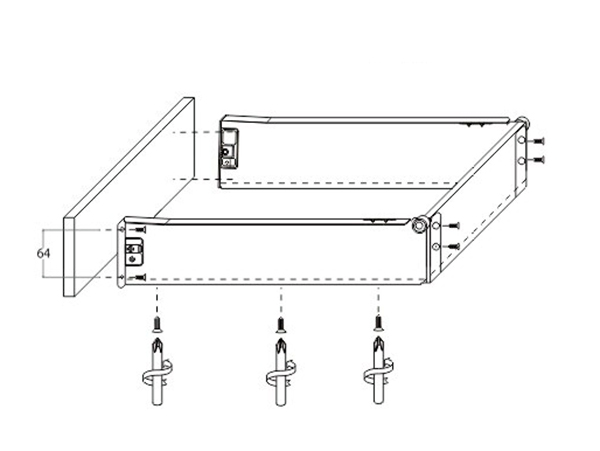

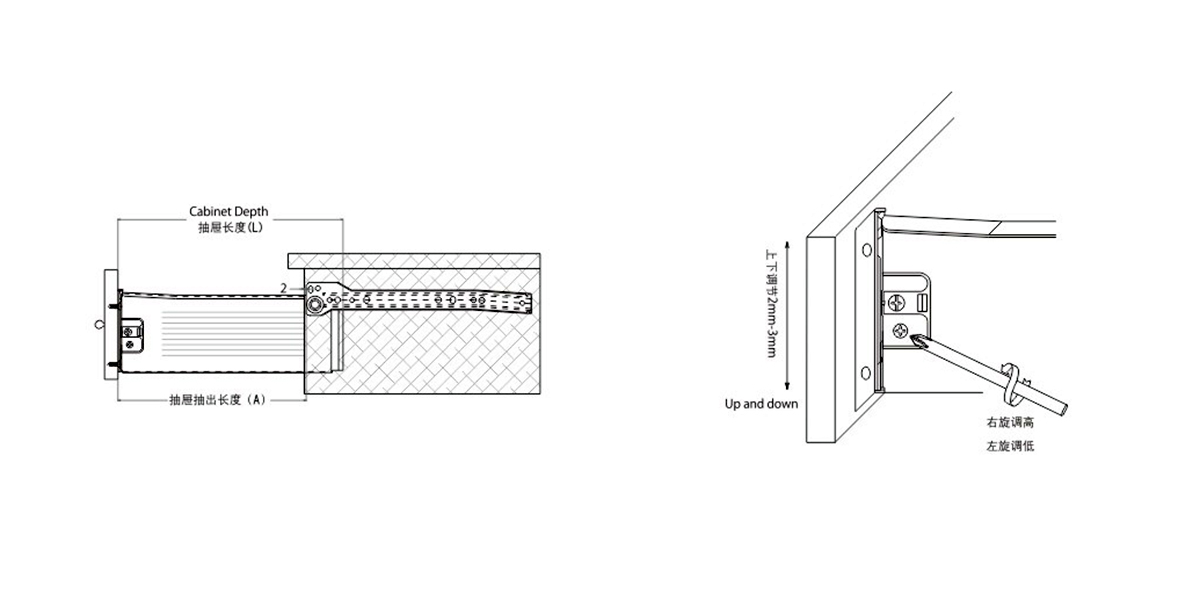

Assemble Demonstration

Assemble Demonstration
