500lbs lock in lock out heavy duty tool box cabinet telescopic channel 76mm drawer slide

Short Description:

Model No.: YA-7602

500lbs lock in lock out heavy duty tool box cabinet telescopic channel 76mm drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

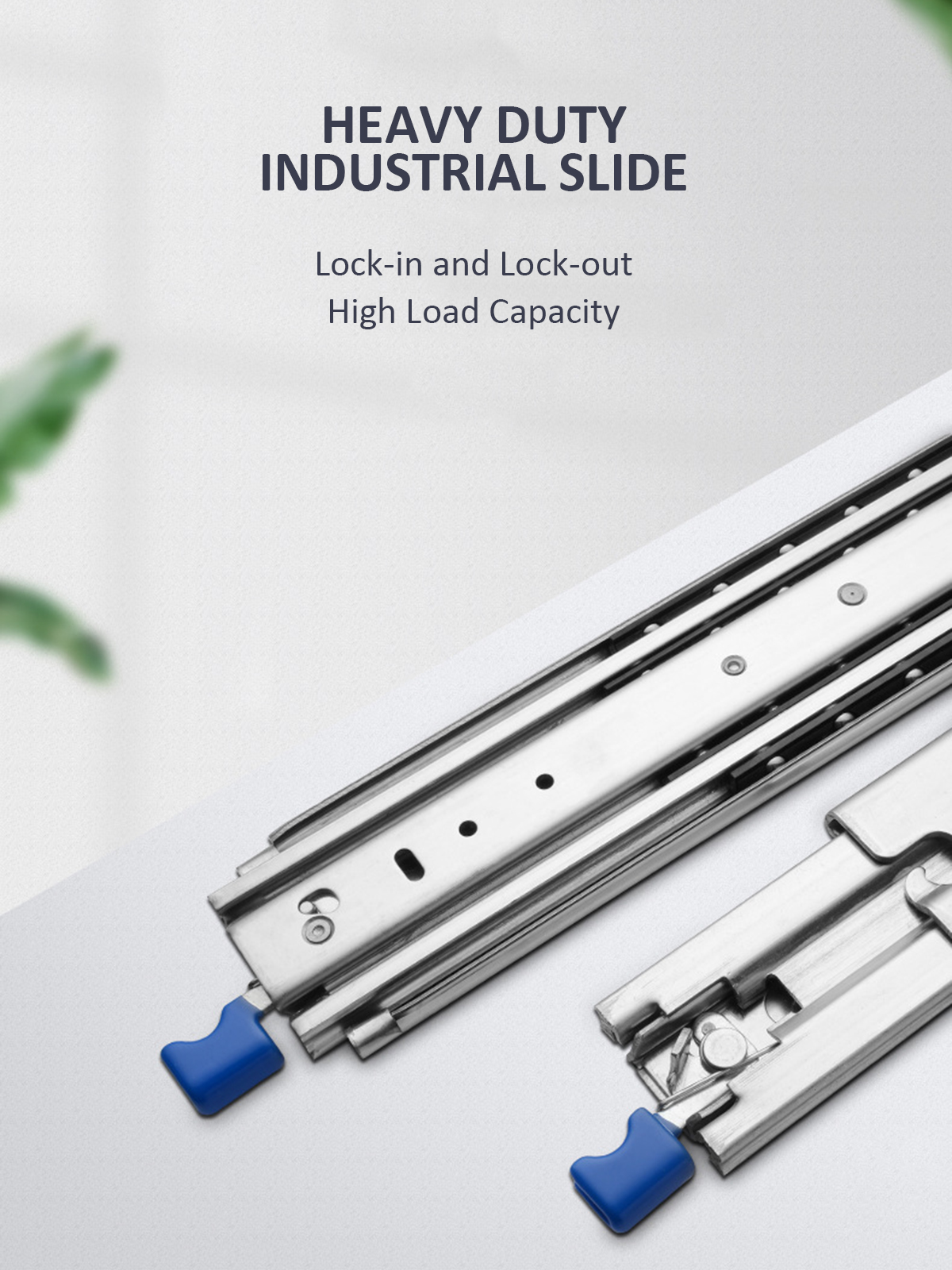

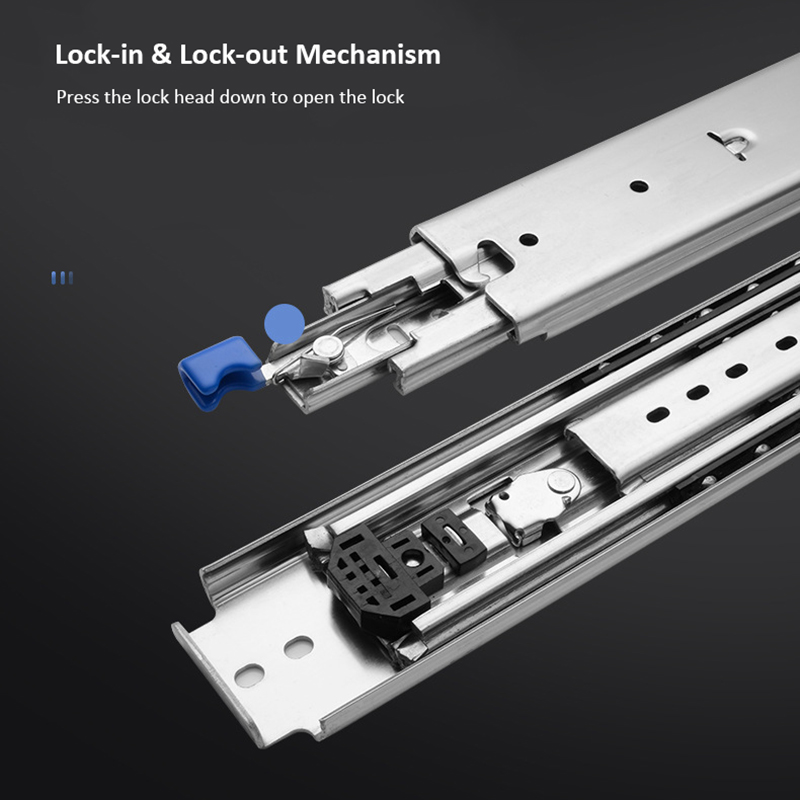

76mm Heavy Duty Slide with Lock

Description:

Product Name:

76mm Industrial Heavy Load Telescopic Ball Bearing Slide

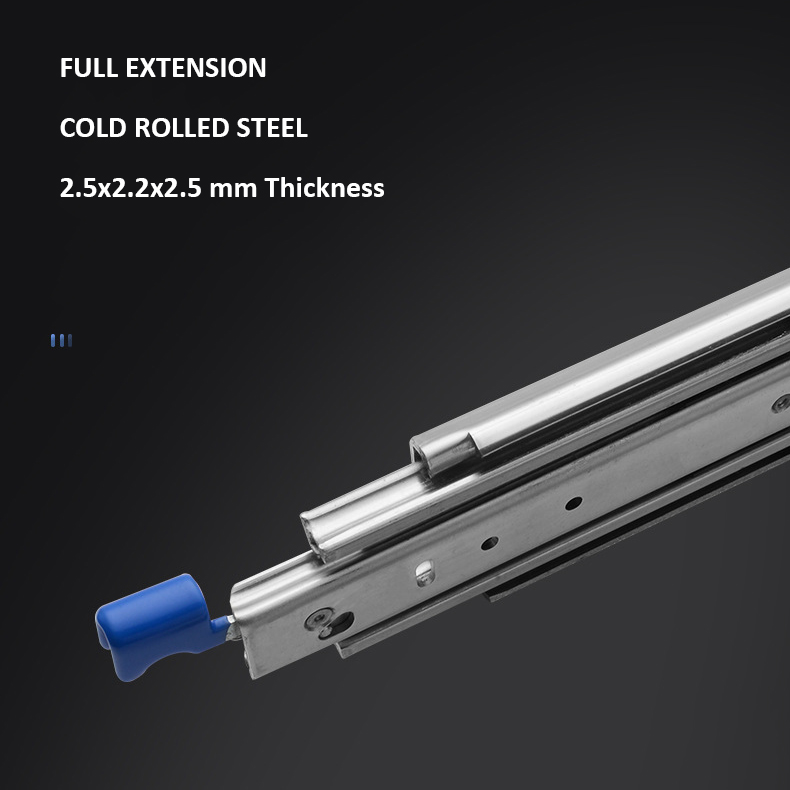

Material:

Cold Rolled Steel

Material Thickness:

2.5*2.5*2.5 mm

Surface:

Zinc Plated, Electrophoresis Black

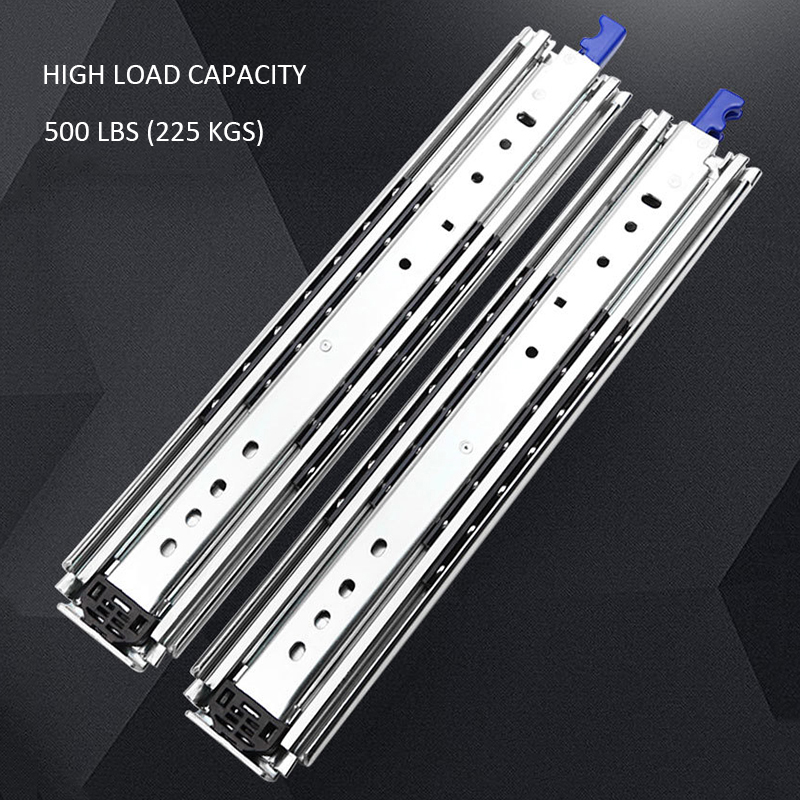

Load Capacity:

225 KG

Cycling:

Over 50,000 times

Size Range:

10”-24” (250-600mm), customize is available

Installation:

Side mount with screws

Feature:

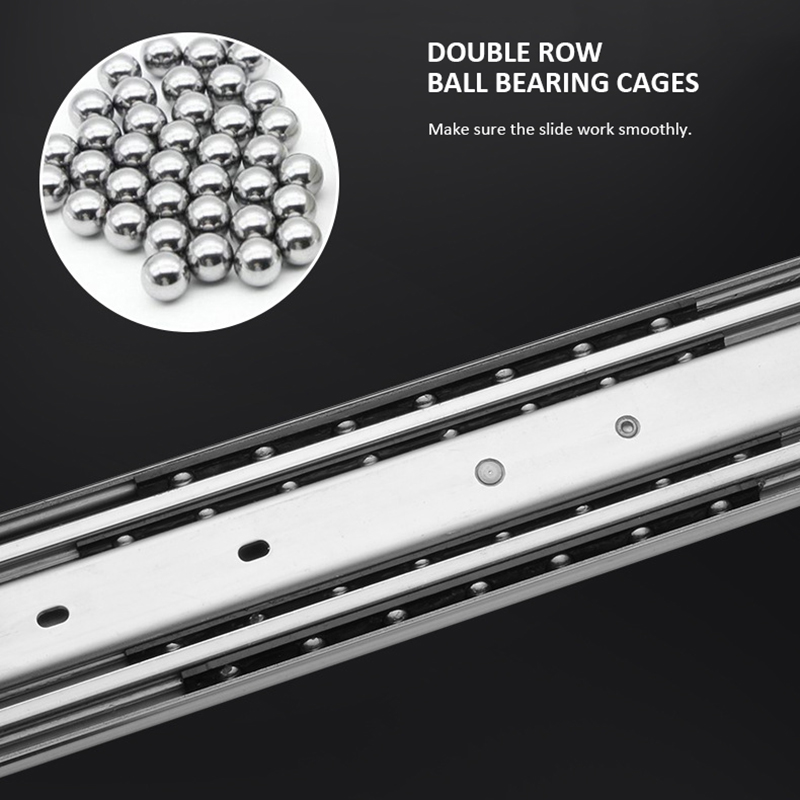

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

application

Specification:

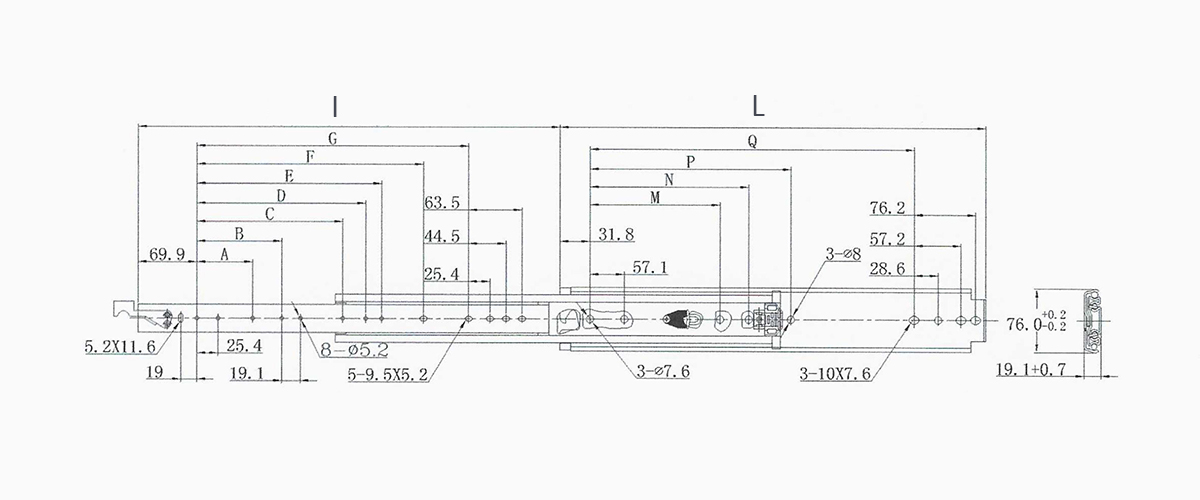

Heavy Duty Industrial Rail Size
INCH L I A B C D E F G M X P Q
14 355.6 355.6 - - - - - - 166.6 - - - 234.9
16 406.4 406.4 - - - - - - 217.4 - - - 285.7
18 457.2 457.2 - - - - - 208 268.2 - - - 336.5
20 508 508 - - - - - 258.8 319 - - - 383
22 558.8 558.8 88.9 - - - - 309.6 369.8 - - - 438.1
24 609.6 609.6 88.9 - - - - 360.4 420.6 - - - 488.9
26 660.4 660.4 88.9 152.4 - - - 411.2 471.4 - - - 539.7
28 711.2 711.2 88.9 152.4 - - - 462 522.2 - - - 590.5
30 762 762 88.9 152.4 330.2 - - 512.8 573 215.9 - 482.5 641.3
32 812.8 812.8 88.9 152.4 - - - 563.6 623.8 215.9 374.6 533.4 692.1
34 863.6 863.6 88.9 152.4 - 431.8 - 614.4 674.6 215.9 400 584.2 742.9
36 914.4 914.4 88.9 152.4 - 482.6 - 665.2 725.4 215.9 425.4 635 793.7
38 965.2 965.2 88.9 152.4 - 482.6 - 716 776.2 215.9 450.8 685.8 844.5
40 1016 1016 88.9 152.4 330.2 482.6 - 766.8 827 215.9 476.2 736.6 895.3
42 1066.8 1066.8 88.9 152.4 330.2 482.6 685.8 817.6 877.8 215.9 527 787.4 946.1
44 1117.6 1117.6 88.9 152.4 330.2 482.6 - 868.4 928.6 215.9 527 838.2 966.9
46 1168.4 1168.4 88.9 152.4 330.2 482.6 - 919.2 979.4 215.9 552.4 889 1047.7
48 1219.2 1219.2 88.9 152.4 330.2 482.6 787.4 970 1030.2 215.9 577.8 939.7 1098.5
50 1270 1270 88.9 152.4 330.2 482.6 787.4 1020.8 1081 215.9 577.8 939.7 1149.3
52 1320.8 1320.8 88.9 152.4 330.2 482.6 787.4 1071.6 1131.8 215.9 577.8 939.7 1200.1
54 1371.6 1371.6 88.9 152.4 330.2 482.6 787.4 1122.4 1182.6 215.9 - 939.7 1250.9
56 1422.4 1422.4 88.9 152.4 330.2 482.6 787.4 1173.2 1233.4 215.9 - 939.7 1301.7
58 1473.2 1473.2 88.9 152.4 330.2 482.6 787.4 1223 1284.2 215.9 577.8 939.7 1352.5
60 1524 1524 88.9 152.4 330.2 482.6 787.4 1274.8 1335 215.9 577.8 939.7 1403.3

UNIT: MM

Installation Instruction:

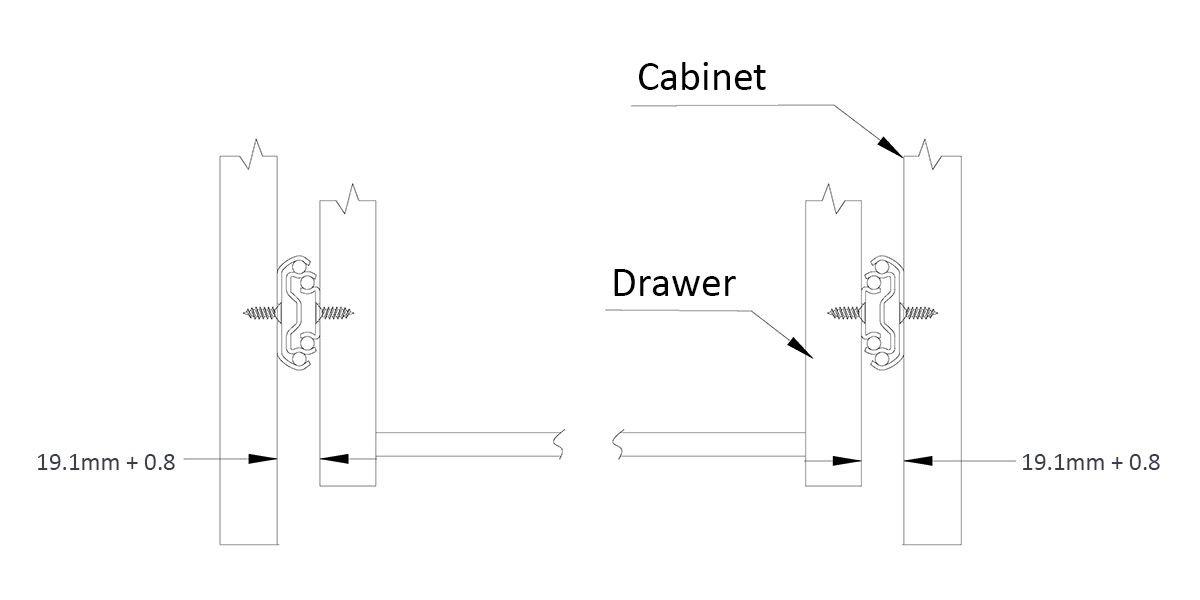

Drawer Width
Min Cabinet Depth
Fix the screws
slide into the cabinet

Package Information:

Package
