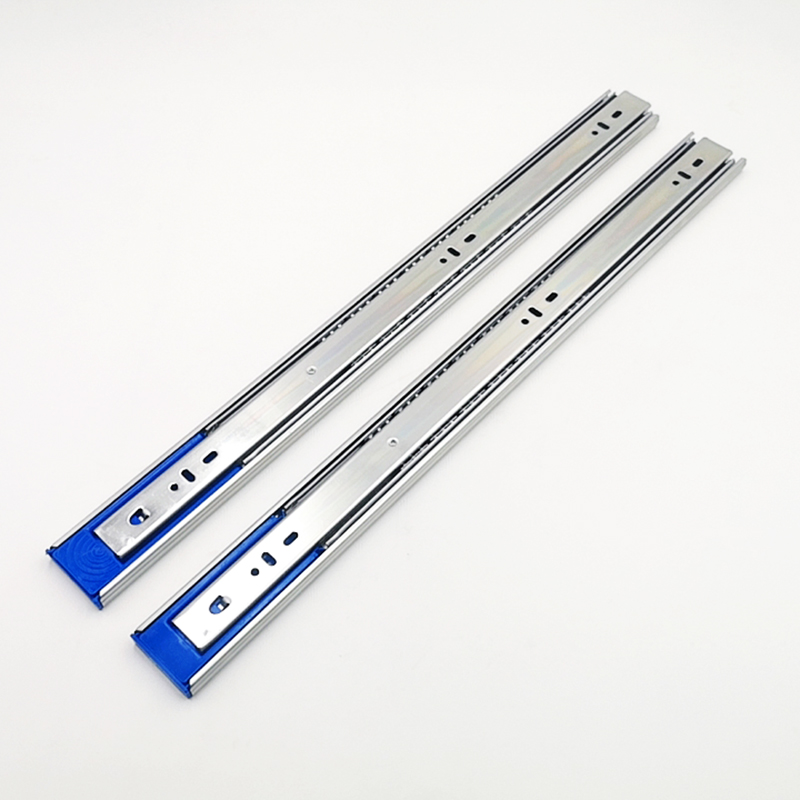

45mm full extension telescopic channels hydraulic ball bearing drawer slide

Short Description:

Model No.: YA-4504

45mm full extension telescopic channels hydraulic ball bearing drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

Description:

Product Name: 45mm full extension telescopic channels hydraulic ball bearing drawer slide
Material: Cold Rolled Steel
Material Thickness: 1.0*1.0*1.2mm, 1.2*1.2*1.5mm
Surface: Zinc Plated, Electrophoresis Black
Load Capacity: 30-45 KGS (450mm as standard)
Cycling: Over 50,000 times
Size Range: 10”-24” (250-600mm), customize is available
Installation: Side mount with screws
Feature: Equipped with high precision production line and testing instrument products ultra-quiet, smooth

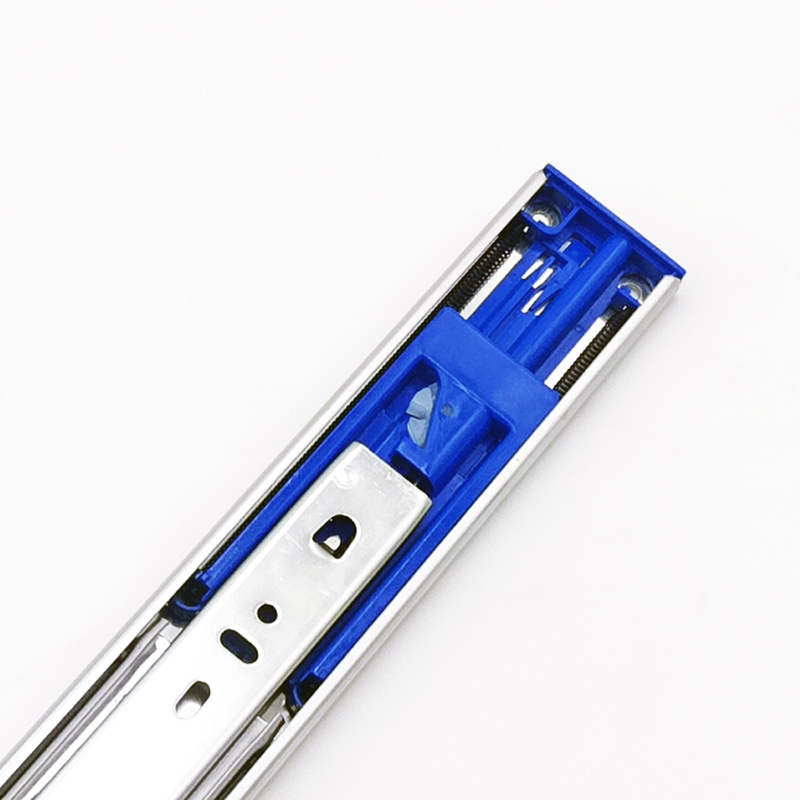

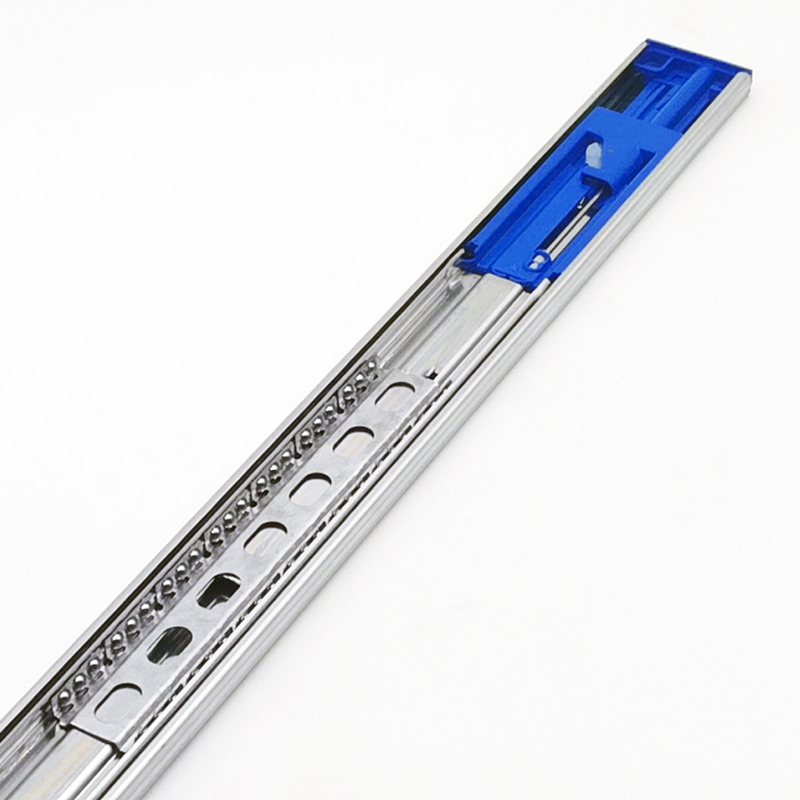

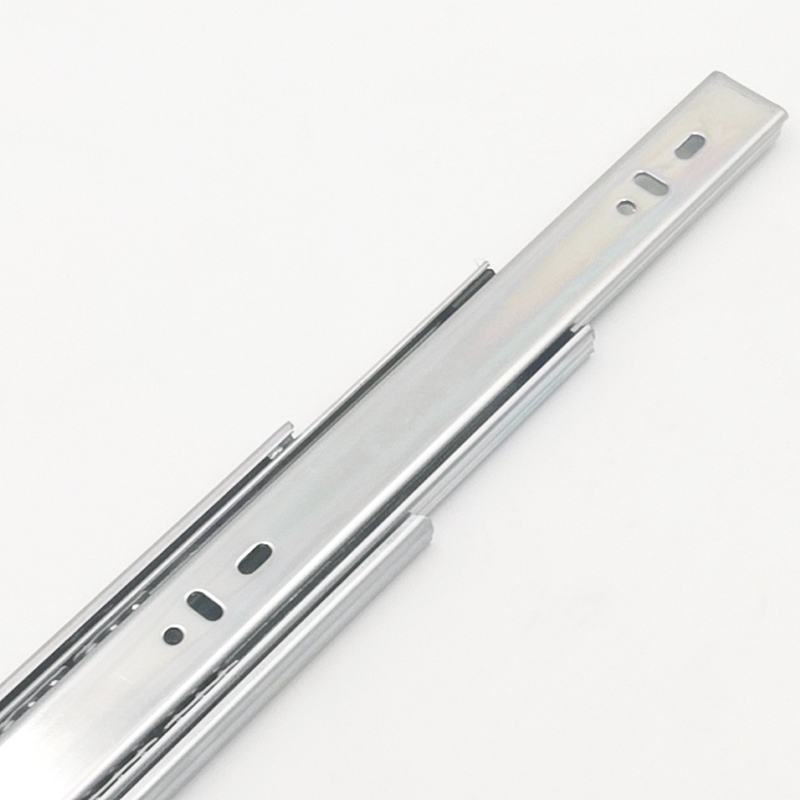

Product Details:

Specification:

Push Open Drawer Slide Size

Installation Instruction:

Drawer Width
Min Cabinet Depth
Fix the screws
slide into the cabinet

Package Information:

Size Material Thickness(mm) Sets/Crn N.W(KG) G.W(KG) MEAS(cm)
Inch mm Length Width Height
10 250 1.0x1.0x1.2 15 9.30 9.55 27 20 12
12 300 1.0x1.0x1.2 15 11.16 11.41 32 20 12
14 350 1.0x1.0x1.2 15 13.02 13.27 37 20 12
16 400 1.0x1.0x1.2 15 14.88 15.18 42 20 12
18 450 1.0x1.0x1.2 15 16.74 17.04 47 20 12
20 500 1.0x1.0x1.2 15 18.60 18.90 52 20 12
22 550 1.0x1.0x1.2 15 20.46 20.76 57 20 12
24 600 1.0x1.0x1.2 15 22.32 22.67 62 20 12
10 250 1.2x1.2x1.5 15 11.25 11.50 27 20 12
12 300 1.2x1.2x1.5 15 13.50 13.75 32 20 12
14 350 1.2x1.2x1.5 15 15.75 16.00 37 20 12
16 400 1.2x1.2x1.5 15 18.00 18.30 42 20 12
18 450 1.2x1.2x1.5 15 20.25 20.55 47 20 12
20 500 1.2x1.2x1.5 15 22.50 22.80 52 20 12
22 550 1.2x1.2x1.5 15 24.75 25.05 57 20 12
24 600 1.2x1.2x1.5 15 27.00 27.35 62 20 12
Package
