225 KGS (500 lbs) Full Extension Industrial Heavy Duty Telescopic Channel Drawer Slide Rail (76mm Width)

Short Description:

Model No.: YA-7601

225 KGS (500 lbs) Full extension industrial heavy duty telescopic channel drawer slide rail (76mm width) produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

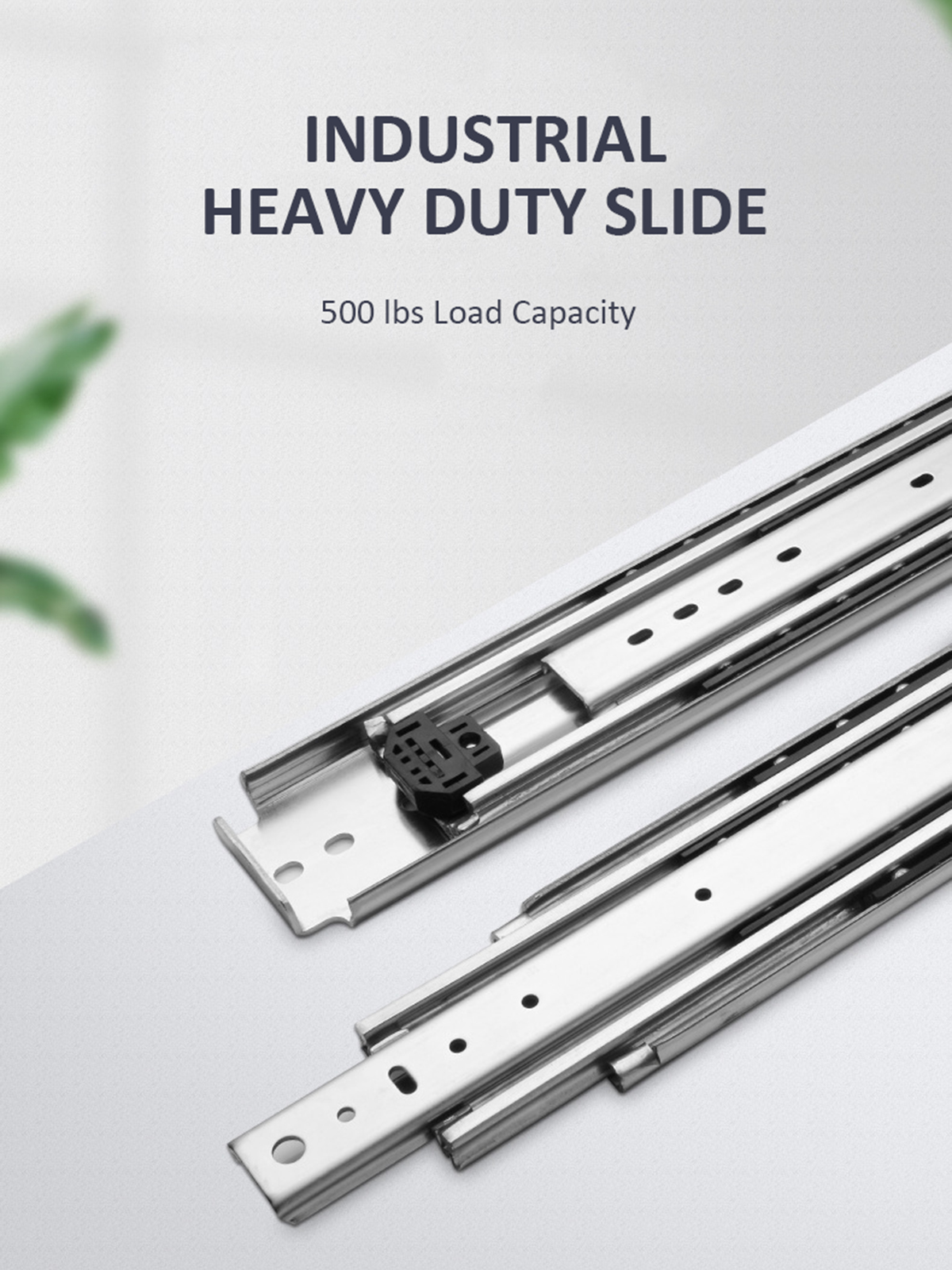

76mm Heavy Duty Slide

Description:

Product Name: 76mm Heavy Duty Industrial Rail
Material: Cold Rolled Steel
Material Thickness: 2.5x2.2x2.5 mm
Surface: Zinc Plated, Electrophoresis Black
Load Capacity: 225 KGS (450mm as standard)
Cycling: Over 50,000 times
Size Range: 10”-60” ,customize is available
Installation: Side mount with screws
Feature: Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

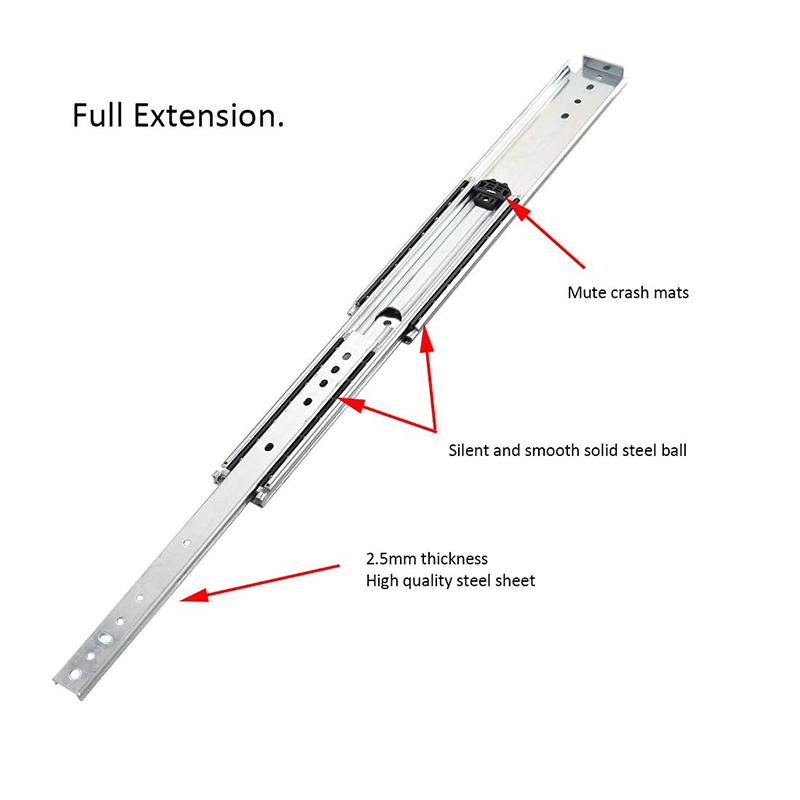

heavy load drawer runner
Industral Heavy Duty Slide 001

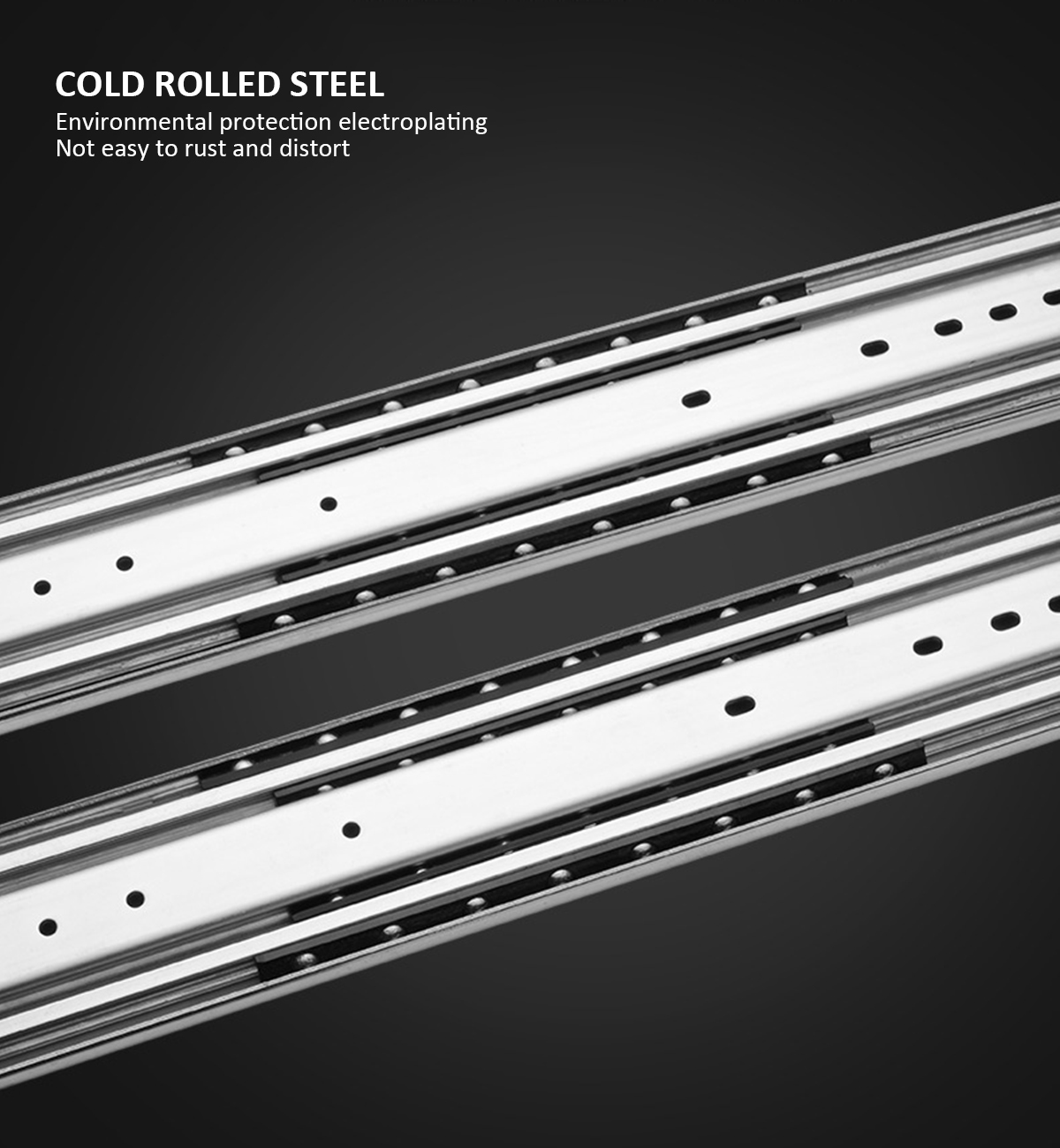

Industral Heavy Duty Slide 003

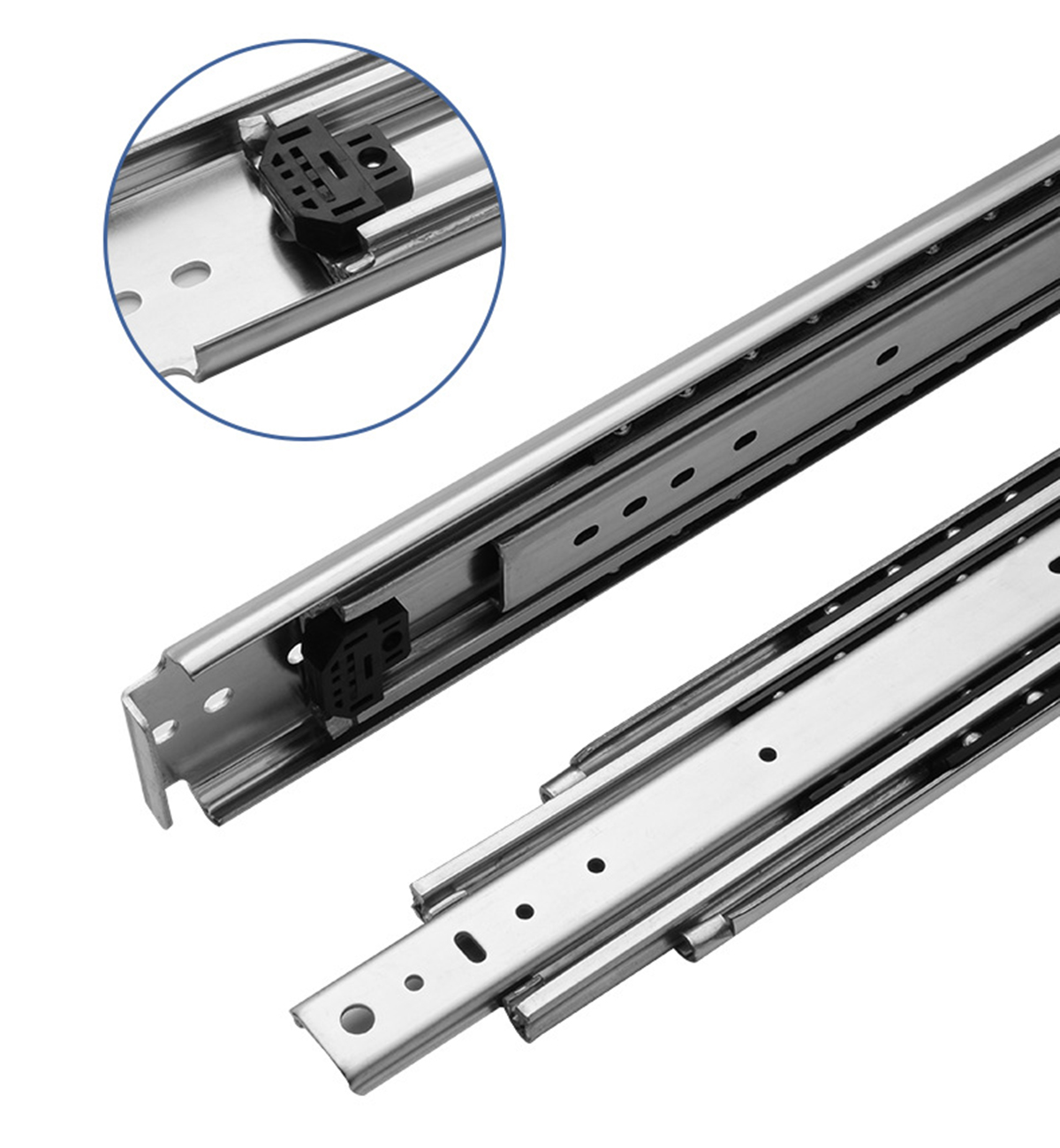

Industral Heavy Duty Slide 004

Specification:

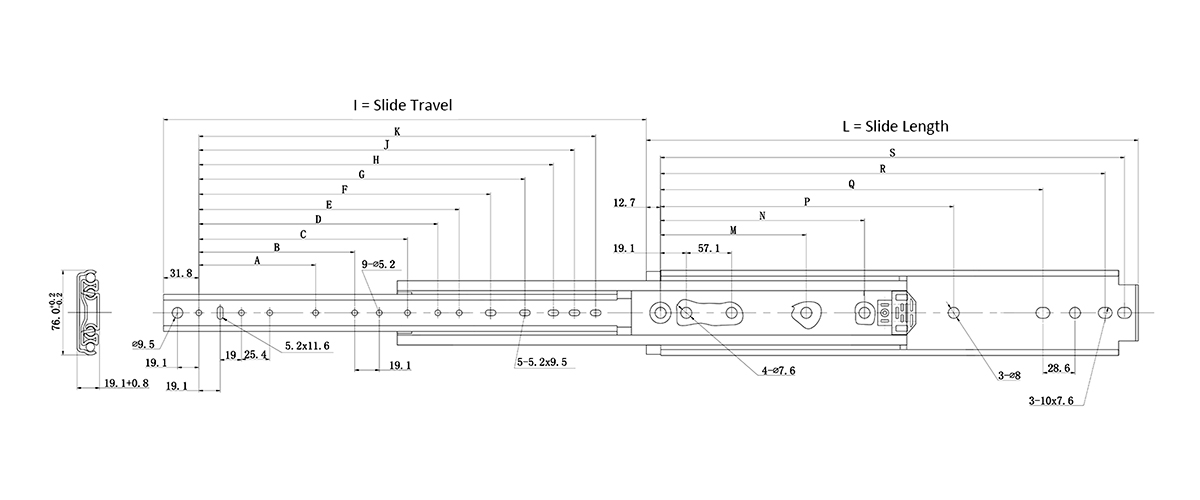

76mm Heavy Duty Slide Size
INCH L I A B C D E F G H J K M N P Q R S
8 203.2 203.2 - - - - - - 52.3 77.7 96.8 115.8 - - - 101.6 158.8 177.8
10 254 254 - - - - - - 103.1 128.5 147.6 166.6 - - - 152.4 209.6 228.6
12 304.8 304.8 - - - - - - 153.9 179.3 198.4 217.4 - - - 203.2 260.4 279.4
14 355.6 355.6 - - - - - - 204.7 230.1 249.2 268.2 - - - 254 311.2 330.2
16 406.4 406.4 127 - - - - - 255.5 280.9 300 319 - - - 304.8 362 381
18 457.2 457.2 127 - - - - 246.1 306.3 311.7 350.8 369.8 - - - 355.6 412.8 431.8
20 508 508 127 190.5 - - - 296.9 357.1 382.5 401.6 420.6 - - - 406.4 463.6 482.6
22 558.8 558.8 127 190.5 - - - 347.7 407.9 433.3 452.4 471.4 - - - 457.2 514.4 533.4
24 609.6 609.6 127 190.5 - - - 398.5 458.7 484.1 503.2 522.2 - - - 508 565.2 584.2
26 660.4 660.4 127 190.5 - - - 449.3 509.5 534.9 554 573 - - - 558.8 616 635
28 711.2 711.2 127 190.5 - - - 500.1 560.3 585.7 604.8 623.8 - - - 609.6 666.8 685.8
30 762 762 127 190.5 368.3 - - 550.9 611.1 636.5 655.6 674.6 235 - 501.6 660.4 717.6 736.6
32 812.8 812.8 127 190.5 368.3 - - 601.7 661.9 687.3 706.4 725.4 235 393.7 552.5 711.2 768.4 787.4
34 863.6 863.6 127 190.5 368.3 469.9 - 652.5 712.7 738.1 757.2 776.2 235 419.1 603.3 762 819.2 838.2
36 914.4 914.4 127 190.5 368.3 520.7 - 703.3 763.5 788.9 808 827 235 444.5 654.1 812.8 870 889
38 965.2 965.2 127 190.5 368.3 520.7 - 754.1 814.3 839.7 858.8 877.8 235 469.9 704.9 863.6 920.8 939.8
40 1016 1016 127 190.5 368.3 520.7 - 804.9 865.1 890.5 909.6 928.6 235 495.3 755.7 914.4 971.6 990.6
42 1066.8 1066.8 127 190.5 368.3 520.7 723.9 855.7 915.9 941.3 960.4 979.4 235 546.1 806.5 965.2 1022.4 1041.4
44 1117.6 1117.6 127 190.5 368.3 520.7 - 906.5 966.7 992.1 1011.2 1030.2 235 546.1 857.3 1016 1073.2 1092.2
46 1168.4 1168.4 127 190.5 368.3 520.7 - 957.3 1017.5 1042.9 1062 1081 235 571.5 908.1 1066.8 1124 1143
48 1219.2 1219.2 127 190.5 368.3 520.7 825.5 1008.1 1068.5 1093.7 1112.8 1131.8 235 596.9 958.8 1117.6 1174.8 1193.8
50 1270 1270 127 190.5 368.3 520.7 825.5 1058.9 1119.1 1144.5 1163.6 1182.6 235 596.9 958.8 168.4 1225.6 1244.6
52 1320.8 1320.8 127 190.5 368.3 520.7 825.5 1109.7 1169.9 1195.3 1214.4 1233.4 235 596.9 958.8 1219.2 1276.4 1295.4
54 1371.6 1371.6 127 190.5 368.3 520.7 825.5 1160.5 1220.7 1246.1 1265.2 1284.2 235 596.9 958.8 1270 1327.2 1346.2
56 1422.4 1422.4 127 190.5 368.3 520.7 825.5 1211.3 1271.5 1296.9 1316 1335 235 596.9 958.8 1320.8 1378 1397
58 1473.2 1473.2 127 190.5 368.3 520.7 825.5 1262.1 1322.3 1347.7 1366.8 1385.8 235 596.9 958.8 1371.6 1428.8 1477.8
60 1524 1524 127 190.5 368.3 520.7 825.5 1312.9 1373.1 1398.5 1417.6 1436.6 235 596.9 958.8 1422.4 1479.6 1498.6

Installation Instruction:

Drawer Width
Min Cabinet Depth
Fix the screws
slide into the cabinet

Package Information:

Package
