37mm Full/triple extension telescopic channel bayonet mount drawer slide

Short Description:

Introduction: 37mm Full/triple extension telescopic channel bayonet mount drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.

Model No.: YA3703


Product Detail

Product Tags

Description:
Type: 37mm Full extension ball bearing slide with hooks ( exclusive used in steel cabinet )
Function: Bayonet telescopic rail
Width: 37mm
Length: 400mm, customized is available.
Installation thickness: 17.7mm
Surface: Zinc plated, electrophoresis black, customized is available.
Load Capacity: 30 KGS
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 1.2x1.0x1.2mm
Installation: side mount with hooks/bayonet

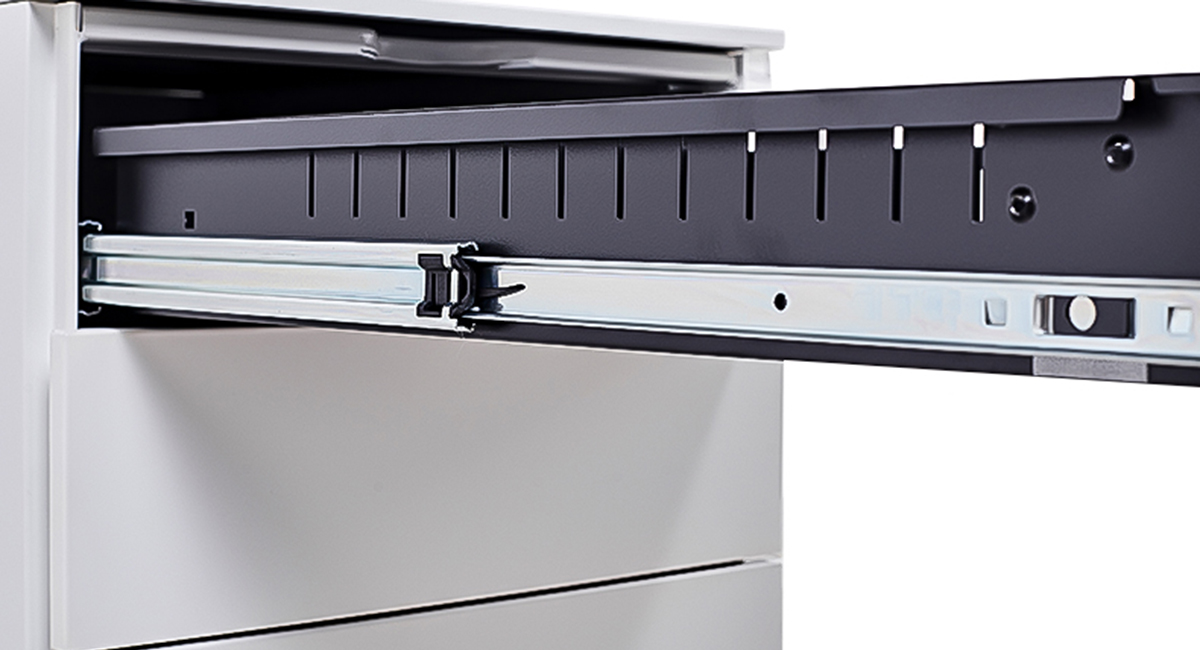

Application: moving steel cabinets, iron cabinets, electrical cabinet, machine cabinet

Product Video

Product Details:

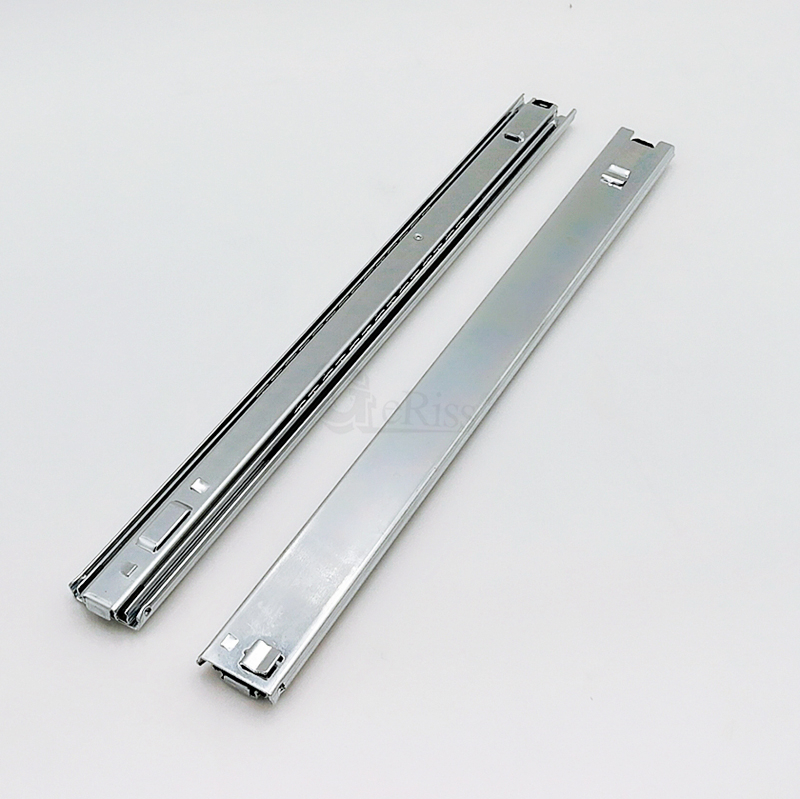

bayonet-telescopic-rail

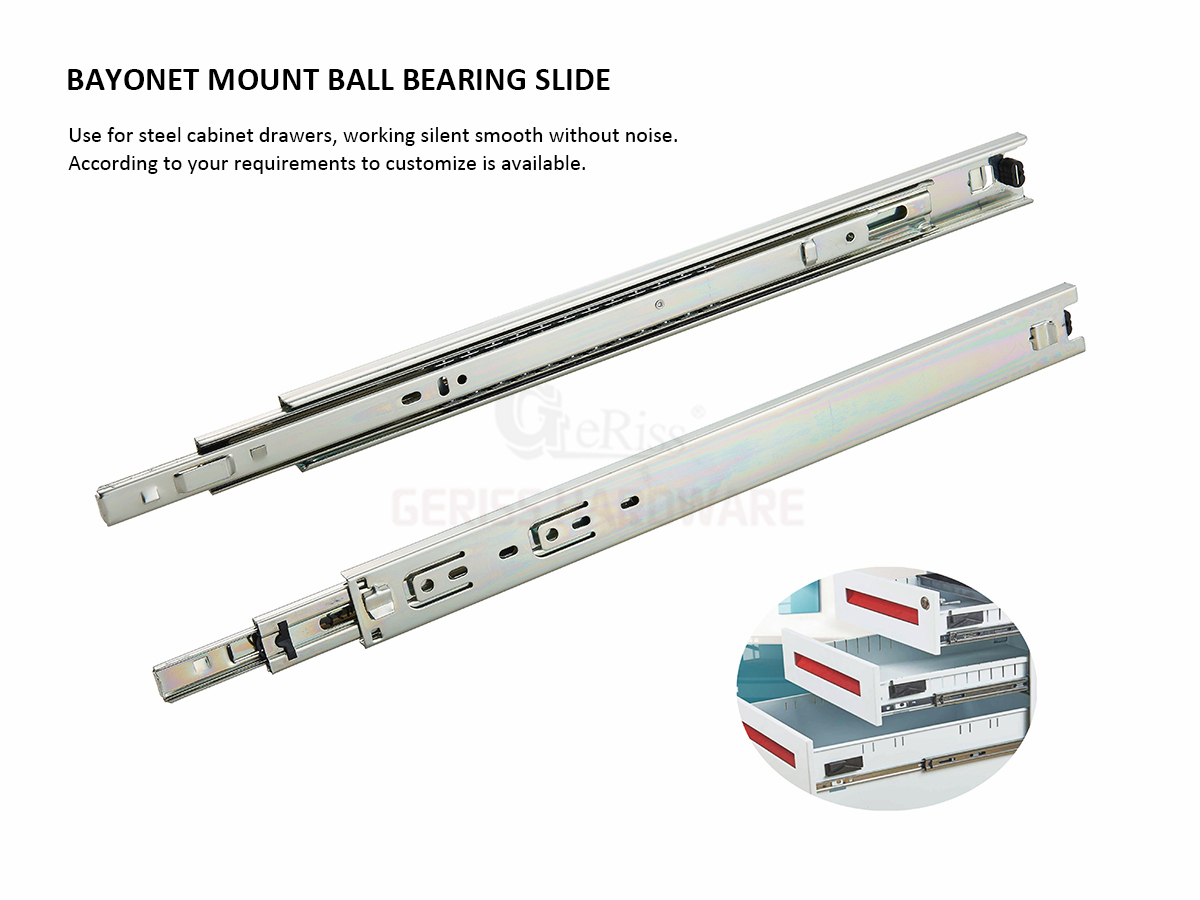

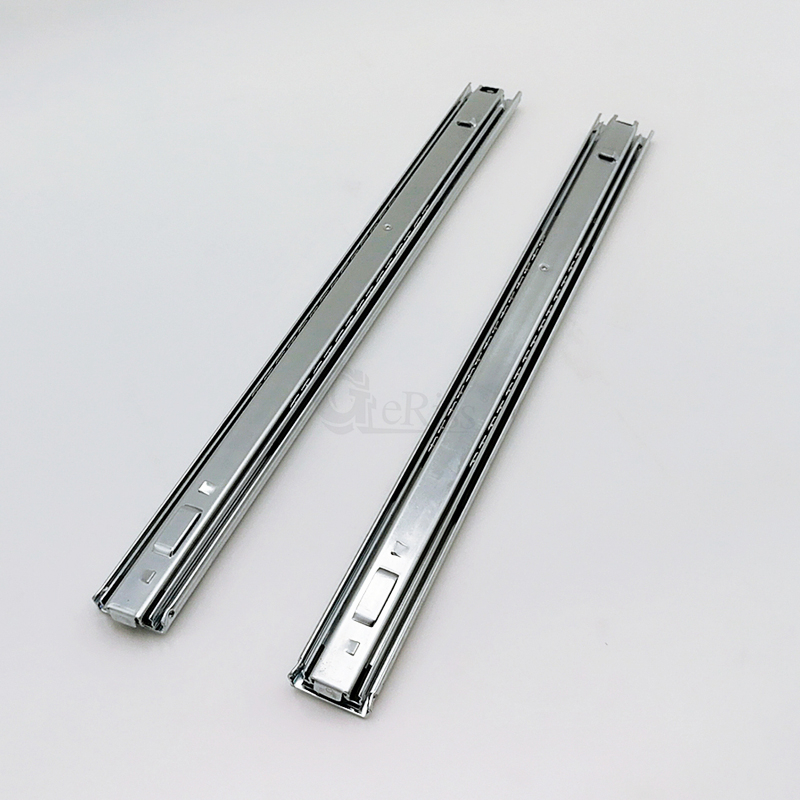

bayonet-mount-drawer-slide

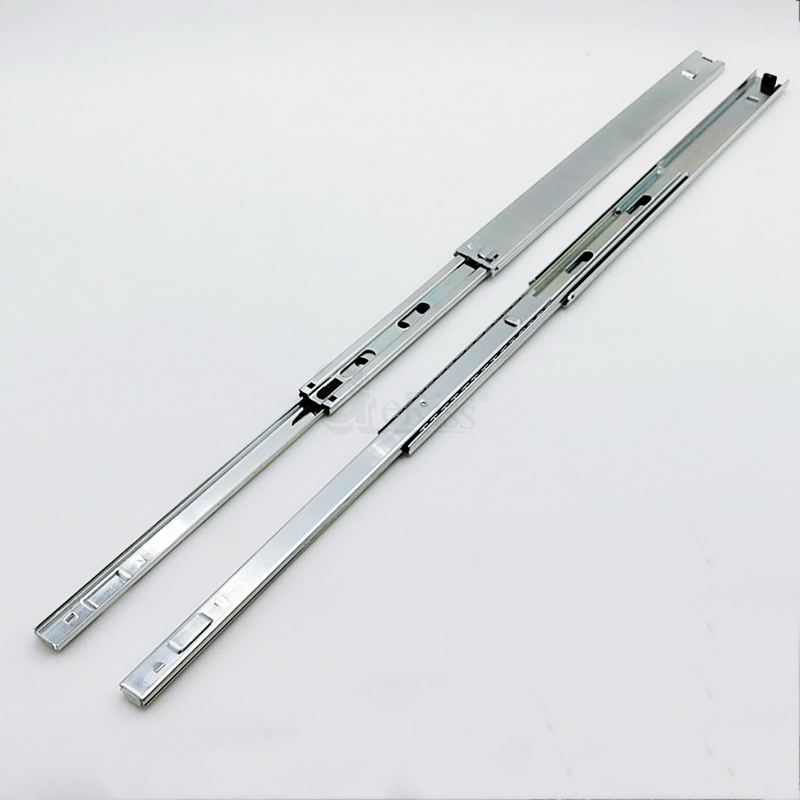

bayonet-slide

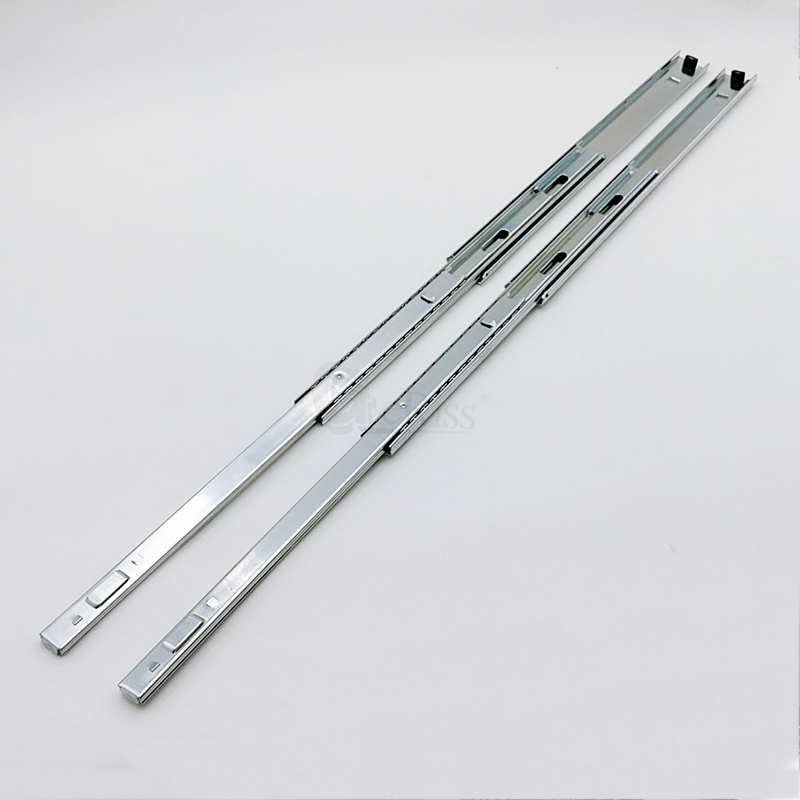

heavy-duty-bayonet-mount-drawer-slide

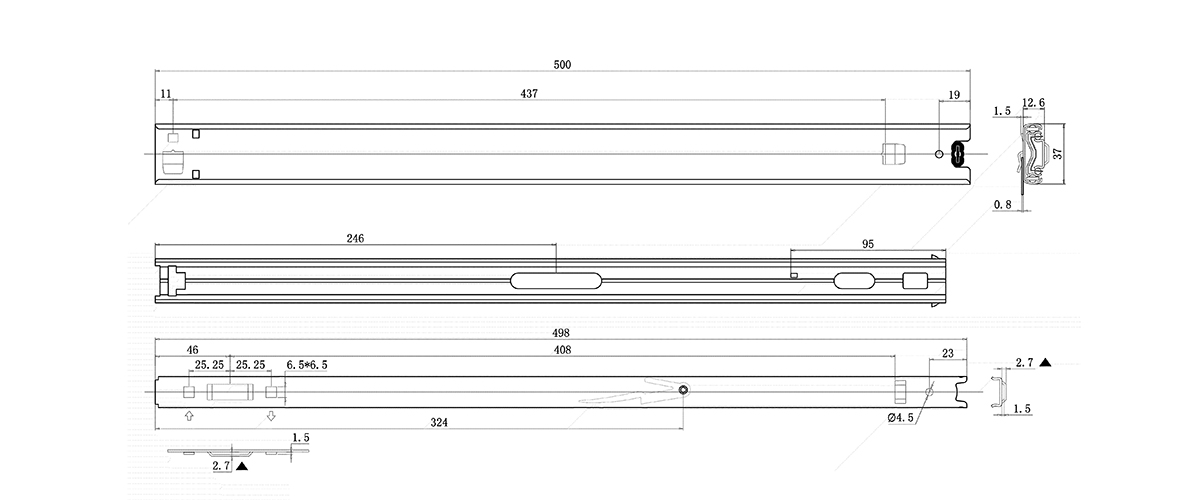

tool-box-drawer-slides-drawing1

Order Information:

Item No.

Slide Length

Drawer Length

Min Cabinet Depth

Packing Unit ( set/box )

YA.3703.415

415mm

415mm

418mm

20

YA.3703.500

500mm

500mm

503mm

20

Packing Information:

ITEM NO

SIZE

PCS/CTN

N.W(KGS)/CTN

G.W(KGS)/CTN

SET/PLT

YA.3703.415 L

415mm

20

13.94

14.11

60

YA.3703.415 R

415mm

20

13.94

14.11

60

YA.3703.500 L

500mm

20

16.80

16.93

48

YA.3703.500 R

500mm

20

16.80

16.93

48
