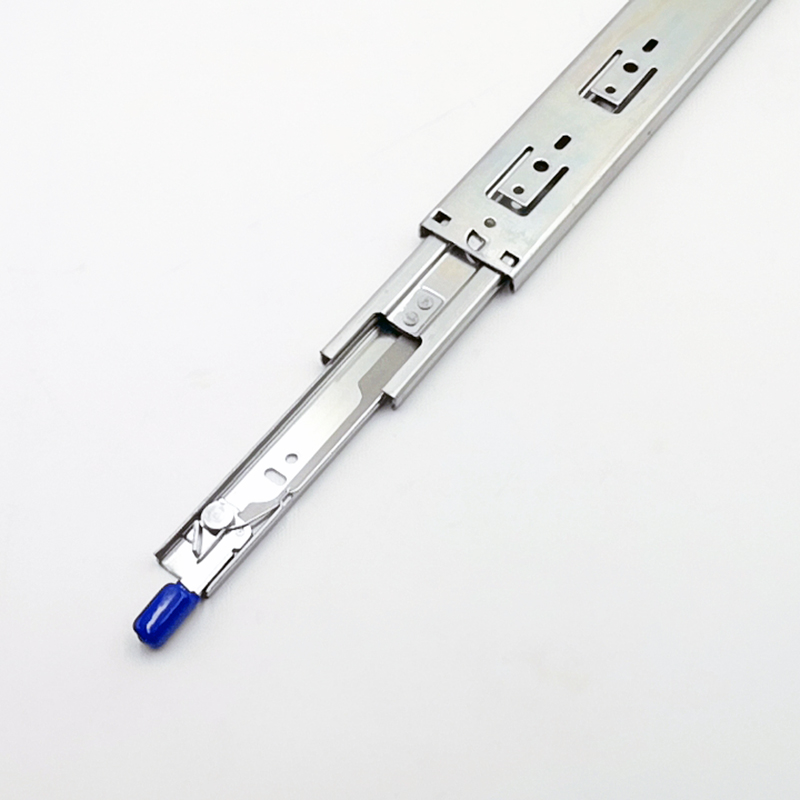

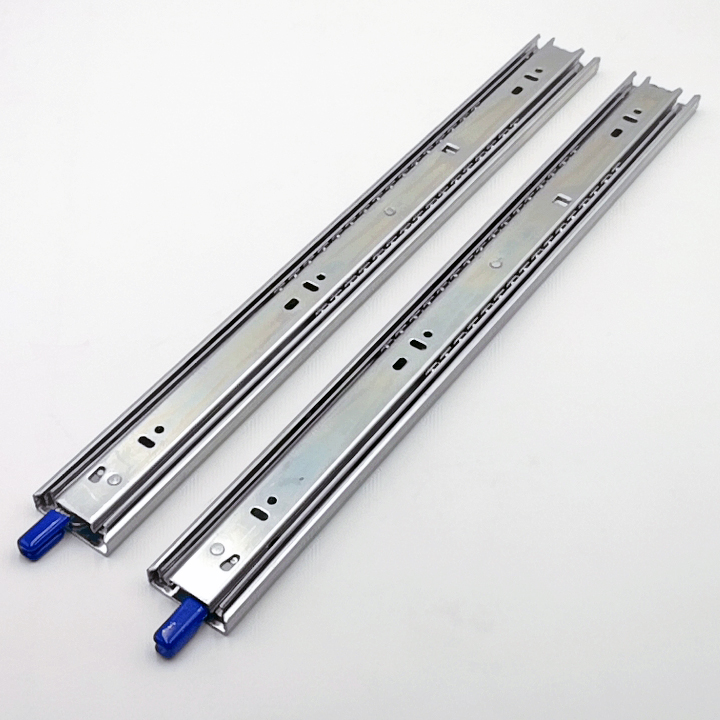

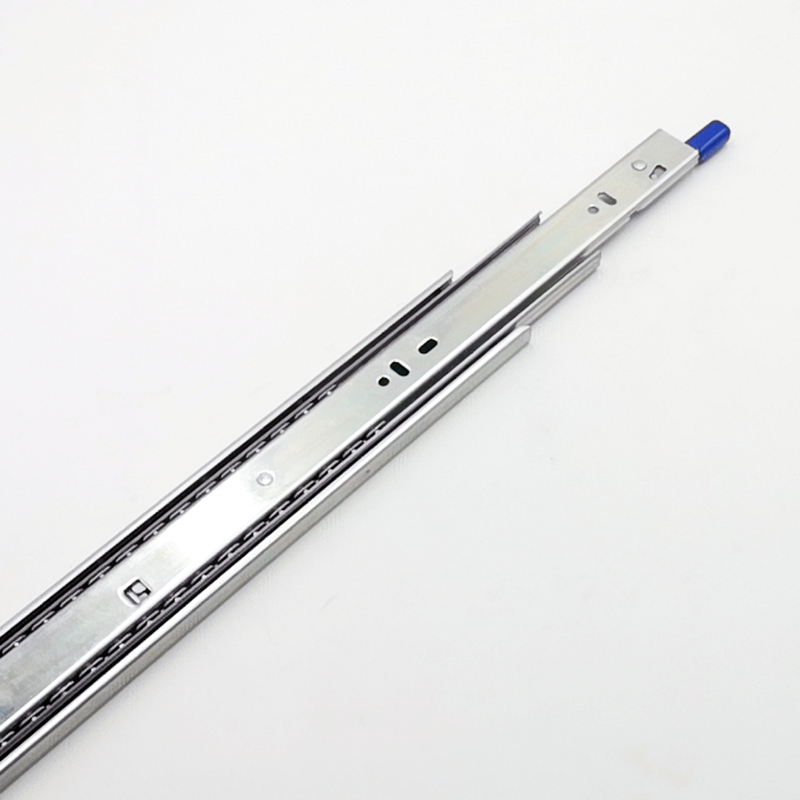

45mm Lock-In and Lock Out Full Extension Telescopic Ball Bearing Drawer Slide Rail

Short Description:

Item No.: YA-45LILO

45mm Lock-in and lock-out full extension telescopic ball bearing drawer slide rail, produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

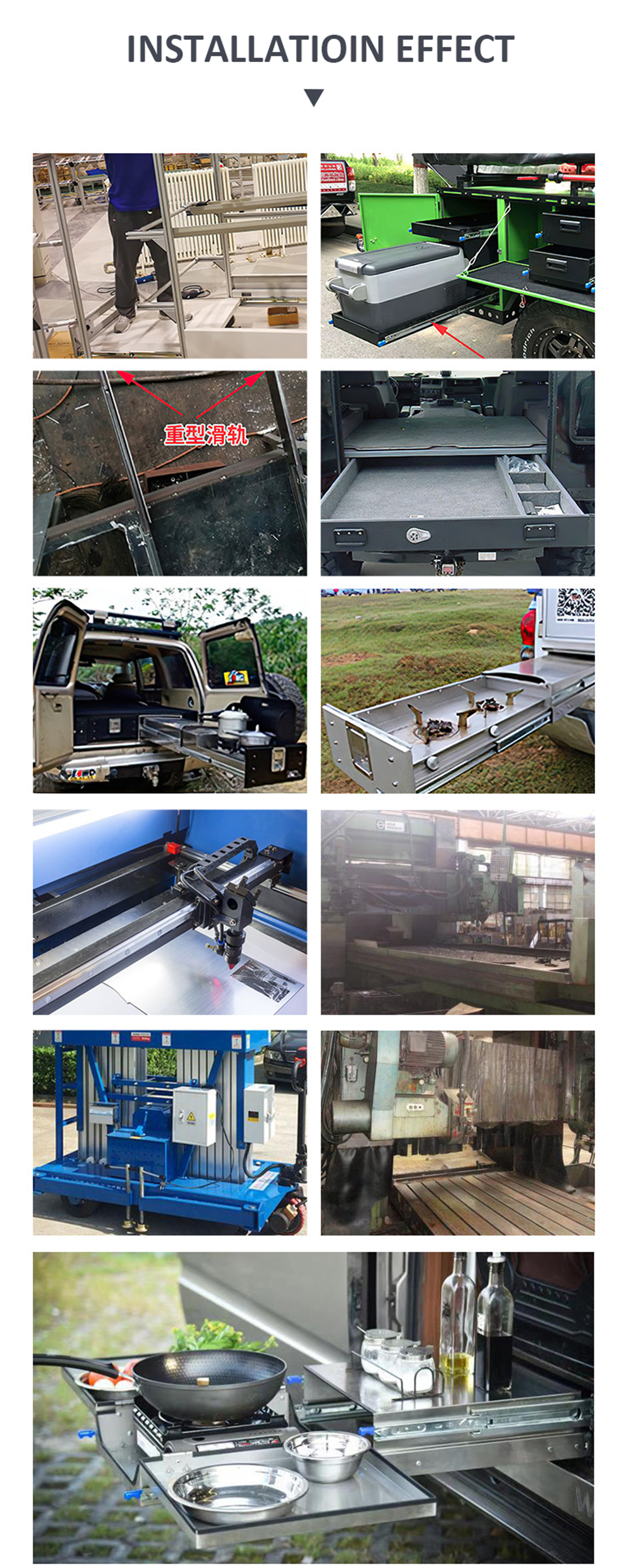

application

Description:

Product Name: 45mm Lock-in and lock-out full extension telescopic ball bearing drawer slide rail
Material: Cold Rolled Steel
Material Thickness: 1.2*1.2*1.5mm
Surface: Zinc Plated, Electrophoresis Black
Load Capacity: 30-45 KGS (450mm as standard)
Cycling: Over 50,000 times
Size Range: 10”-24” (250-600mm), customize is available
Installation: Side mount with screws
Feature: Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

Specification:

lock in and lock out slide 001

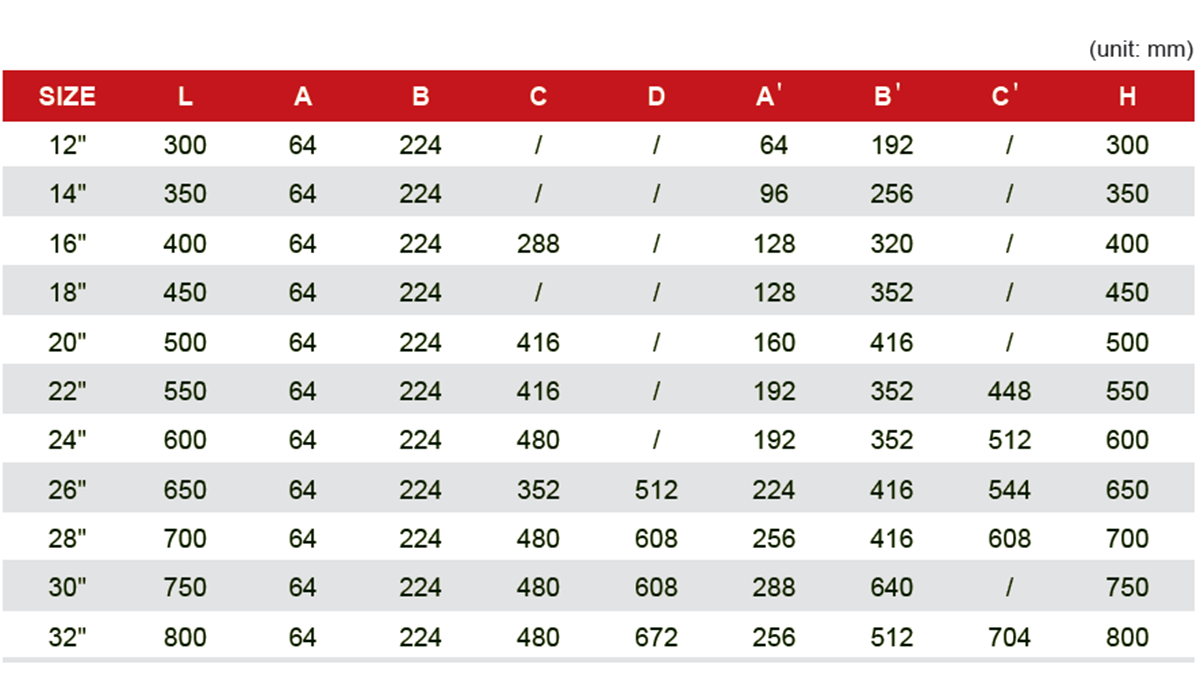

size data

Installation Instruction:

Drawer Width
Min Cabinet Depth
Fix the screws
slide into the cabinet

Package Information:

Package

Workshop:
