Clip-on soft close concealed door hinge for frameless cabinets

Short Description:

Item No.: 1321 (Full overlay) / 1322 (Half overlay) / 1323 (Inset)

Clip-on soft close concealed door hinge for frameless cabinets. This type of furniture hinge use for standard cabinet doors. The hinge apply to 14-22 mm cabinet doors. When you close the cabinet door, it will slow & quiet close without noise. The 35mm diameter cup door hinges available for full overlay, half overlay, inset. If you are interesting for this type self close hinge, please feel free to inquiry us


Product Detail

Product Tags

Description:

Product Name Clip-on soft close concealed door hinge for frameless cabinets
Material Iron
Surface Nickel plated
Opening Angle 105 Degree
Thickness of hinge cup 11.5 mm
Diameter of hinge cup 35mm
Hole distance of hinge cup 45 or 48mm
Door panel (K) size 3-7 mm
Available door thickness 14-22 mm
Available accessories Dowels, Euro screws, Self-tapping screws

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- Clip-on soft close concealed door hinge for frameless cabinets.

- The high technology with integrate silent system for even more convenience when soft close the door

- Fast assembly design with just click, the plate can be separated, bery easy for installation.

- Soft closing mechanism,perfect soft close function make more smooth closing.

- Three types overlay can choose, there are full overlay, half overlay, inset.

- Available cabinet door hinge's accessories: assembly dowels, hinge arm covers, tapping screws, Euro screws

ORDER INFORMATION:



ITEM NO. OVERLAY

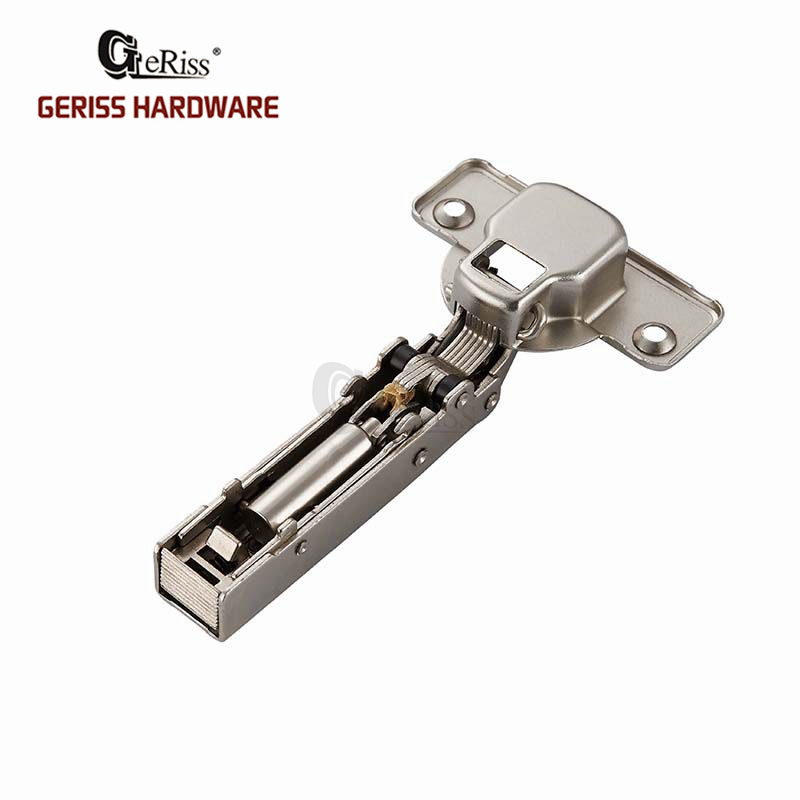

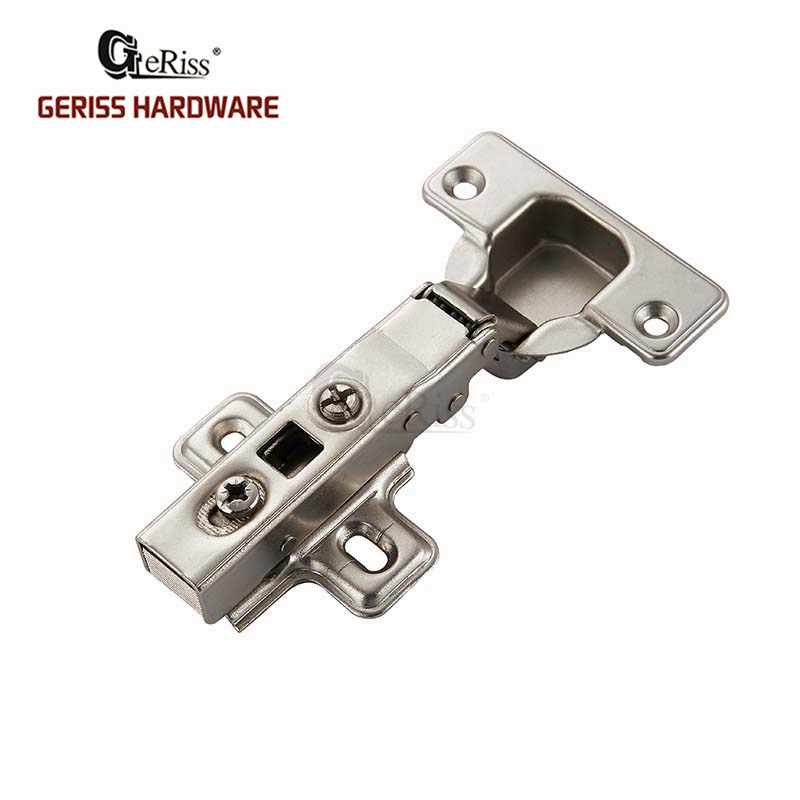

1321 FULL-OVERLAY

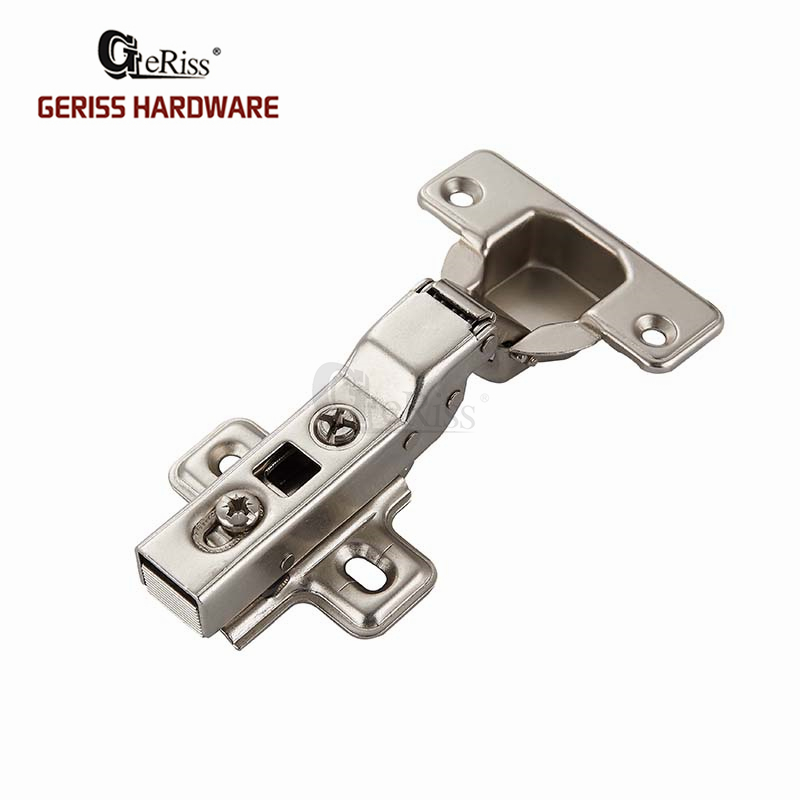

1322 HALF-OVERLAY

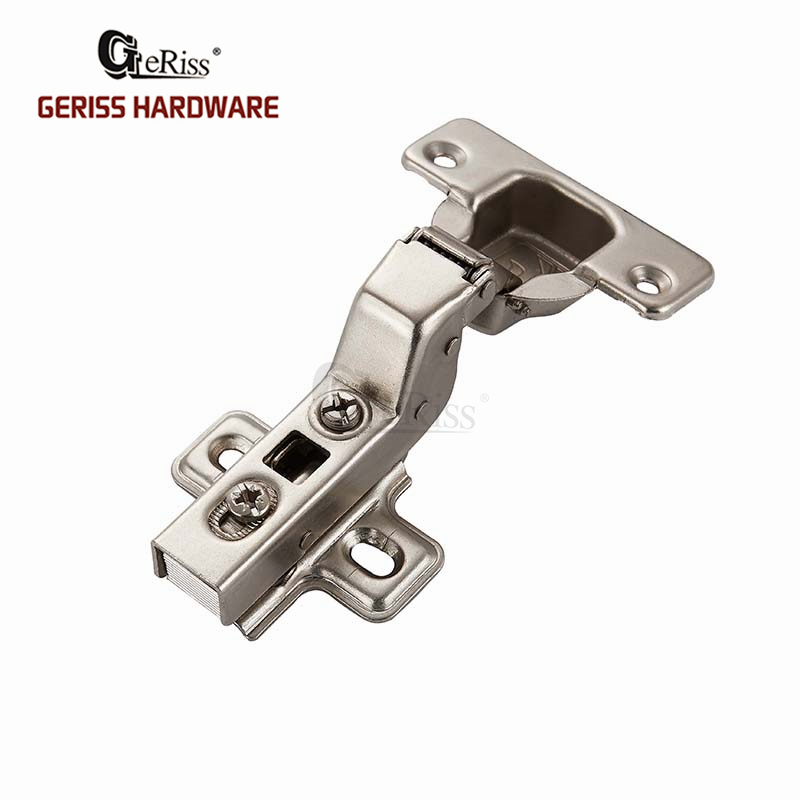

1323 INSET

>>> Click to View Installation Technical Specification

PACKAGE DETAILS:

Clip-on soft close concealed door hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
