4D Adjustable clip-on soft close concealed door hinge

Short Description:

Item No.: 1241A (Full overlay) / 1242A (Half overlay) / 1243A (Inset)

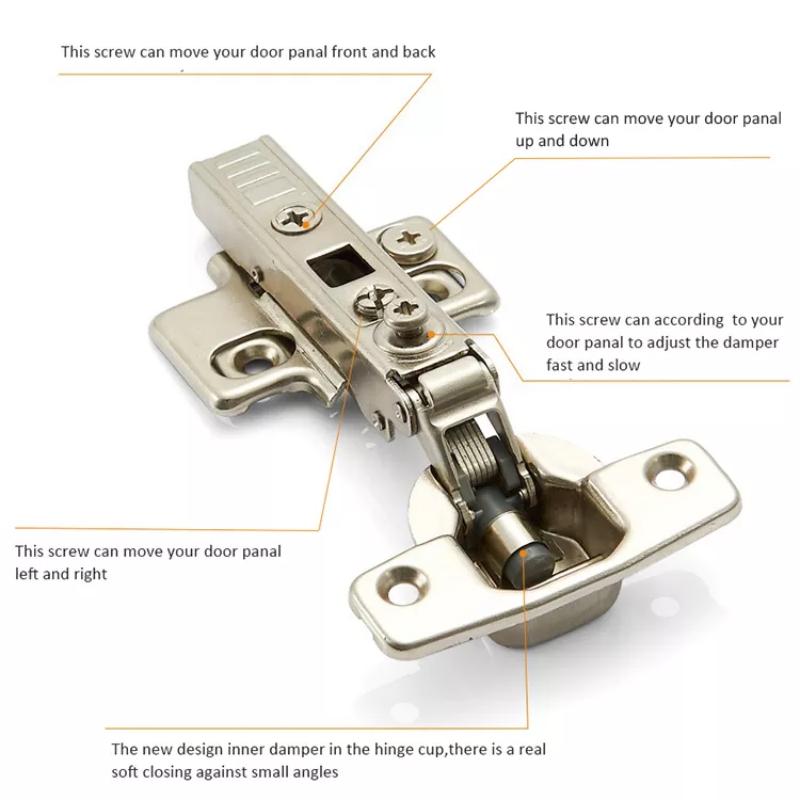

4D Adjustable clip-on soft close concealed door hinge use for frameless furniture cabinet doors. New design it’s damper in the hinge’s cup. The inner plastic damper has a adjusting screw on the hinge arm. According to your door weight, the cabinet door hinge inner plastic door damper can adjust your door’s closing time. 4D adjustment it’s means the hydraulic door hinge can adjust your door up and down, left and right, front and back, also can adjust your door close fast and slow.

Send email to us Download as PDF

Product Detail

Product Tags

Description:

Product Name:	4D Adjustable clip-on soft close concealed door hinge
Hinge cup diameter:	35 mm
Hinge cup pattern	45 / 48 mm
Depth of hinge cup:	12.6 mm
Opening angle:	105°
Drilling distances on door (K):	3-7 mm
Door thickness:	14-22 mm
Surface:	Nickel plated
Available hinge mounting base:	3D adjustable, 2 or 4 holes
Available accessories:	Euro screw, tapping screw, dowels, arm cover, cup cover
Available package:	- 200 pcs with bulk in a Moisture Barrier Bag and in the carton;
Available package:	- 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:	Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- Clip-on slow closing cabinet door hydraulic hinge.

- New design soft close mechanism inside of the hinge cup.

- Beside 3D adjustable function, also has one more function with door close fast or slow.

- Small angle 15 degree also has soft close function.

- The high technology with integrate silent system for even more convenience when soft close the door

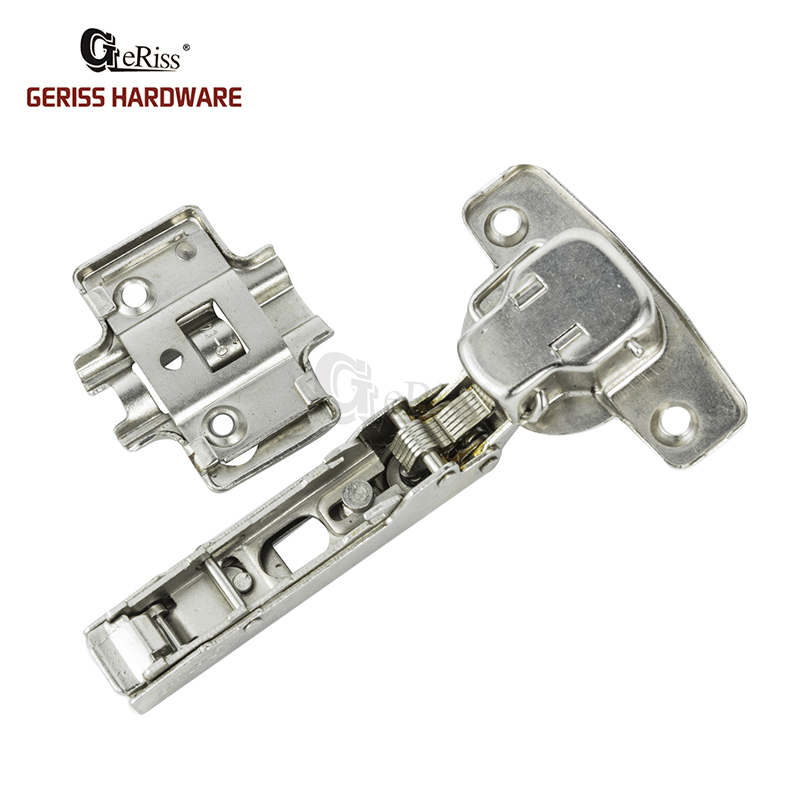

- Fast assembly design with just click, the plate can be separated, bery easy for installation.

- Soft closing mechanism,perfect soft close function make more smooth closing.

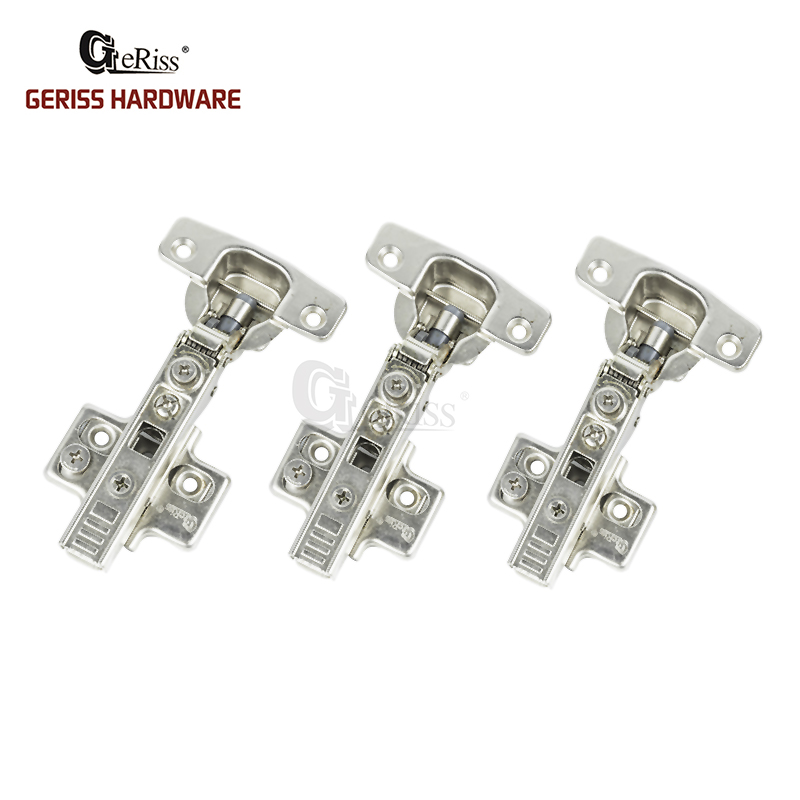

- Three types overlay can choose, there are full overlay, half overlay, inset.

- Available cabinet door hinge's accessories: assembly dowels, hinge arm covers, tapping screws, Euro screws

ORDER INFORMATION:

ITEM NO.	OVERLAY
1241A	FULL-OVERLAY
1242A	HALF-OVERLAY
1243A	INSET

>>> Click to View Installation Technical Specification

PACKAGE DETAILS:

4D Adjustable clip-on soft close concealed door hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
