Slide-on 110 degree two-way self close cabinet door hinge

Short Description:

Item No.: 0221 (Full overlay) / 0222 (Half overlay) / 0223 (Inset)

Slide-on 110 degree two-way self close cabinet door hinge. This type of furniture hinge use for standard cabinet doors. The hinge apply to 14-22 mm cabinet doors. When you close the cabinet door, it can close your cabinet door fast. The 35mm diameter cup door hinges available for full overlay, half overlay, inset. If you are interesting for this type self close hinge, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name Slide-on 110 degree two-way self close cabinet door hinge
Finish Nickle plate
Material Cold-rolled steel
Angle 110°
Diameter of hinge cup 35mm
Depth of hinge cup 11.3mm (9.5mm)
Door (K) dimension 3-7 mm
Range of door thickness 14-23 mm
Overlay Full-overlay, half-overlay, inset
Opening & closing cycle over 50,000 times

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

Slide-on cabinet door hinge's base mouting plate, you can install the mounting plate on the cabinet side board first, then slide-on the furniture hinge into the mouting plates. The concealed hinges finished installation. This type of self close hinge feature is cheap, usually apply to simple economical furniture. When you close the cabinet doors, you will feel the door close fast. There are three different types: full overlay, half overlay, inset.

ORDER INFORMATION:

ITEM NO. OVERLAY

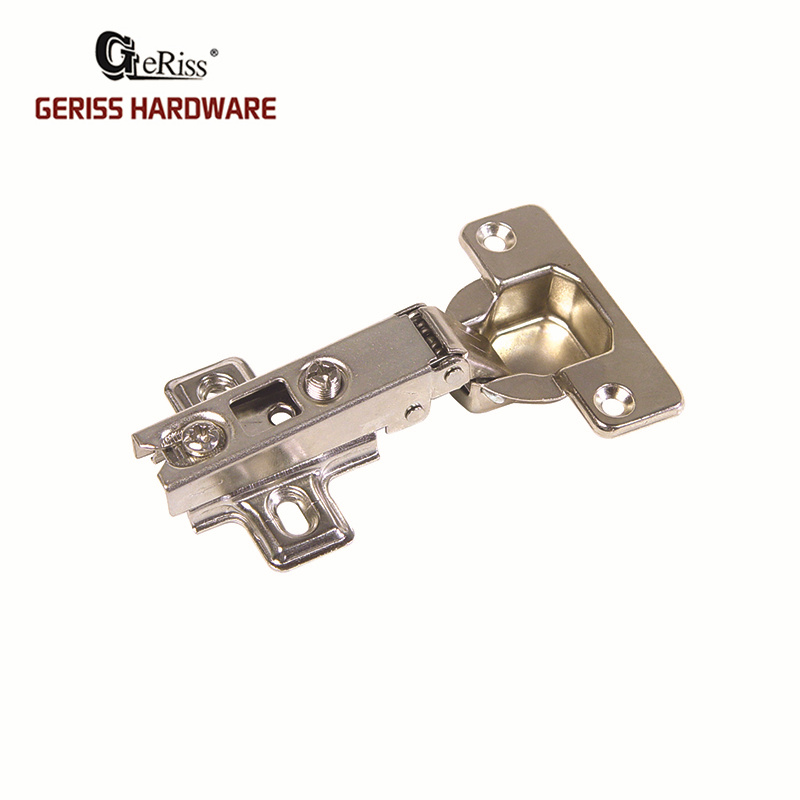

0221 FULL-OVERLAY
0222 HALF-OVERLAY

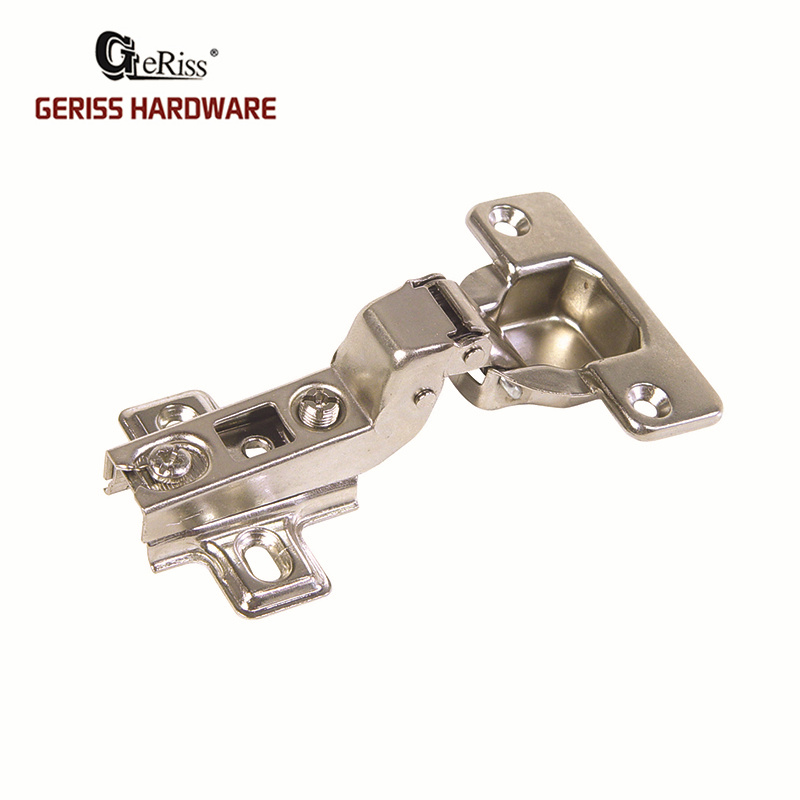

0223 INSET

>>> Click here to view technical specification

PACKAGE DETAILS:

The slide-on 110 degree two way cabinet door hinge standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
