Slide on one way mini 26mm cup cabinet hinge

Short Description:

Item No.: T2621N (Full overlay) / T2622N (Half overlay) / T2623N (Inset)

Slide on one way mini 26mm cup cabinet hinge. This type of furniture hinge use for light duty cabinet doors. The hinge apply to 12-20 mm cabinet doors. When you close the cabinet door, it can close your cabinet door fast. The 26mm diameter cup door hinges available for full overlay, half overlay, inset. If you are interesting for this type self close hinge, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name Slide on one way mini 26mm cup cabinet hinge
Finish Nickle plate
Material Cold-rolled steel
Angle 90°
Diameter of hinge cup 26mm
Depth of hinge cup 10 mm
Door thickness 12-20mm
Installation Fix-on
Overlay Full-overlay, half-overlay, inset
Opening & closing cycle 50,000 times

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

Slide-on cabinet hinge's base mouting plate. This 26mm cup hinge with 90 degree opening is perfect for frame and panel doors with narrow stiles, or for glass doors. For frameless cabinet applications. GERISS HARDWARE fixed-on concealed door hinge's base mounting plate, make your carpenter working easy to fix the hinges on the cabinets. Technical Details: Recommended for frameless overlay cabinet applications.

ORDER INFORMATION:

ITEM NO. OVERLAY

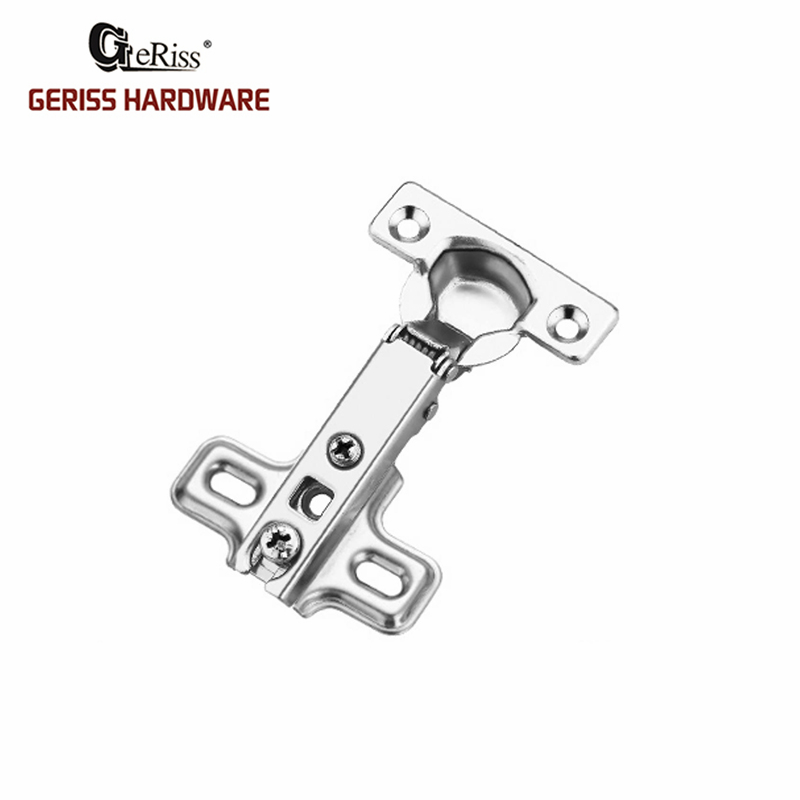

T2621N FULL-OVERLAY

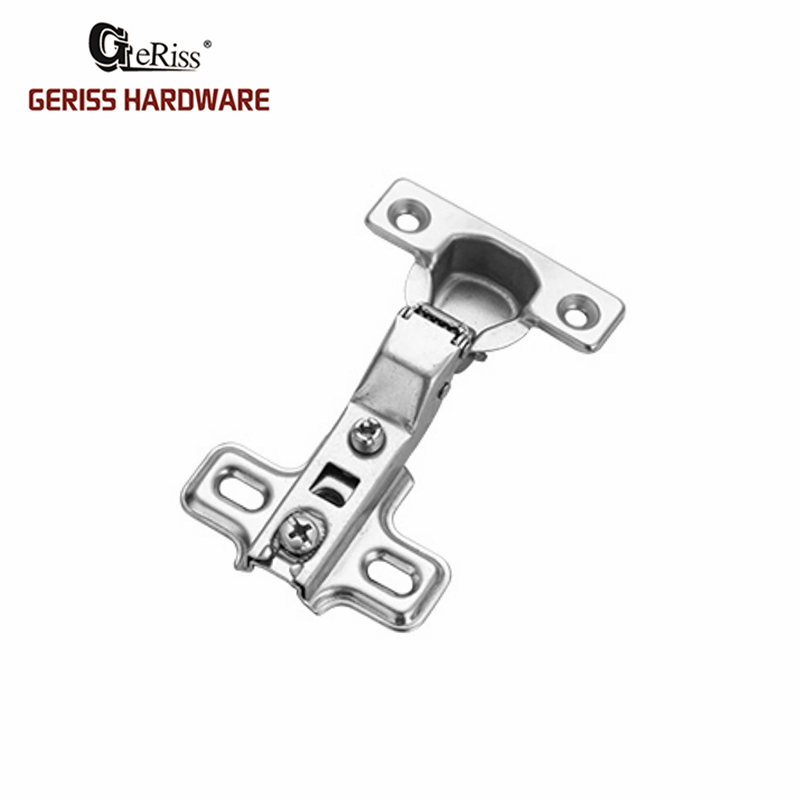

T2622N HALF-OVERLAY

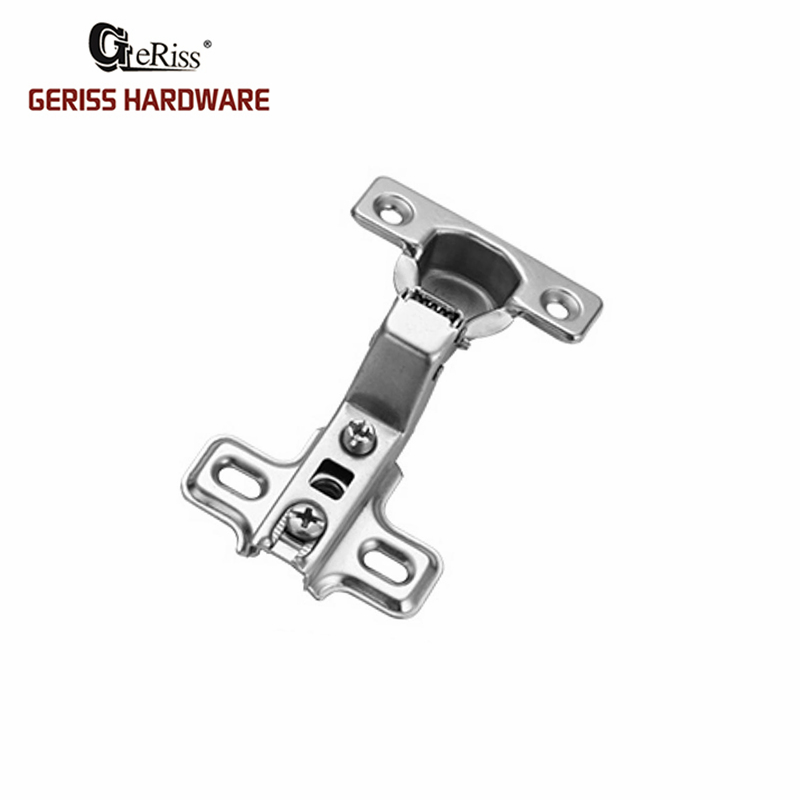

T2623N INSET
