Clip-on soft close cabinet door hinge,cup diameter 26mm

Short Description:

Item No.: T2621CS (Full overlay) / T2622CS (Half overlay) / T2623CS (Inset)

Clip-on soft close cabinet door hinge,cup diameter 26mm. This type of furniture hinge use for light duty cabinet doors. The hinge apply to 12-20mm thickness wooden doors. When you close the cabinet door, it can close soft and slowly to make a better effect of a quiet environment. Babies and kids can sleep deeply and not to be disturbed.


Download as PDF

Product Detail

Product Tags

Description:

Product Name Clip-on soft close cabinet door hinge,cup diameter 26mm
Finish Nickle plate
Material Cold-rolled steel
Angle 90°
Diameter of hinge cup 26mm
Depth of hinge cup 10 mm
Door thickness 12-20mm
Installation Clip-on
Overlay Full-overlay, half-overlay, inset
Opening & closing cycle 50,000 times

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

Improved Clip-on mounting plate adjusts easily and accurately with parallel movement. This 26mm cup hinge with 90 degree opening is perfect for frame and panel doors with narrow stiles, or for glass doors. For frameless cabinet applications. GERISS HARDWARE Clip-On feature allows you to install and remove the door without removing the hardware. Technical Details: Recommended for frameless overlay cabinet applications.

ORDER INFORMATION:

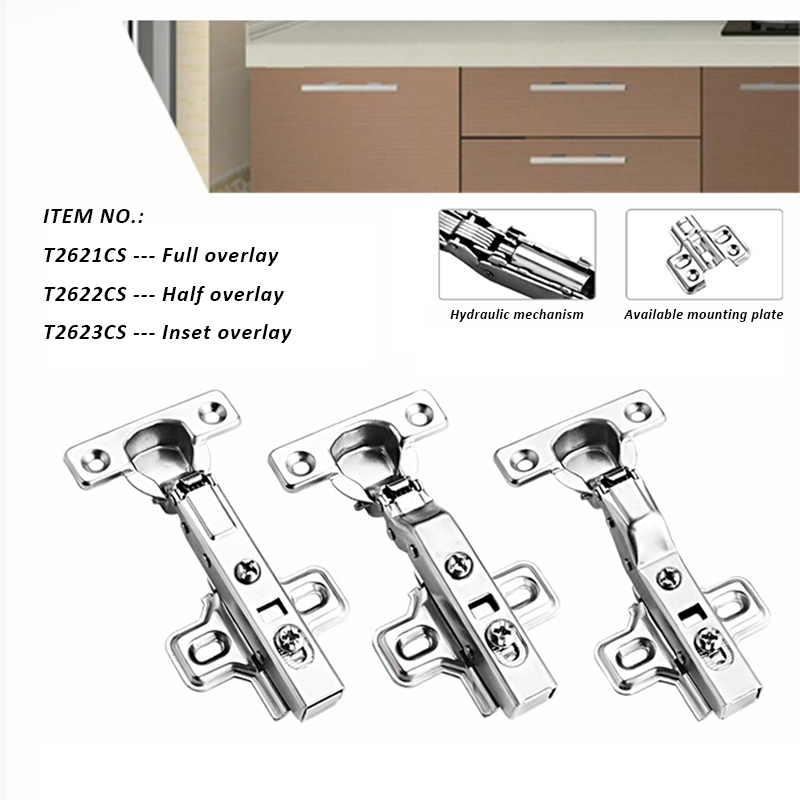

ITEM NO. OVERLAY

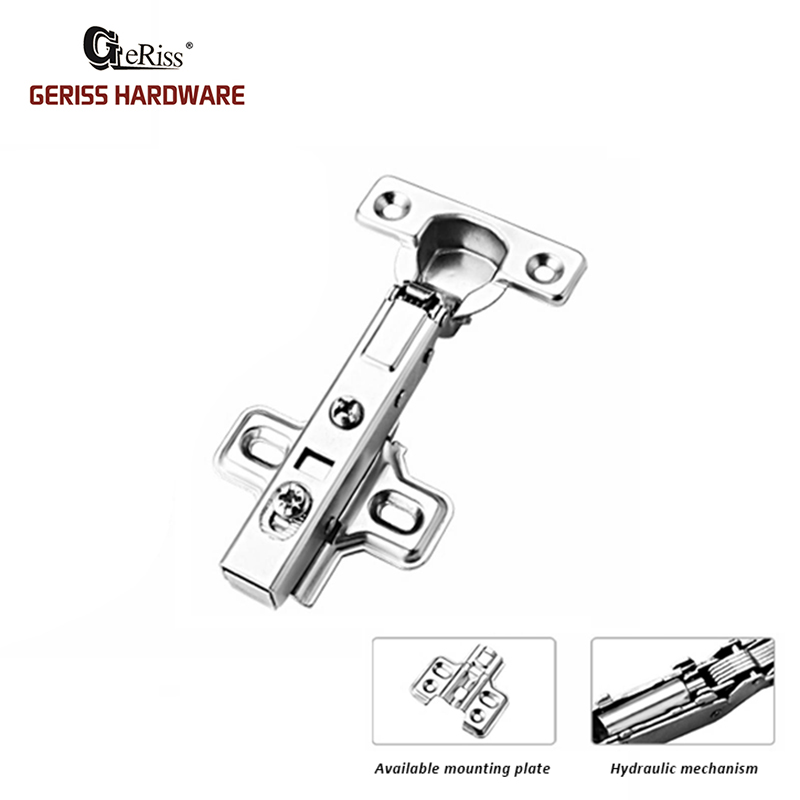

T2621CS FULL-OVERLAY

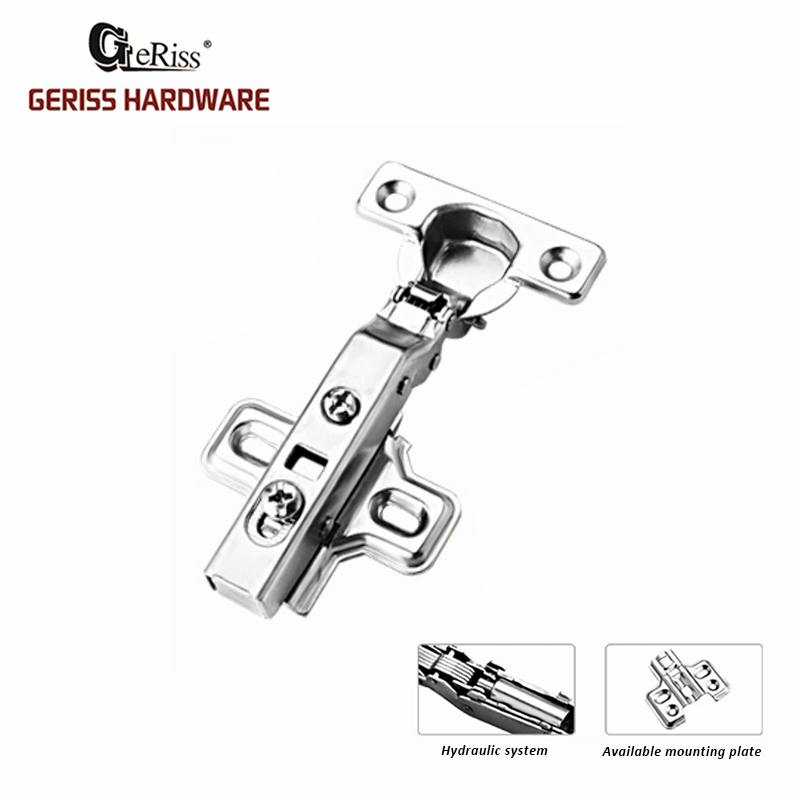

T2622CS HALF-OVERLAY

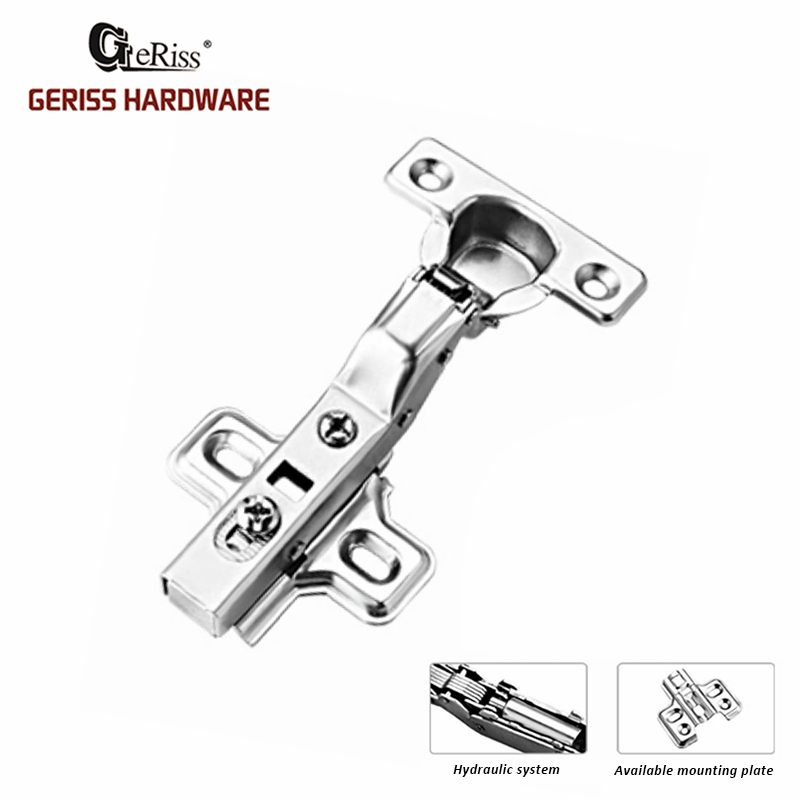

T2623CS INSET

>>> Click to View Technical Specification

cabinet door hinge 001
