26mm Cup self closing cabinet glass door hinge

Short Description:

Item No.: T2621G (Full overlay) / T2622G (Half overlay) / T2623G (Inset)

26mm Cup self closing cabinet glass door hinge. This type of furniture hinge use for light duty cabinet doors. The hinge apply to glass display doors. When you close the cabinet door, it can close very fast. The 26mm diameter cup door hinges available for full overlay, half overlay, inset. If you are interesting for this type self close hinge, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name 26mm Cup self closing cabinet glass door hinge
Finish Nickle plate
Material Cold-rolled steel
Angle 90°
Diameter of hinge cup 26mm
Depth of hinge cup 10 mm
Door thickness 12-20mm
Installation Clip-on
Overlay Full-overlay, half-overlay, inset
Opening & closing cycle 50,000 times

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

Improved Clip-on mounting plate adjusts easily and accurately with parallel movement. This 26mm cup hinge with 90 degree opening is perfect for frame and panel doors with narrow stiles, or for glass doors. For frameless cabinet applications. GERISS HARDWARE Clip-On feature allows you to install and remove the door without removing the hardware. Technical Details: Recommended for frameless overlay cabinet applications.

ORDER INFORMATION:

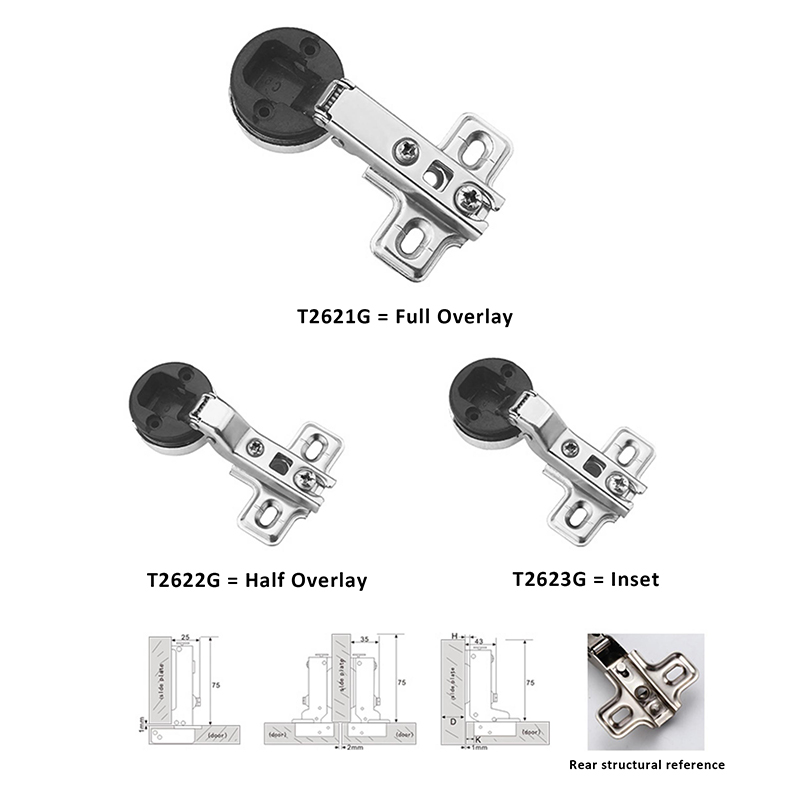

ITEM NO. OVERLAY

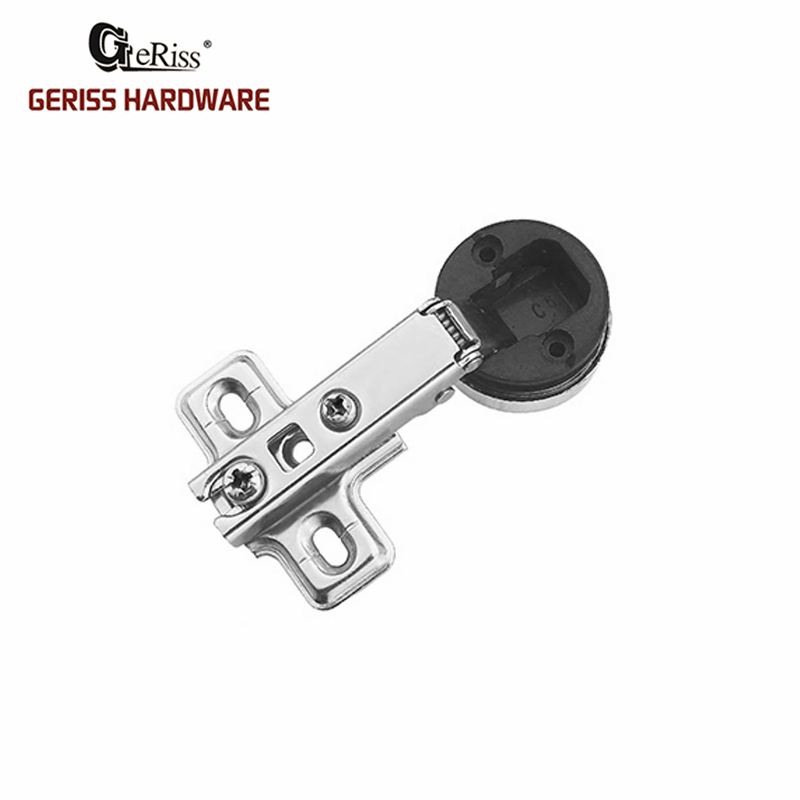

T2621G FULL-OVERLAY

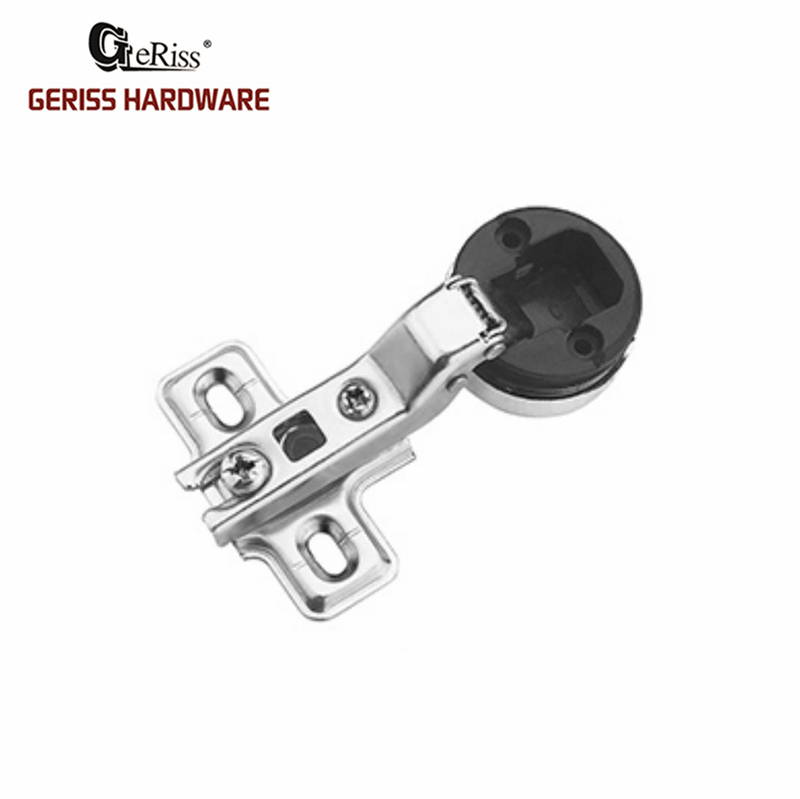

T2622G HALF-OVERLAY

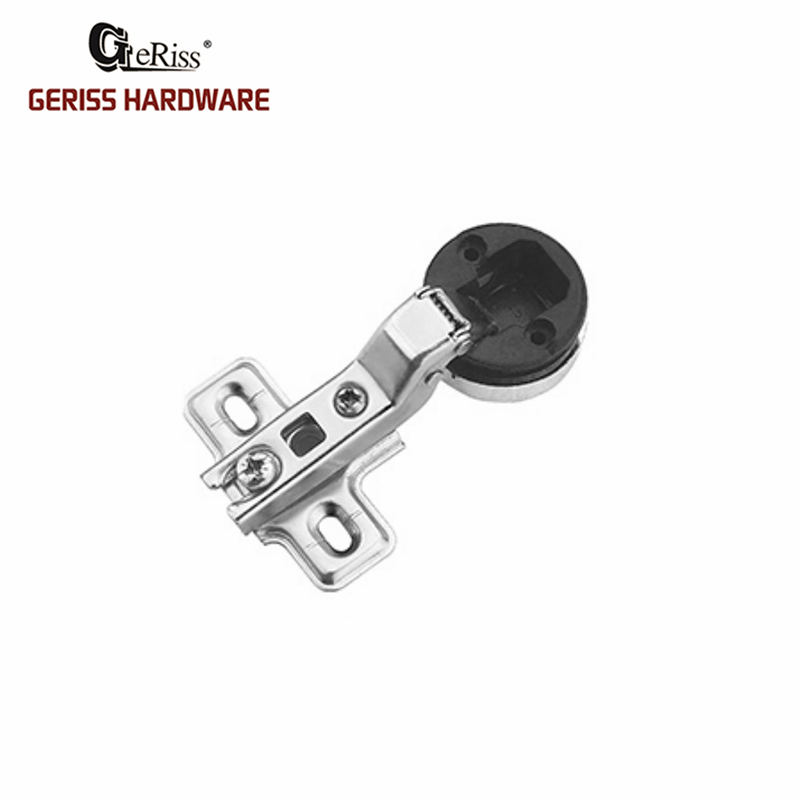

T2623G INSET
Glass door hinge 001
