Inner High Soft Close Metal Sliding Drawer System with Side Glass

Short Description:

Model No.: M01NH

Inner high soft close metal sliding drawer system with glass usually use for kitchen & bathroom cabinets. This type of soft closing slim double wall drawer slide use undermount drawer slide with gear. The feature is the slides working silent smooth and full extension synchronization without noise. If you are interesting in our slim box drawer system, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

Inner Drawer System with Glass

Description:

Product Name:

 Inner high soft close metal sliding drawer system with glass

Item No.:

M01NH

Material:

Cold Rolled Steel

Load Capacity:

35 KG (450mm as standard)

Drawer Height:

90 mm

Drawer Length:

  270mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm and customize is available

Extension:

Fully extension

Function:

Silent smooth soft close

Cycling Test:

Over 50,000 times

Available Accessories:

Internal aluminum front panels and glasses

Application:

Kitchen & Bathroom Cabinets, Office Furniture, etc...

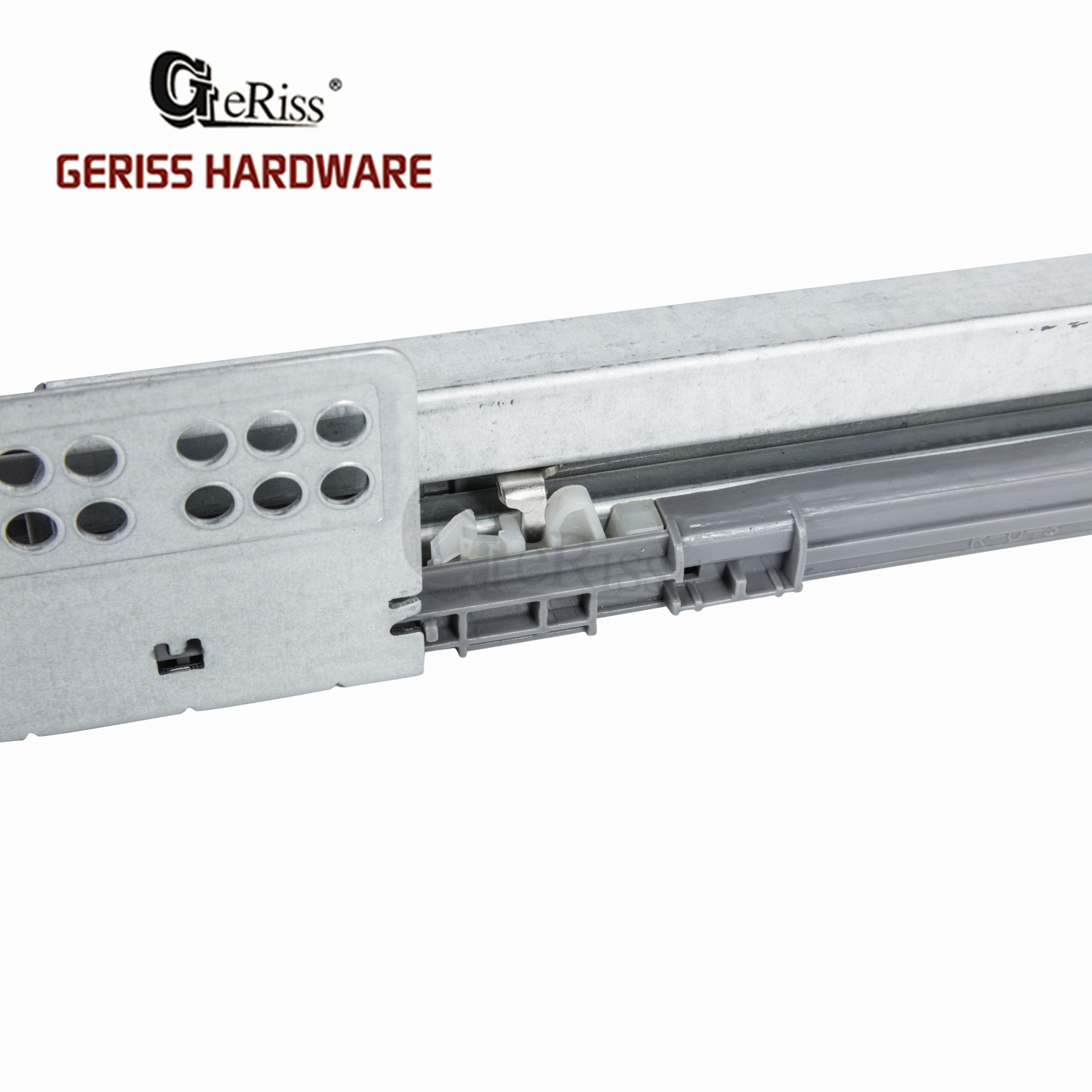

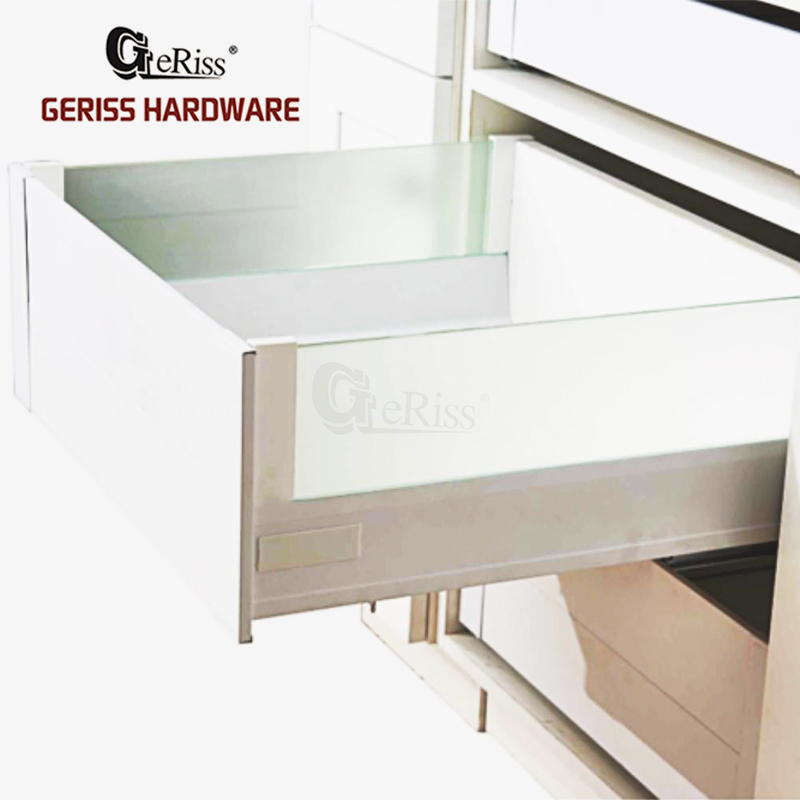

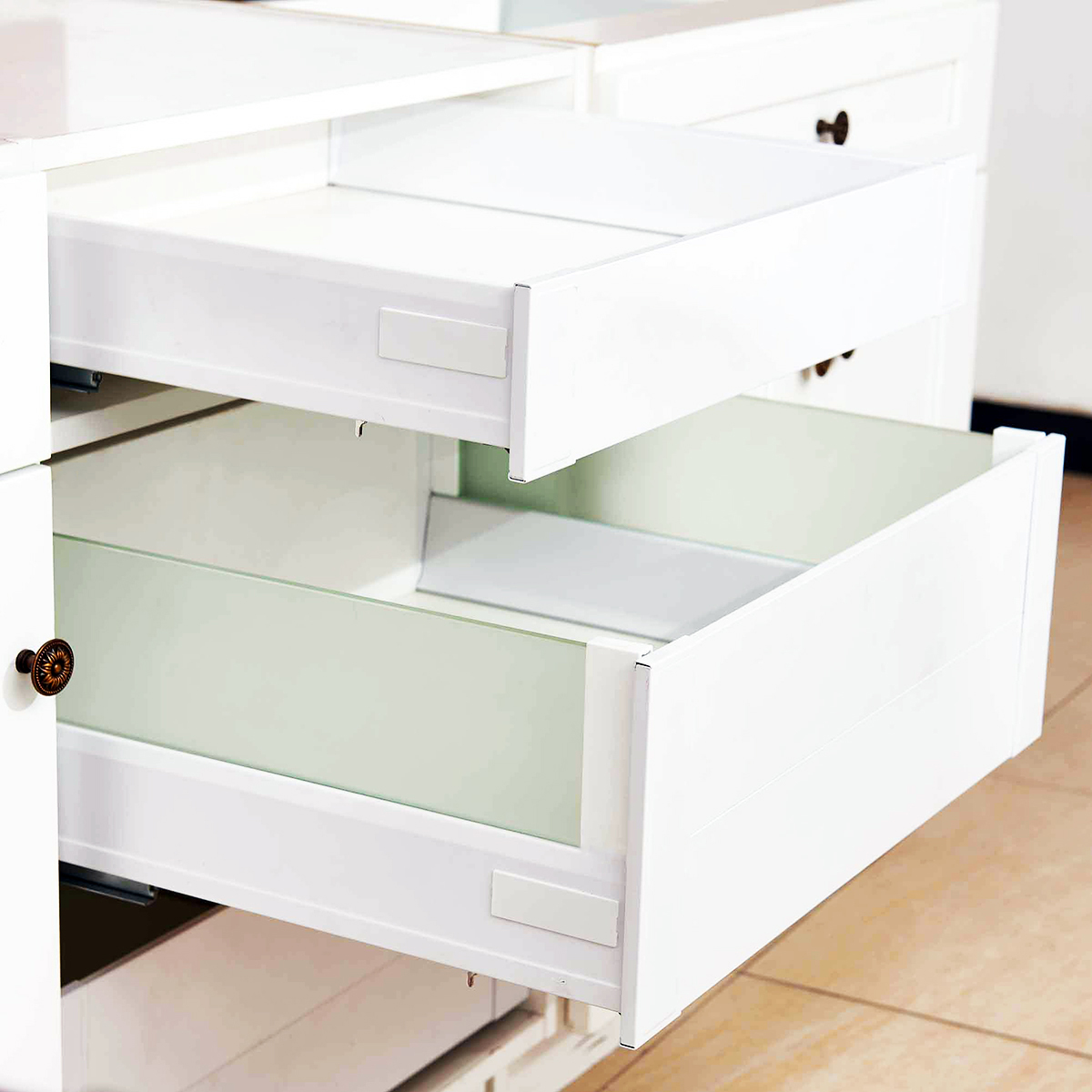

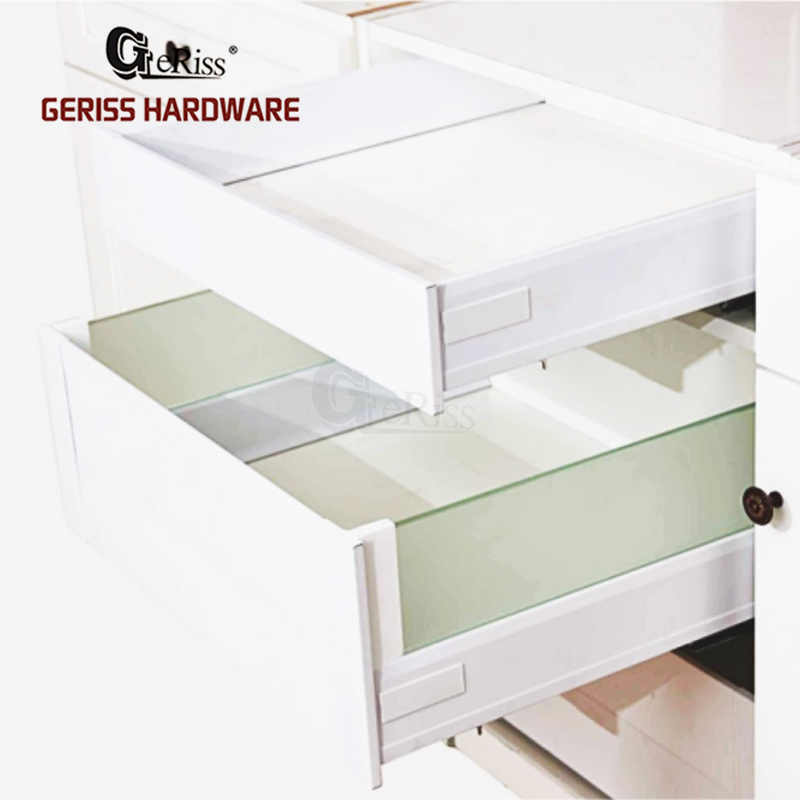

Details Photos:

Clip to download installation introduction!

View the installation video:

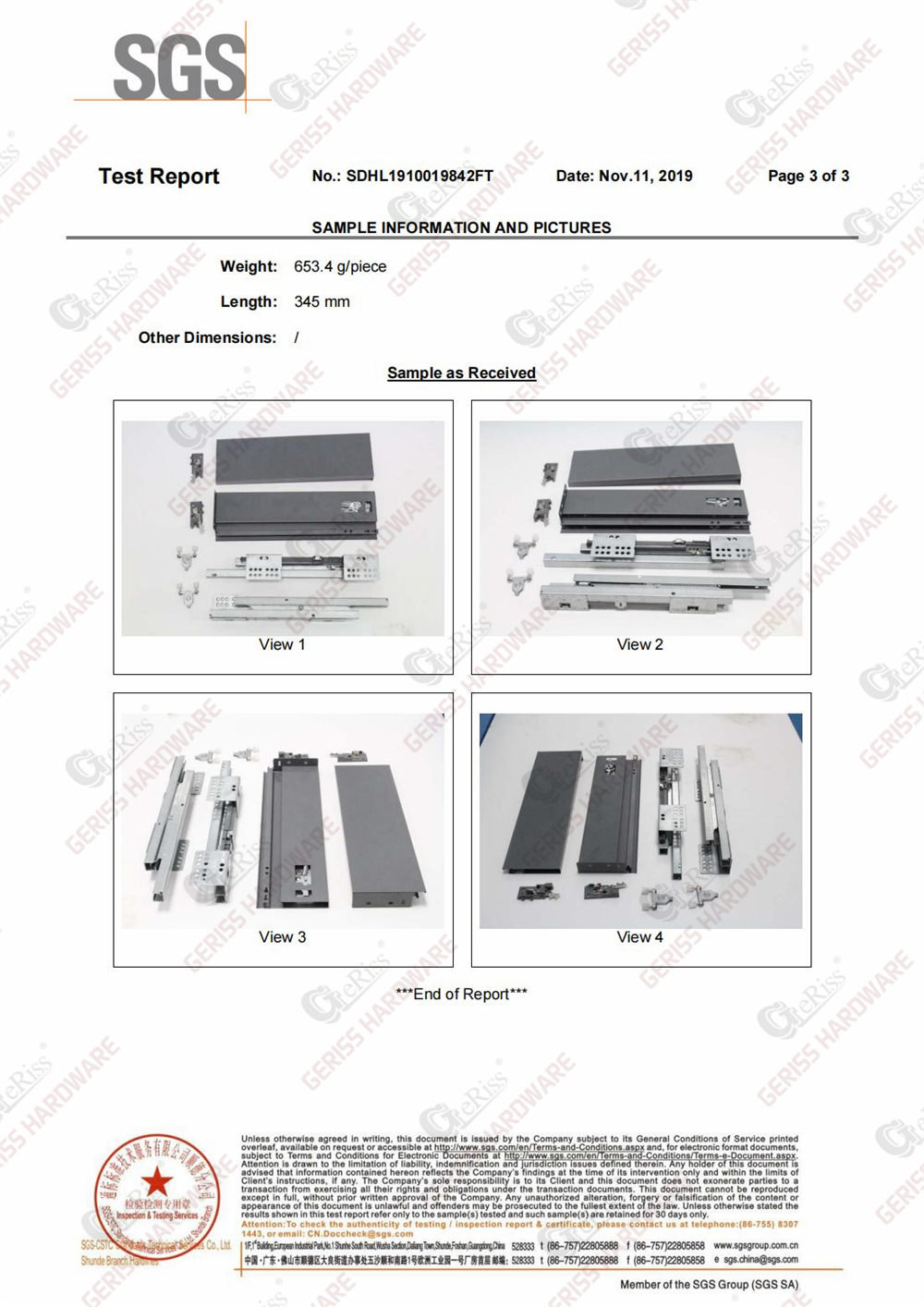

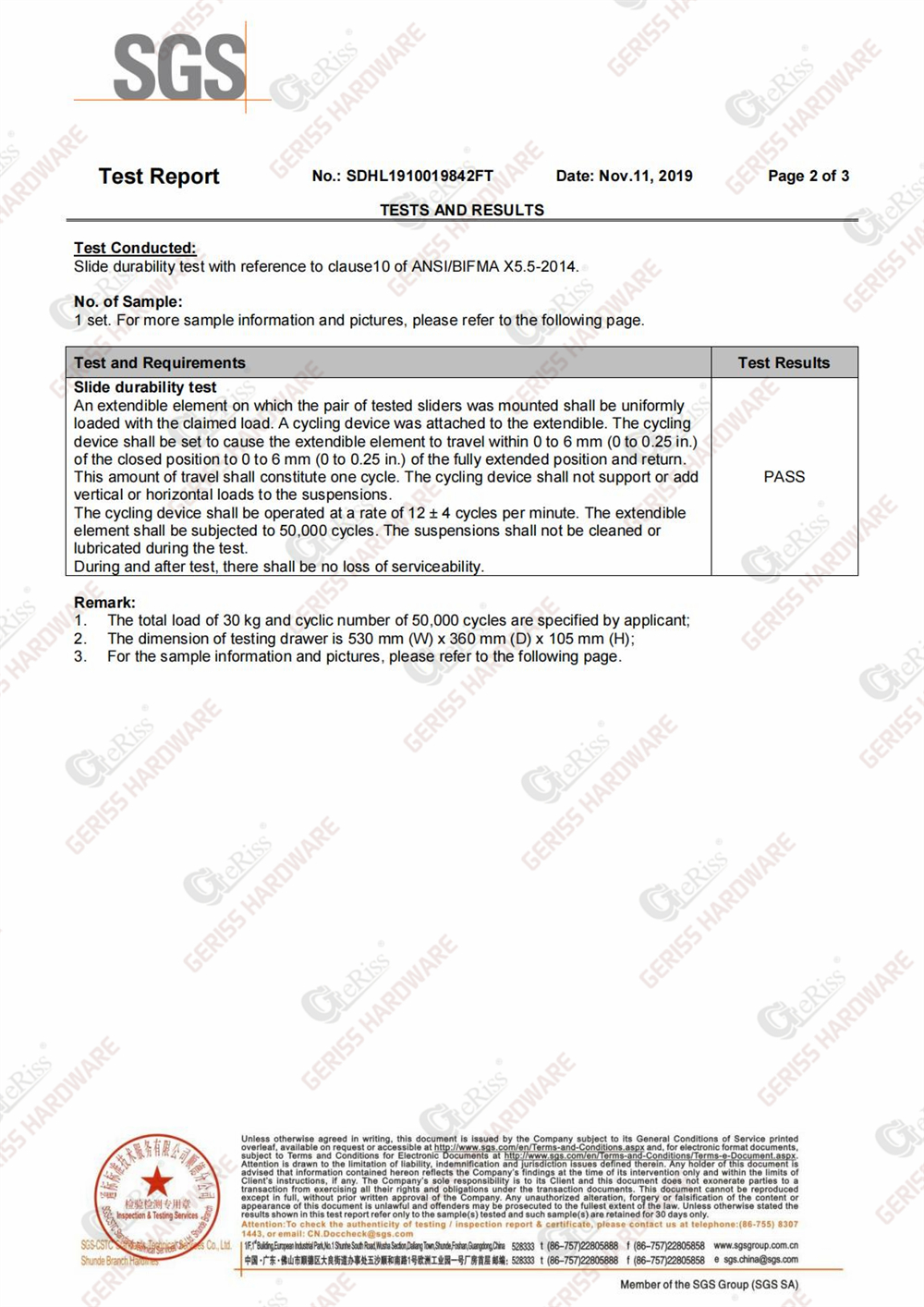

Certification:

Packing Details:

Package

Workshop:

WORKSHOP
