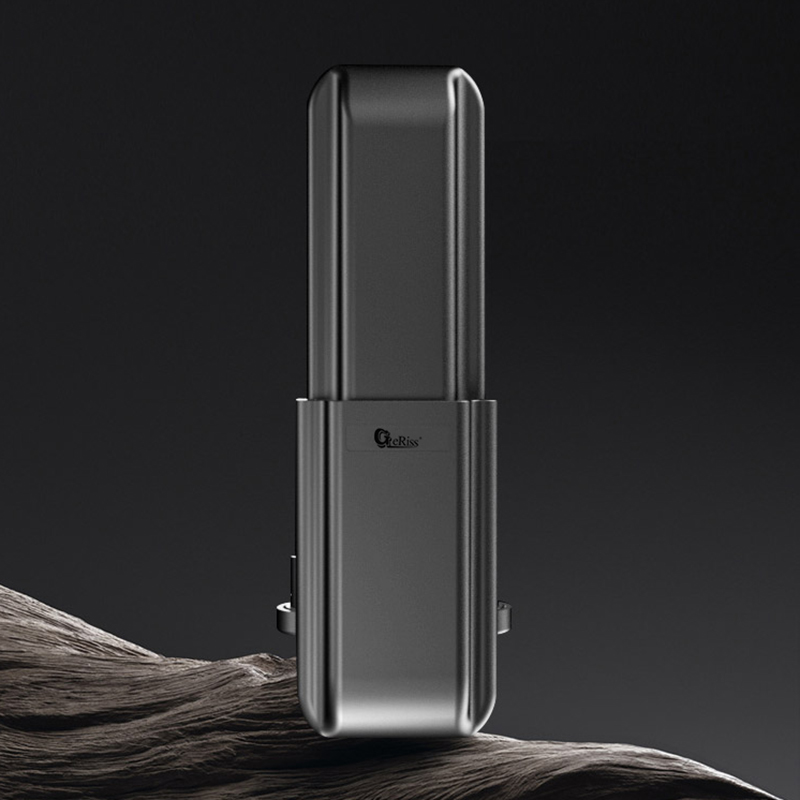

Aluminum frame door clip-on soft close concealed hinge

Short Description:

Item No.: AF10

Aluminum frame door clip-on soft close concealed hinge. GERISS furniture hinges made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for concealed hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable cabinet door hinges are perfect for every role. If you are interesting for the aluminum frame door hinges, please feel free to inquiry us.

Send email to us Download as PDF

Product Detail

Product Tags

Description:

Product Name:	Aluminum frame door clip-on soft close concealed hinge
Material:	Cold rolled steel
Surface:	Nickel plated as standard, customize is available.
Opening angle:	110 Degree
Drilling dimension on aluminum profile hinge head:	28 mm
Range of width of aluminum profile:	20-23 mm
Optional close type:	Soft close
Available accessories:	Decorative cover, tapping screws
Available package:	- 200 pcs with bulk in a moisture barrier bag and in the carton;
Available package:	- 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:	Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

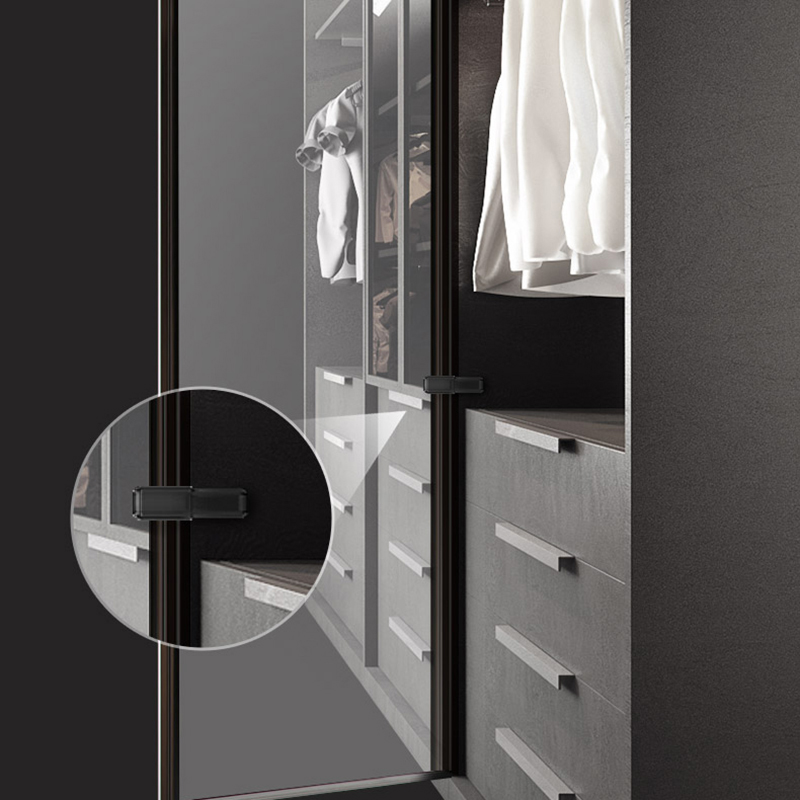

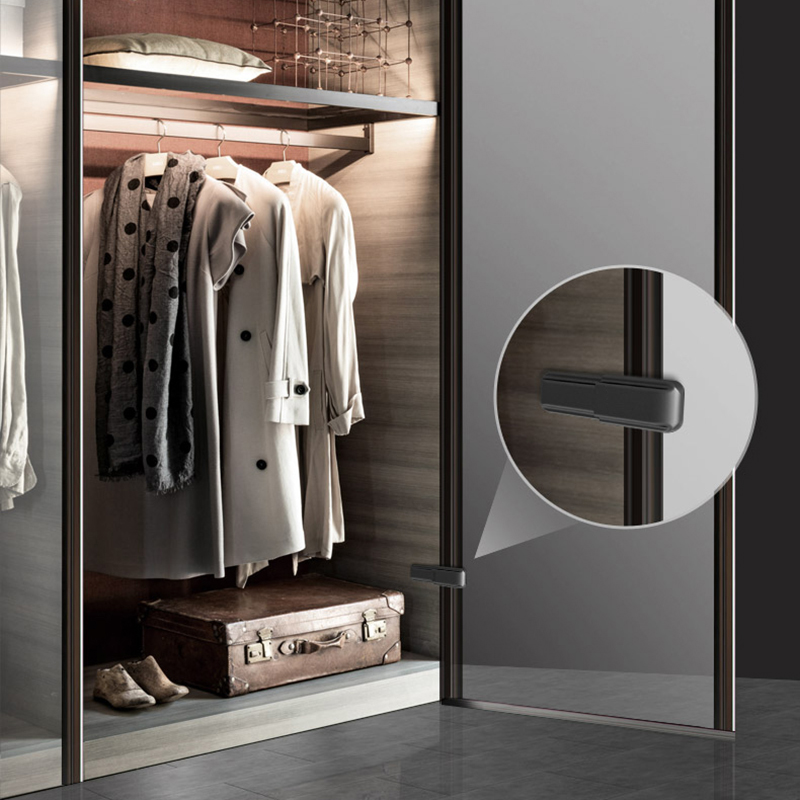

APPLICATION SCENARIOS:

ADVANTAGES AND BENEFITS:

- Aluminum frame door clip-on soft close concealed hinge

- Built-in integrated damping hinge

- Stealth design, elegant appearance

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

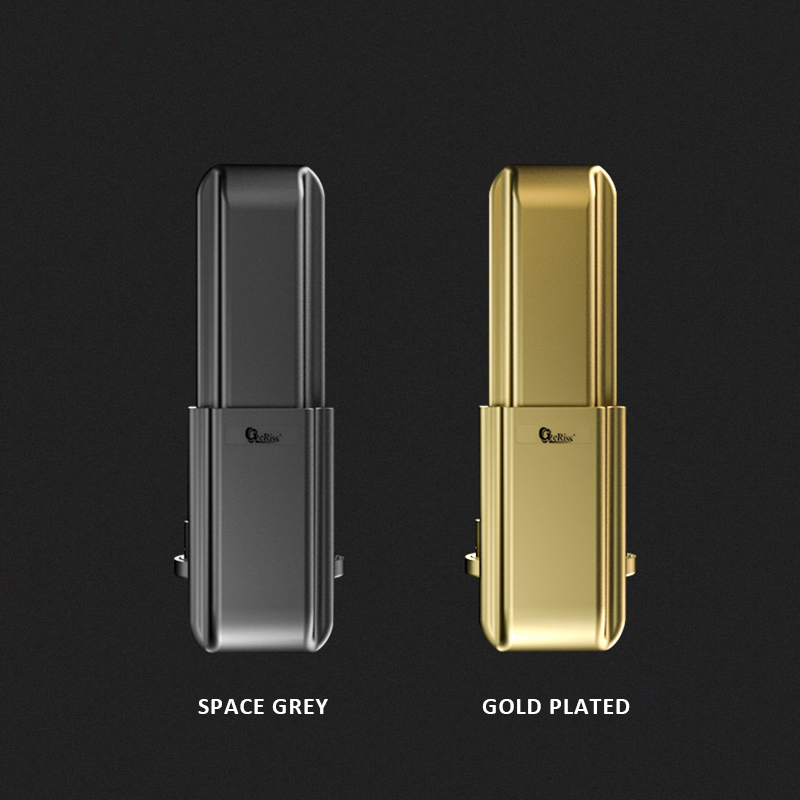

AVAILABLE COLOR:

ORDER INFORMATION:

Hinge Type	Mounting Plates	Item No.	Overlay
Aluminum frame door hinge	Invisible	AF101	Full
		AF102	Half
		AF103	Inset

H = Height of mounting plate

D = Required overlay on the cabinet side panel

W= Range of widht of aluminum profile

AVAILABLE HINGE CUPS & MOUNTING BASES:

PACKAGE DETAILS:

Modern aluminum frame door wardrobe quiet soft close clip-on concealed hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
