30 KG Load heavy duty truly concealed hydraulic soft close aluminum frame door hinge

Short Description:

Item No.: AF30

30 KG Load heavy duty truly concealed hydraulic soft close aluminum frame door hinge. This hinge usually use for aluminum frame cabinet door. The truly concealed hinge different with troditional furniture hinge. You will not see the hinge body on the cabinet side board. Make your furniture cabinet good look. If you are interesting in our hinge, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

DESCRIPTION:

Product Name:  30 KG Load heavy duty truly concealed hydraulic soft close aluminum frame door hinge
Material:  Steel + Zinc alloy
Color:  Black or customize is available, but MOQ 500 pairs.
Load capacity:  30 KG
For door max size:  W 600 x H 2800 mm
Door opening angle:  100 Degree
Available accessories:  Aluminum frame connectors

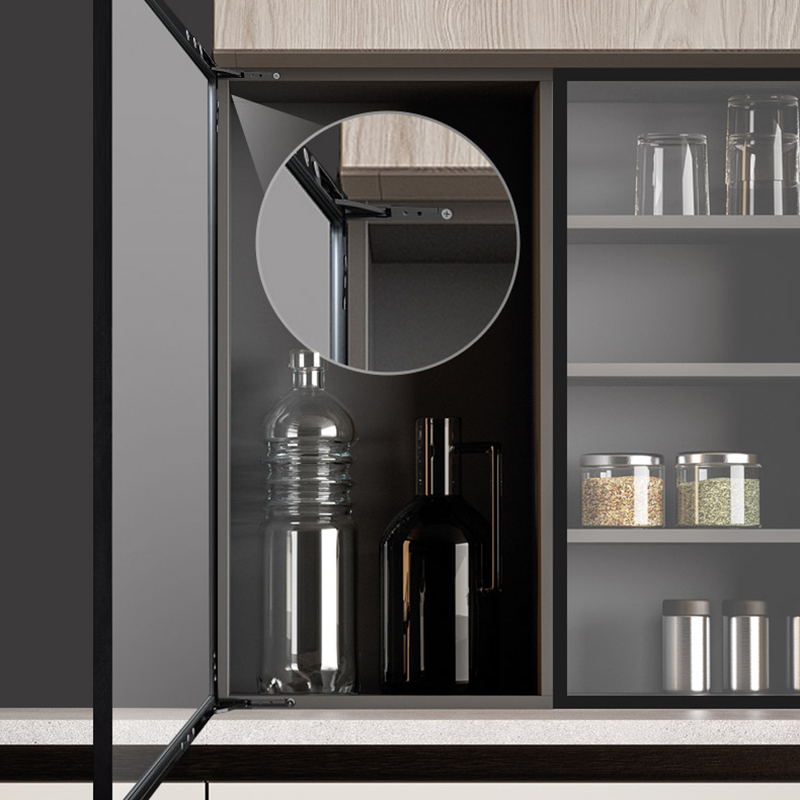

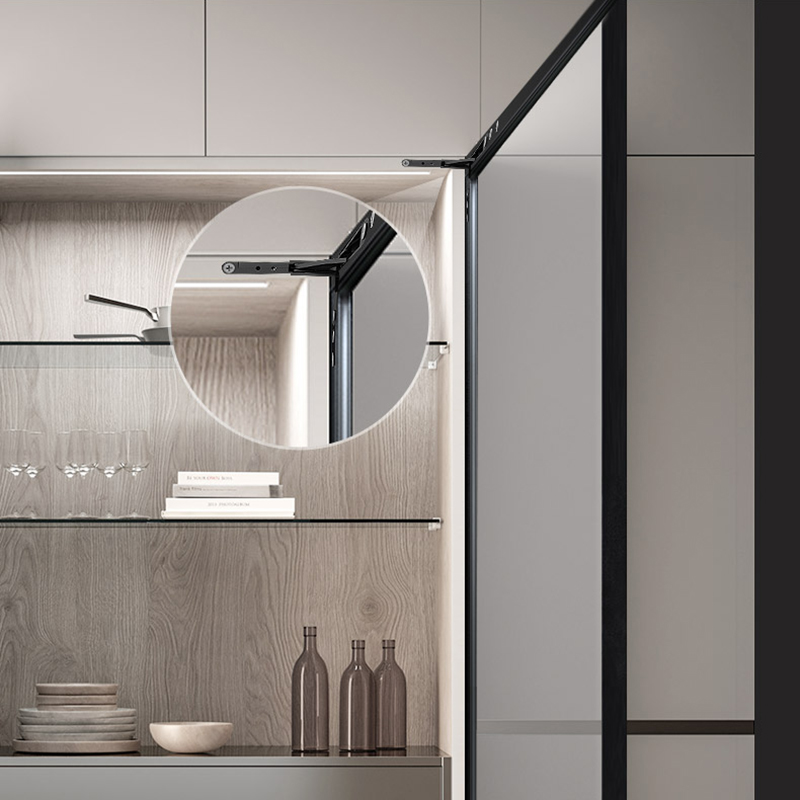

Application:  Aluminum frame glass doors

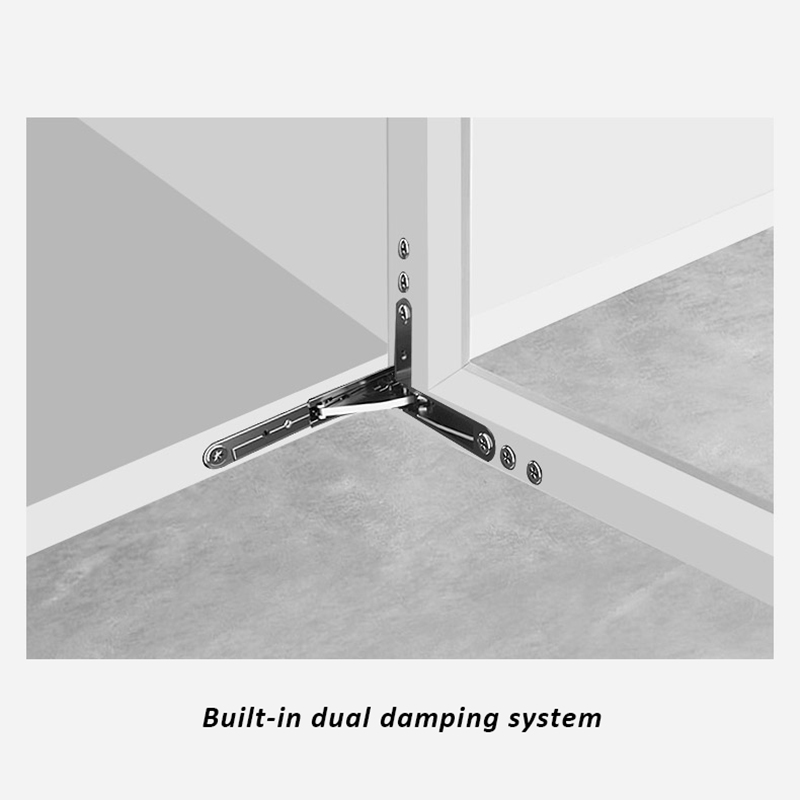

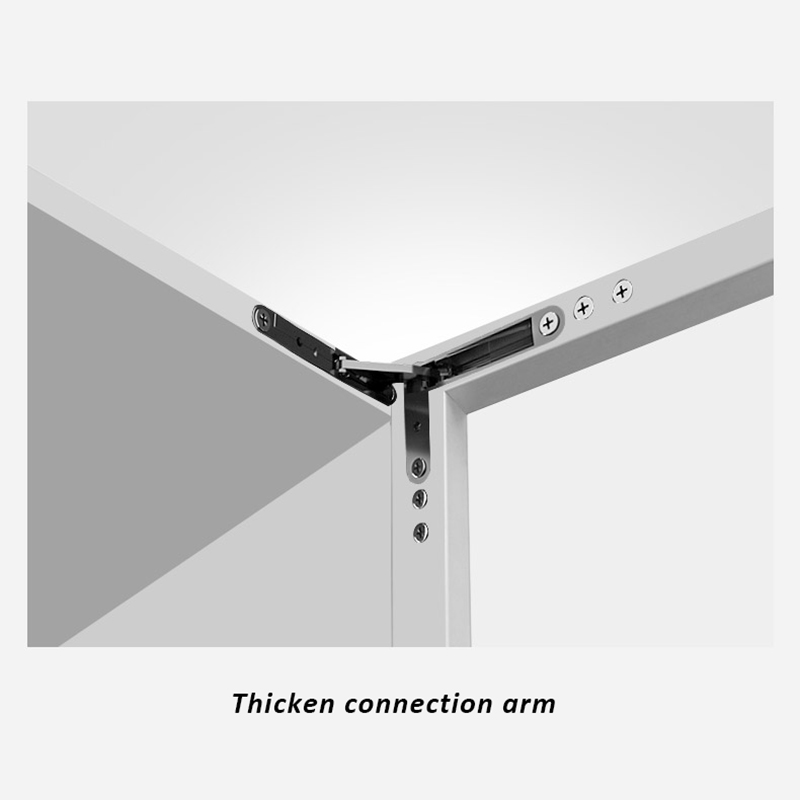

PRODUCT DETAILS:

TECHNICAL DATA:

- Suitable for 22-35mm thickness wooden doors and aluminum frame doors.

- Maximum door size: height 2800mm, width 600mm, metal cup 18.0mm deep. The maximum door weighs 30KG.

- Opening angle 100 degree.

- Door panel drilling distance (K) value: 4-8mm for wooden doors, fixed value 4mm with aluminum frame doors.

- Maximum overlay for wooden doors D=30.0mm, maximum overlay for aluminum frame doors D=26.0mm.

- The gaps of the door to adjustable +3.5mm/-0.5mm

- Adjustable for up and down +1.0mm/-1.0mm

- Adjustable for overlay +2.0mm/-2.0mm

- Materials: zinc alloy + manganese steel

- Surface: black nickel plated

>>> Click to view the technical specification

APPLICATION:

PACKAGE DETAILS:

30 KG Load heavy duty truly concealed hydraulic soft close aluminum frame door hinges standard package 24 pairs in a carton.

The carton size 62 x 36.5 x 18.5 cm. Gross weight of per caton 16.5 KG.

If you are interesting to our products, please feel free to inquiry us.
