  • 3D Adjustable click-on soft close hydraulic aluminum frame door hinge
  • 3D Adjustable click-on soft close hydraulic aluminum frame door hinge

3D Adjustable click-on soft close hydraulic aluminum frame door hinge

Short Description:

Item No.: AF16

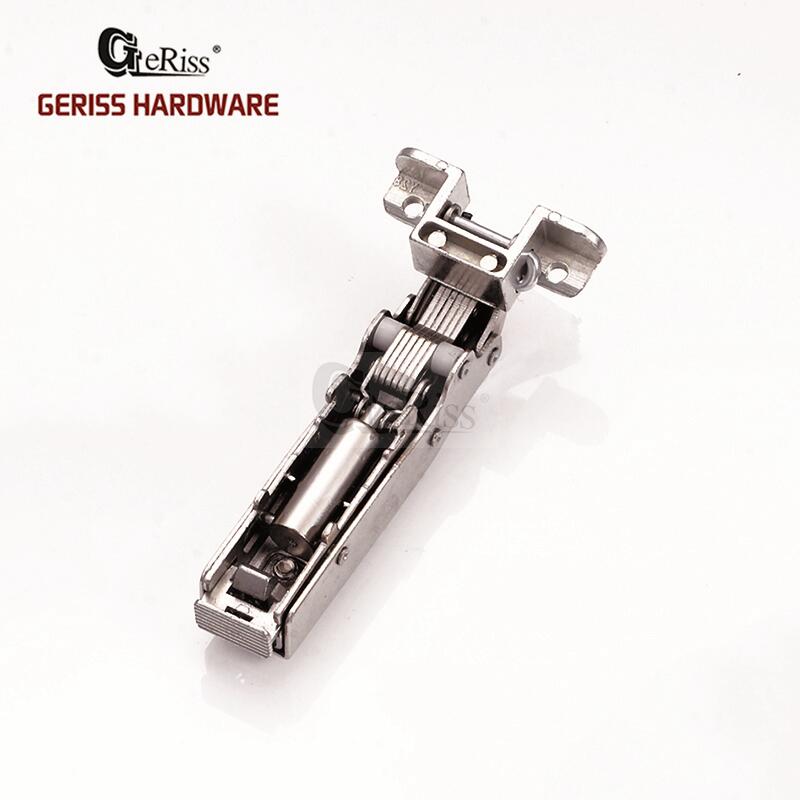

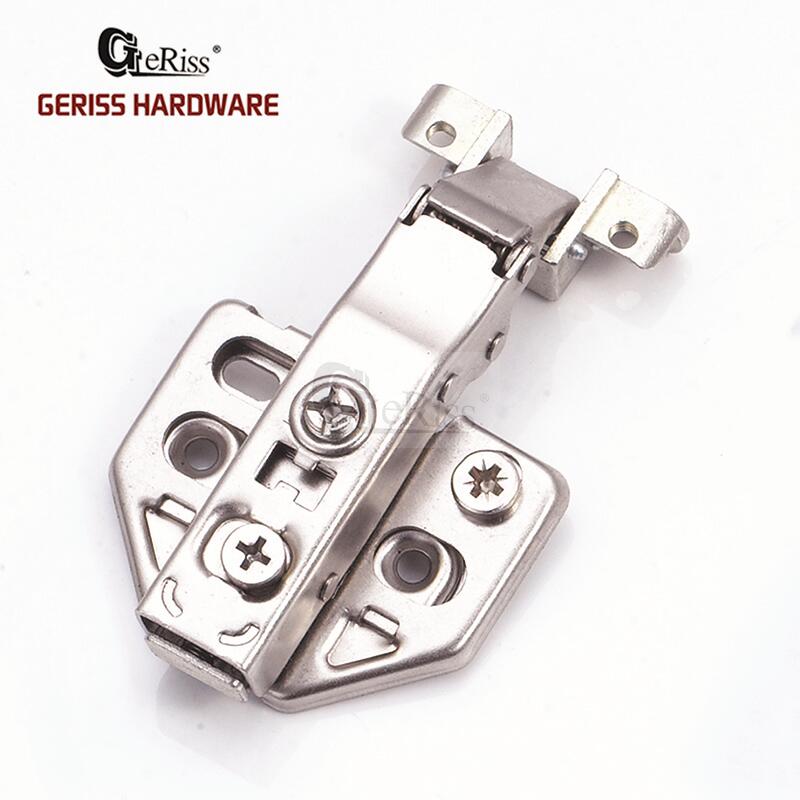

3D Adjustable click-on soft close hydraulic aluminum frame door hinge. GERISS furniture hinges made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for concealed hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable cabinet door hinges are perfect for every role. If you are interesting for the aluminum frame door hinges, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name:  3D Adjustable click-on soft close hydraulic aluminum frame door hinge
Material:  Cold rolled steel
Surface:  Nickel plated as standard, customize is available.
Opening angle:  110 Degree
Drilling dimension on aluminum profile hinge head:  28 mm
Range of width of aluminum profile:  18-27 mm
Optional close type:  Soft close or non-hydraulic
Available accessories:  Arm cover, tapping screws
Available package:  - 200 pcs with bulk in a moisture barrier bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- 3D Adjustable click-on soft close hydraulic aluminum frame door hinge

- Soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

ORDER INFORMATION:

Hinge Type Mounting Plates Item No. Overlay
Aluminum frame door hinge 3D Adjustable AF1621 Full
AF1622 Half
AF1623 Inset
4 Holes AF1341 Full
AF1342 Half
AF1343 Inset
2 Holes AF1321 Full
AF1322 Half
AF1323 Inset

H = Height of mounting plate

D = Required overlay on the cabinet side panel

W= Range of widht of aluminum profile

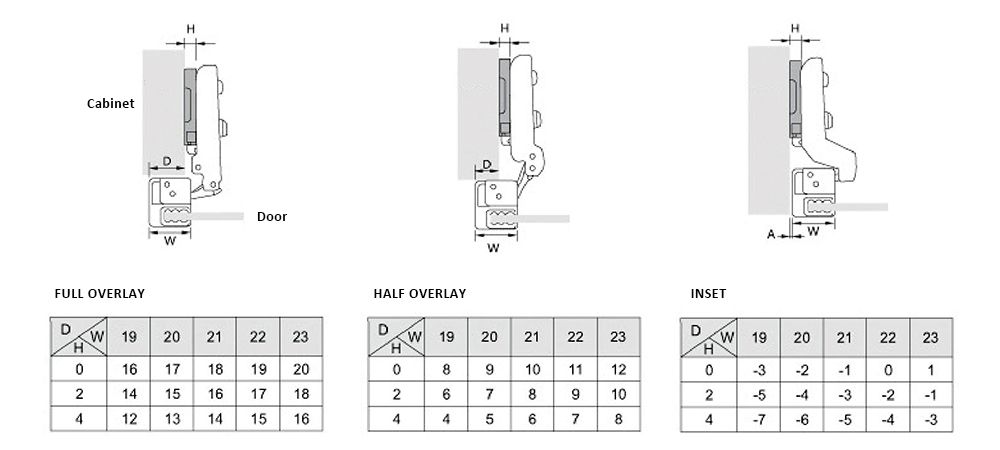

Overlay of AF13

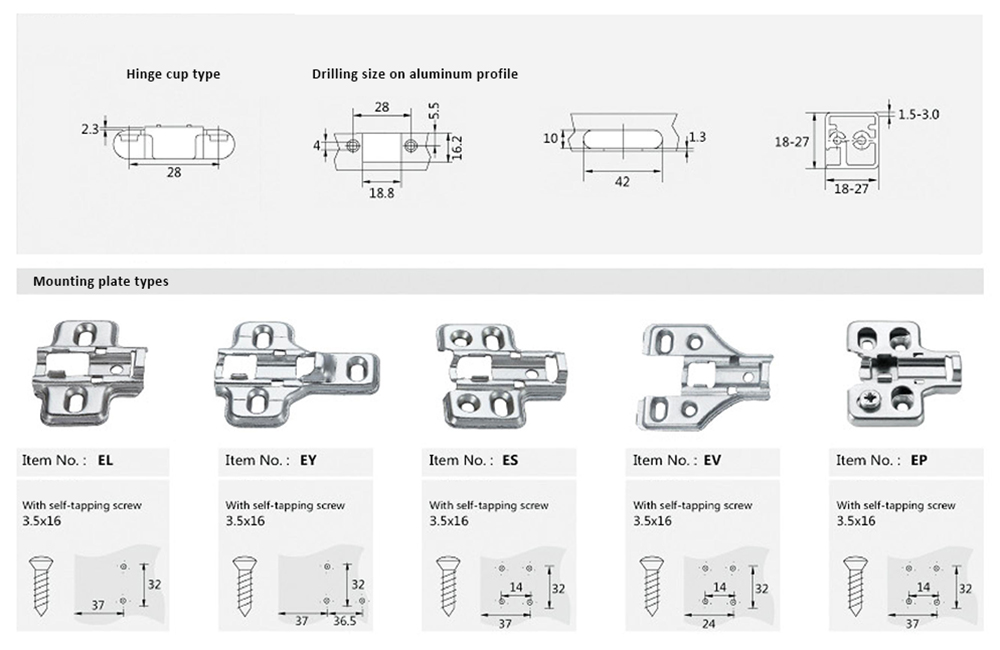

AVAILABLE HINGE CUPS & MOUNTING BASES:

Aluminum frame door hinge AF13 005

PACKAGE DETAILS:

Modern aluminum frame door wardrobe quiet soft close clip-on concealed hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
