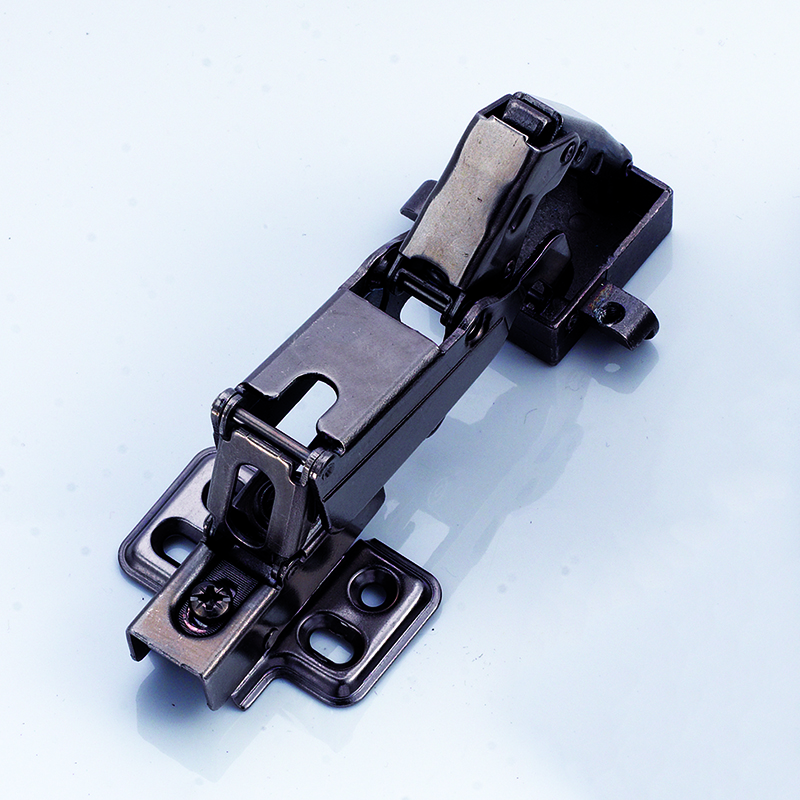

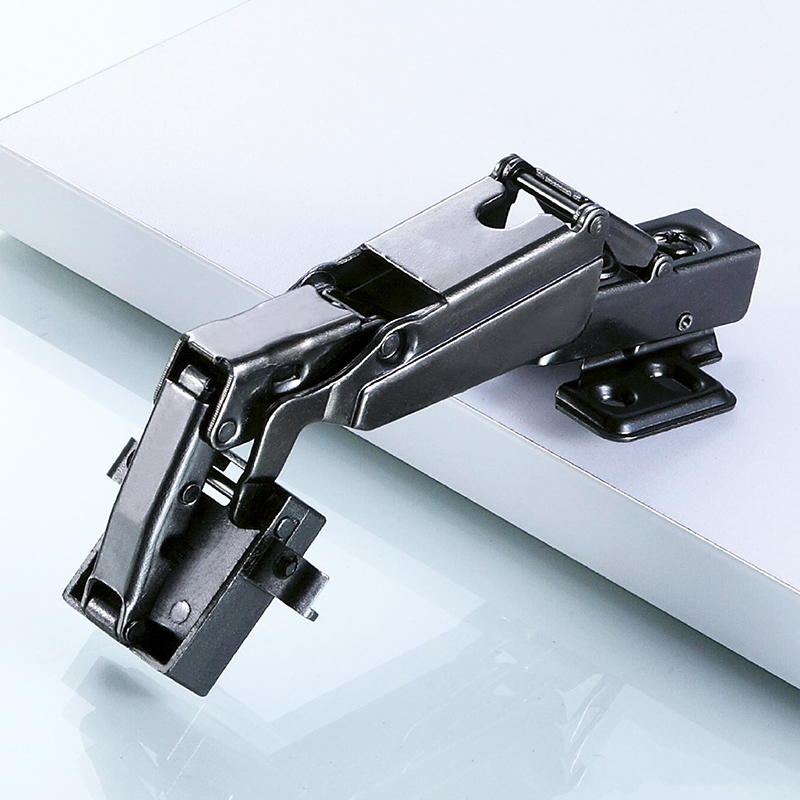

Corner cabinet aluminium frame door soft close hydraulic 155 degree hinge Featured Image
  • Corner cabinet aluminium frame door soft close hydraulic 155 degree hinge
  • Corner cabinet aluminium frame door soft close hydraulic 155 degree hinge

Corner cabinet aluminium frame door soft close hydraulic 155 degree hinge

Short Description:

Item No.: AF155FS

Corner cabinet aluminium frame door soft close hydraulic 155 degree hinge. Furniture hinges 165 degrees made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable 165-degree furniture hinges are perfect for every role. If you are interesting for the soft close cabinet door hinge, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name:  Corner cabinet aluminium frame door soft close hydraulic 155 degree hinge
Drilling dimension on aluminum profile hinge head:  38 mm
Opening angle:  155°
Range of width for aluminum profile:  22-25 mm
Surface:  Nickel plated
Function:  Soft closing
Available accessories:  2 or 4 holes mouting plate, Euro screws, tapping screws
Available package:  - 100 pcs with bulk in a moisture barrier bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- Corner cabinet aluminium frame door soft close hydraulic 155 degree hinge

- Soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

ORDER INFORMATION:

Overlay of 165 degree hinge
Hinge Type Mounting Plates Item No. Overlay
Aluminum Frame Door Hinge 4 Holes AF155FS41 Full
AF155FS42 Half
AF155FS43 Inset
2 Holes AF155FS21 Full
AF155FS22 Half
AF155FS23 Inset

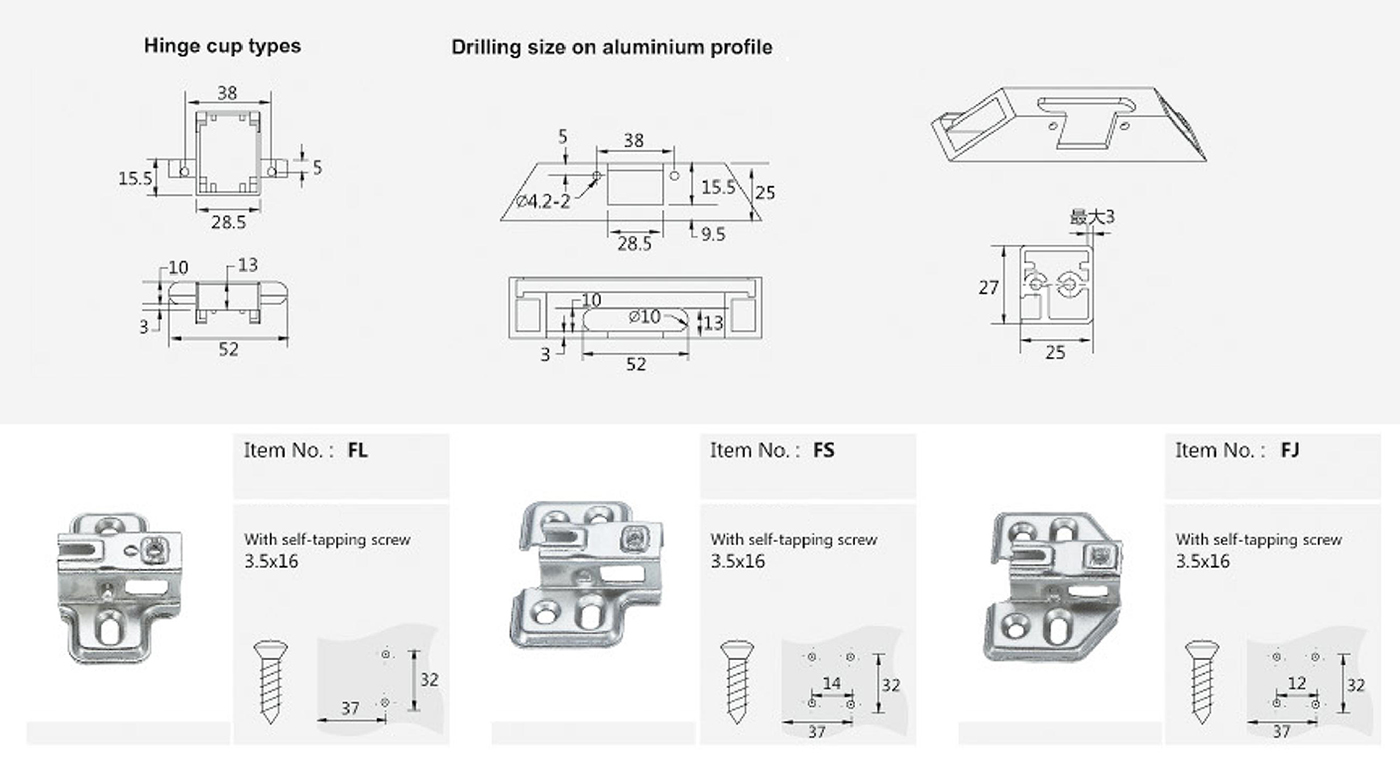

AVAILABLE HINGE CUPS & MOUNTING BASES

Aluminum frame door hinge cups & mounting base

PACKAGE DETAILS:

Corner cabinet aluminium frame door soft close hydraulic 155 degree hinges standard pacakges are 100 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
