45mm full extention soft closing ball bearing drawer slide

Short Description:

Model No.: YA-4503

45mm full extention soft closing ball bearing drawer slide produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Product Detail

Product Tags

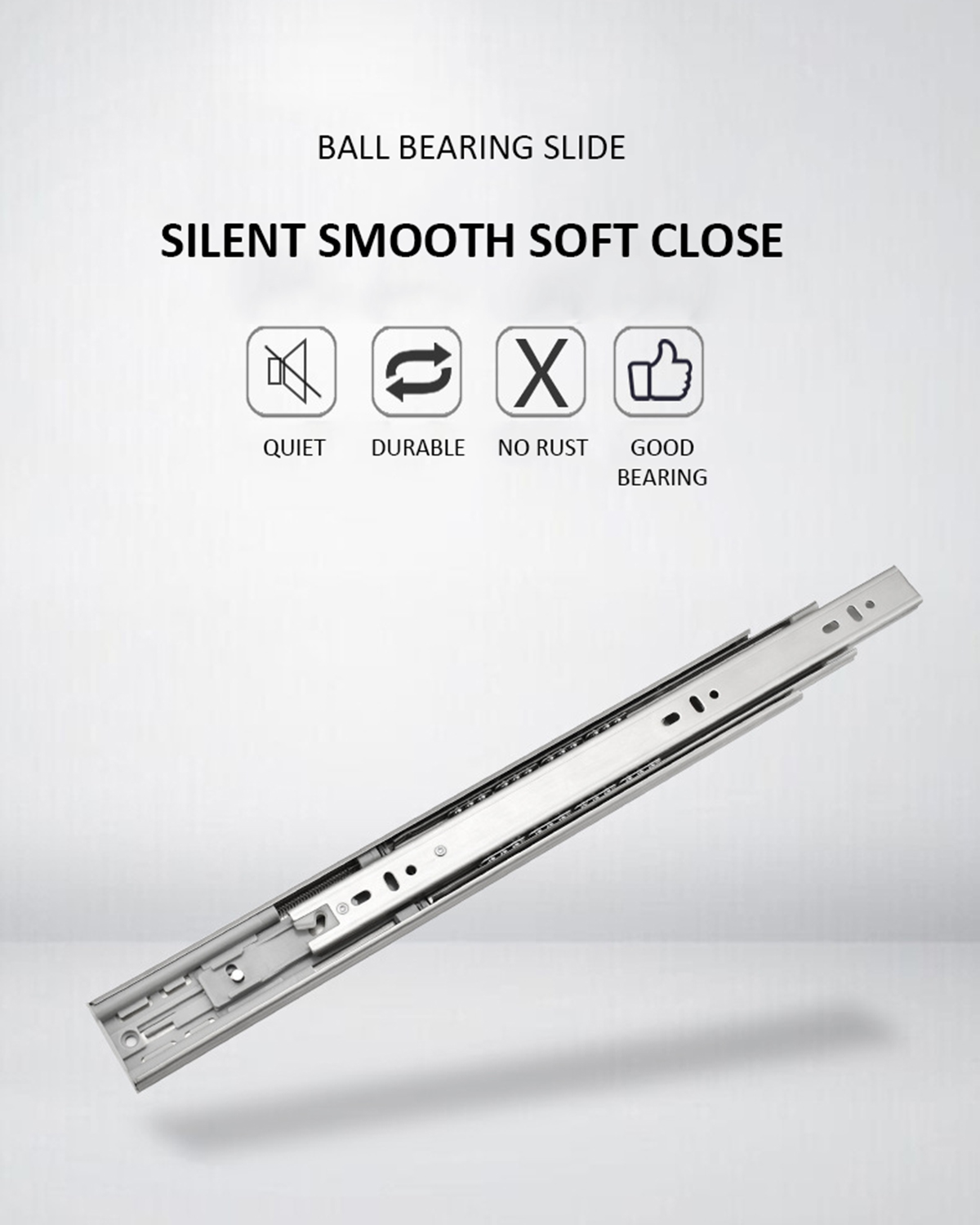

soft close drawer slide
Apply to drawer

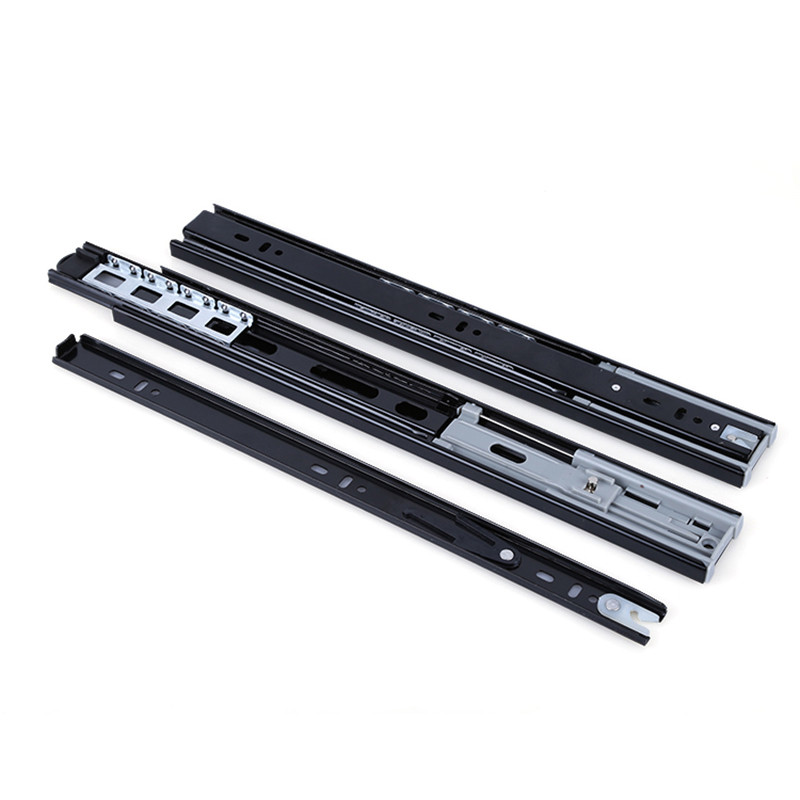

Different color can choose

Description:

Product Name:

45mm Silent smooth soft close ball bearing drawer slide

Material:

Cold Rolled Steel

Material Thickness:

1.0*1.0*1.2mm, 1.2*1.2*1.5mm

Surface:

Zinc Plated, Electrophoresis Black

Load Capacity:

30-45 KGS (450mm as standard)

Cycling:

Over 50,000 times

Size Range:

10”-24” (250-600mm), customize is available

Installation:

Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

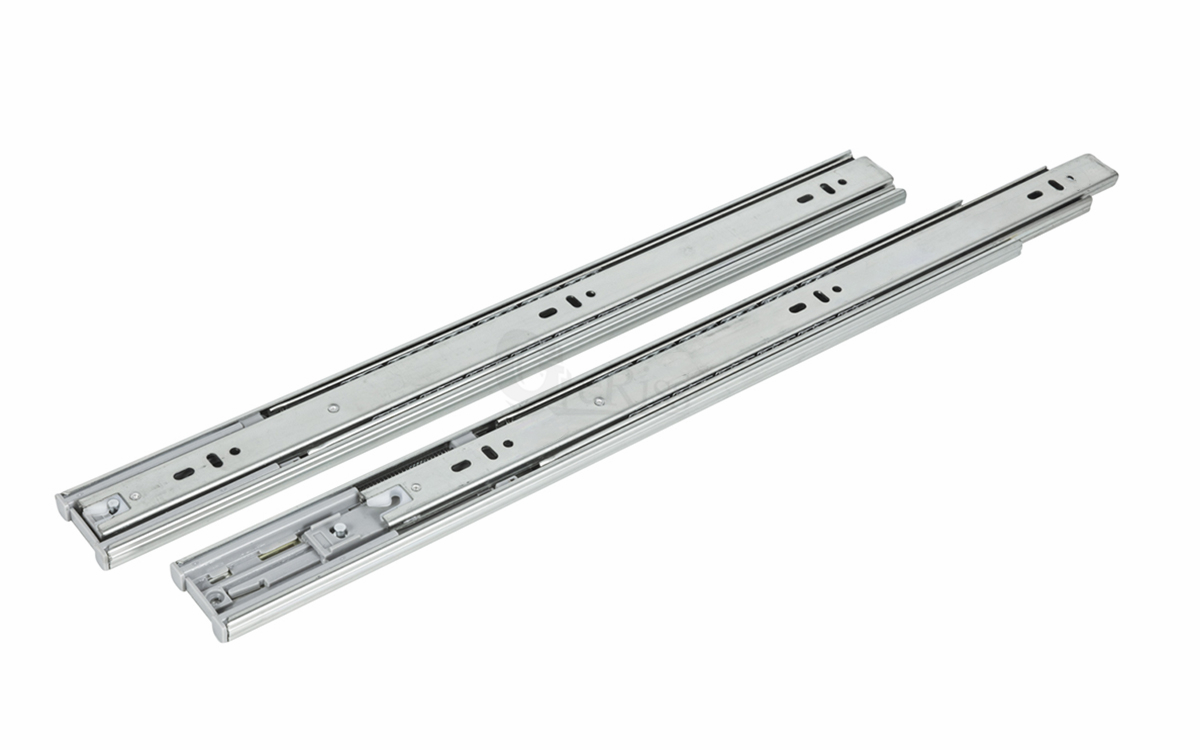

Soft Close Drawer Slide 001

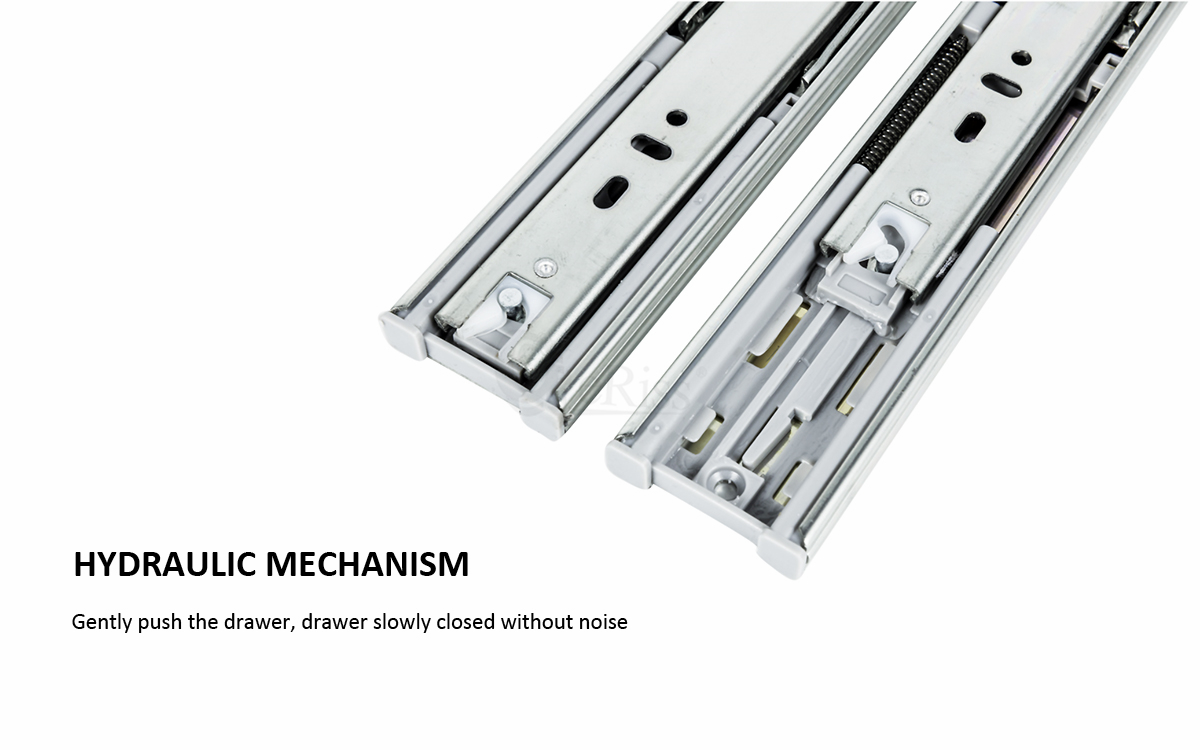

Soft Close Drawer Slide 002

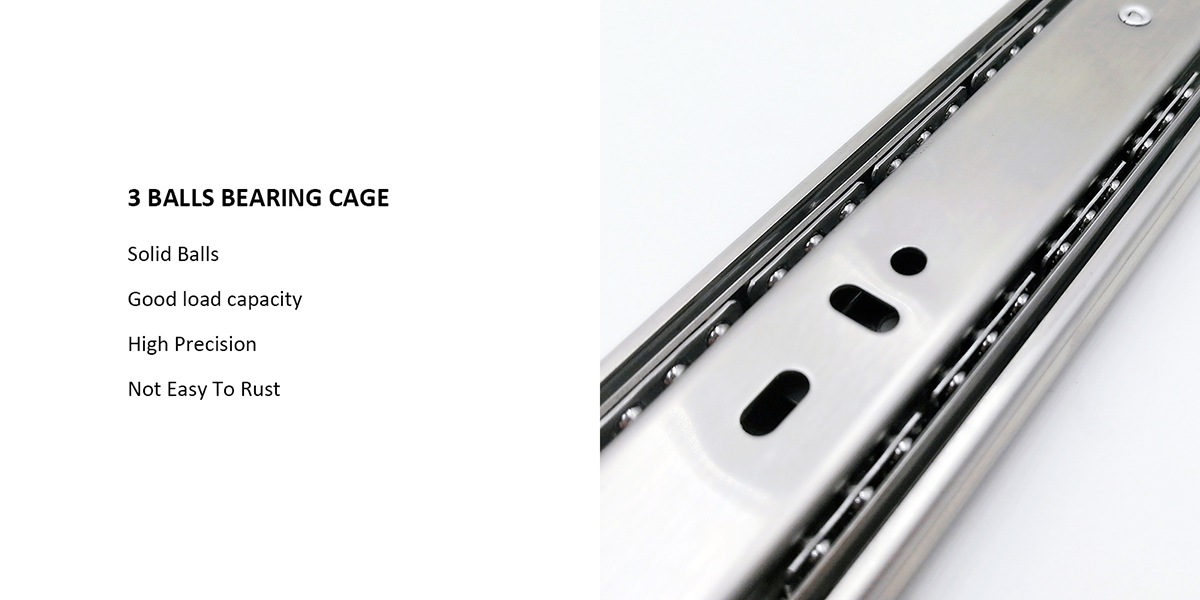

Soft Close Drawer Slide 003

Specification:

soft close drawer slide size

Item No.

Slide Length

Drawer Length

Min Cabinet Depth

Packing Unit ( set/box )

YA-4503-300

12/300mm

300mm

304mm

10

YA-4503-350

14/350mm

350mm

354mm

10

YA-4503-400

16/400mm

400mm

404mm

10

YA-4503-450

18/450mm

450mm

454mm

10

YA-4503-500

20/500mm

500mm

504mm

10

YA-4503-550

22/550mm

550mm

554mm

10

YA-4503-600

24/600mm

600mm

604mm

10

YA-4503-650

26/650mm

650mm

654mm

10

YA-4503-700

28/700mm

700mm

704mm

10

Installation Instruction:

Drawer Width
Min Cabinet Depth
slide into the cabinet
slide into the cabinet

Package Information:

Size Material Thickness(mm) Sets/Crn N.W(KG) G.W(KG) MEAS(cm)
Inch mm Length Width Height
10 250 1.0x1.0x1.2 15 9.30 9.55 27 20 12
12 300 1.0x1.0x1.2 15 11.16 11.41 32 20 12
14 350 1.0x1.0x1.2 15 13.02 13.27 37 20 12
16 400 1.0x1.0x1.2 15 14.88 15.18 42 20 12
18 450 1.0x1.0x1.2 15 16.74 17.04 47 20 12
20 500 1.0x1.0x1.2 15 18.60 18.90 52 20 12
22 550 1.0x1.0x1.2 15 20.46 20.76 57 20 12
24 600 1.0x1.0x1.2 15 22.32 22.67 62 20 12
10 250 1.2x1.2x1.5 15 11.25 11.50 27 20 12
12 300 1.2x1.2x1.5 15 13.50 13.75 32 20 12
14 350 1.2x1.2x1.5 15 15.75 16.00 37 20 12
16 400 1.2x1.2x1.5 15 18.00 18.30 42 20 12
18 450 1.2x1.2x1.5 15 20.25 20.55 47 20 12
20 500 1.2x1.2x1.5 15 22.50 22.80 52 20 12
22 550 1.2x1.2x1.5 15 24.75 25.05 57 20 12
24 600 1.2x1.2x1.5 15 27.00 27.35 62 20 12
Packing Details

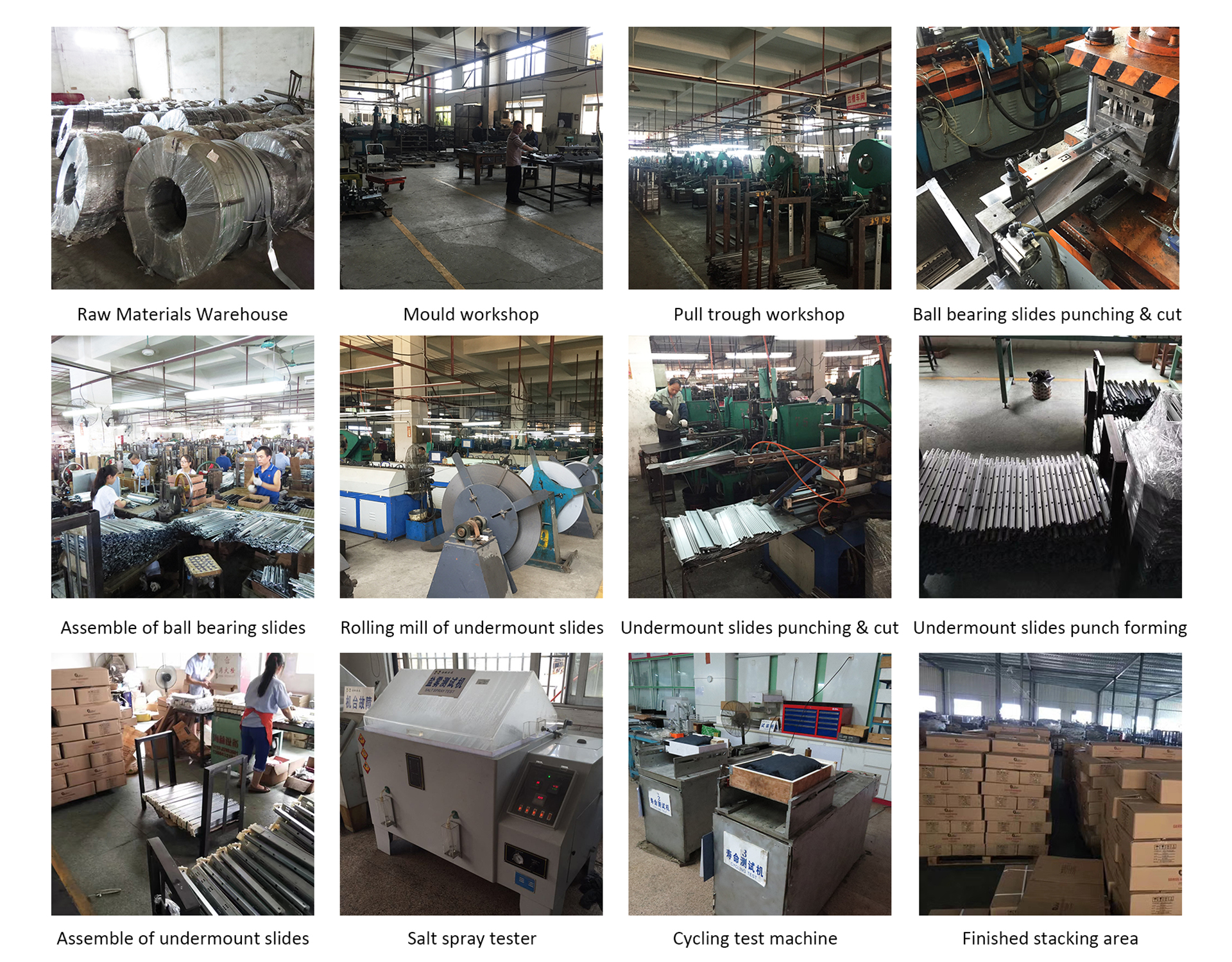

Workshop:
