37mm Full extension ball bearing slide with soft closing

Short Description:

Model No.: YA-3702

37mm Full extension ball bearing slide with soft closing produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

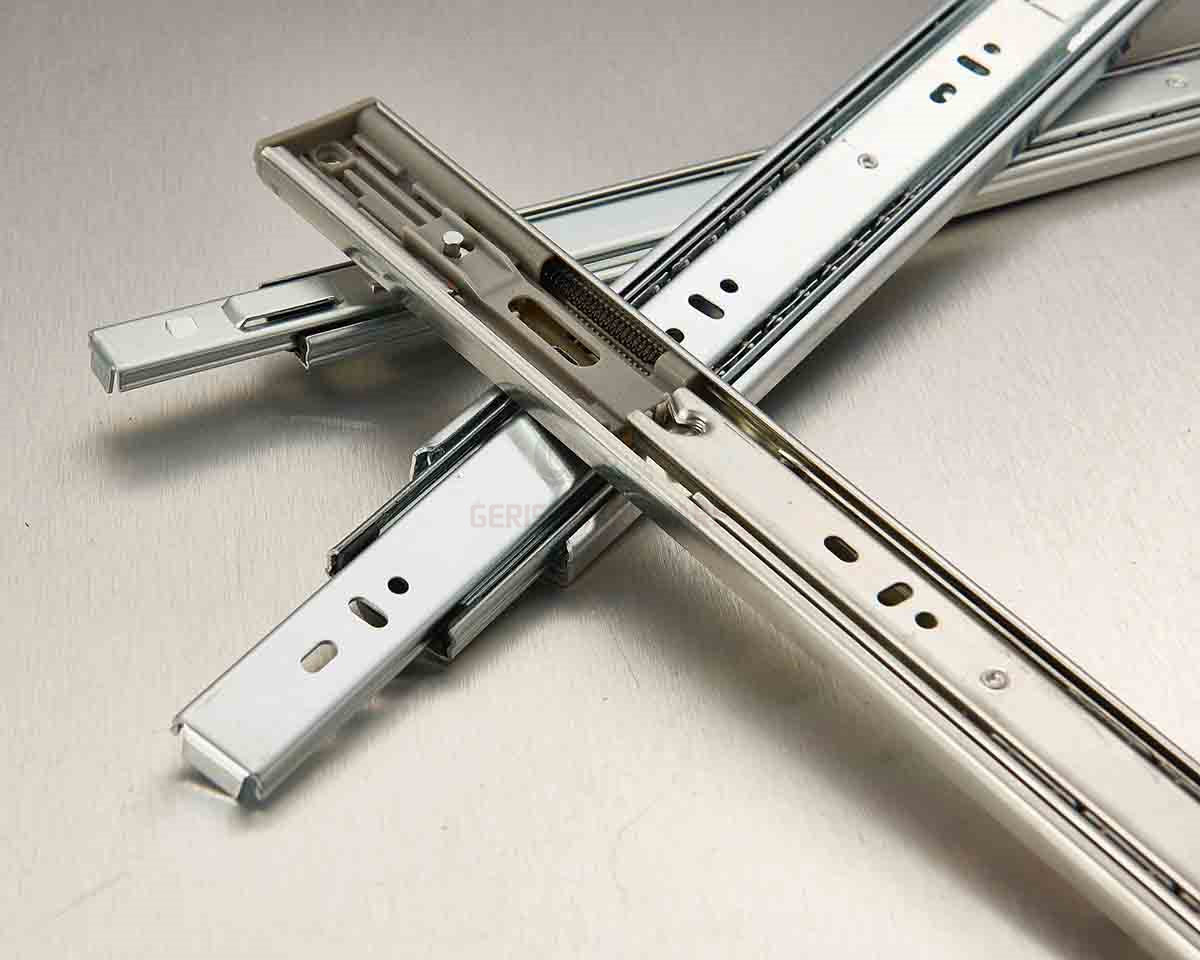

Soft Closing Ball Bearing Drawer Slide

Description:

Product Name: 37mm Full extension ball bearing drawer slide with soft close
Material: Cold Rolled Steel
Material Thickness: 1.0*1.0*1.2mm
Surface: Zinc Plated, Electrophoresis Black
Load Capacity: 30 KG (450mm as standard)
Cycling: Over 50,000 times
Size Range: 10”-24” (250-600mm), customize is available
Installation: Side mount with screws
Feature: Equipped with high precision production line and testing instrument products ultra-quiet, smooth
Ball Bearing Drawer Slide

Product Details:

Specification:

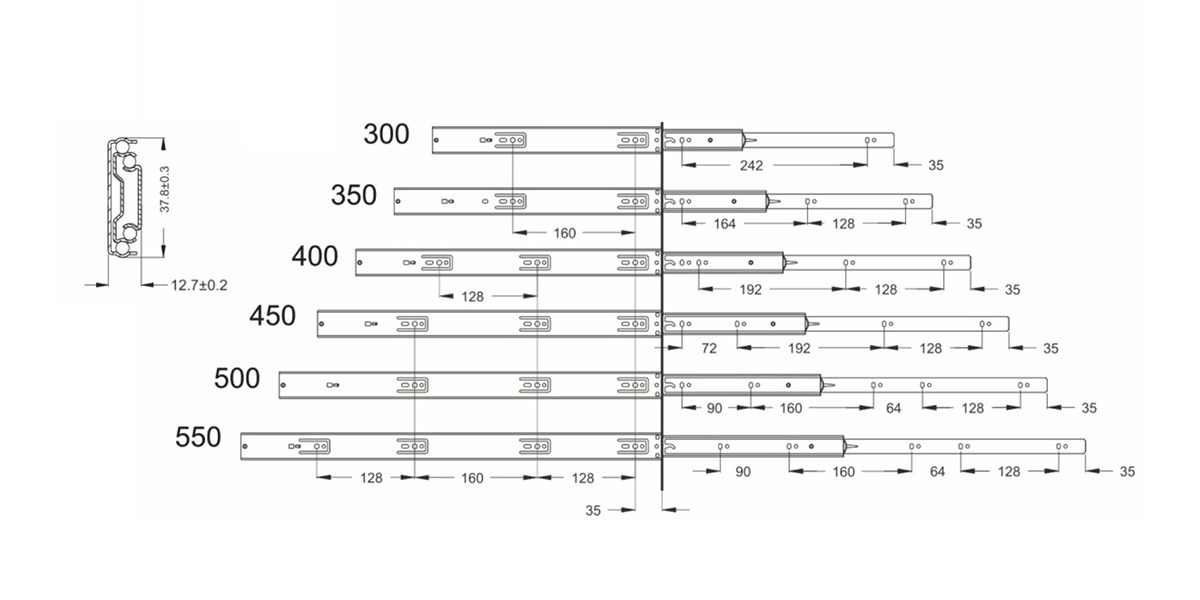

37MM Ball Bearing Slide Size

Installation Instruction:

Drawer Width
Min Cabinet Depth
Fix the screws
slide into the cabinet

Package Information:

Package
