Slide-on non-hydraulic self close cabinet door hinge 165 degree opening Featured Image
  • Slide-on non-hydraulic self close cabinet door hinge 165 degree opening
  • Slide-on non-hydraulic self close cabinet door hinge 165 degree opening

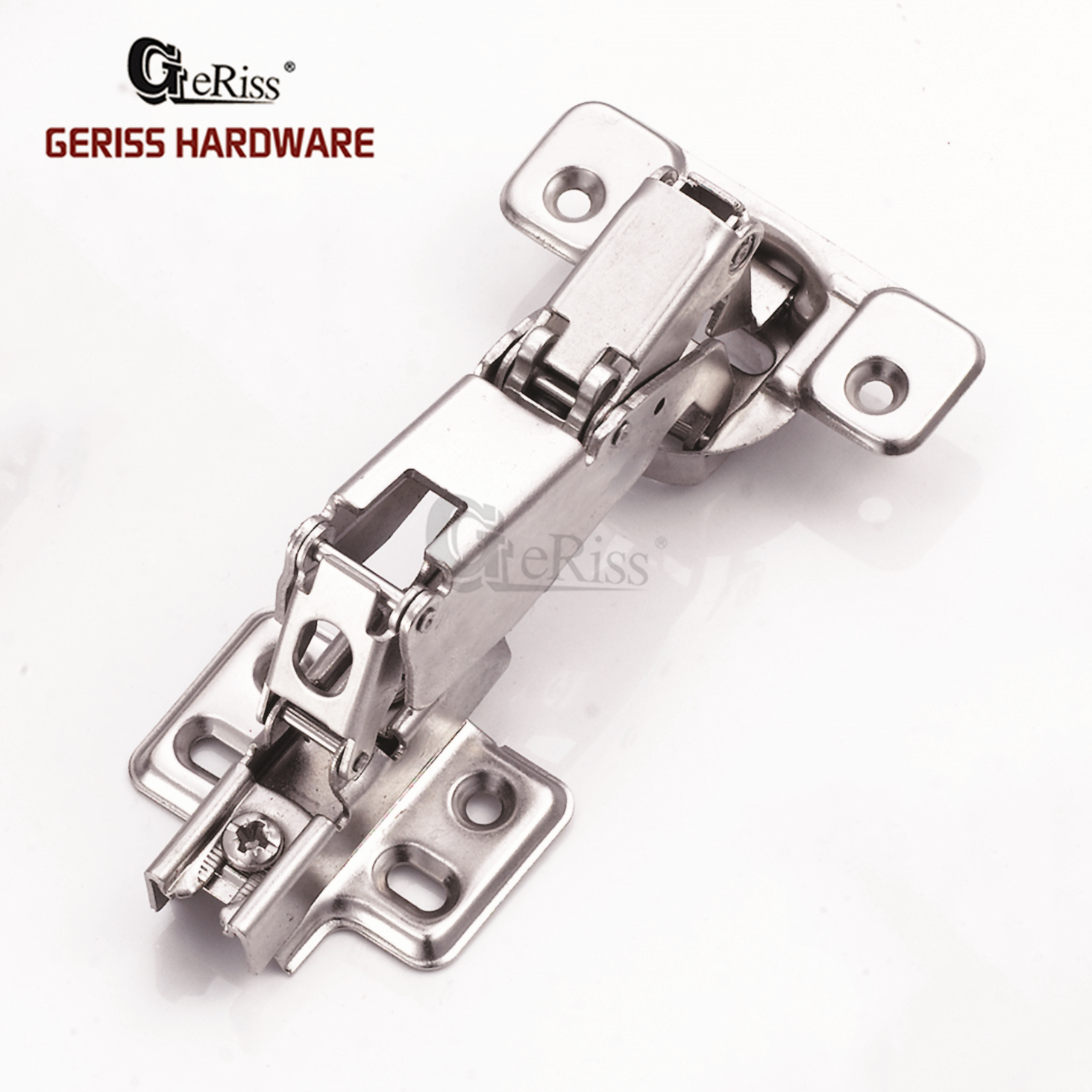

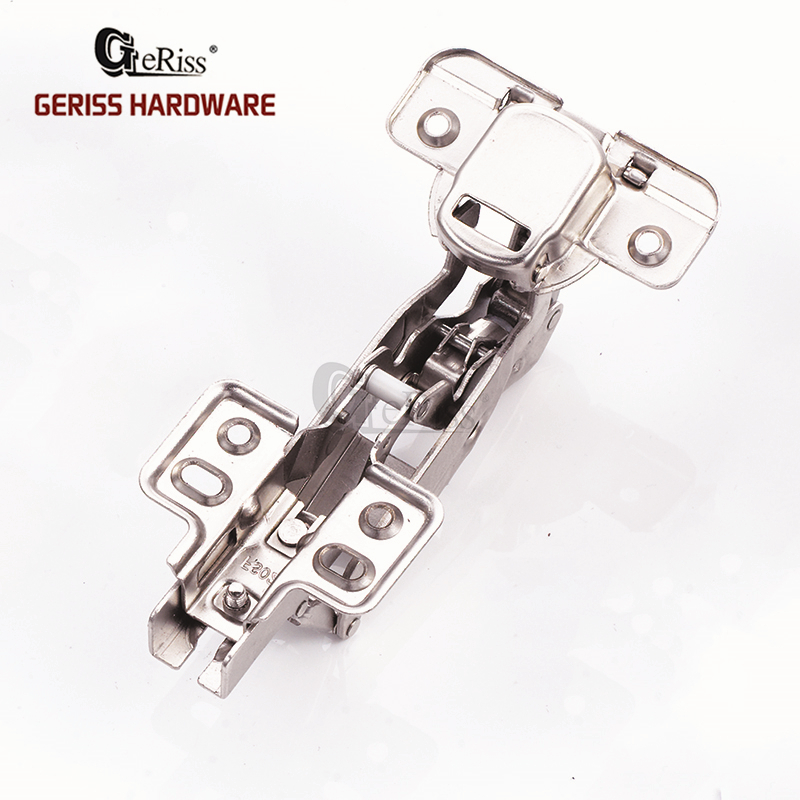

Slide-on non-hydraulic self close cabinet door hinge 165 degree opening

Short Description:

Item No.: T165S

Slide-on non-hydraulic self close cabinet door hinge 165 degree opening. Furniture hinges 165 degrees made of high quality nickel-plated steel provide ideal visual values, easily adapting to the individual doors. Whether you are looking for hinges for kitchen furniture, bathroom fittings and equipment, or room furniture, high quality, durable 165-degree furniture hinges are perfect for every role. If you are interesting for the soft close cabinet door hinge, please feel free to inquiry us.


Download as PDF

Product Detail

Product Tags

Description:

Product Name:  Slide-on non-hydraulic self close cabinet door hinge 165 degree opening
Hinge cup diameter:  35 mm
Hinge cup pattern  45 / 48 / 52 mm
Depth of hinge cup:  11.3 mm
Opening angle:  165°
Drilling distances on door (K):  3-7 mm
Door thickness:  12-26 mm
Surface:  Nickel plated
Function:  Soft closing
Available accessories:  2 or 4 holes or 3D mouting plate, Euro screws, tapping screws
Available package:  - 100 pcs with bulk in a moisture barrier bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- Slide-on non-hydraulic self close cabinet door hinge 165 degree opening

- Clip-on, Soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

ORDER INFORMATION:

Overlay of 165 degree hinge
Item No. Overlay Mouting plate
T165S41 Full 4 Holes
T154S42 Half 4 Holes
T165S43 Inset 4 Holes
T165S21 Full 2 Holes
T165S22 Half 2 Holes
T165S23 Inset 2 Holes

AVAILABLE HINGE CUPS & MOUNTING BASES

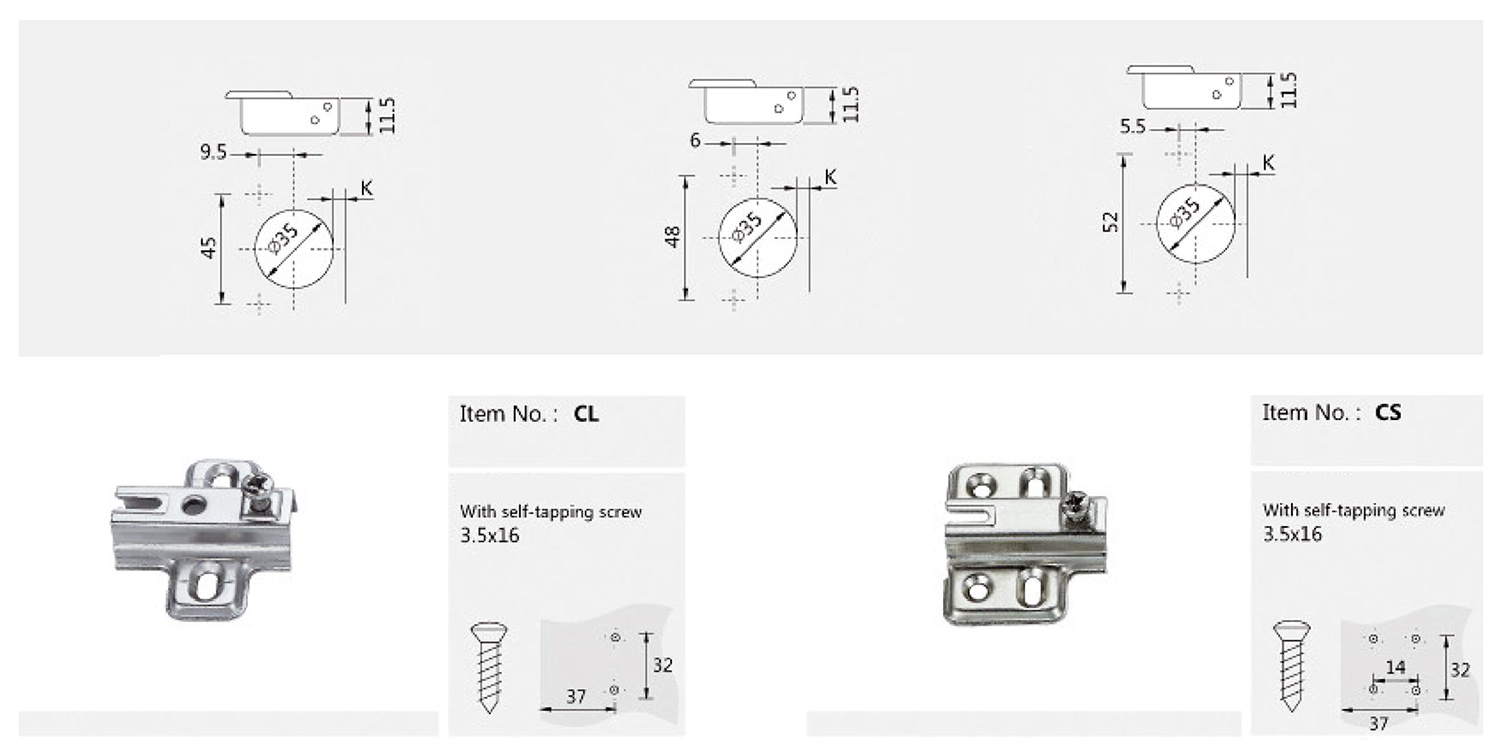

T165S Mounting Plates & Hinge Cups

PACKAGE DETAILS:

Slide-on non-hydraulic self close cabinet door hinge 165 degree opening standard pacakges are 100 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
