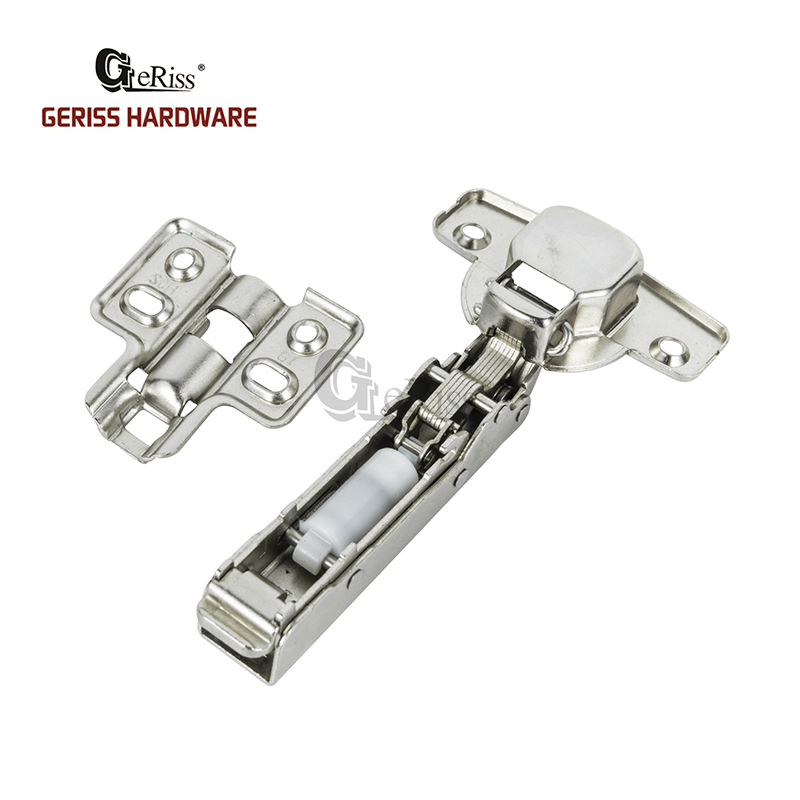

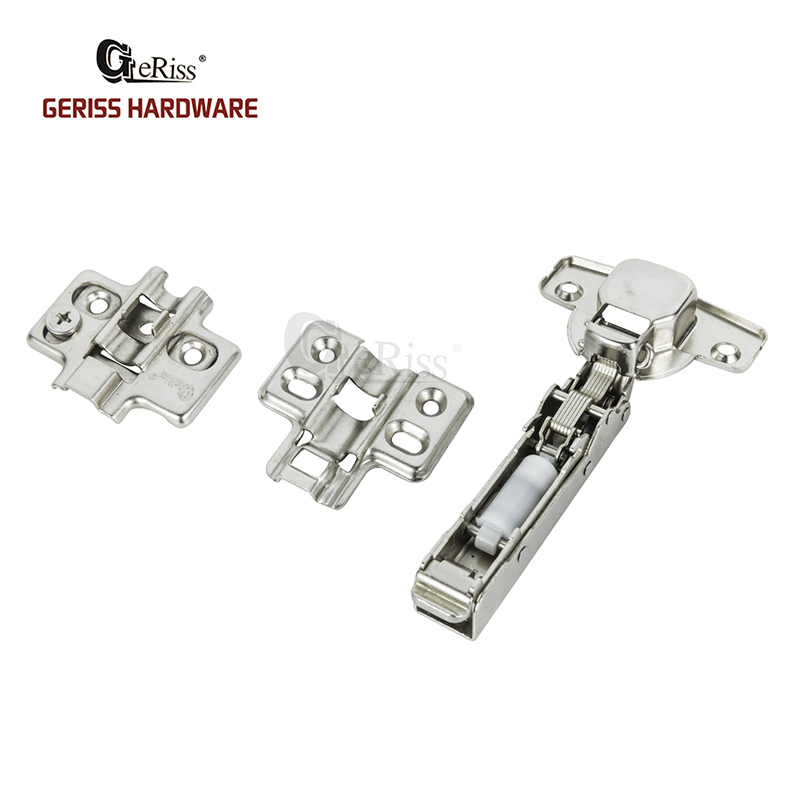

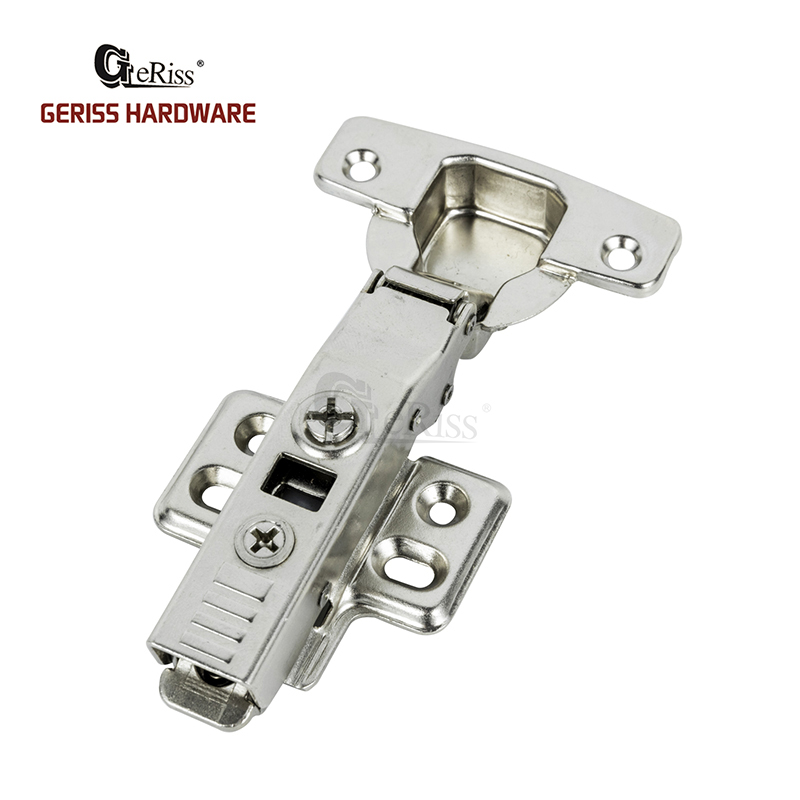

High quality clip-on soft close cabinet door hinge with 3D adjustable mechanism

Short Description:

Item No.: 1621A(Full overlay) / 1622A(Half overlay) / 1623A (Inset)

High quality clip-on soft close cabinet door hinge with 3D adjustable mechanism use for frameless furniture cabinet doors. The hinge can use 4 holes or 2 holes normal mounting plates, 3D adjustable mounting plates, we also can customize according to your requirements. Welcome to inquiry us.

Send email to us Download as PDF

Product Detail

Product Tags

Description:

Product Name:	3D Clip-on soft close cabinet door hinge
Hinge cup diameter:	35 mm
Hinge cup pattern	45 / 48 / 52 mm
Depth of hinge cup:	12.6 mm
Opening angle:	105°
Drilling distances on door (K):	3-7 mm
Door thickness:	14-22 mm
Surface:	Nickel plated
Available hinge mounting base:	3D adjustable, 2 or 4 holes
Available accessories:	Euro screw, tapping screw, dowels, arm cover, cup cover
Available package:	- 200 pcs with bulk in a Moisture Barrier Bag and in the carton;
Available package:	- 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:	Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...
