Drawer box system for metal drawers and silent smooth pull outs

Short Description:

Introduction: Drawer box system for metal drawers and silent smooth pull outs usually use for kitchen & bathroom cabinets. This type of kitchen metal drawer box slides use bottom mount drawer slide with gear. The feature is the slides working silent smooth and full extension synchronization without noise. If you are interested in our slim box drawer system, please feel free to contact us.

Model No.: M01.86


Product Detail

Product Tags

Description:

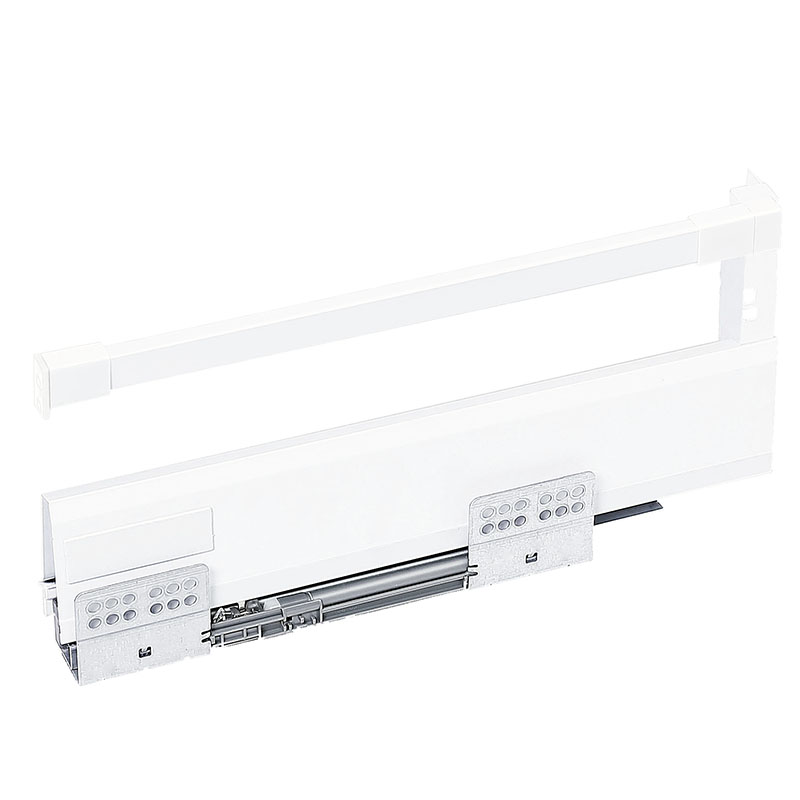

Type: Drawer box system for metal drawers and silent smooth pull outs.
Function: Soft Close without noise.
Side Panel Height: 86mm.
Side Panel with Tubes Height: 135 mm.
Bottom mount drawer slide length: 270mm - 550mm,customized is available.
Standard Color: White, Grey, Graphite, customized is available.
Load Capacity: 45 KGS, 450mm as standard.
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Application: Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

Product Details:

self close drawer system
kitchen drawer system

Order Information:

Length

White with Sliver

Graphite

Drawer Length

Min Cabinet Depth

270mm

M01.135.270W

M01.135.270G

260mm

292mm

300mm

M01.135.300W

M01.135.300G

290mm

322mm

350mm

M01.135.350W

M01.135.350G

340mm

372mm

400mm

M01.135.400W

M01.135.400G

390mm

422mm

450mm

M01.135.450W

M01.135.450G

440mm

472mm

500mm

M01.135.500W

M01.135.500G

490mm

522mm

550mm

M01.135.550W

M01.135.550G

540mm

572mm

Packing Information:

Double Wall Drawer System-03
Double Wall Drawer System-04
