Aluminum frame door slide-on self close cabinet door concealed hinge
Description:
| Product Name: | Aluminum frame door slide-on self close cabinet door concealed hinge |
| Material: | Cold rolled steel |
| Surface: | Nickel plated as standard, customize is available. |
| Opening angle: | 110 Degree |
| Drilling dimension on aluminum profile hinge head: | 28 mm |
| Range of width of aluminum profile: | 18-27 mm |
| Optional close type: | Self close |
| Available accessories: | Arm cover, tapping screws |
| Available package: | - 200 pcs with bulk in a moisture barrier bag and in the carton; |
| - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements. | |
| Application: | Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc... |
OVERLAY:
H = Height of mounting plate
D = Required overlay on the cabinet side panel
W= Range of widht of aluminum profile
ADVANTAGES AND BENEFITS:
- Aluminum frame door slide-on self close cabinet door concealed hinge
- Self close function.
- Over 50,000 times fatigue test.
- Over 48 hours salt spray test.
- Nickel plated surface not easy to rust.
- Available for customize requirement. (Have MOQ)
ORDER INFORMATION:
| Hinge Type | Mounting Plates | Item No. | Overlay |
| Aluminum frame door slide-on self close cabinet door concealed hinge | 4 Holes | AF0241 | Full |
| AF0242 | Half | ||
| AF0243 | Inset | ||
| 2 Holes | AF0221 | Full | |
| AF0222 | Half | ||
| AF0223 | Inset |

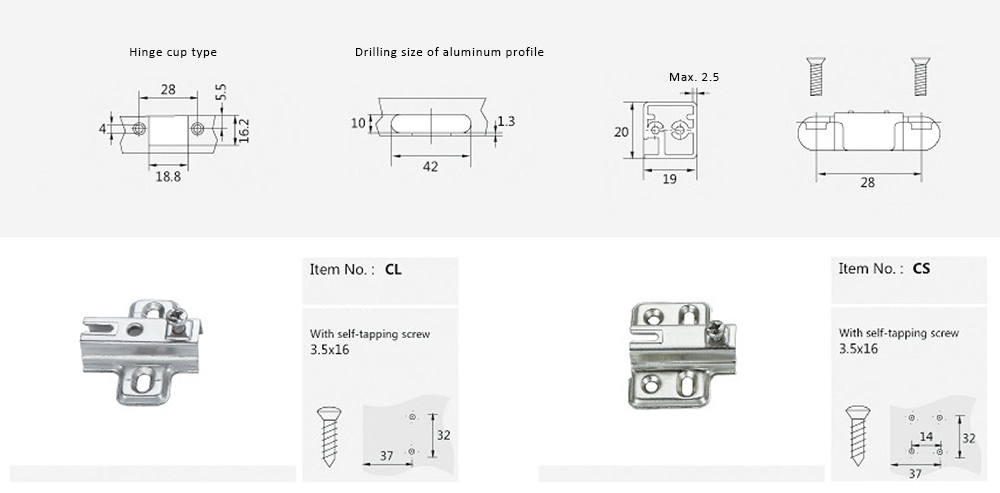

AVAILABLE HINGE CUPS & MOUNTING BASES:
PACKAGE DETAILS:
Aluminum frame door slide-on self close cabinet door concealed hinges standard pacakges are 200 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
