51mm Full Extension Heavy Duty Telescopic Ball Bearing Drawer Slide 150 Lbs Load Capacity Featured Image
  • 51mm Full Extension Heavy Duty Telescopic Ball Bearing Drawer Slide 150 Lbs Load Capacity
  • 51mm Full Extension Heavy Duty Telescopic Ball Bearing Drawer Slide 150 Lbs Load Capacity

51mm Full Extension Heavy Duty Telescopic Ball Bearing Drawer Slide 150 Lbs Load Capacity

Short Description:

Model No.: YA-5101

51mm Full extension heavy duty telescopic ball bearing drawer slide 150 Lbs load capacity produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

heavy duty drawer slide 001

Description:

Product Name:

51mm Full extension heavy duty telescopic ball bearing drawer slide

Material:

Cold Rolled Steel

Material Thickness:

1.6x1.6x1.6 mm

Surface:

Zinc Plated / Black Spray-Paint

Load Capacity:

68 KGS (150 lbs) - 500mm as standard

Cycling:

Over 50,000 times

Size Range:

12”-28” (300-700mm), customize is available

Installation:

Side mount with screws

Feature:

Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

Specification:

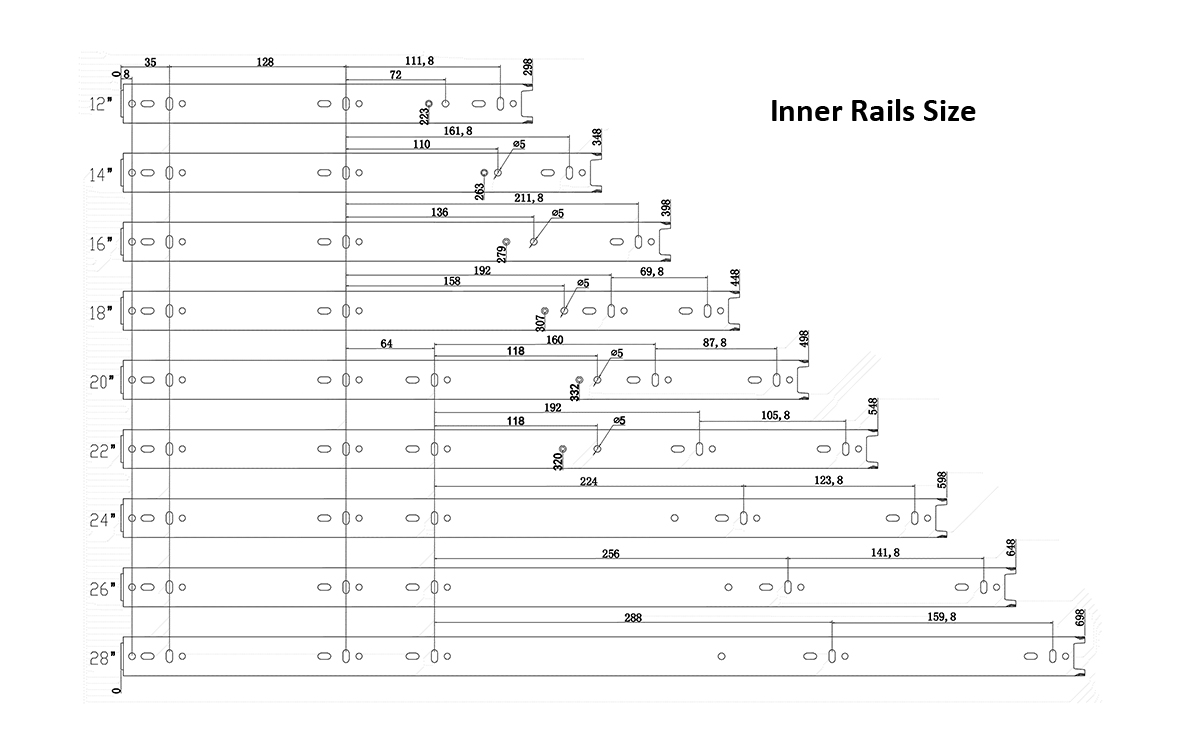

heavy duty slide size 001

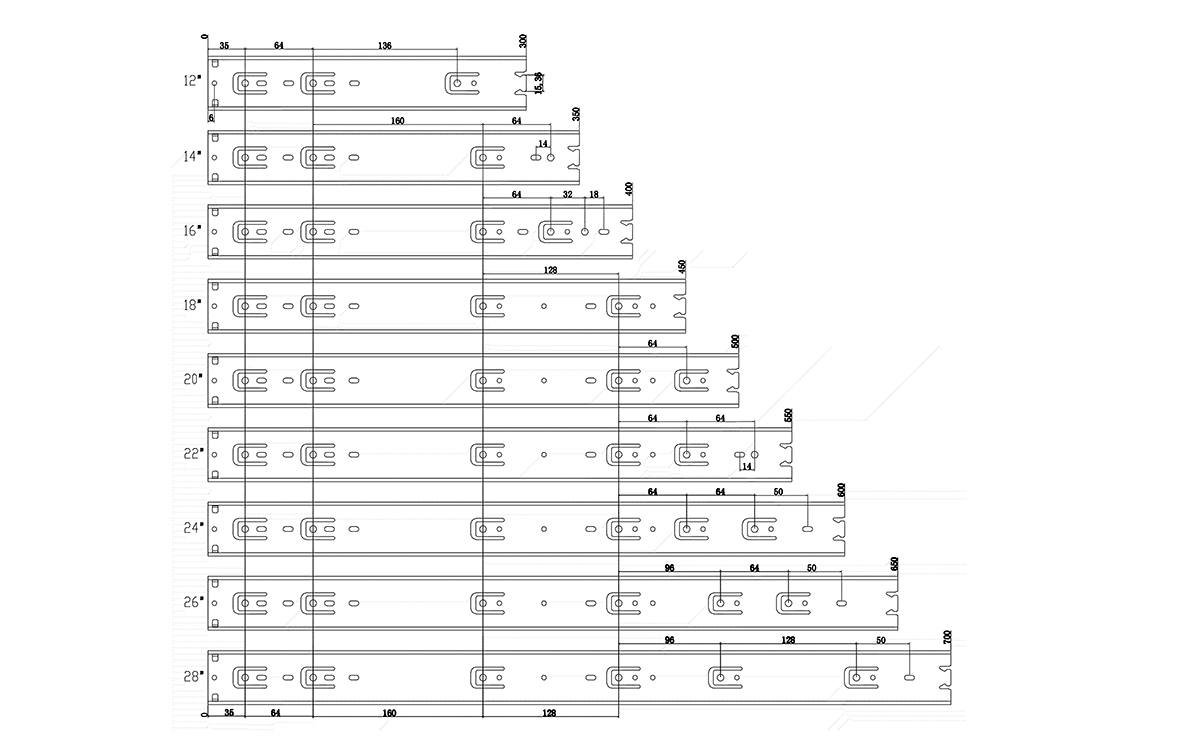

heavy duty slide size 002

Package Information:

Package

Workshop:
