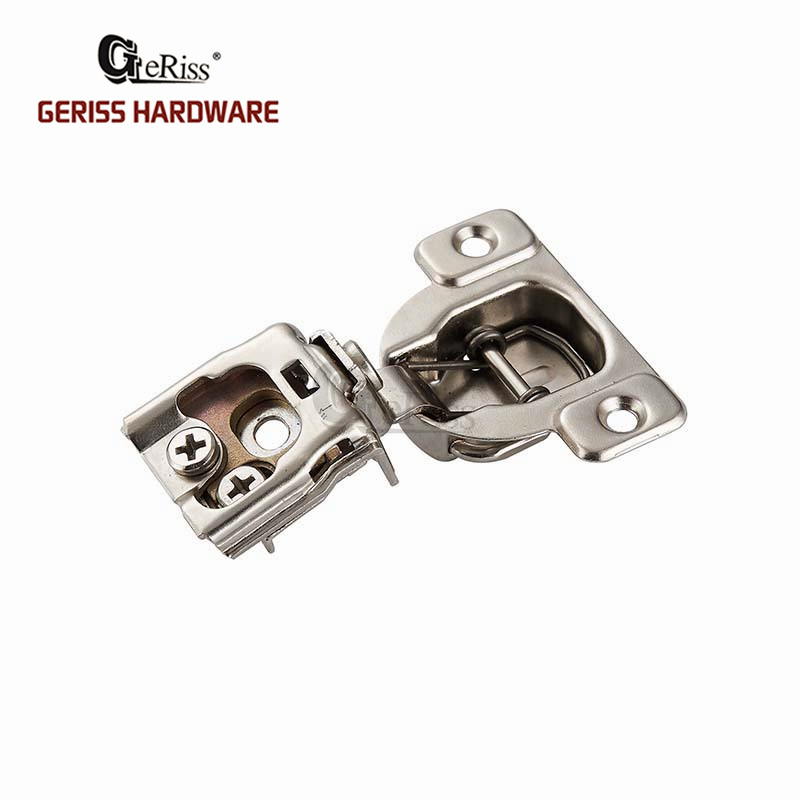

3D Adjustment face frame hinge 1 inch overlay for kitchen & bathroom cabinets

Short Description:

Model No.: US3D1

3D Adjustment face frame hinge 1 inch overlay for kitchen & bathroom cabinets, without soft-closing, 1″overlay, wrought steel, nickel plated. With 45mm screw hole pattern, manual screw on application. Cam Adjustments and 4 tabs for easy placement on the face frame edge. Standard package is each without screws, bulk packing in the carton.




Product Detail

Product Tags

Description:

Product Name:  3D Adjustment face frame hinge 1 inch overlay for kitchen & bathroom cabinets
Hinge cup diameter:  35 mm
Hinge cup pattern  45 mm
Depth of hinge cup:  11 mm
Opening angle:  105°
Drilling distances on door (K):  3-7 mm
Door thickness:  14-26 mm
Surface:  Nickel plated
Function:  3D adjustable
Available accessories:  Dowels
Available package:  - 300 pcs with bulk in a Moisture Barrier Bag and in the carton;
 - 1 or 2 pcs in a transparent or color bag, include accessories as client’s requirements.
Application:  Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

PRODUCT DETAILS:

ADVANTAGES AND BENEFITS:

- 3D Adjustment face frame hinge 1 inch overlay for kitchen & bathroom cabinets

- 3D adjustable, soft closing function.

- Over 50,000 times fatigue test.

- Over 48 hours salt spray test.

- Nickel plated surface not easy to rust.

- Available for customize requirement. (Have MOQ)

Face frame cabinet hinge US34114S 004

ORDER INFORMATION:

Cup hole pitch

Item No.

(PCS/BOX)

45mm

US3D1

300

PACKAGE DETAILS:

3D Adjustment face frame hinge 1 inch overlay for kitchen & bathroom cabinets standard pacakges are 300 pcs bulk load in a large moisture bag and put into a kraft paper carton. The special package is available. If you are interesting to our products, please feel free to inquiry us.
