35mm Single Extension 2-Fold Ball Bearing Bayonet Mounting Slide

Short Description:

Model No.: YA-3503

35mm Single extension ball bearing drawer runner with bayonet produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.


Download as PDF

Product Detail

Product Tags

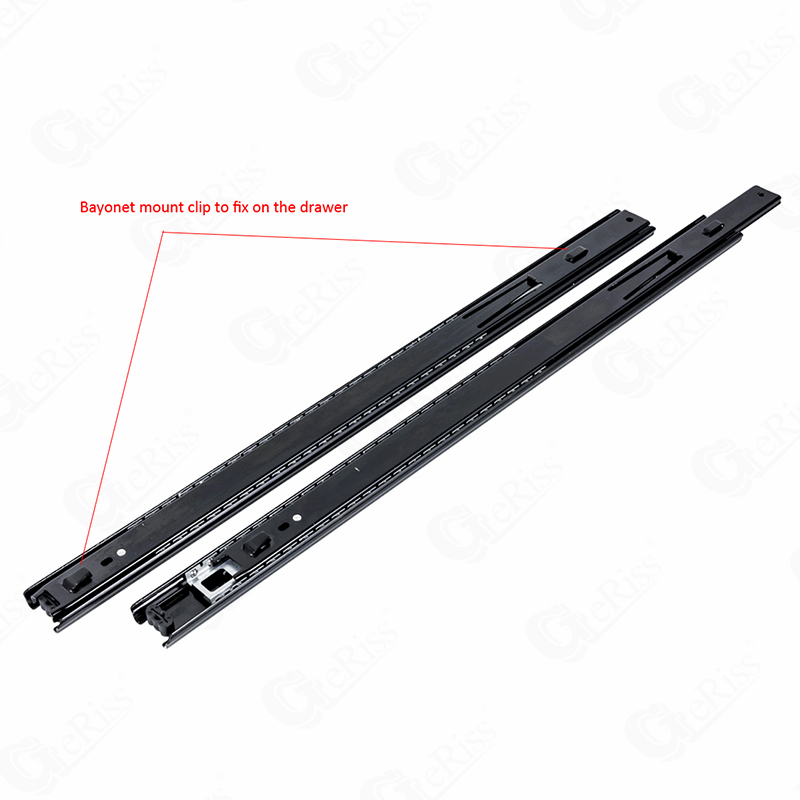

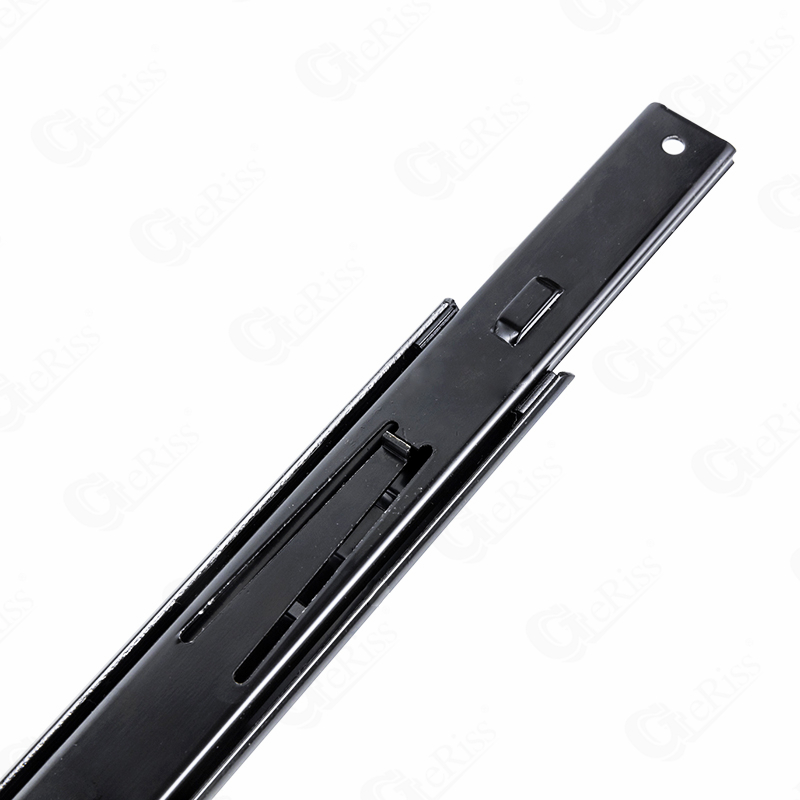

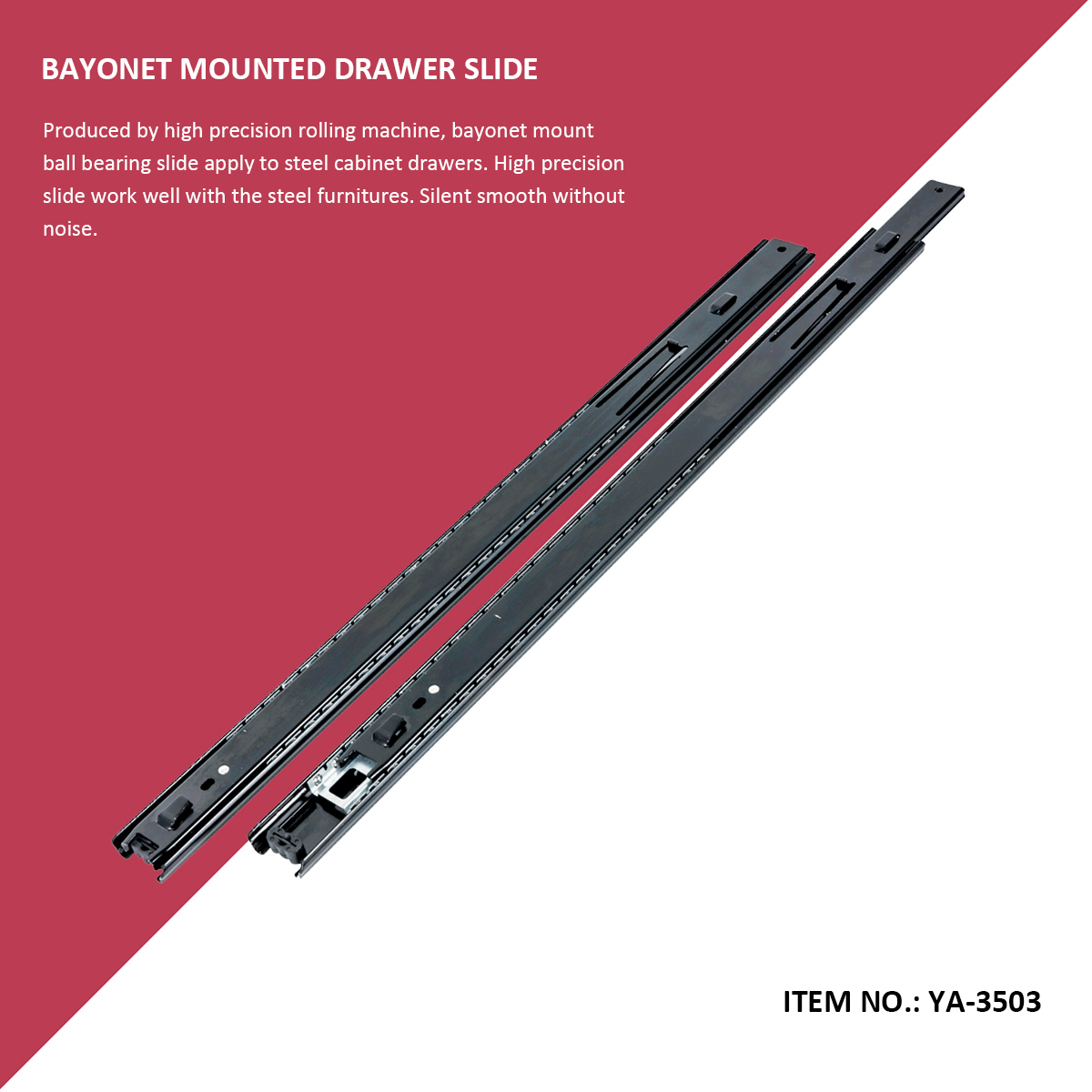

Bayonet Mount Drawer Slide

Description:

Product Name: 35mm Single extension ball bearing drawer runner with bayonet
Material: Cold Rolled Steel
Material Thickness: 1.2*1.2mm, 1.5*1.5mm
Surface: Zinc Plated, Electrophoresis Black
Load Capacity: 20-35 KGS (450mm as standard)
Cycling: Over 50,000 times
Size Range: 10”-24” (250-600mm), customize is available
Installation: Bayonet Mount
Feature: Equipped with high precision production line and testing instrument products ultra-quiet, smooth

Product Details:

Specification:

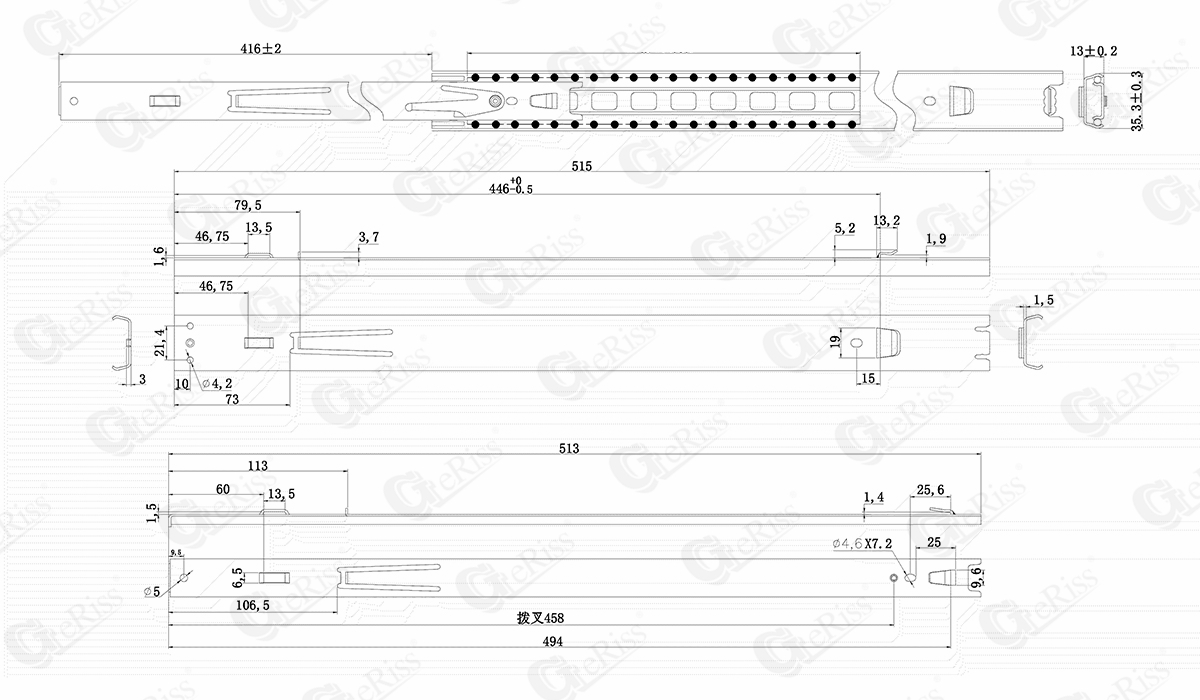

Bayonet Mount Ball Bearing Slide



ITEM NO. SLIDE LENGTH EXTENSION LENGTH PACKING UNIT(SET/CARTON)
YA-3503-515 515 416 20

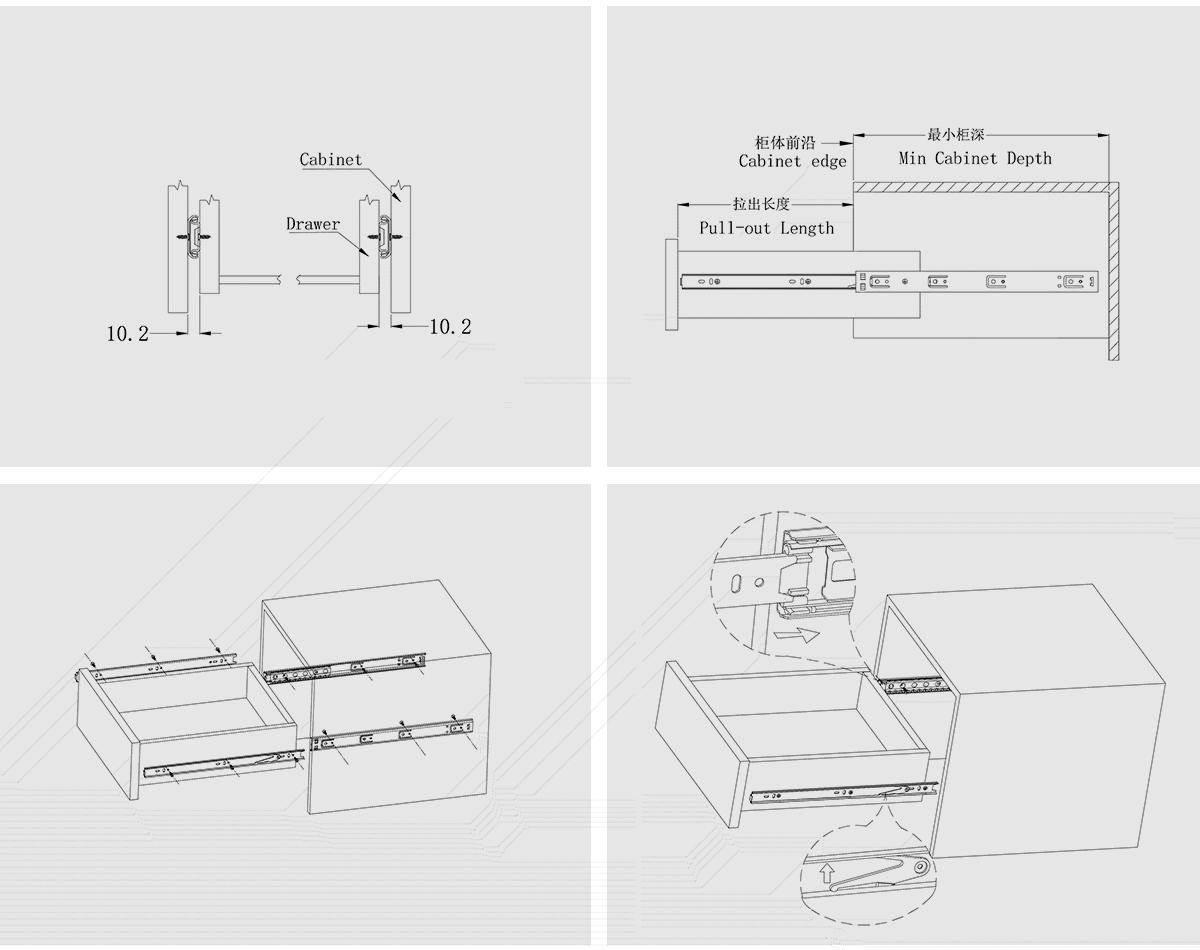

Installation Instruction:

Installation

Package Information:

Package
