17mm Single extension side mount telescopic drawer slide channel

Short Description:

Introduction: 17mm Single extension side mount telescopic drawer slide channel produced by high precision production line and testing instruments products working ultra-quiet and smooth. About our ball bearing drawer slide have some different width for 17mm, 27mm, 35mm, 37mm, 45mm, 51mm, 53mm, 76mm. For the length we can according to your requirements to produce. If you are interested in our telescopic channels, please feel free to contact us.

Model No.: YA.1701A


Product Detail

Product Tags

Description:
Type: 17mm Single extension side mount telescopic drawer slide channel
Function: Smooth moving without noise
Width: 17mm
Length:150mm - 450mm, customized is available.
Installation thickness: 4 mm
Surface: Zinc plated, electrophoresis black, customized is available.
Load Capacity: 10 KGS
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 0.8x0.8 mm
Installation: side mounting with screws
Application: Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc...

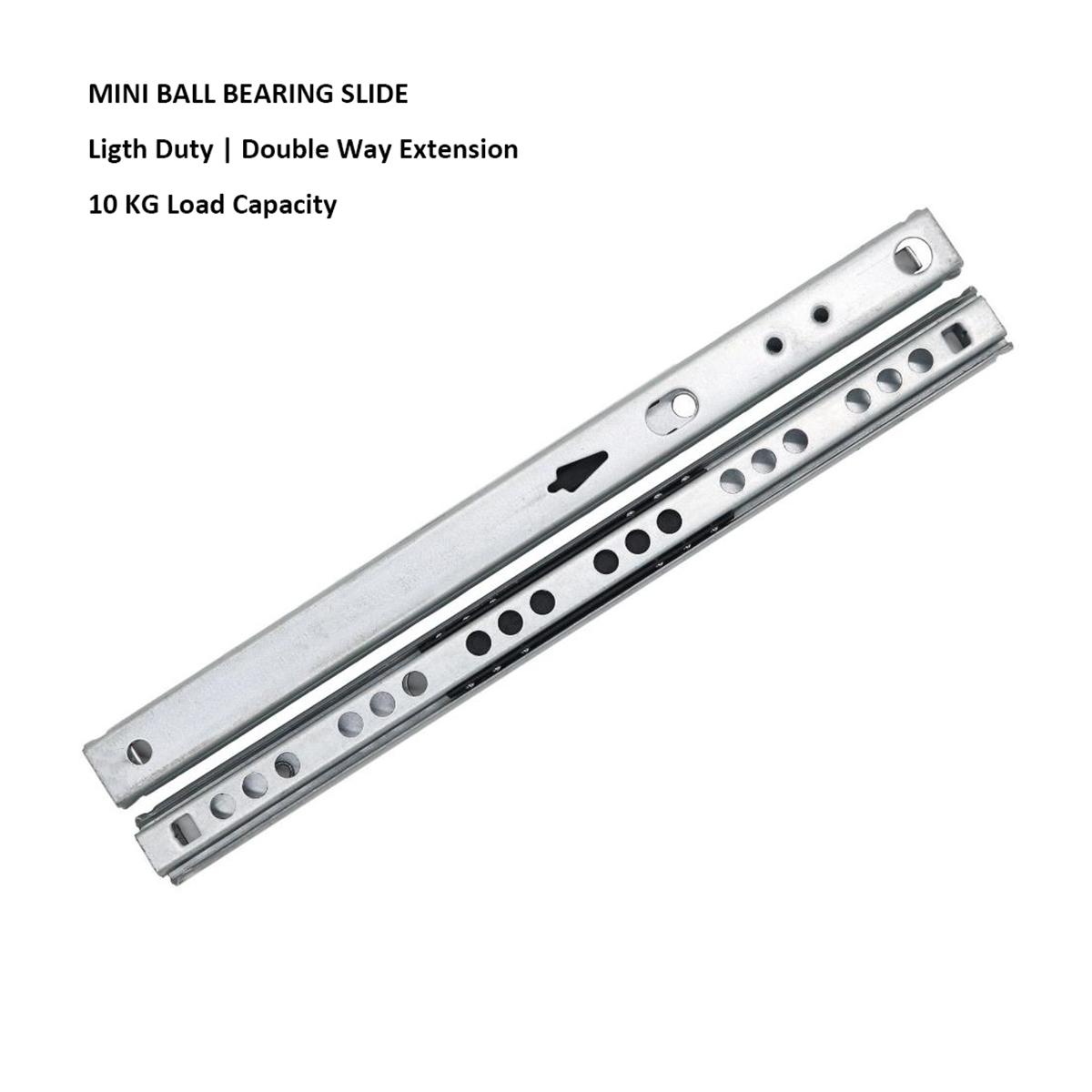

Product Details:

slide-mini-ball-bearing
china-mini-drawer-slide
drawer-slide-mini-ball-bearing
4. GERISS-ball-bearing-mini-slide1

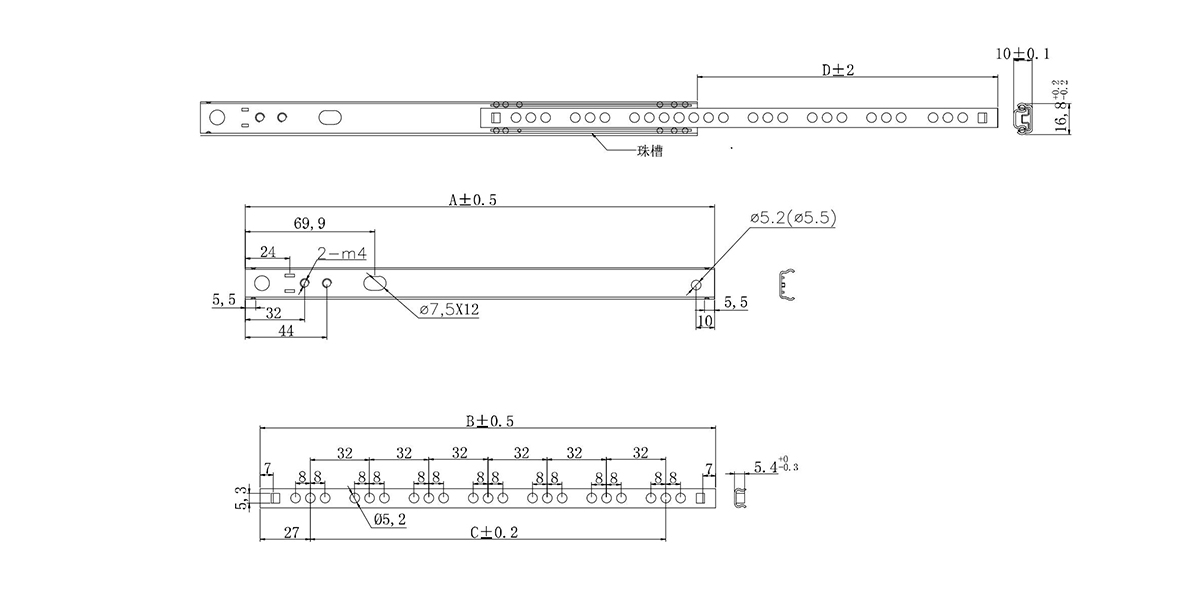

Order Information:

Item No.

A

B

C

D

Ball retainer

Packing Unit ( set/box )

17x150x150

150

150

96

102

46x12

50

17x182x182

182

182

128

134

46x121

50

17x214x214

214

214

160

142

72x12

50

17x246x246

246

246

192

172

72x12

50

17x278x278

278

278

224

204

72x12

50

17x310x310

310

310

256

226

82x12

50

17x342x342

342

342

288

244

96x12

50

17x374x374

374

374

320

276

96x12

50

17x406x406

406

406

352

308

96x12

50

17x438x438

438

438

384

318

118x12

50

17x502x502

502

502

448

382

118x12

50

17x400x400

400

400

_ _

302

96x12

50

17x450x450

450

450

————

330

118x12

50

Packing Information:

SIZE 50 SETS/CTN 100 SETS/CTN 50 SETS
(0.8x0.8)
G.W
50 SETS
(0.8x0.8)
N.W
100 SETS
(0.8x0.8)
G.W
100 SETS
 (0.8x0.8)
N.W
CTN/PLT of 50 SETS/CTN CTN/PLT of 100 SETS/CTN
1701-182         10.40 KGS 10.00 KGS   77
1701-214 22*17*12.5 22x22.5x11 6.30 KGS 6.00 KGS 12.40 KGS 12.00 KGS 120 60
1701-246 25*17*12.5 25x25.5x11 7.00 KGS 6.80 KGS 14.30 KGS 14.00 KGS 100 50
1701-278 29*17*12.5 29x25x14 8.00 KGS 7.70 KGS 15.80 KGS 15.50 KGS 100 50
1701-310 32*17*12.5 32x29x12 9.00 KGS 8.70 KGS 17.80 KGS 17.40 KGS 84 50
1701-342 35*26*12.5 35.5x29x13.5 10.00 KGS 9.60 KGS 19.50 KGS 19.00 KGS 80 40
1701-374 39*26*12.5 39x29x13.5 10.80 KGS 10.50 KGS 21.50 KGS 21.00 KGS 75 40
1701-406 42*26*12.5 42x29x13.5 12.00 KGS 11.50 KGS 23.50 KGS 23.00 KGS 72 40
1701-438 45*26.*12.5 45x29x13.5 13.00 KGS 12.50 KGS 25.00 KGS 24.50 KGS 72 40
