Gas Cooker Stove Oven Door Hinges Manufacturer

Short Description:

Gas Cooker Stove Oven Door Hinges Manufacturer. Hinge use for gas cooker oven doors. Geriss hardware is suitable for household, industrial as well as electric oven, especially for the kind of door which weight 3 KGS – 15 KSGS for over ten years.

Model Number: YL-01

Product Detail

Product Tags


Product Name: Single ear gas cooker oven door hinge

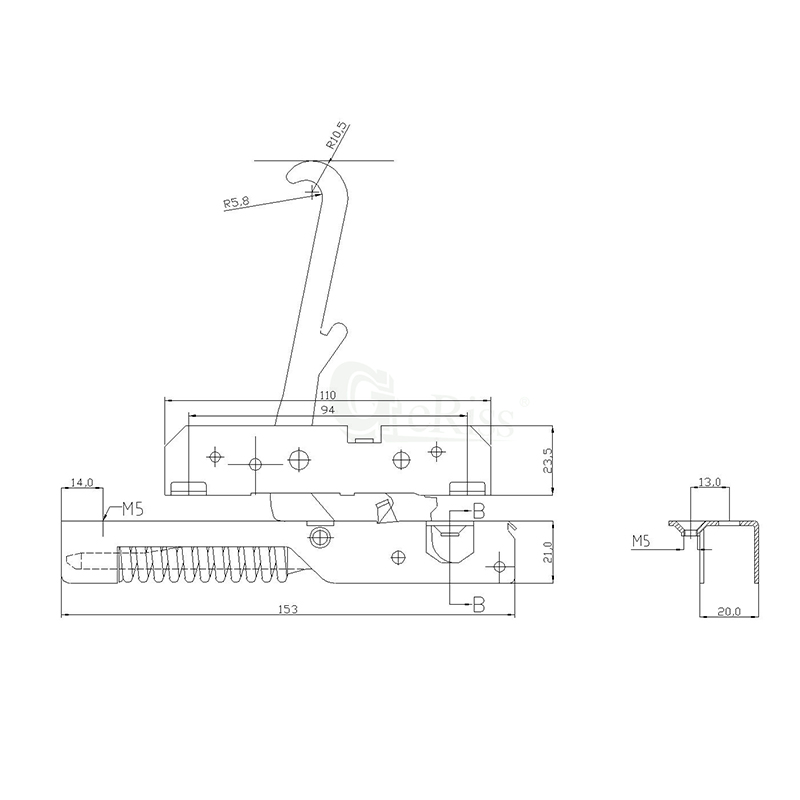

Size: Please check the drawing in below.

Material:Cold rolled sheet

Surface: Zinc plated

Loading range: Especially for the kind of door which weight 3-15kg

Application: Oven door

Package: 100 pcs/CTN


Ensure door balancing in both, open and close.

Easy install and remove, for cleaning/maintenance.

Available in both similar and dissimilar, left and right hinges.

Available for door weight from 3 to 15 kgs.

All rotation axis are lubricated with heat resistant materials, up to 150℃.

All materials are ROHS compliant.

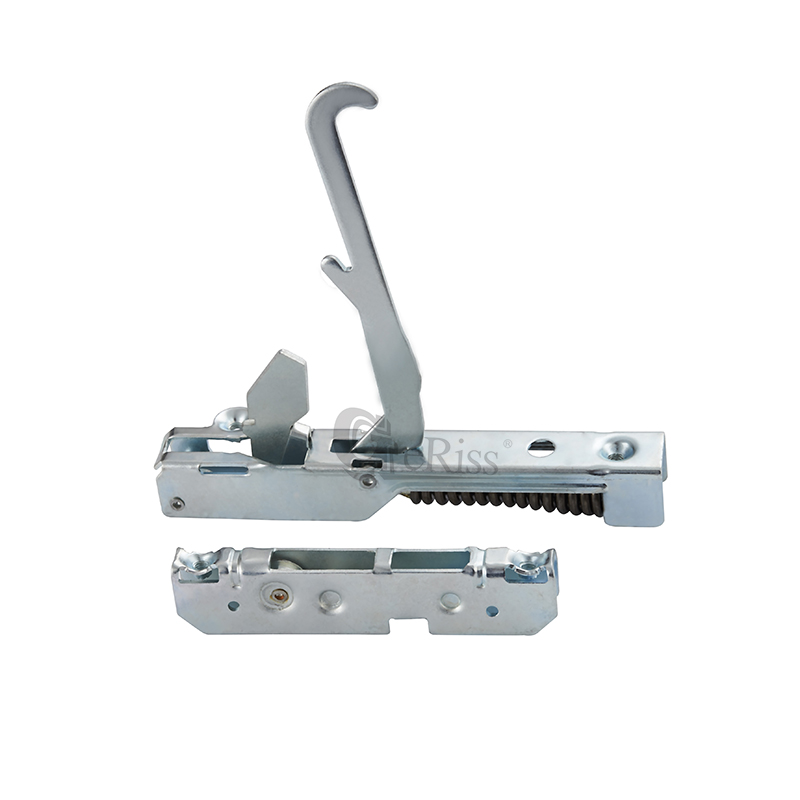

Oven door hinge


Oven Door HInge

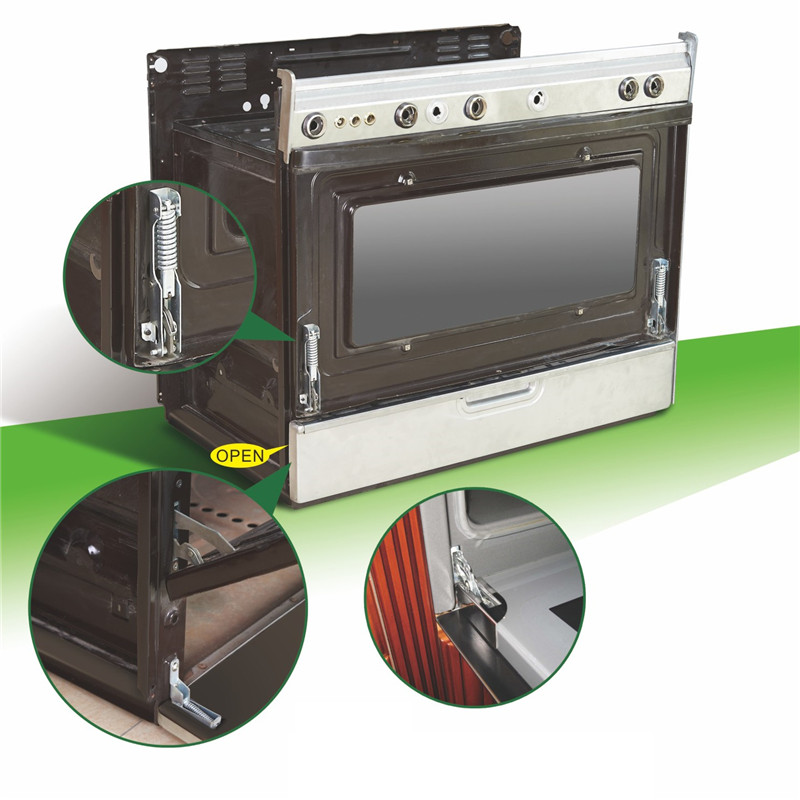

oven door hinge adhibition

Packing Details:








YL-01 L

Oven Door Hinges (Left)





47 x 31 x 20

YL-01 R

Oven Door Hinges (Right)





47 x 31 x 20

Package & Shipping


Q: Are you trading company or manufacturer ?

A: We are a professional furniture hardware manufacturer since 1999.

Q: How to order?

A:Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, specification (size ,material, color, logo and packing requirement), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.

Q: What is the whole process for doing business with us ?

A:1) First, please provide details of the products you need we quote for you.
2) If price is acceptable and client need sample, we provide Performa Invoice for client to arrange payment for sample.
3) If client approve sample and require for order, we will provide Performa Invoice for client, and we will arrange to produce at once when we get 30% deposit.
4) We will send photos of all goods, packing, details, and B/L copy for client after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.

Q: Can the logo or company name to be printed on the products or package?

A:Sure. Your logo or company name can be printed on your products by stamping, printing, embossing, or sticker. But the MOQ must be ball bearing slides above 5000 sets ; concealed slide above 2000 sets ; double wall drawer slides above 1000 ; oven hinges above 10000 sets ; cabinet hinges above 10000 pcs etc.

Q: What is your terms of payment ?

 A: Payment<=1000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: What advantages we have?

A:1.Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
2.Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
3.Our factory professional production metal box drawer system , concealed drawer slides ,ball bearing slides , table slides and oven hinges since 1999.
