604 Series European bottom mounting self close powder coated roller slide

Short Description:

Model No.: YA-01

604 Series European bottom mounting self close powder coated roller slide is the easiest type of drawer slide. It made by stamping machine. Can use for all type of furniture drawers.The load capacity around 25 KGS and the cycling over 50,000 times. The feature is the roller slide with balance pads, the smooth sliding with low noise, self-related function, pairs of stop bits to prevent the slide-out structure. The surface use advanced spray technology, non-toxic environmentally friendly, effective anti-corrosion, anti-rust.


Product Detail

Product Tags

bottom mounted drawer slide

Description:

Product: Powder Coated Drawer Slide
Item No.: YA-01
Material Thickness: 0.7 mm up to 1.2 mm
Load Capacity: 25 KG (450mm as standard)
Color: White, Black, Brown, Sliver, Gray, customize is available.
POM-Wheel(Roller) Available with white, black, brown wheel, white wheel with green noise-reducer, or as required.
Package: Standard 25 Sets/Ctn, or as required.
Length: 10" - 24" (250mm - 600mm)

Product Details:

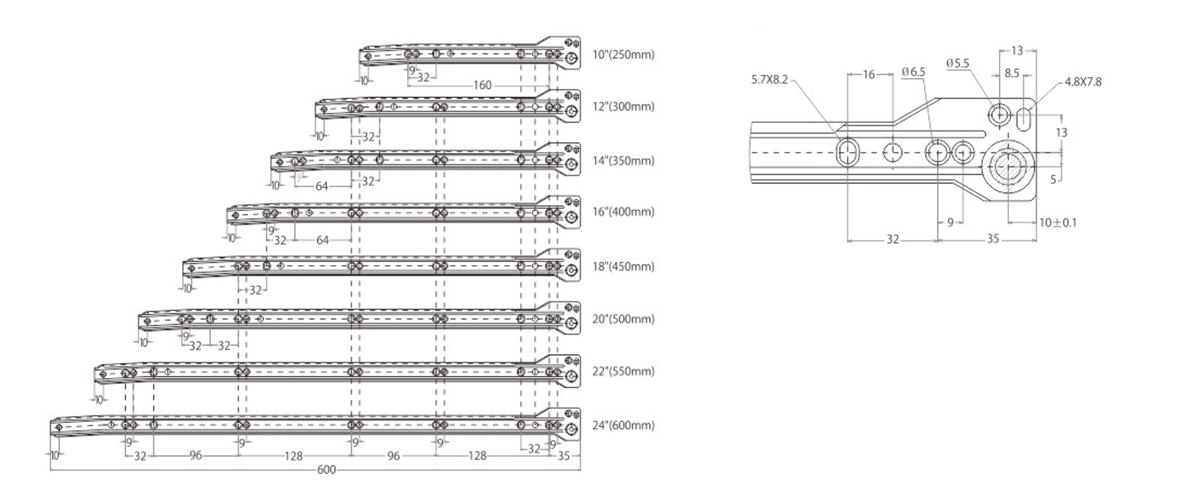

Drawer Slide Size:

Powder Coated Drawer Slide Size

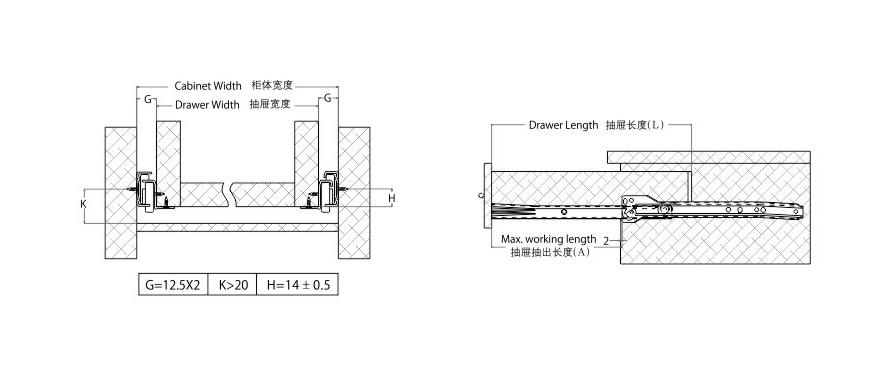

Cabinet Inside Space:

cabinet inside space

Package Information:

Package

Workshop:
