Description:
Type: 17mm Single extension side mount telescopic drawer slide channel
Function: Smooth moving without noise
Width: 17mm
Length:150mm – 450mm, customized is available.
Installation thickness: 4 mm
Surface: Zinc plated, electrophoresis black, customized is available.
Load Capacity: 10 KGS
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 0.8×0.8 mm
Installation: side mounting with screws
Application: Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc…
Product Details:
Order Information:
|
Item No. |
A |
B |
C |
D |
Ball retainer |
Packing Unit ( set/box ) |
|
17x150x150 |
150 |
150 |
96 |
102 |
46×12 |
50 |
|
17x182x182 |
182 |
182 |
128 |
134 |
46×121 |
50 |
|
17x214x214 |
214 |
214 |
160 |
142 |
72×12 |
50 |
|
17x246x246 |
246 |
246 |
192 |
172 |
72×12 |
50 |
|
17x278x278 |
278 |
278 |
224 |
204 |
72×12 |
50 |
|
17x310x310 |
310 |
310 |
256 |
226 |
82×12 |
50 |
|
17x342x342 |
342 |
342 |
288 |
244 |
96×12 |
50 |
|
17x374x374 |
374 |
374 |
320 |
276 |
96×12 |
50 |
|
17x406x406 |
406 |
406 |
352 |
308 |
96×12 |
50 |
|
17x438x438 |
438 |
438 |
384 |
318 |
118×12 |
50 |
|
17x502x502 |
502 |
502 |
448 |
382 |
118×12 |
50 |
|
17x400x400 |
400 |
400 |
_ _ |
302 |
96×12 |
50 |
|
17x450x450 |
450 |
450 |
———— |
330 |
118×12 |
50 |
Packing Information:
| SIZE | 50 SETS/CTN | 100 SETS/CTN | 50 SETS (0.8×0.8) G.W |
50 SETS (0.8×0.8) N.W |
100 SETS (0.8×0.8) G.W |
100 SETS (0.8×0.8) N.W |
CTN/PLT of 50 SETS/CTN | CTN/PLT of 100 SETS/CTN |
| 1701-182 | 10.40 KGS | 10.00 KGS | 77 | |||||
| 1701-214 | 22*17*12.5 | 22×22.5×11 | 6.30 KGS | 6.00 KGS | 12.40 KGS | 12.00 KGS | 120 | 60 |
| 1701-246 | 25*17*12.5 | 25×25.5×11 | 7.00 KGS | 6.80 KGS | 14.30 KGS | 14.00 KGS | 100 | 50 |
| 1701-278 | 29*17*12.5 | 29x25x14 | 8.00 KGS | 7.70 KGS | 15.80 KGS | 15.50 KGS | 100 | 50 |
| 1701-310 | 32*17*12.5 | 32x29x12 | 9.00 KGS | 8.70 KGS | 17.80 KGS | 17.40 KGS | 84 | 50 |
| 1701-342 | 35*26*12.5 | 35.5x29x13.5 | 10.00 KGS | 9.60 KGS | 19.50 KGS | 19.00 KGS | 80 | 40 |
| 1701-374 | 39*26*12.5 | 39x29x13.5 | 10.80 KGS | 10.50 KGS | 21.50 KGS | 21.00 KGS | 75 | 40 |
| 1701-406 | 42*26*12.5 | 42x29x13.5 | 12.00 KGS | 11.50 KGS | 23.50 KGS | 23.00 KGS | 72 | 40 |
| 1701-438 | 45*26.*12.5 | 45x29x13.5 | 13.00 KGS | 12.50 KGS | 25.00 KGS | 24.50 KGS | 72 | 40 |

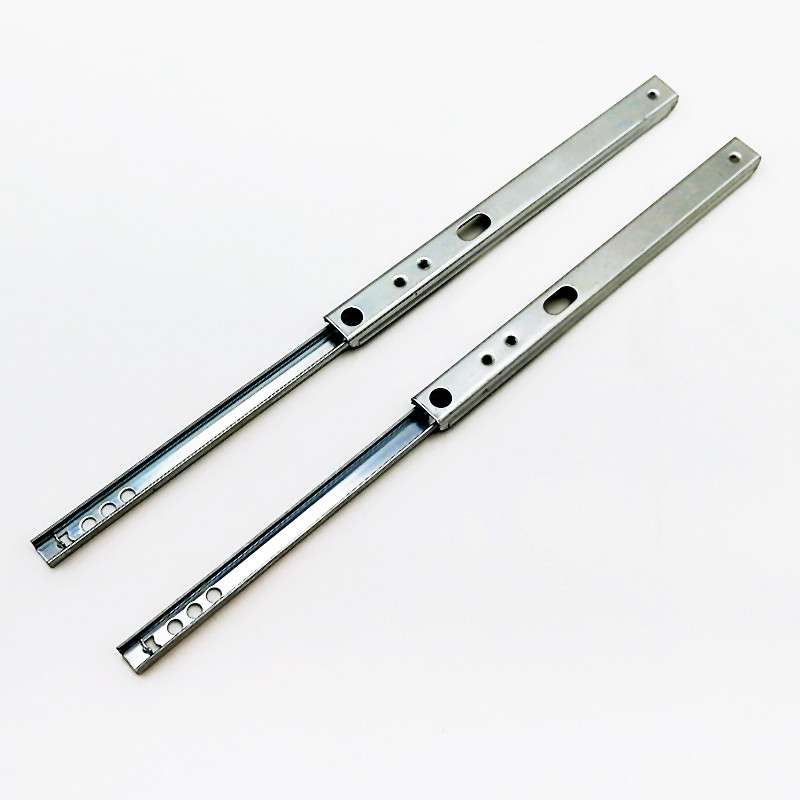

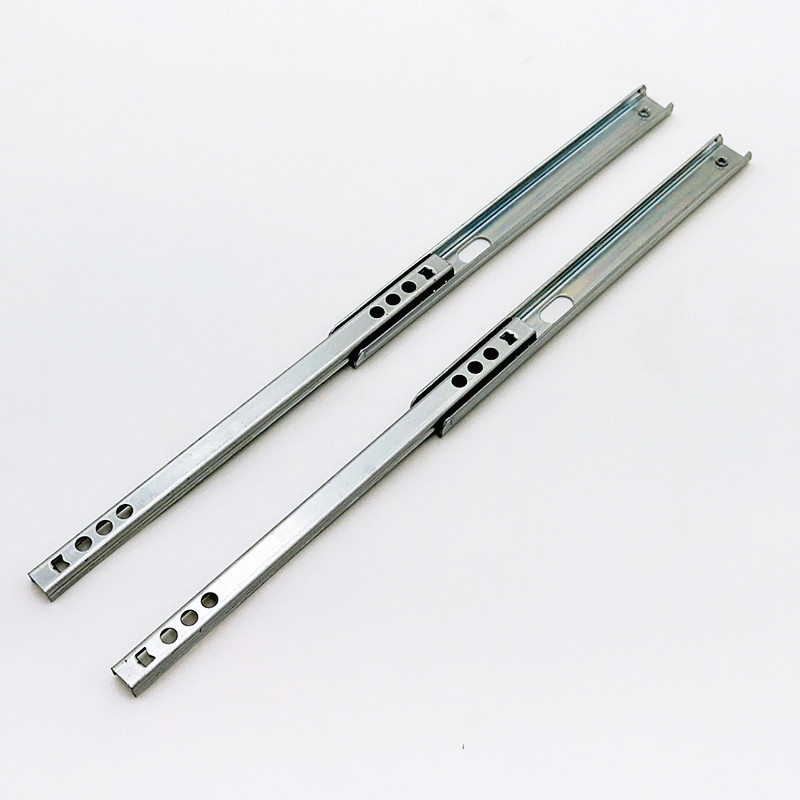

Product detail pictures:
