Reasonable price for Slide Track - 500lbs lock in lock out heavy duty tool box cabinet telescopic channel 76mm drawer slide – Yangli Detail:

Description:
Type: 500lbs lock in lock out heavy duty tool box cabinet telescopic channel 76mm drawer slide
Function: Large load capacity
Width: 76mm
Length: 250mm – 1200mm, customized is available.
Installation thickness: 19.2 mm (±0.3)
Surface: Zinc plated, electrophoresis black, customized is available.
Load Capacity: 225 KGS (500 lbs)
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 2.5×2.2×2.5 mm
Installation: side mount with screws
Application: tool box cabinets, Motorhome, steel furniture, machine, etc…

Product Details:

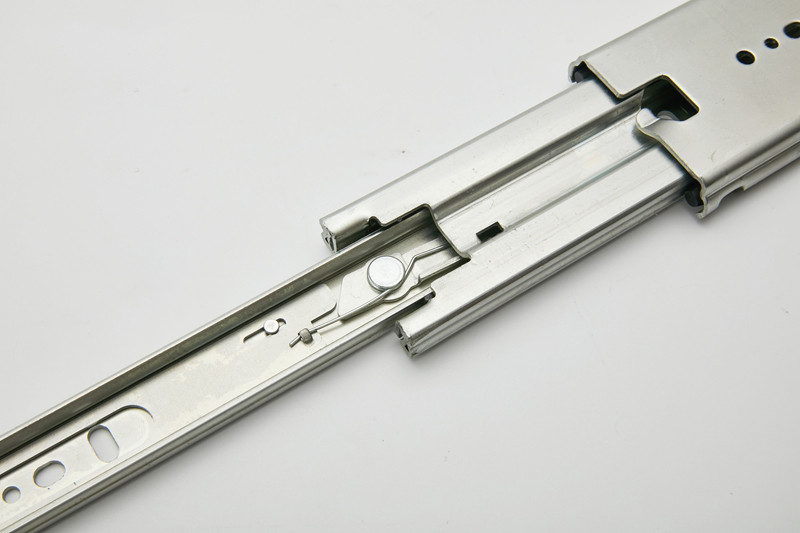

heavy duty drawer slide rail

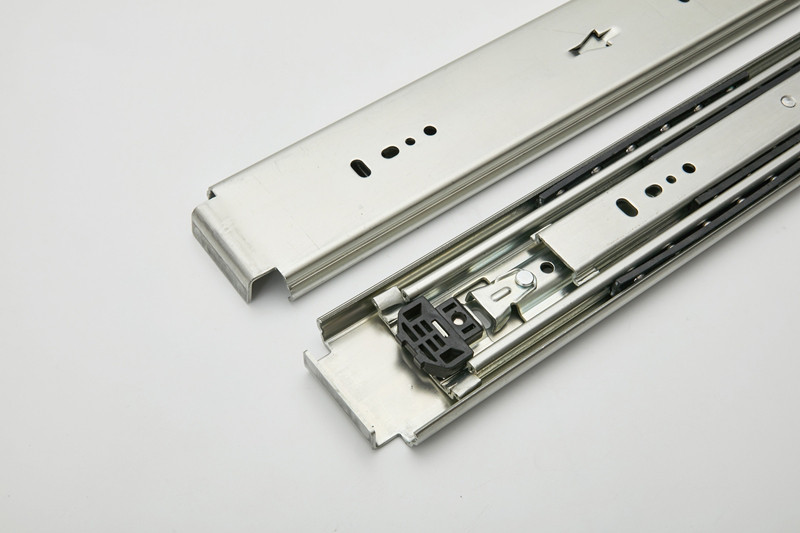

heavy duty telescopic drawer slide
heavy loading drawer slide
heavy load ball bearing drawer slides

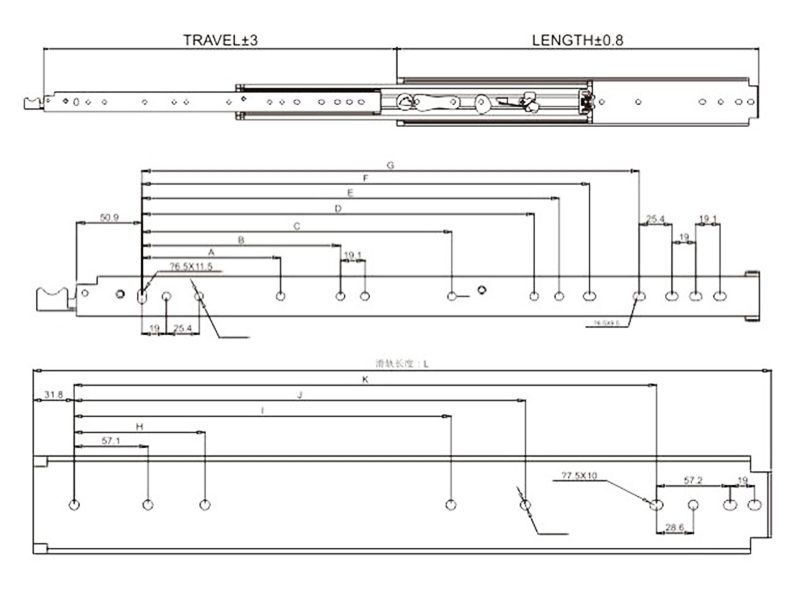

Order Information:

SIZE(MM)

TRAVEL

A

B

C

D

E

F

G

H

I

J

K

300

300

-

-

-

-

-

-

130

-

-

-

174.5

350

350

-

-

-

-

-

-

180

-

-

-

229.3

400

400

107.9

-

-

-

-

-

230

-

-

-

279.3

450

450

107.9

-

-

-

-

-

280

-

-

-

329.3

500

500

107.9

171.4

-

-

-

269.8

330

-

-

-

379.3

550

550

107.9

171.4

-

-

-

319.8

380

-

-

-

429.3

600

600

107.9

171.4

-

-

-

369.8

430

-

-

-

479.3

650

650

107.9

171.4

-

-

-

419.8

480

-

-

-

529.3

700

700

107.9

171.4

-

-

-

469.8

530

-

-

-

579.3

750

750

107.9

171.4

349.2

-

-

519.8

580

215.8

-

482.6

629.3

800

800

107.9

171.4

349.2

-

-

569.8

630

215.8

374.6

533.4

679.3

850

850

107.9

171.4

349.2

450.8

-

619.8

680

215.8

400

483.2

729.3

900

900

107.9

171.4

349.2

501.6

-

659.8

730

215.8

425.4

635

779.3

950

950

107.9

171.4

349.2

501.6

-

719.8

780

215.8

450.8

685.8

829.3

1000

1000

107.9

171.4

349.2

527

-

769.8

830

215.8

476.2

736.6

879.3

1050

1050

107.9

171.4

349.2

-

704.8

819.8

880

215.8

501.6

787.4

929.3

1100

1100

107.9

171.4

349.2

-

704.8

869.8

930

215.8

527

838.2

979.3

1150

1150

107.9

171.4

349.2

501.6

704.8

919.8

980

215.8

552.4

889

1029.3

1200

1200

107.9

171.4

349.2

501.6

806.4

969.8

1030

215.8

577.8

939.7

1079.3

1250

1250

107.9

171.4

349.2

501.6

806.4

1019.8

1080

215.8

577.8

939.7

1129.3

1300

1300

107.9

171.4

349.2

501.6

806.4

1069.8

1130

215.8

-

939.7

1179.3

1350

1350

107.9

171.4

349.2

501.6

806.4

1119.8

1180

215.8

-

939.7

1229.3

1400

1400

107.9

171.4

349.2

501.6

806.4

1169.8

1230

215.8

-

939.7

1279.3

1450

1450

107.9

171.4

349.2

501.6

806.4

1219.8

1280

215.8

577.8

939.7

1329.3

1500

1500

107.9

171.4

349.2

501.6

806.4

1269.8

1330

215.8

577.8

939.7

1379.3
