OEM/ODM China Floor Mount Drawer Slide - Single Extension Soft Close Undermount Drawer Slide with Adjustable Screws and plugs – Yangli Detail:

Description:
Product Name: Single Extension Soft Close Undermount Drawer Slide with Adjustable Screws and plugs.
Product Material: Galvanized Sheet.
Material Thickness: 1.5×1.5mm.
Selectable Accessories: Adjustment Screws and Plugs.
Load Rating: 25 KGS (450mm as standard).
Cycling: Over 50,000 times, PASS THE TEST BY SGS.
Size Range: 10″/250mm – 22″/550mm, customaized is available.
Special Function: Soft Close.
Installation: Connect with adjustable screws and plugs,without clips.
Application: Frameless Cabinet Drawer.
The Adjustable Screws Adjusting Range: 4.5mm(Up and Down).

Product Details:

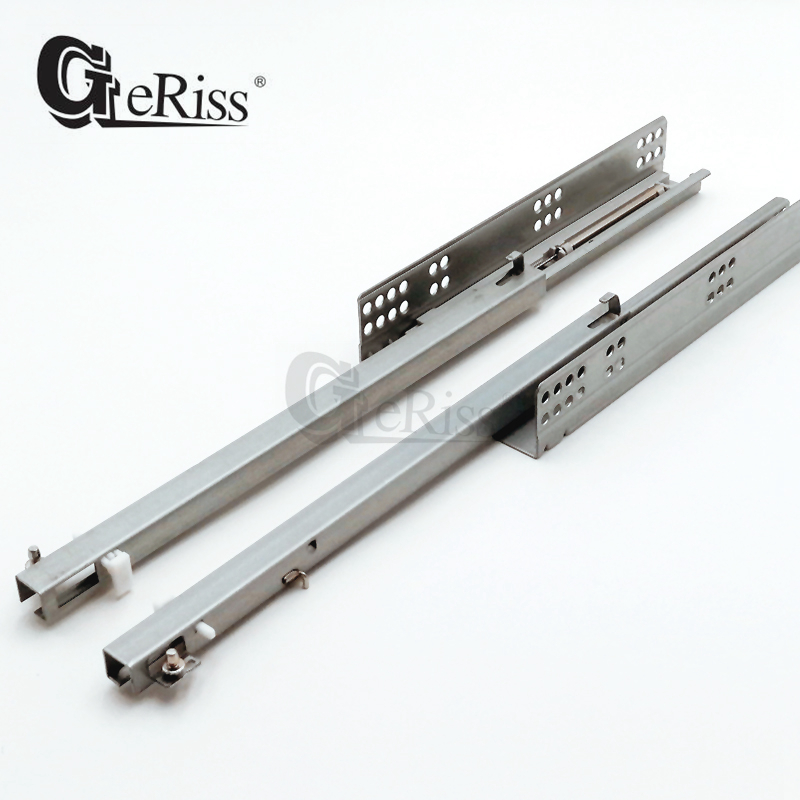

china concealed drawer slides

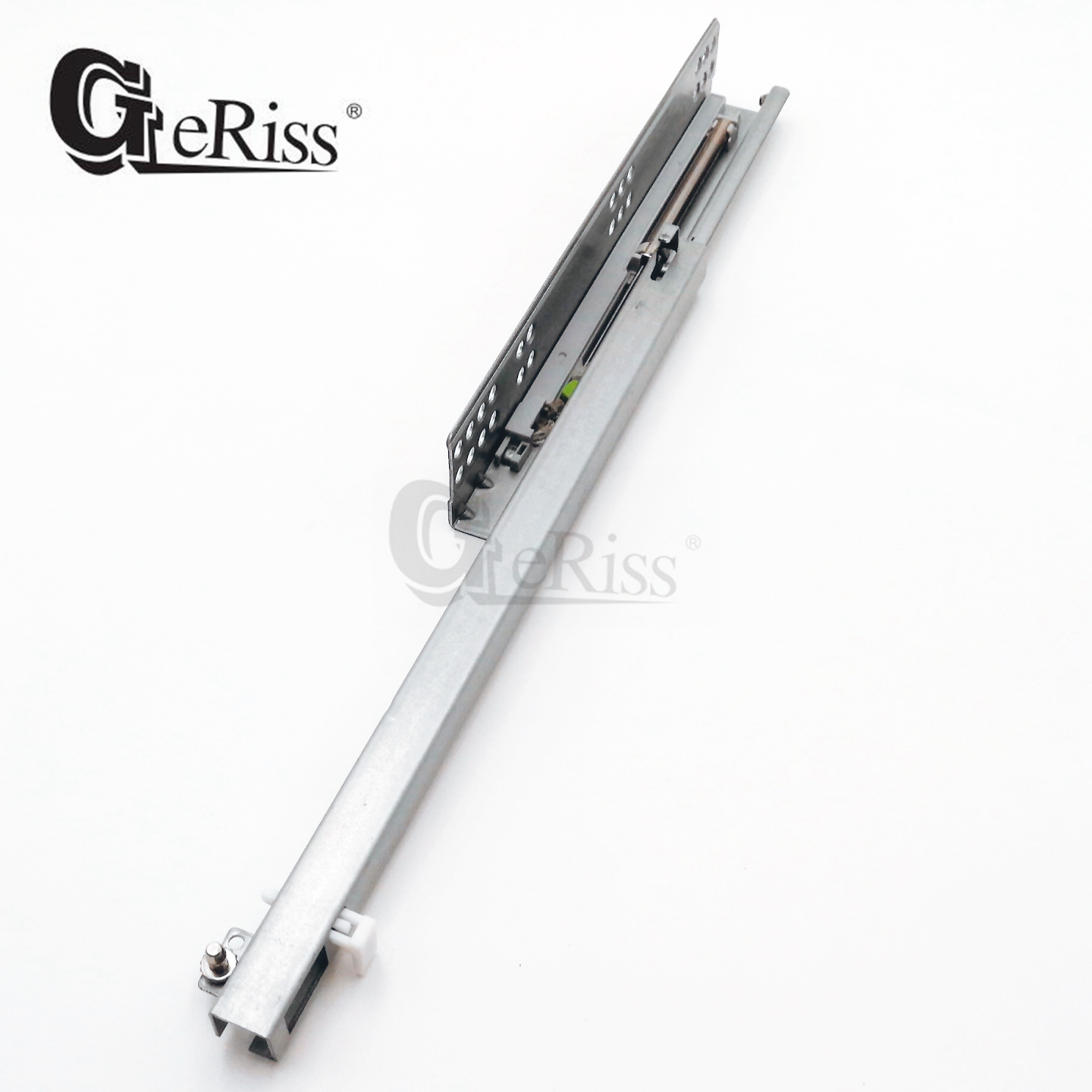

partial extension concealed drawer slides

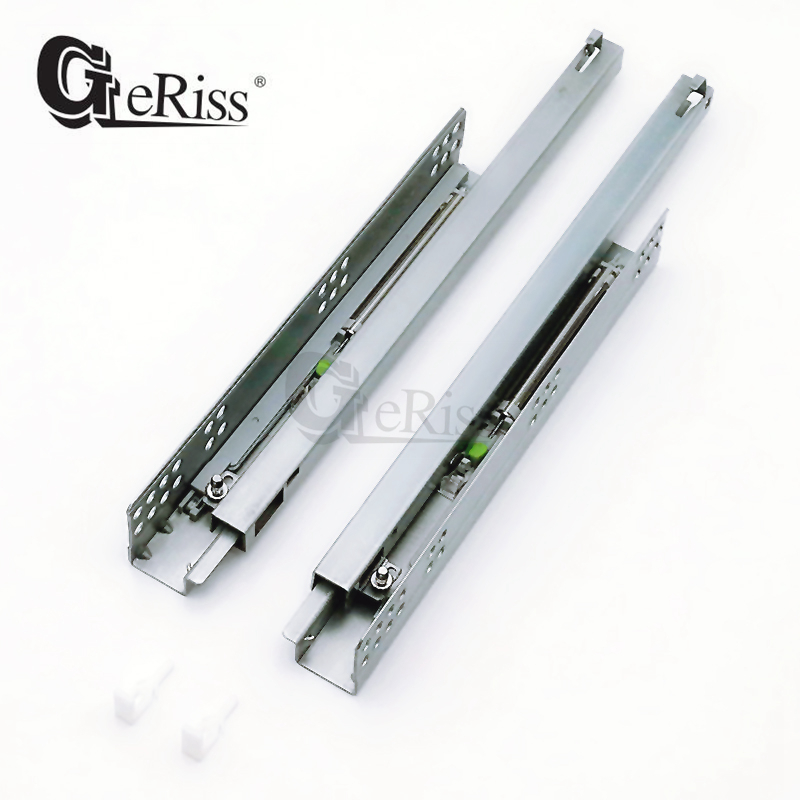

concealed slide

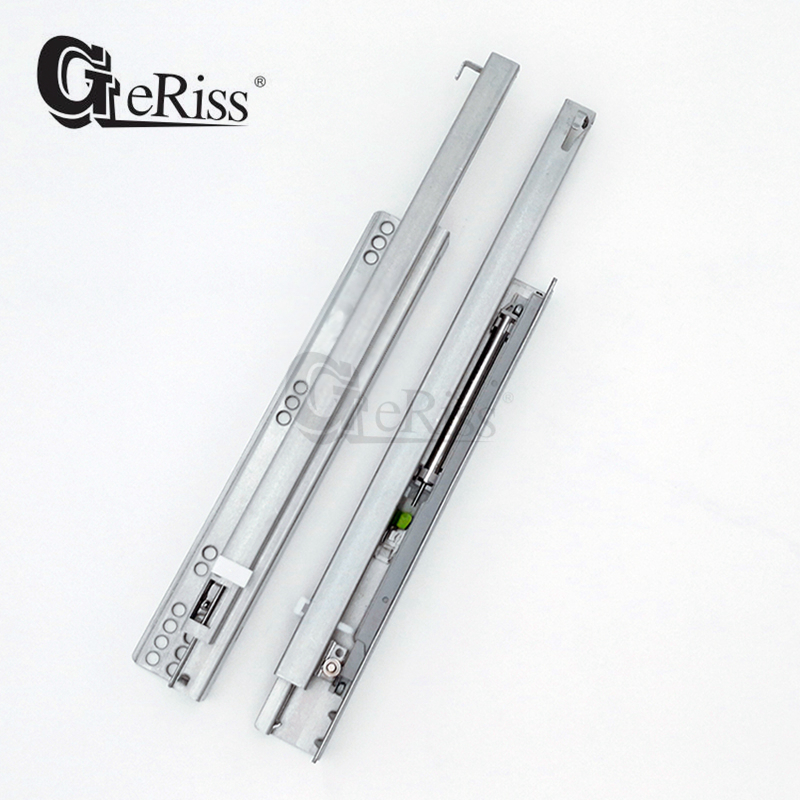

self locking concealed slide

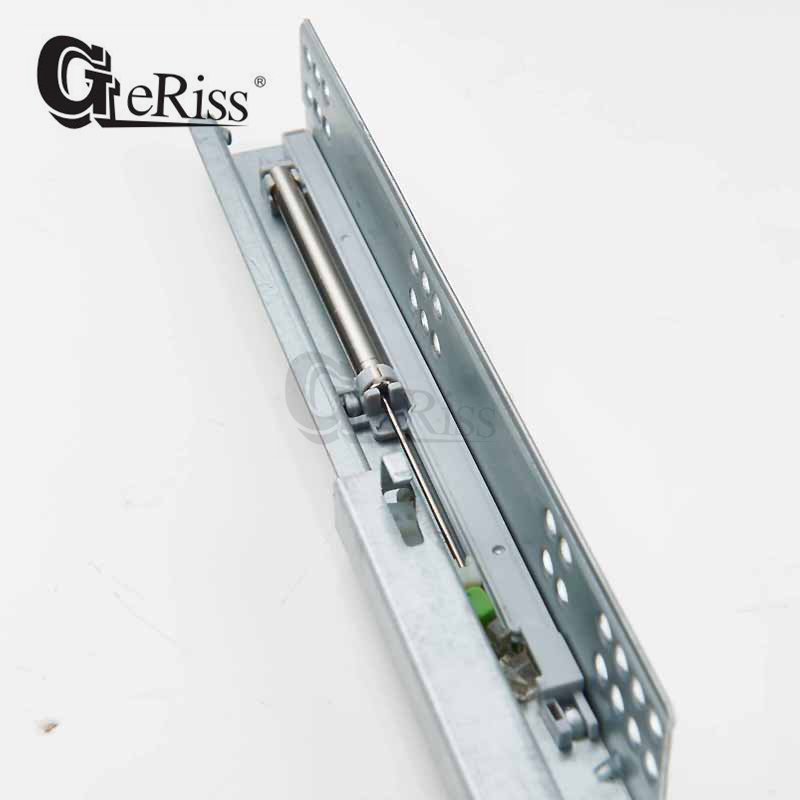

concealed soft close drawer damper

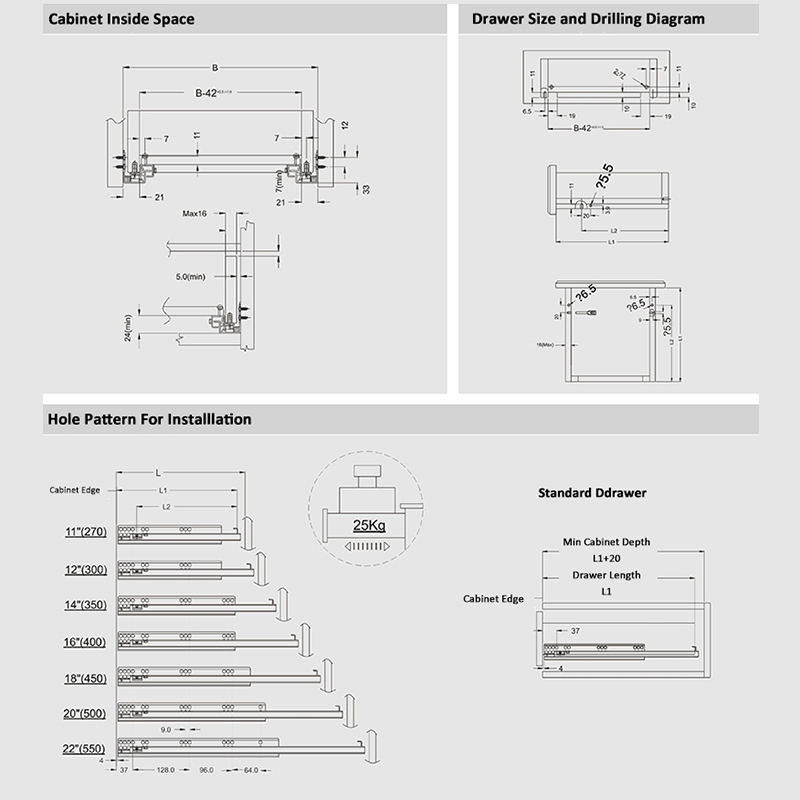

EUR23A Installation

Order Information:

Item No.

Slide Length

Drawer Length(L1)

Min Cabinet Depth(L)

EUR23A-270

276mm

270mm

290mm

EUR23A-300

306mm

300mm

320mm

EUR23A-350

356mm

350mm

370mm

EUR23A-400

406mm

400mm

420mm

EUR23A-450

456mm

450mm

370mm

EUR23A-500

506mm

500mm

520mm

EUR23A-550

556mm

550mm

570mm

 Packing Information:

Item No.

Package(SET/CTN)

N.W(KGS)

G.W(KGS)

MEAS(CM)

20′ GP

EUR23A-270

10

5.90

6.10

33x23x9.5

32,000

EUR23A-300

10

6.55

6.75

38x23x9.5

28,000

EUR23A-350

10

6.17

9.47

43x23x9.5

20,000

EUR23A-400

10

10.48

10.78

48x23x9.5

18,000

EUR23A-450

10

11.79

12.09

53x23x9.5

16,000

EUR23A-500

10

13.10

13.40

58x23x9.5

14,800

EUR23A-550

10

14.30

14.60

58x23x9.5

13,000

Double Wall Drawer System-03
Double Wall Drawer System-04
