Cabinet Hinges Installation

Installation Instruction

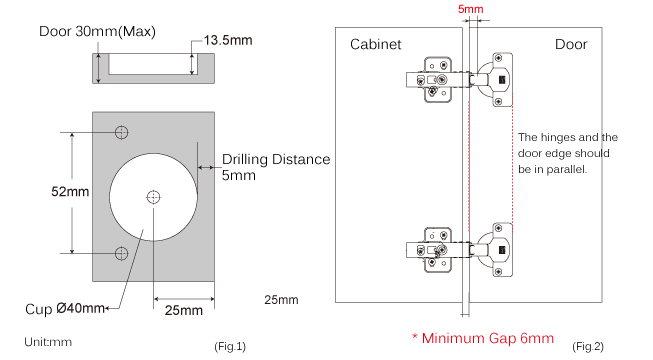

1. Please ensure all measurements such as the hole positions and the drilling distances in Fig.1 are met before mounting the hinge.
2. Please ensure the distance between the door panel and the cabinet is 6mm before mounting the base plate. The hinges and the door edge should be in parallel.(Fig.2)

support-installation-hinges-cut_02_en

Installation attention
Installation skill for two or more hinges

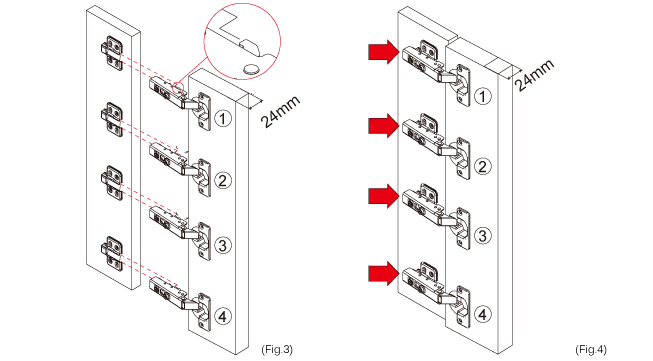

1. Lock all hinges onto the base plates (Fig.3).
2. Push hinge arm 1 and 4 down (Fig.4) until a ‘click’ sound is heard to fix the door.
3. Press on hinge arm 2 and 3 to complete the installation.

support-installation-hinges-cut_06_en

If the thickness of the door panel is greater than 24mm
1. Please unscrew the hinge (clockwise) to its maximum potential (Fig.5).
2. Lock all hinge arms onto the base plates (Fig.3).
3. Push hinge arm 1 and 4 down (Fig.4) until a “click” sound is heard to fix the door.
4. Press on hinge arm 2 and 3 until a “click” sound is heard.
5. Adjust the hinge screw to its optimum position.
6. To demount the door panel: unscrew the hinge (clockwise) to its maximum potential (Fig.6) and unlock all hinge arms to detach the door panel.
