Factory directly Drawer Slide Hardware Bottom Mount - American Style Full Extension Soft Closing Undermount Drawer Slide (With Adjustable Screws And Back Connectors) – Yangli Detail:

Description:
Product Name: American Style Full Extension Soft Closing Undermount Drawer Slide (With Adjustable Screws And Back Connectors)
Product Material: Galvanized Sheet
Material Thickness: 1.8×1.5×1.0mm
Selectable Accessories: Plastic Back Connectors,Metal Back Connectors
Load Rating: 35 KGS ( 450mm as standard )
Cycling: Over 50,000 times , PASS THE TEST BY SGS
Size Range: 12″/305mm,15″/381mm,18″/457mm,21″/533mm, customized is available
Special Function: Silent smooth soft close
Installation: connect with adjustment pins and back connectors
Application: American face frame cabinet drawers
The Adjustable Screws Adjusting Range: 4.5mm (Up and Down)

Product Details:

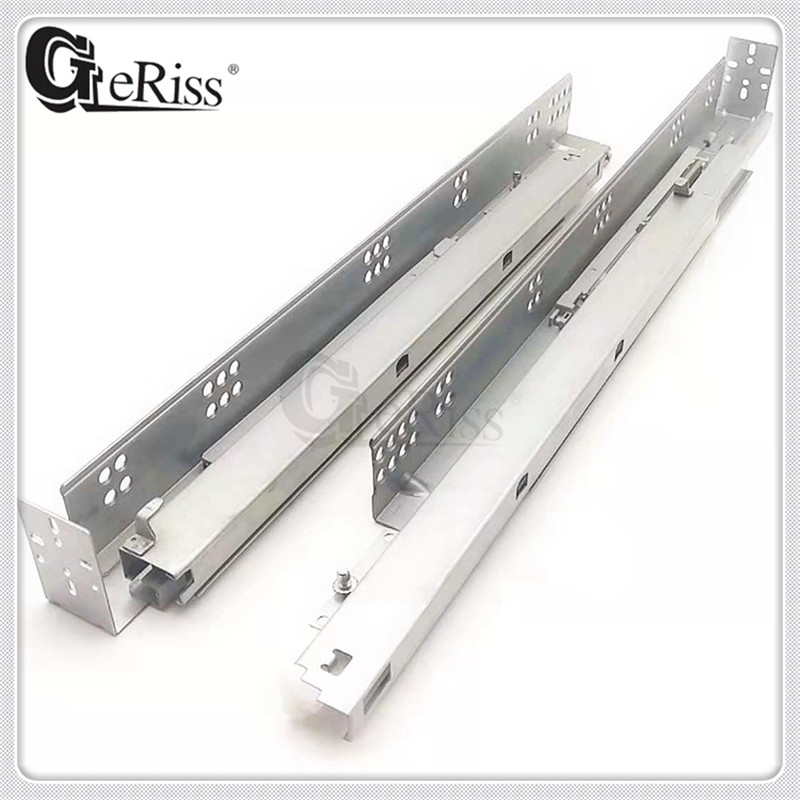

21 Inch Maxcess 19 Undermount Drawer Slides for Face Frame1

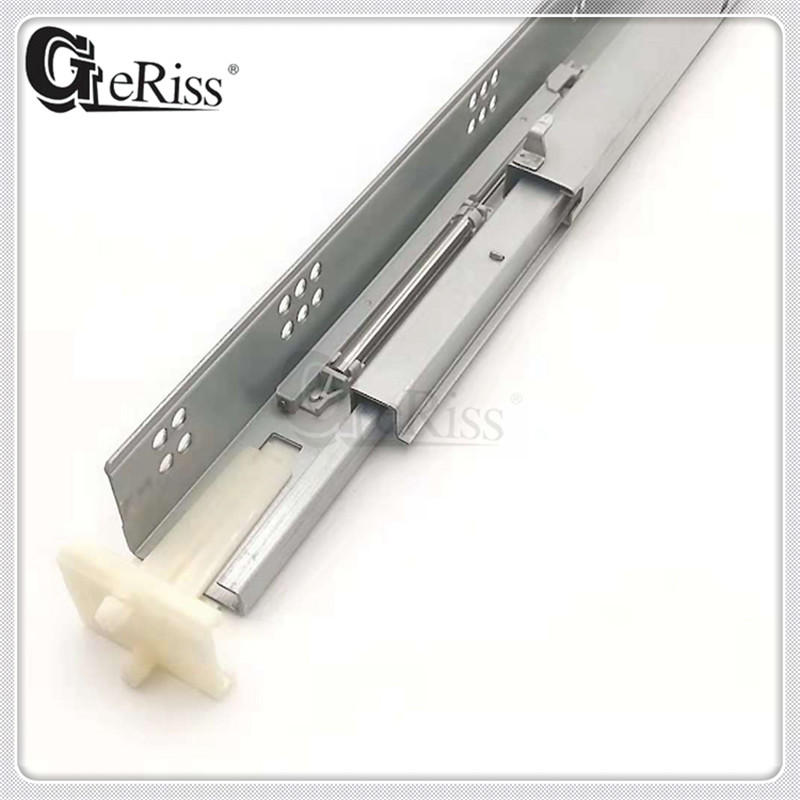

face frame rear bracket kit1

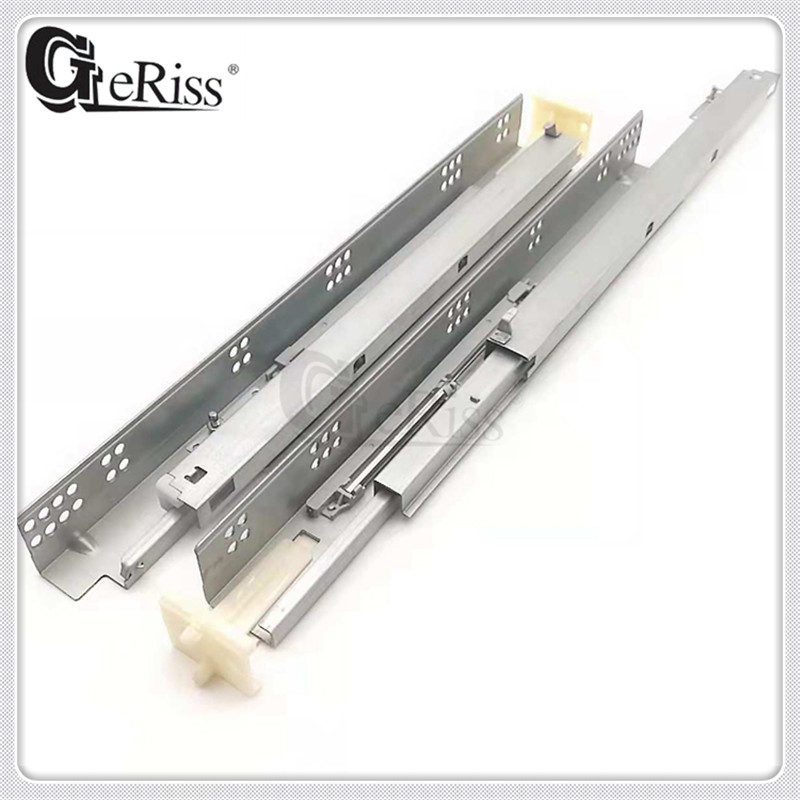

533 drawer guides1

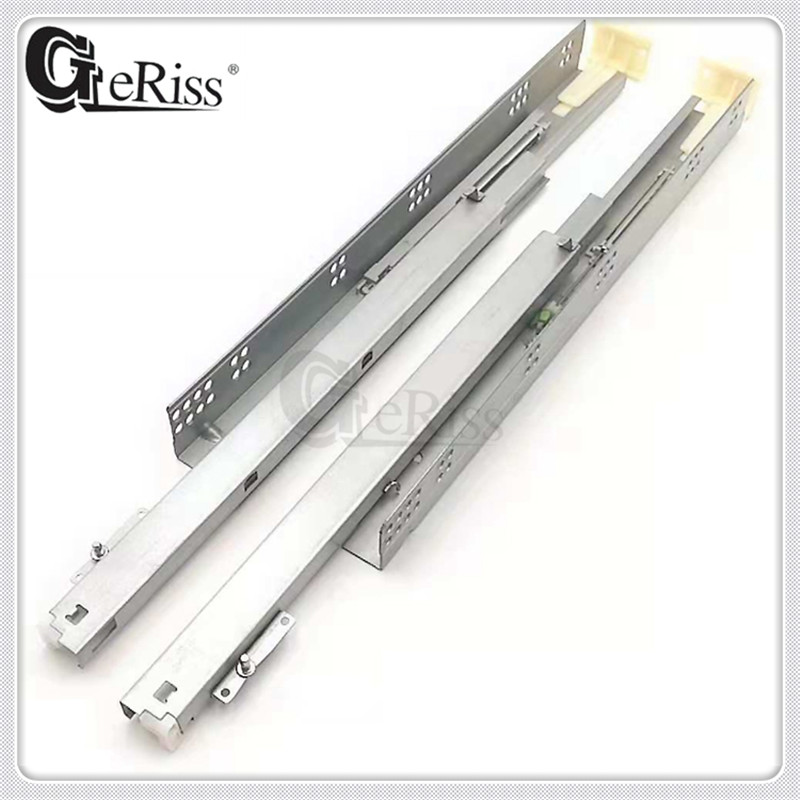

kitchen drawer runner dtc 533 drawer slides1

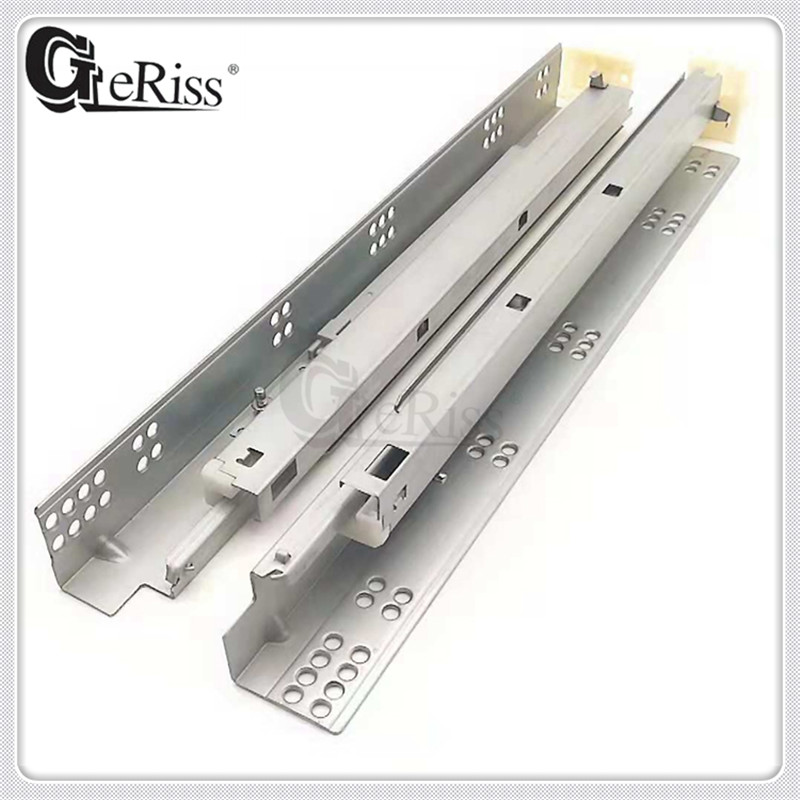

533 drawer slides accessories for kitchen cabinets1

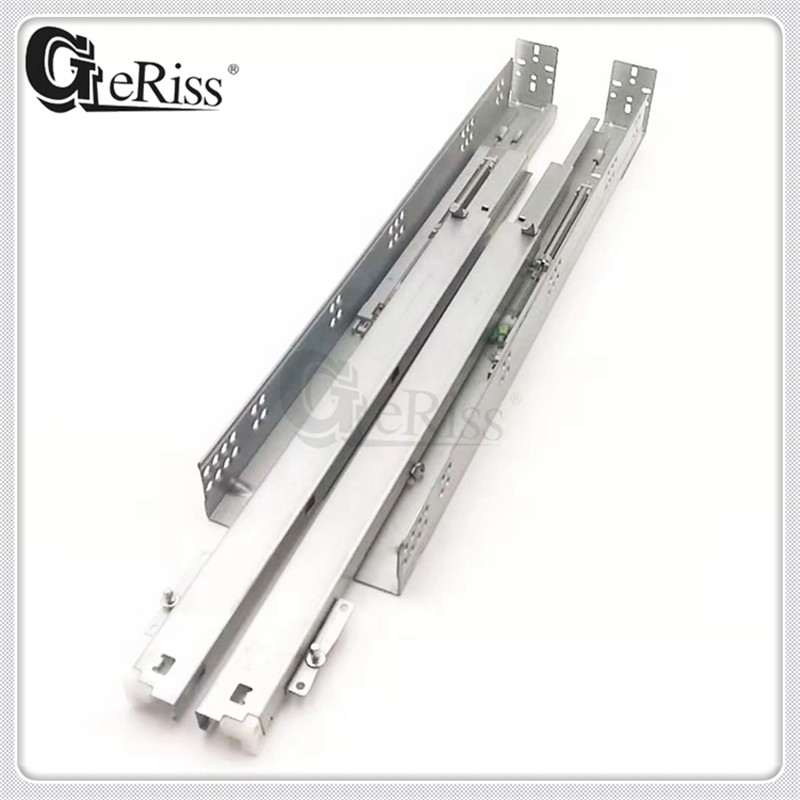

Maxcess 21 Undermount Drawer Slide for Face Frame, 78 Extension, Soft-Close

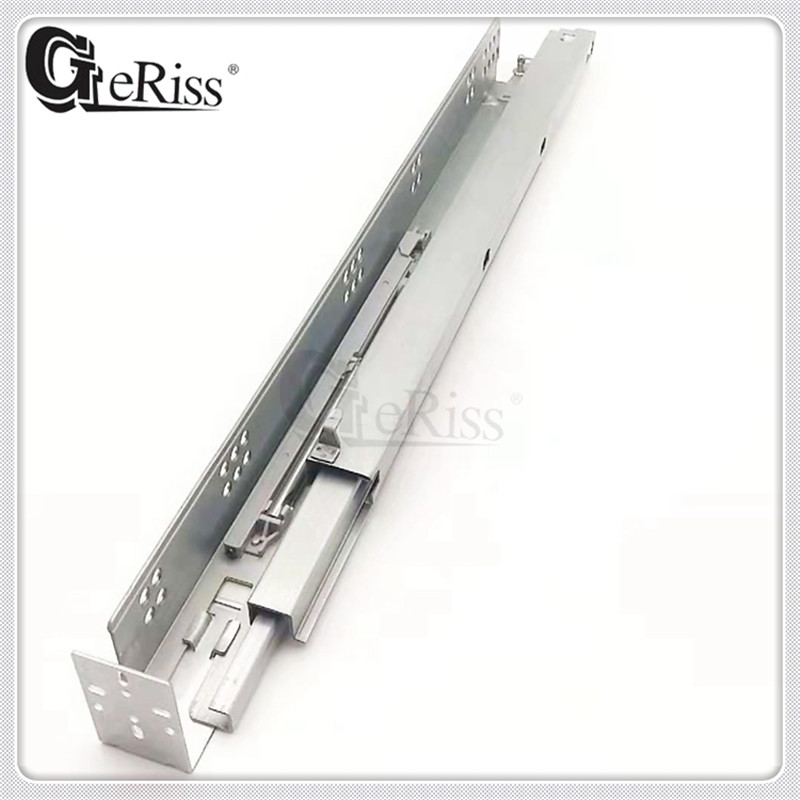

face frame bracket1

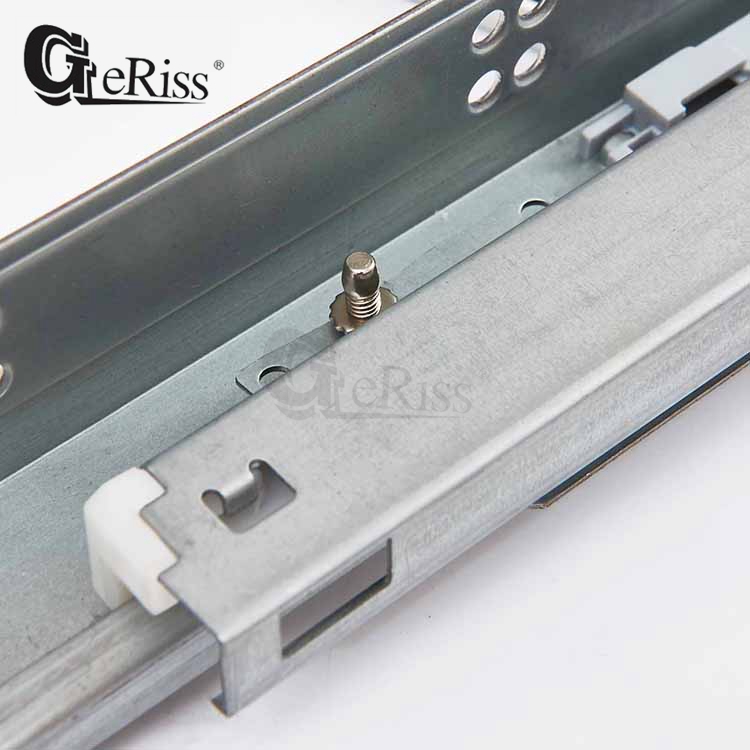

21 Standard Duty 100 lb Soft-close for 12 and 58 Material with 2-way

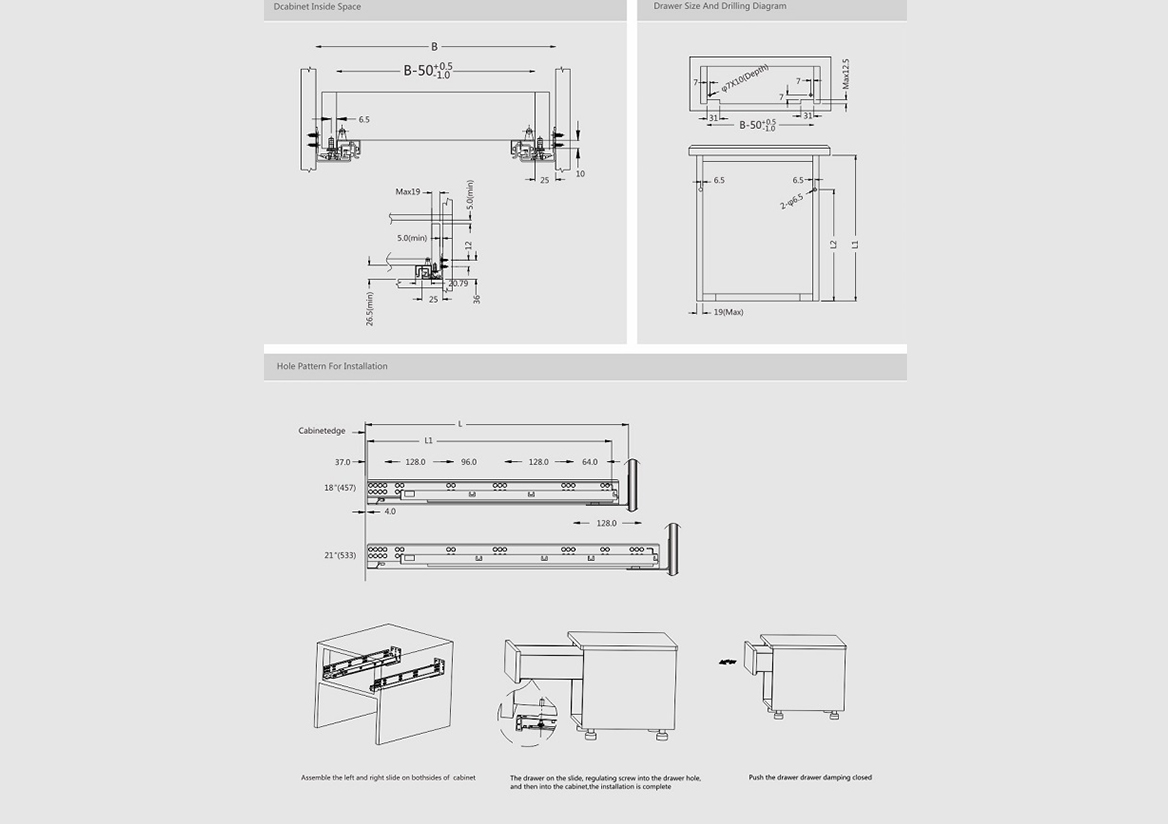

How To Install Undermount Drawer Slides With Face Frame Cabinets1

Order Information:

ITEM NO.

Slide Length

Drawer Length(L1)

Installation Hole

Min Cabinet Depth

Packing (Set/Ctn)

US33A18-457

18”

457mm

343mm

493mm

10

US33A18-533

21”

533mm

381mm

569mm

10

Packing Information:

ITEM NO

SIZE

SET/CTN

N.W(KG)

G.W(KG)

MEAS(CM)

US33A18-305

12″/305mm

10

15.00

15.50

42*29*13

US33A18-381

15″/381mm

10

15.50

16.00

50*29*13

US33A18-457

18″/457mm

10

23.40

23.90

57*29*13

US33A18-533

21″/533mm

10

27.30

27.50

65*29*13

Double Wall Drawer System-03
Double Wall Drawer System-04

Product detail pictures:

Factory directly Drawer Slide Hardware Bottom Mount - American Style Full Extension Soft Closing Undermount Drawer Slide (With Adjustable Screws And Back Connectors) – Yangli detail pictures

Factory directly Drawer Slide Hardware Bottom Mount - American Style Full Extension Soft Closing Undermount Drawer Slide (With Adjustable Screws And Back Connectors) – Yangli detail pictures

Factory directly Drawer Slide Hardware Bottom Mount - American Style Full Extension Soft Closing Undermount Drawer Slide (With Adjustable Screws And Back Connectors) – Yangli detail pictures
