Factory Cheap Hot Light Duty Bottom Side Mount Ball Bearing Drawer Slide - Full extension telescopic channel 45mm ball bearing drawer slide manufacturer – Yangli Detail:

Description:
Type: Full extension telescopic channel 45mm ball bearing drawer slide manufacturer
Function: Smooth moving without noise
Width: 45mm
Length:10″/250mm – 24″/600mm , customized is available.
Installation thickness: 13mm
Surface: Zinc plated, electrophoresis black, customized is available.
Load Capacity: 30-45 KGS
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 1.0×1.0×1.2mm,1.2×1.2×1.5mm available
Installation: side mounting with screws
Application: Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc…

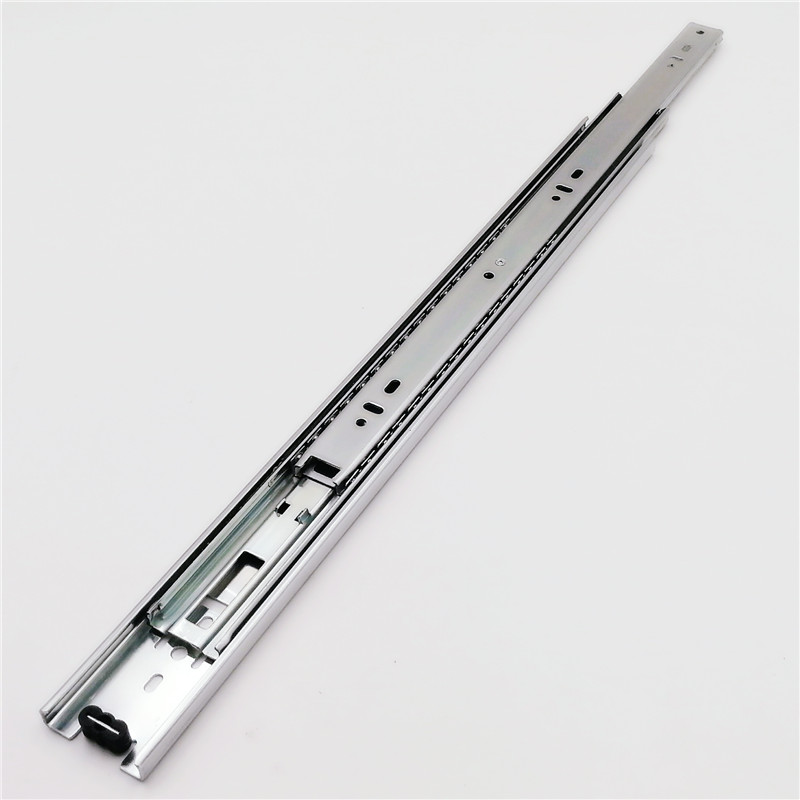

18-inch-drawer-guide

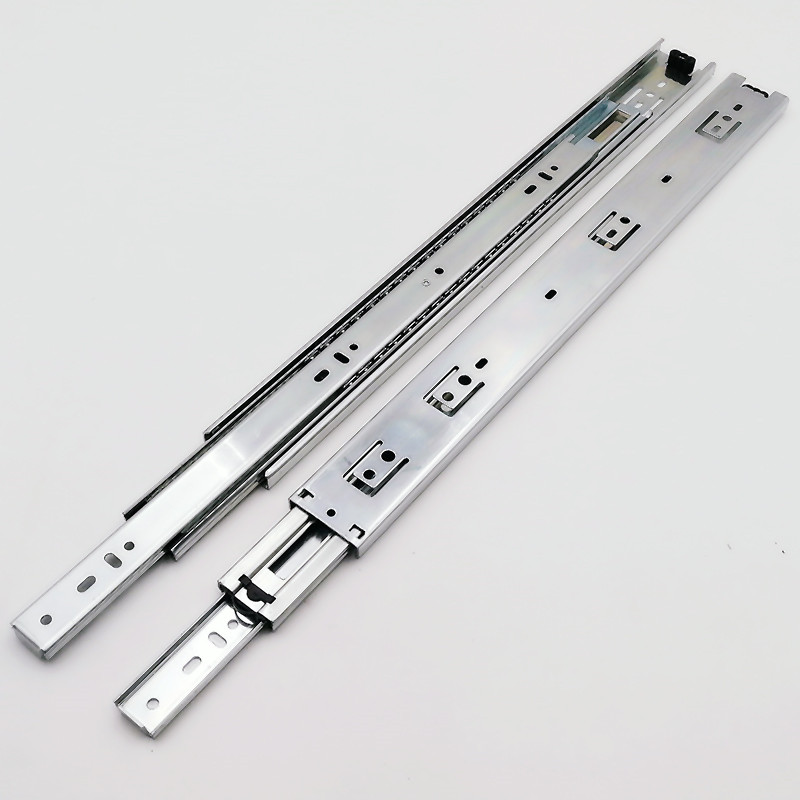

furniture-telescopic-slide-drawer

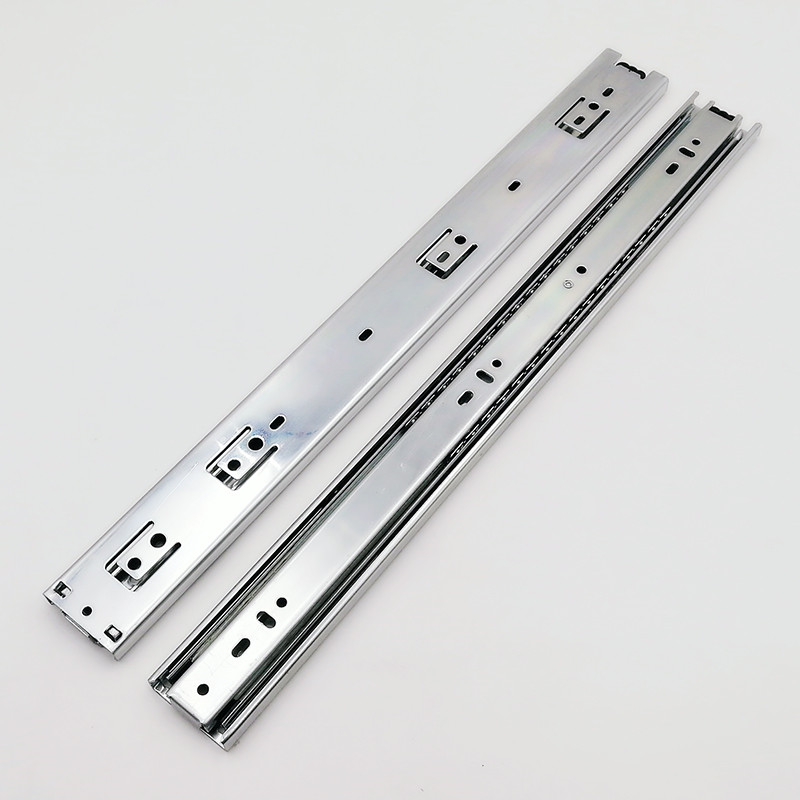

45mm-drawer-runner

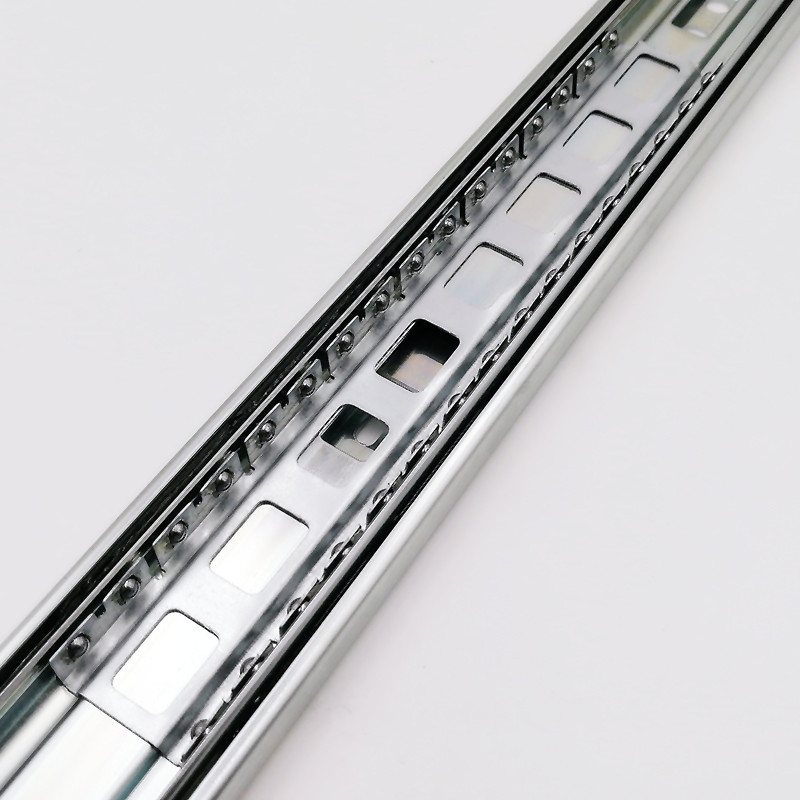

telescopic-drawer-slide-roller

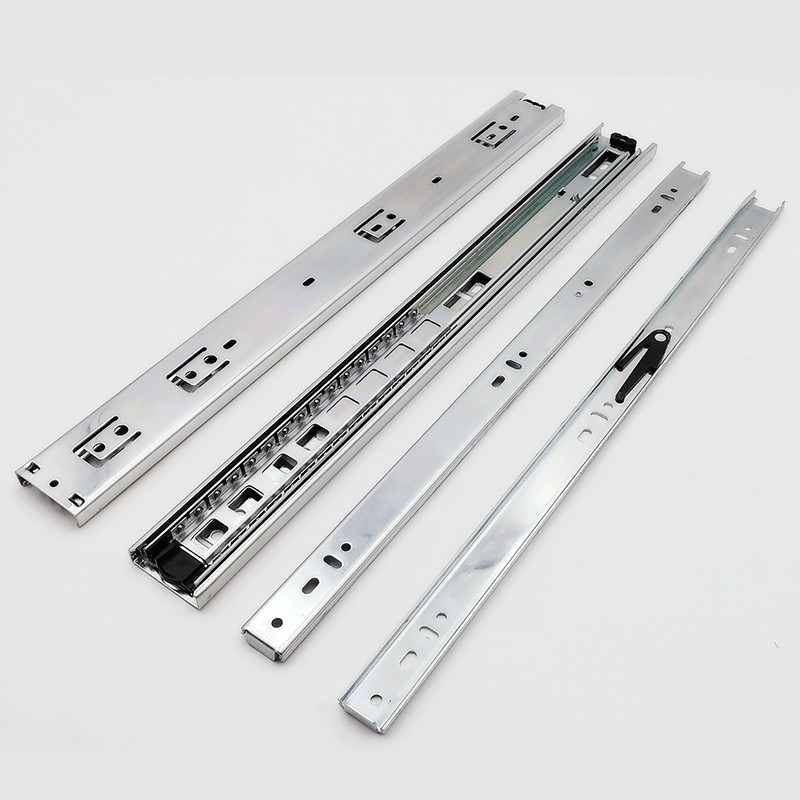

attractive-cabinet-telescopic-drawer-slides
3-fold-full-extension-ball-bearing-with-45mm-width

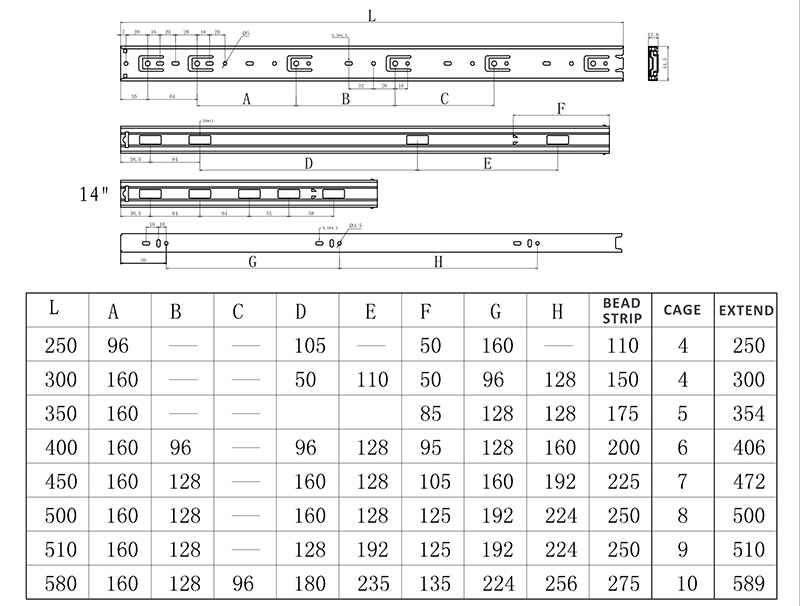

drawer-guider1

Order Information:

Item No.

Slide Length

Drawer Length

Min Cabinet Depth

Packing Unit ( set/box )

YA.4501-10

10”/250mm

250mm

254mm

10

YA.4501-12

12”/300mm

300mm

304mm

10

YA.4501-14

14”/350mm

350mm

354mm

10

YA.4501-16

16”/400mm

400mm

404mm

10

YA.4501-18

18”/450mm

450mm

454mm

10

YA.4501-20

20”/500mm

500mm

504mm

10

YA.4501-22

22”/550mm

550mm

554mm

10

YA.4501-24

24”/600mm

600mm

604mm

10

YA.4501-26

26”/650mm

650mm

654mm

10

YA.4501-28

28”/700mm

700mm

704mm

10

Packing Information:

Size

Material

Thickness(mm)

Sets/Crn

Size/Inch

1set/N.W(KG)

N.W(KG)

G.W(KG)

MEAS(cm)

Length

Width

Height

45-8″

1.0×1.0×1.2

15

8

0.50

7.44

7.69

22

20

12

45-10″

1.0×1.0×1.2

15

10

0.62

9.30

9.55

27

20

12

45-12″

1.0×1.0×1.2

15

12

0.74

11.16

11.41

32

20

12

45-14″

1.0×1.0×1.2

15

14

0.87

13.02

13.27

37

20

12

45-16″

1.0×1.0×1.2

15

16

0.99

14.88

15.18

42

20

12

45-18″

1.0×1.0×1.2

15

18

1.12

16.74

17.04

47

20

12

45-20″

1.0×1.0×1.2

15

20

1.24

18.60

18.90

52

20

12

45-22″

1.0×1.0×1.2

15

22

1.36

20.46

20.76

57

20

12

45-24″

1.0×1.0×1.2

15

24

1.49

22.32

22.67

62

20

12

45-26″

1.0×1.0×1.2

15

26

1.61

24.18

24.53

67

20

12

45-28″

1.0×1.0×1.2

15

28

1.74

26.04

26.39

72

20

12

45-30″

1.0×1.0×1.2

15

30

1.86

27.90

28.25

77

20

12

45-8″

1.2×1.2×1.5

15

8

0.60

9.00

9.25

22

20

12

45-10″

1.2×1.2×1.5

15

10

0.75

11.25

11.50

27

20

12

45-12″

1.2×1.2×1.5

15

12

0.90

13.50

13.75

32

20

12

45-14″

1.2×1.2×1.5

15

14

1.05

15.75

16.00

37

20

12

45-16″

1.2×1.2×1.5

15

16

1.20

18.00

18.30

42

20

12

45-18″

1.2×1.2×1.5

15

18

1.35

20.25

20.55

47

20

12

45-20″

1.2×1.2×1.5

15

20

1.50

22.50

22.80

52

20

12

45-22″

1.2×1.2×1.5

15

22

1.65

24.75

25.05

57

20

12

45-24″

1.2×1.2×1.5

15

24

1.80

27.00

27.35

62

20

12

45-26″

1.2×1.2×1.5

15

26

1.95

29.25

29.60

67

20

12

45-28″

1.2×1.2×1.5

15

28

2.10

31.50

31.85

72

20

12

45-30″

1.2×1.2×1.5

15

30

2.25

33.75

34.10

77

20

12
