Europe style for American Type Bottom Mounted Powder Coated Drawer Slide - Full extension push to open under mount drawer slides with adjustable pins – Yangli Detail:

Description:
Product Name: Full extension push to open under mount drawer slides with adjustable pins
Product Material: Galvanized Sheet
Material Thickness: 1.8×1.5×1.0mm
Selectable Accessories: Adjustment Screws
Load Rating: 35 KGS ( 450mm as standard )
Cycling: Over 50,000 times, PASS THE TEST BY SGS
Size Range: 12″/300mm – 22″/550mm, customized is available
Special Function: Push to open
Installation: Connect with adjustment screws
Application: Frameless Cabinet Drawer
The Adjustable Screws Adjusting Range: 4.5mm (Up and Down)

Product Details:

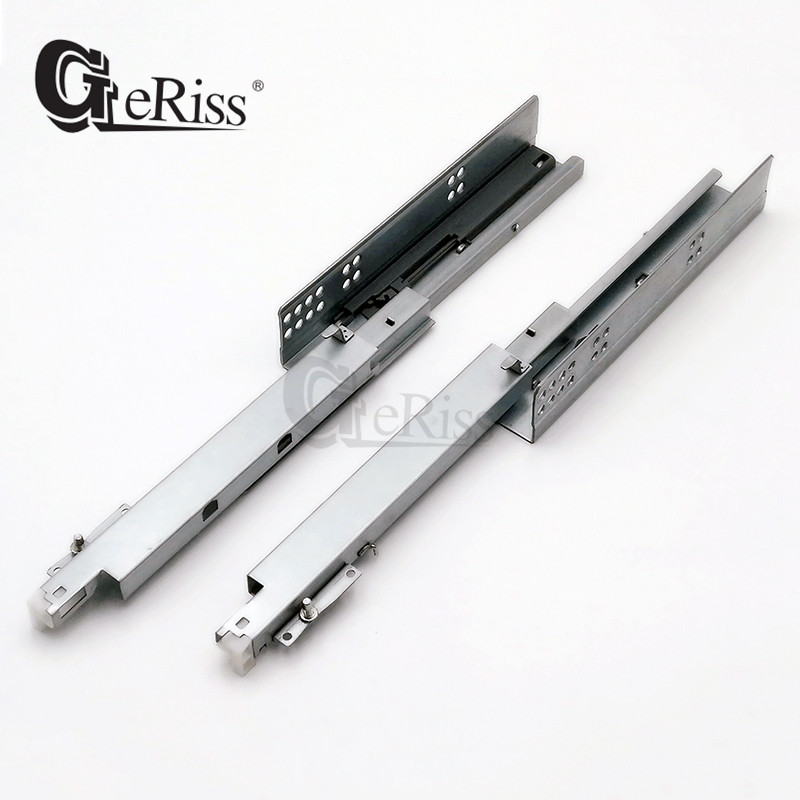

bottom hidden drawer slide

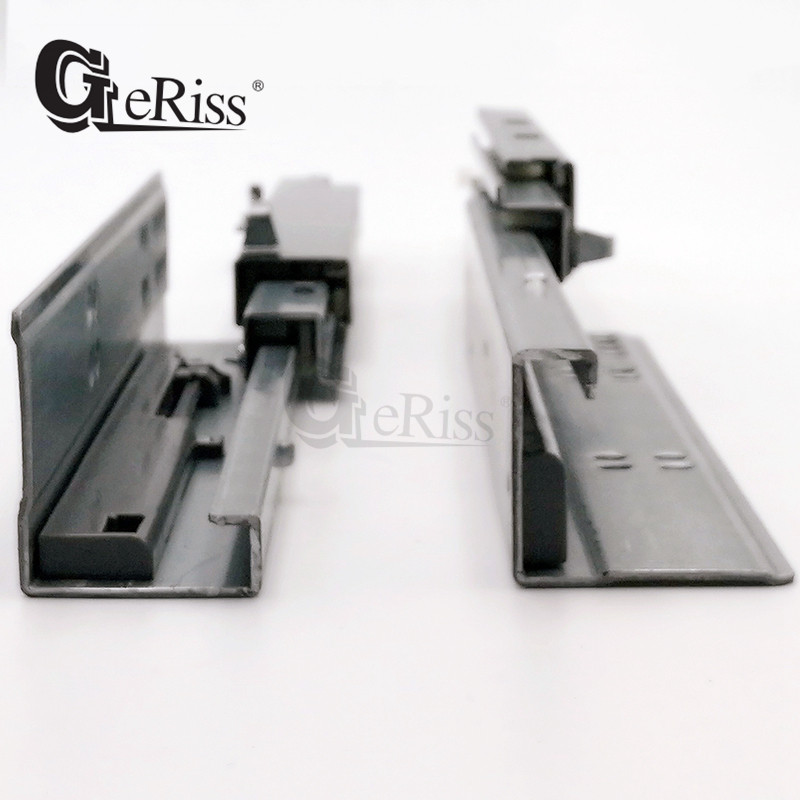

full extension bottom mount drawer slides

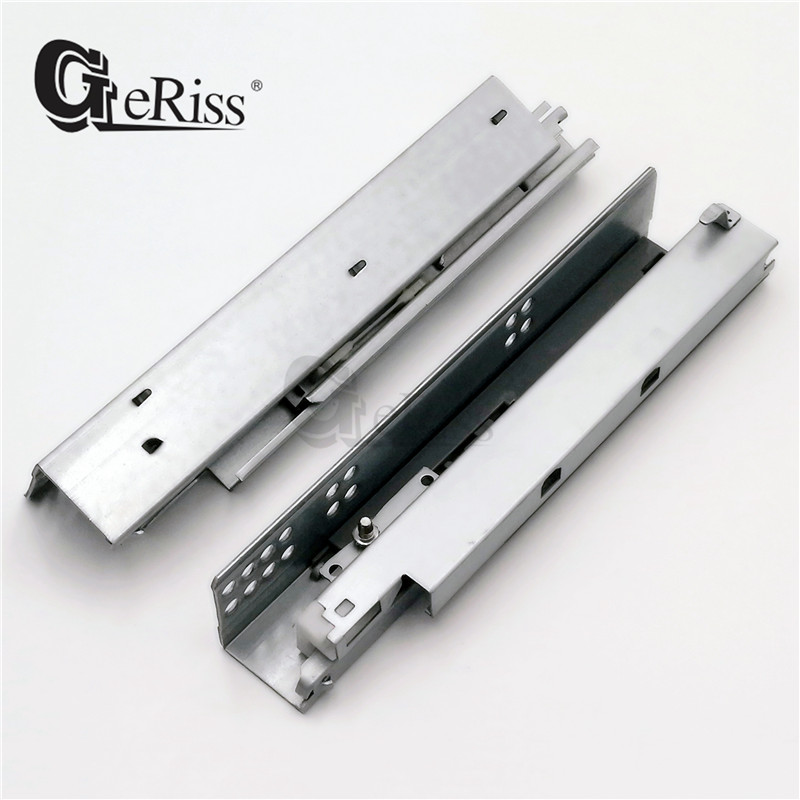

bottom mount drawer slide

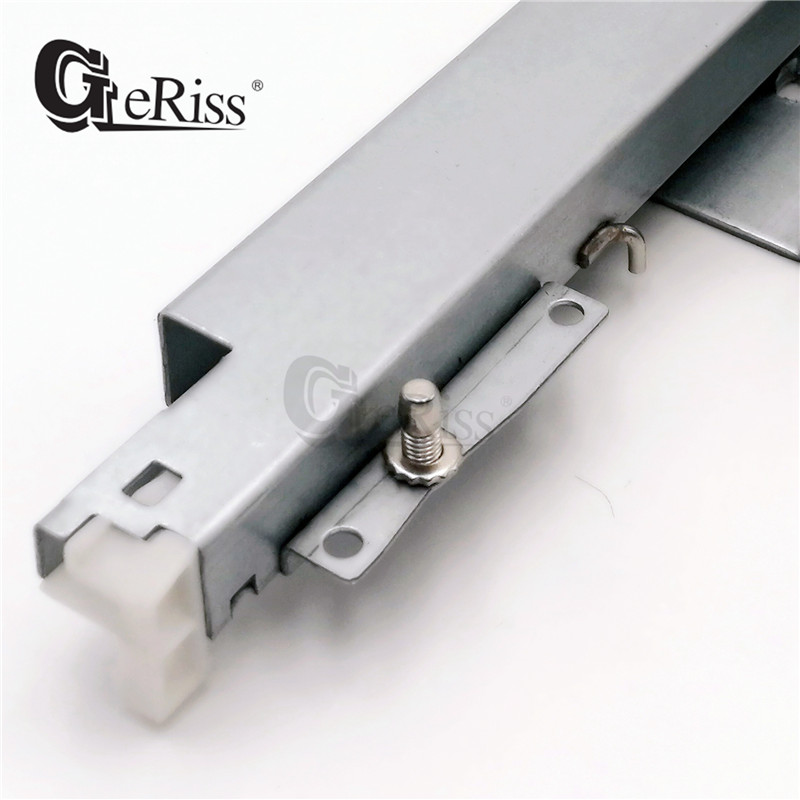

bottom mount drawer slide mounting drawer slide

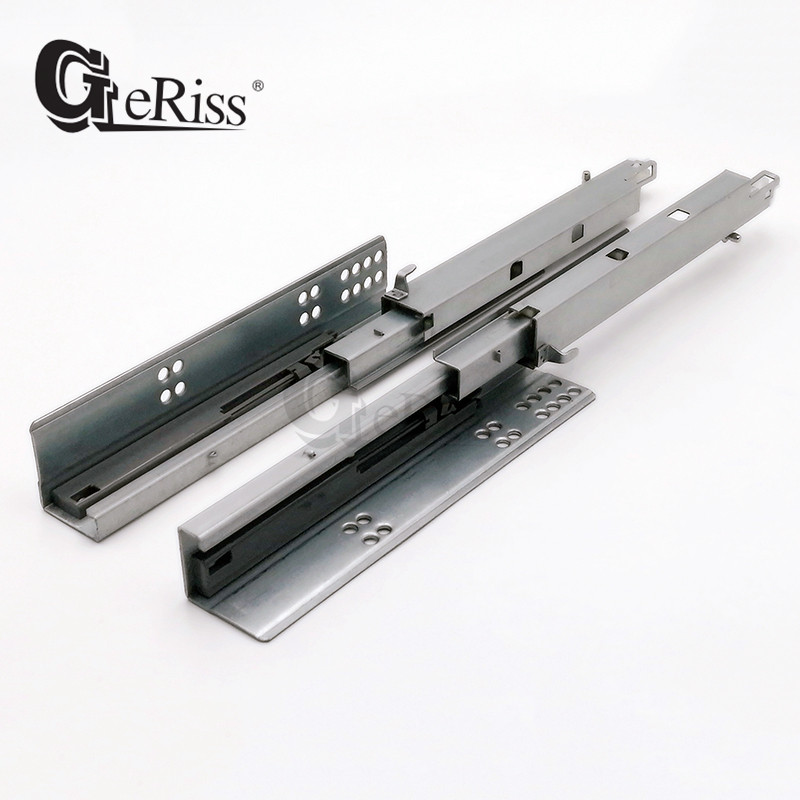

runner hidden drawer slide sail brand microscope slide

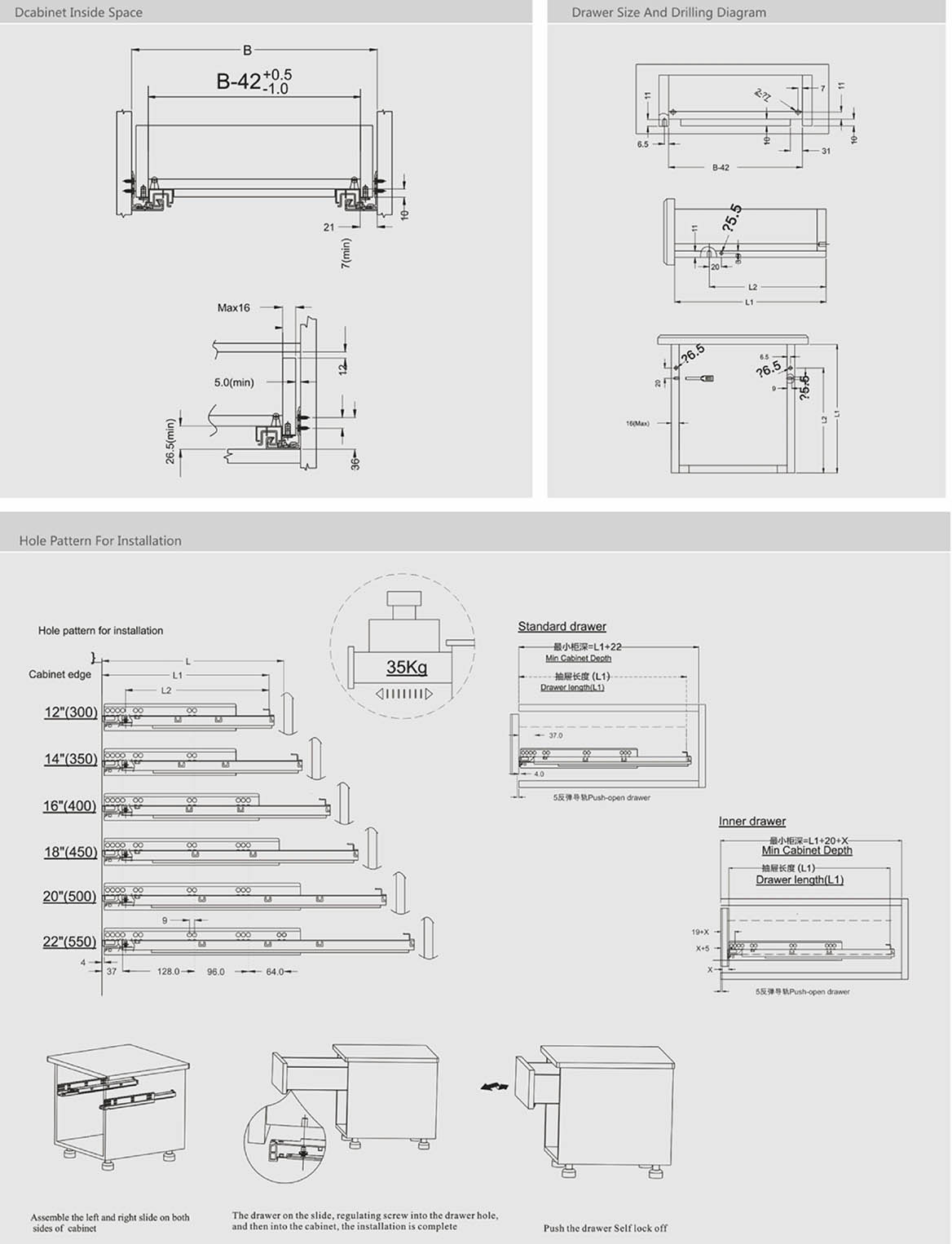

bottom mounting drawer rails1

Order Information:

Item No

Slide Length

Drawer Length

Push-open Length

Min Cabinet Depth

Assembling hole

Packing Unit
(set/box)

EUR33C-12″/300

307mm

300mm

295mm

322mm

256mm

10

EUR33C-14″/350

357mm

350mm

335mm

372mm

306mm

10

EUR33C-16″/400

407mm

400mm

385mm

422mm

356mm

10

EUR33C-18″/450

457mm

450mm

435mm

472mm

406mm

10

EUR33C-20″/500

507mm

500mm

485mm

522mm

456mm

10

EUR33C-22″/550

557mm

550mm

535mm

572mm

506mm

10

Packing Information:

ITEM NO.

SIZE

SET/CTN

N.W(KGS)/CTN

G.W(KGS)/CTN

EUR33C.300

300mm

10

14.34

14.54

EUR33C.350

350mm

10

15.36

15.56

EUR33C.400

400mm

10

16.55

16.75

EUR33C.450

450mm

10

18.85

19.05

EUR33C.500

500mm

10

21.05

21.25

EUR33C.550

550mm

10

23.40

23.60
