Description:
Type: 27mm Single extension side mount telescopic drawer slide channel
Function: Smooth moving without noise
Width: 27mm
Length:150mm – 450mm, customized is available.
Installation thickness: 10 mm
Surface: Zinc plated, electrophoresis black, customized is available.
Load Capacity: 10 KGS
Cycling: over 50,000 times.
Material: Cold Rolled Steel.
Material Thickness: 1.2×1.2 mm
Installation: side mounting with screws
Application: Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Civil Furniture, etc…

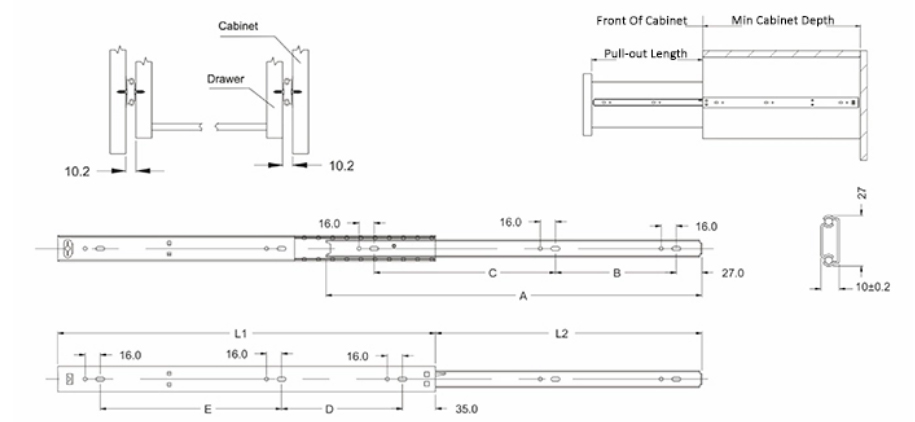

Product Details:
Order Information:
|
Item No |
Slide Length |
Pull-out Length(L2) |
Hole Location Size |
||||
|
A |
B |
C |
D |
E |
|||
| YA-2701-10″ |
250mm |
177mm |
248mm |
192mm |
- |
128mm |
- |
| YA-2701-12″ |
300mm |
188mm |
298mm |
128mm |
96mm |
128mm |
96mm |
| YA-2701-14″ |
350mm |
247mm |
348mm |
128mm |
160mm |
128mm |
128mm |
| YA-2701-16″ |
400mm |
282mm |
398mm |
128mm |
192mm |
128mm |
192mm |
| YA-2701-18″ |
450mm |
317mm |
448mm |
160mm |
192mm |
160mm |
192mm |
| YA-2701-20″ |
500mm |
352mm |
498mm |
192mm |
192mm |
192mm |
192mm |
| YA-2701-22″ |
550mm |
390mm |
548mm |
224mm |
224mm |
224mm |
224mm |
| YA-2701-24″ |
600mm |
426mm |
598mm |
256mm |
256mm |
256mm |
256mm |
|
Note: |
Hole Location size and slide length also can cutomized,pls do not hesitate to contact us. | ||||||
Packing Information:
|
Product Name |
Length(mm) |
Package(set/carton) |
N.W(KGS) |
G.W(KGS) |
MEAS(CM) |
|
Two-section ball bearing drawer runners 27mm (1.2*1.2mm Mateiral Thickness) |
250 |
25 |
8.13 |
8.28 |
26*17*10 |
|
300 |
25 |
9.75 |
9.90 |
31*17*10 |
|
|
350 |
25 |
11.38 |
11.53 |
36*17*10 |
|
|
400 |
25 |
13.00 |
13.15 |
41*17*10 |
|
|
450 |
25 |
14.63 |
14.83 |
46*17*10 |
|
|
500 |
25 |
16.25 |
16.45 |
51*17*10 |
|
|
550 |
25 |
17.88 |
18.10 |
56*17*10 |
|
|
600 |
25 |
19.50 |
19.80 |
61*17*10 |

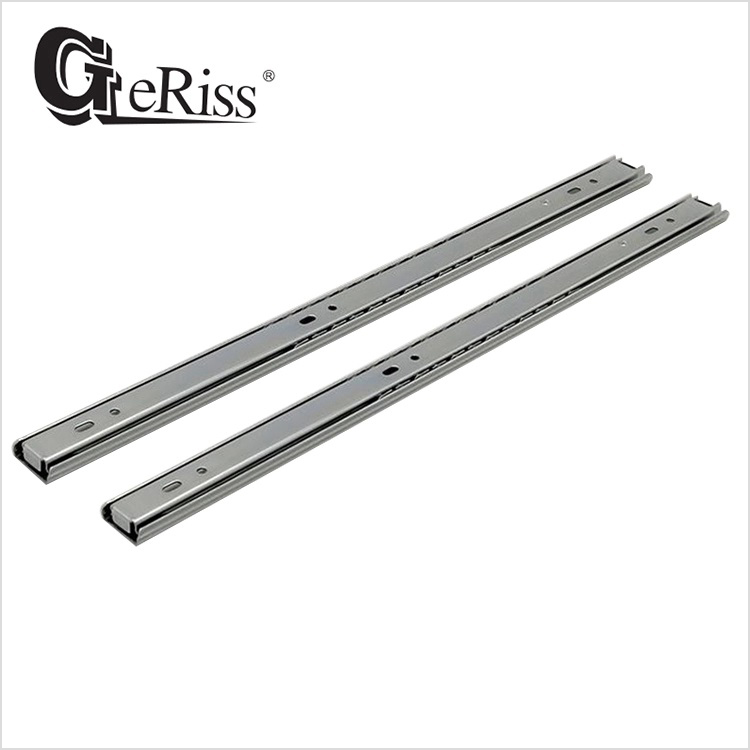

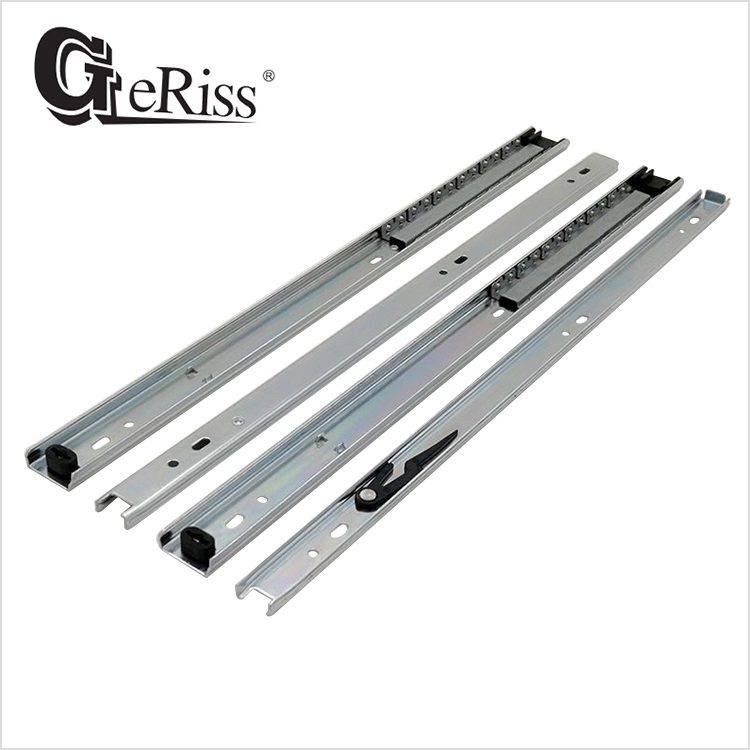

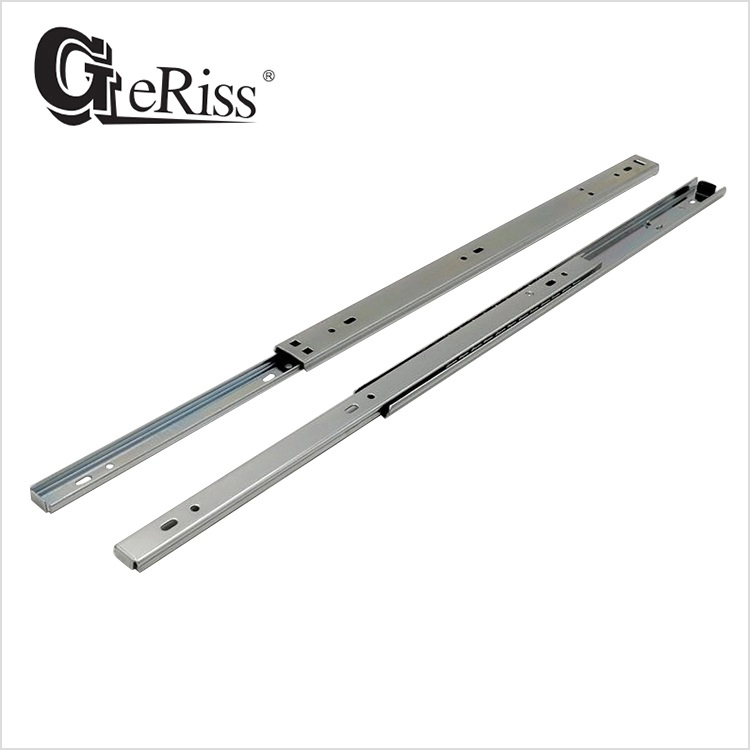

Product detail pictures:
