Best quality Installing Undermount Soft Close Drawer Slides - Full extension soft close undermount drawer slide for face frame cabinet – Yangli Detail:

Description:
Product Name: Full extension soft close undermount drawer slide for face frame cabinet
Product Material: Galvanized Sheet
Material Thickness: 1.8×1.5×1.0mm
Selectable Accessories: Plastic Back Connectors,Metal Back Connectors
Load Rating: 35 KGS ( 450mm as standard )
Cycling: Over 50,000 times , PASS THE TEST BY SGS
Size Range: 12″/305mm,15″/381mm,18″/457mm,21″/533mm, customized is available
Special Function: Silent smooth soft close
Installation: connect with adjustment pins and back connectors
Application: American face frame cabinet drawers
The Adjustable Screws Adjusting Range: 4.5mm (Up and Down)

Product Details:

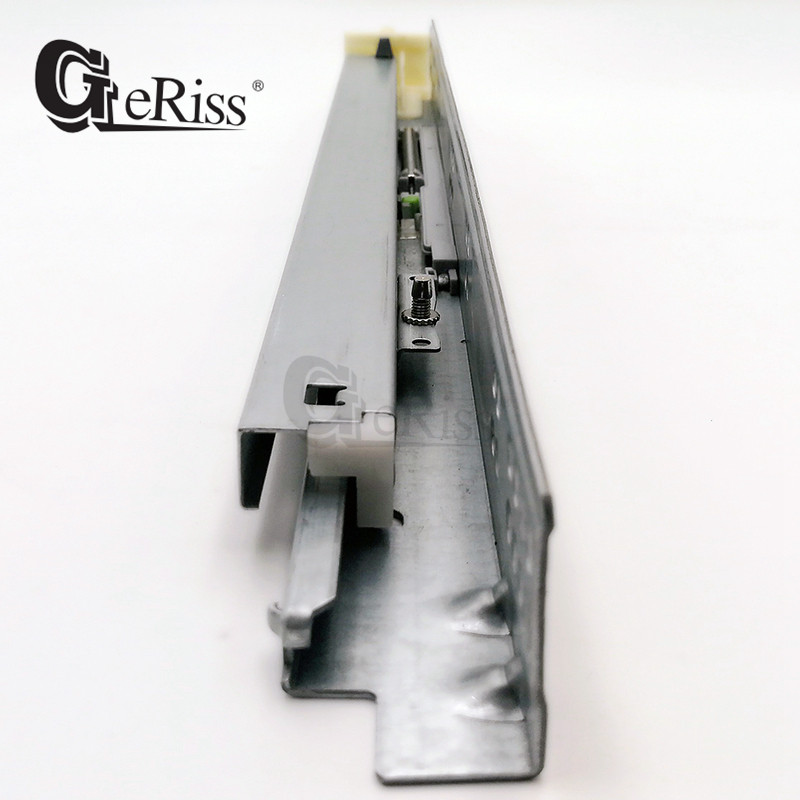

533 drawer slides

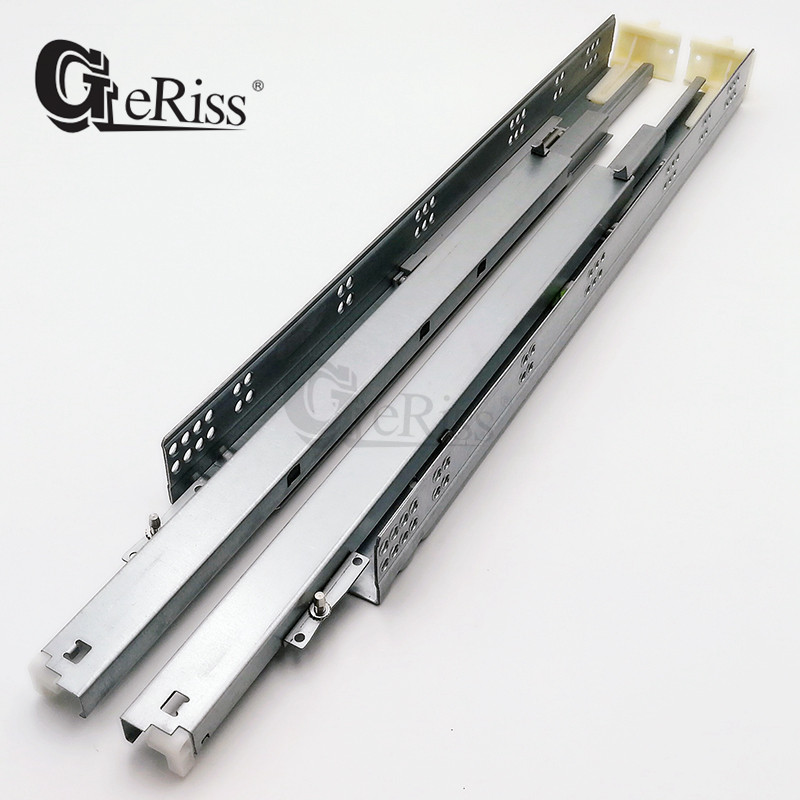

dtc 533 drawer slides accessories for kitchen cabinets
american style full extension undermount soft close drawer slide

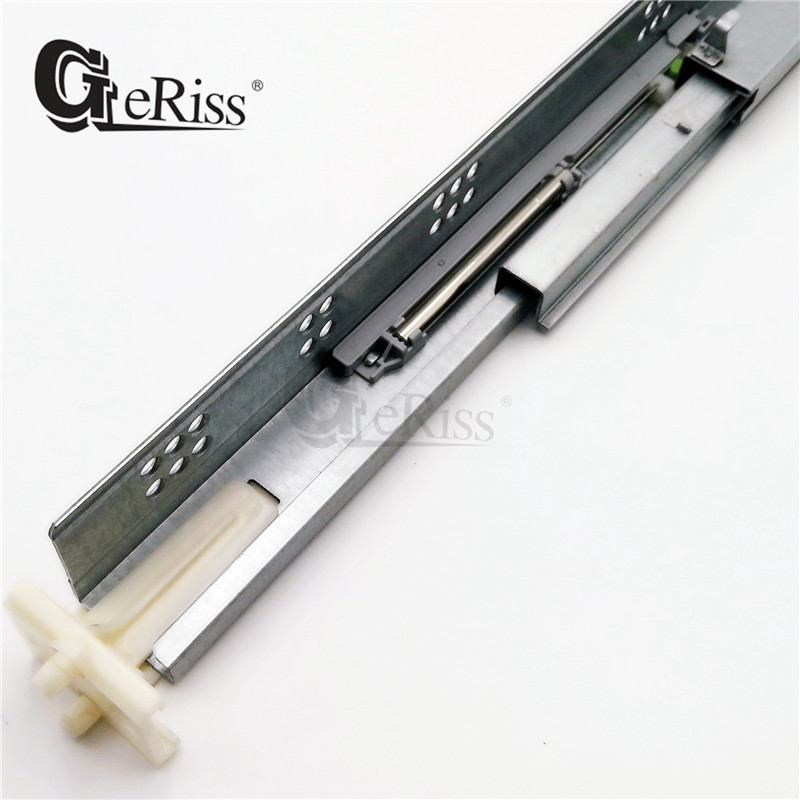

kitchen cabinet dtc 533 drawer slides accessories for kitchen cabinets

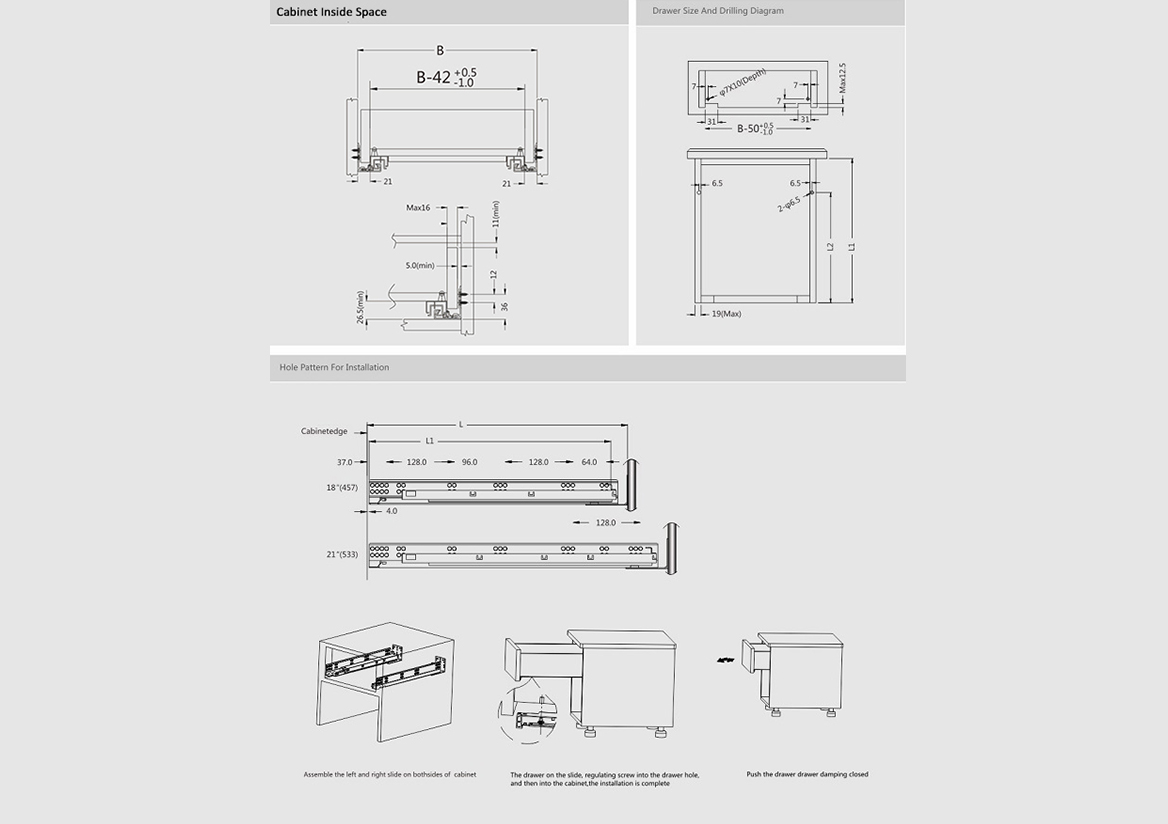

How To Install Undermount Drawer Slides With Face Frame Cabinets1

Order Information:

ITEM NO.

Slide Length

Drawer Length(L1)

Installation Hole

Min Cabinet Depth

Packing (Set/Ctn)

US33A-457

470mm

457mm

343mm

493mm

10

US33A-533

546mm

533mm

381mm

569mm

10

Packing Information:

ITEM NO

SIZE

SET/CTN

N.W(KG)

G.W(KG)

MEAS(CM)

US33A16-305

12″/305mm

10

15.00

15.50

42*29*13

US33A16-381

15″/381mm

10

15.50

16.00

50*29*13

US33A16-457

18″/457mm

10

23.40

23.90

57*29*13

US33A16-533

21″/533mm

10

27.30

27.50

65*29*13

Double Wall Drawer System-03
Double Wall Drawer System-04

Product detail pictures:

Best quality Installing Undermount Soft Close Drawer Slides - Full extension soft close undermount drawer slide for face frame cabinet – Yangli detail pictures

Best quality Installing Undermount Soft Close Drawer Slides - Full extension soft close undermount drawer slide for face frame cabinet – Yangli detail pictures

Best quality Installing Undermount Soft Close Drawer Slides - Full extension soft close undermount drawer slide for face frame cabinet – Yangli detail pictures
